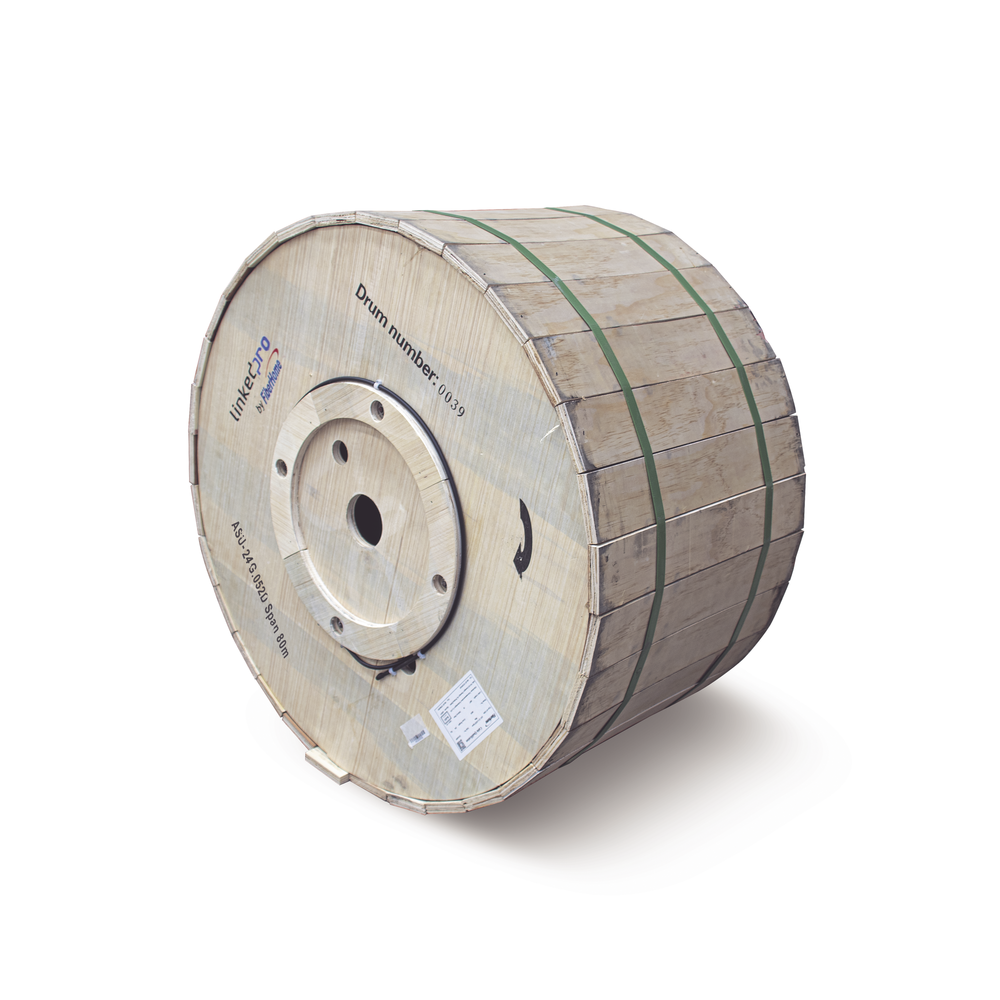

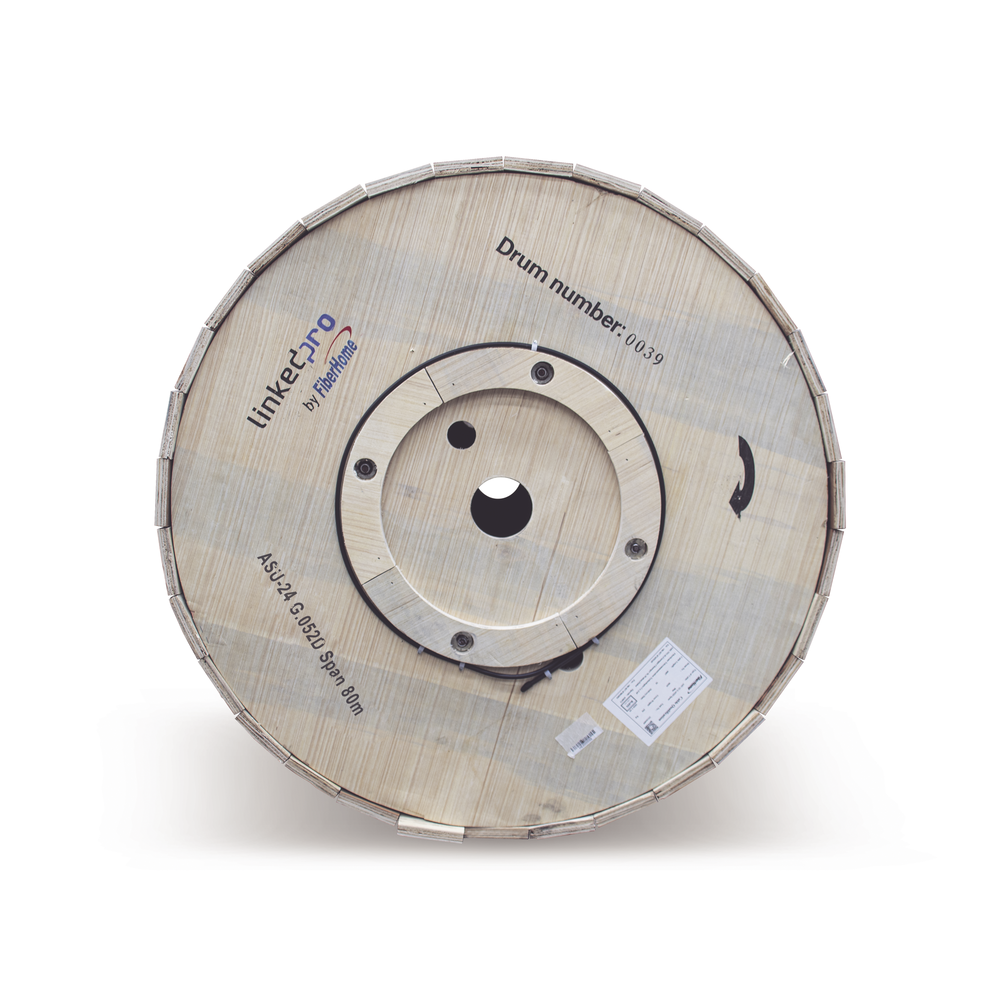

4km reel of G.652D Mini ADSS (ASU) Aerial Optical Fiber, 24-Wire Single-Mode, Outdoor, Span 80, Loose Tube

4km reel of G.652D Mini ADSS (ASU) Aerial Optical Fiber, 24-Wire Single-Mode, Outdoor, Span 80, Loose Tube

Mini ADSS (All Dielectric Self-Supported) fiber optic cable is designed for aerial installations between poles. Mini ADSS cables withstand the necessary tensile strength thanks to their reinforcing elements; they contain no metallic elements.

Technical Specifications:

• Fiber Optic Mini ADSS G.652D Singlemode Loose Tube
• Outer Cover: MDPE (Medium Density Polyethylene)
• Maximum tension: 800N (Operation), 1500N (Installation)
• Operating temperature: -20ºC ～ +65ºC
• Span (Distance between Poles): 80 meters
• UV and moisture protection
• Nominal diameter (D): 6.8 mm
• Minimum bending radius: Installation 25D, Operation 12.5D
• Crush resistance: 1000N/10cm
• Rated weight (kg/km): 45 kg/km
• 24 threads
• Black Lining
• 4 km reel
• Dimensions (mm): 850 x 850 x 535
• Gross Reel Weight (4 km): 200 kg

Note: Free shipping (major cities only; does not apply to extended areas). For orders of 10 or more reels, a forklift or ramp is required for loading/unloading and/or moving.

Outer Cover: MDPE (Medium Density Polyethylene), Operating Temperature: -20ºC to +65ºC, Maximum Tension: 800N (Operation), 1500N (Installation), Span (Distance between Poles): 80 meters
