Meter of Coaxial Cable RG-142, MIL-C-17, 50 Ohms

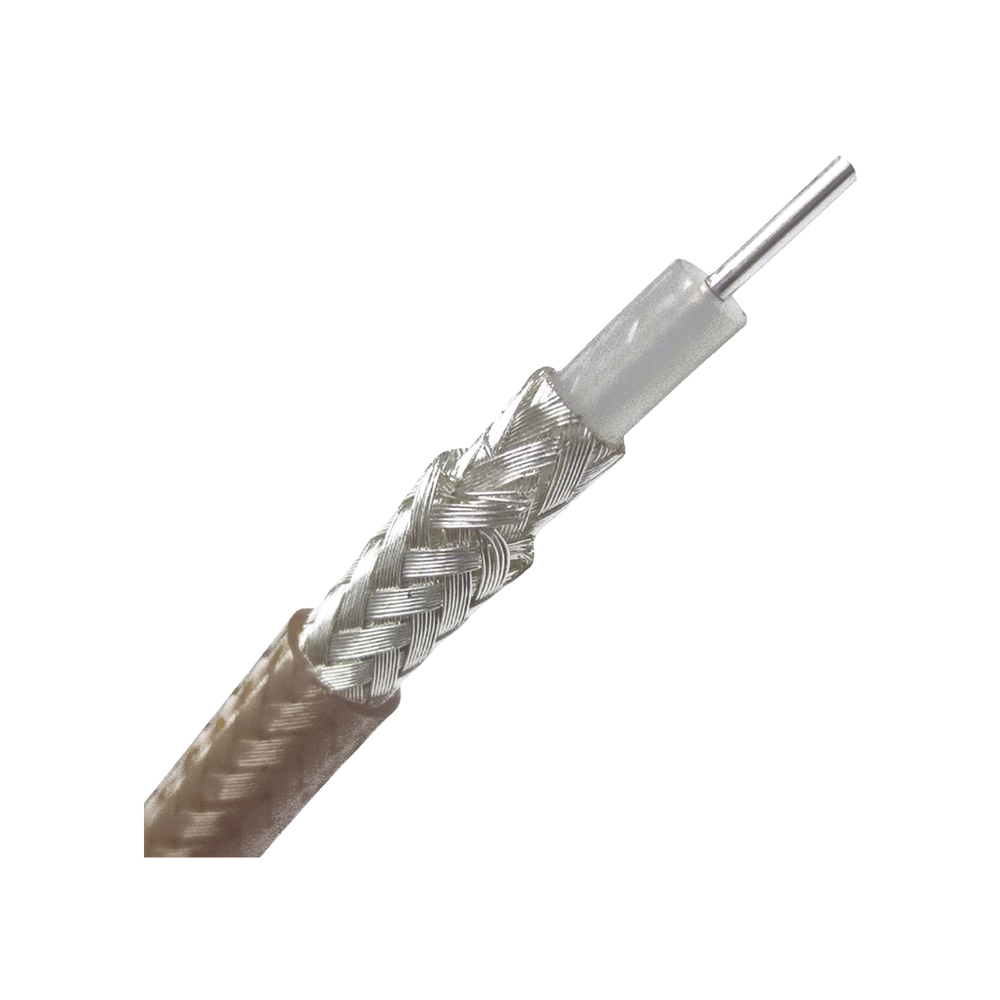

RG-142 Coaxial Cable

• M17/RG are traditional MIL Spec coaxial cables originally created to support military applications, these cables quickly became the products of choice for commercial wireless applications.

Advantages offered by the RG-142 cable

• Attenuation Stability: Silver-plated outer conductor prevents oxidation by minimizing the change in attenuation over time.
• Shielding effectiveness: range of 40 to 60dB, acceptable for many applications.
• Wide temperature range.
• Mechanical Properties: Solid dielectric offers superior crush resistance.

Ideal for:

• Jumpers for communication systems.
• Radio interconnection.
• MIL Spec Requirements
• Low PIM applications.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 4.7 dB.
• Attenuation at 30 mts. at 450 MHz: 8.4 dB.

Construction Specifications

• Center Conductor Material: SCCS, Copper Clad Steel and Silver Plated.
• Cable Outer Diameter: 4.95 mm
• Inner Conductor Diameter: 0.94 mm.
• Shielding: Double silver-coated copper mesh.
• Dielectric Insulation: PTFE, Solid Polytetrafluoroethylene.

Meets MIL-C-17, Low PIM, Good shielding efficiency
