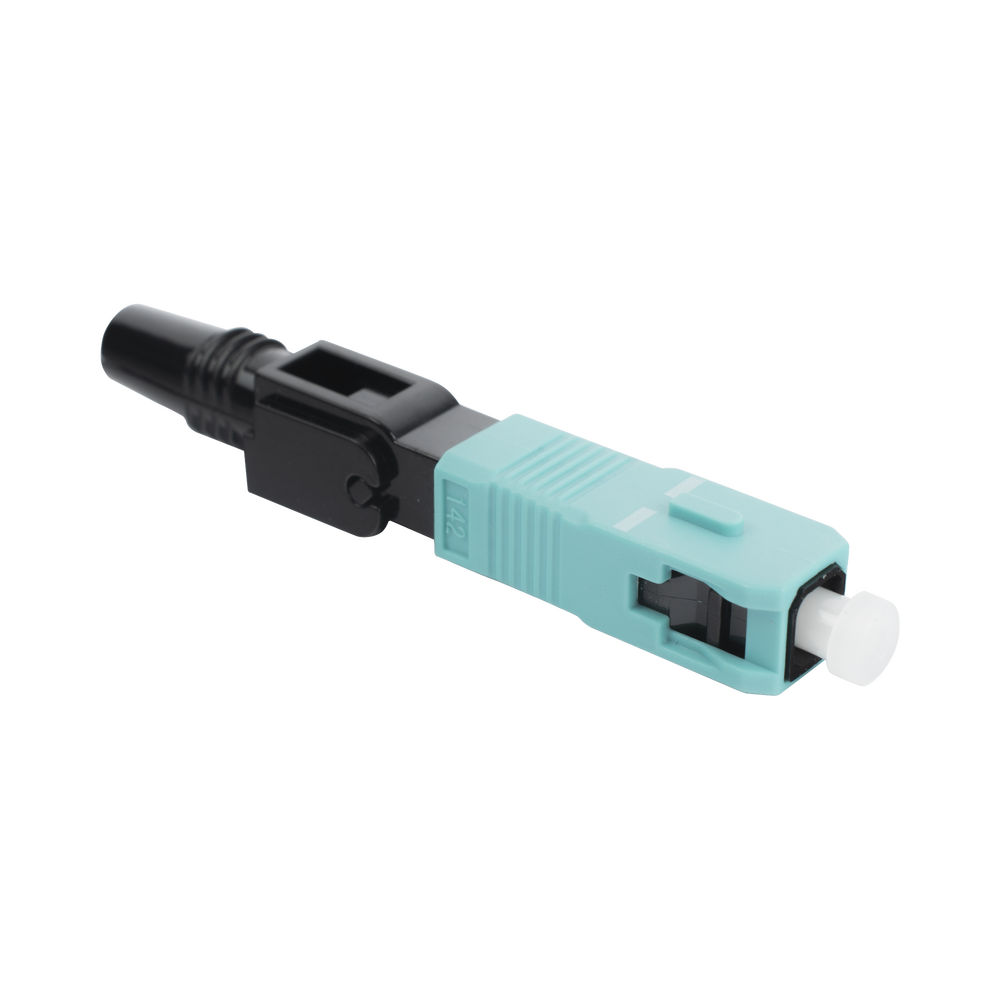

Field-Installable Mechanical Connector, SC/UPC Multimode, Pre-Polished, Re-Terminatable

Field-Installable Mechanical Connector, Multimode SC/UPC, Pre-polished, Re-terminable

The LP-MM-SCUPC mechanical connector is designed for field termination, especially for structured cabling applications, quick and easy installation of multimode fiber optic cables without the need for special tools to open or close the connector.

Specs:

• Connector for Multimode fiber OM1 (62.5/125 μm), OM2, OM3, OM4 50/125 μm.
• Connector Type: SC/UPC
• For Tight Buffer fiber (900µm)
• Reterminable (up to 3 times)
• Insertion loss:
  • Maximum ≤ 0.50 dB
  • Typical ≤ 0.30 dB
• Return loss:
  • UPC ≤ 50 dB
  • APC ≤ 55 dB
• Operating temperature: -40 to 70ºC

For Tight Buffer fiber (900µm), Special for Structured Cabling Applications, Reterminable (up to 3 times)
