Dual G/EPON ONU with 1 SC/APC Port + 1 Gigabit LAN Port + 1 CATV Port

• The V2801D-1GT1 (XPON 1GE+CATV ONT) is specifically designed to meet the needs of telecom operators in FTTO (office), FTTD (desktop), FTTH (home), TV, and other industries. The ONT is based on a high-performance chip solution, supports dual-mode (EPON and GPON), and also supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.
  The ONT is highly reliable and can be used in wide-temperature environments. It also features powerful firewall functions and is easy to manage and maintain. It can provide quality of service guarantees for various services. It complies with international technical standards such as IEEE802.3ah and ITU-T G.984.

Dual EPON/GPON ONU

• • • • • • • • 1 RJ45 10/100/1000 port
              • 1 SC/APC PON port
              • 1 CATV port
              • Supports EPON PX20 / GPON Class B+
              • Optical receiving sensitivity: ≤-27dBm
              • Distance of 20 km
              • Local management software .
              • Remote management software .
              • Management from mobile APP .

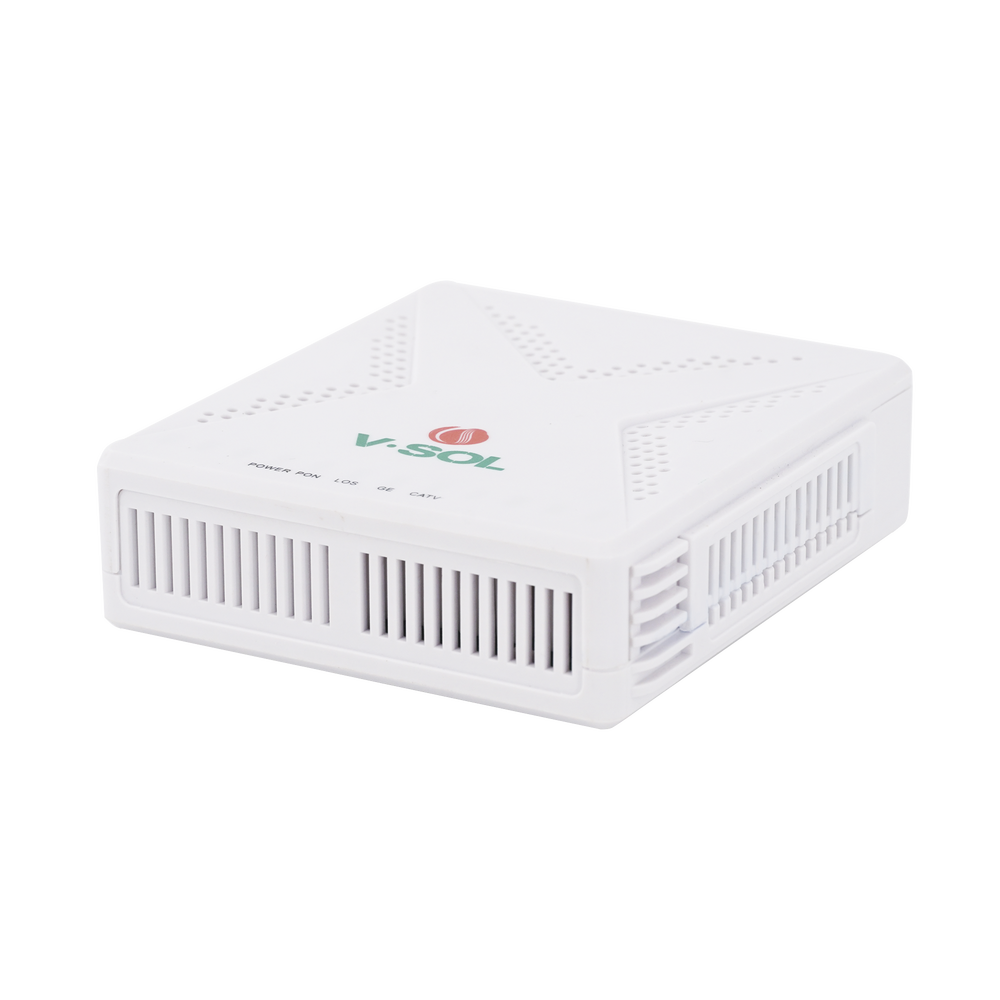

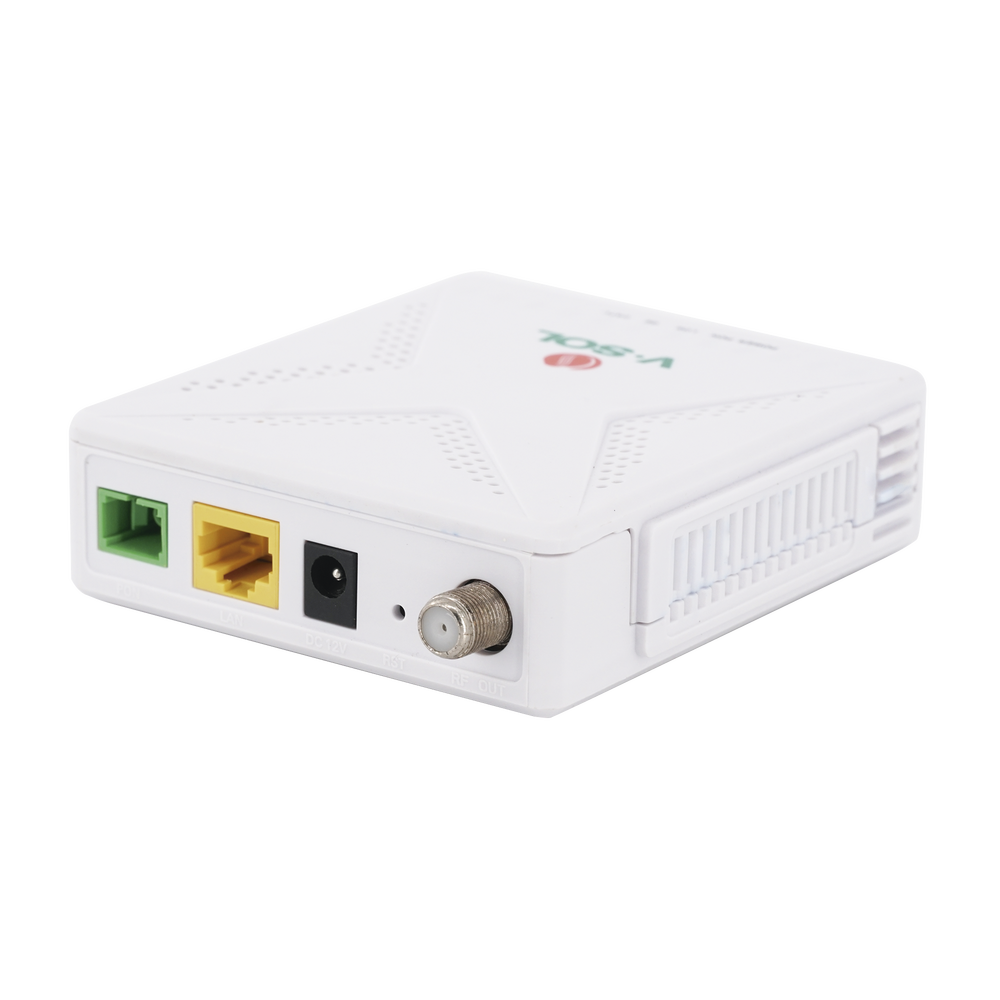

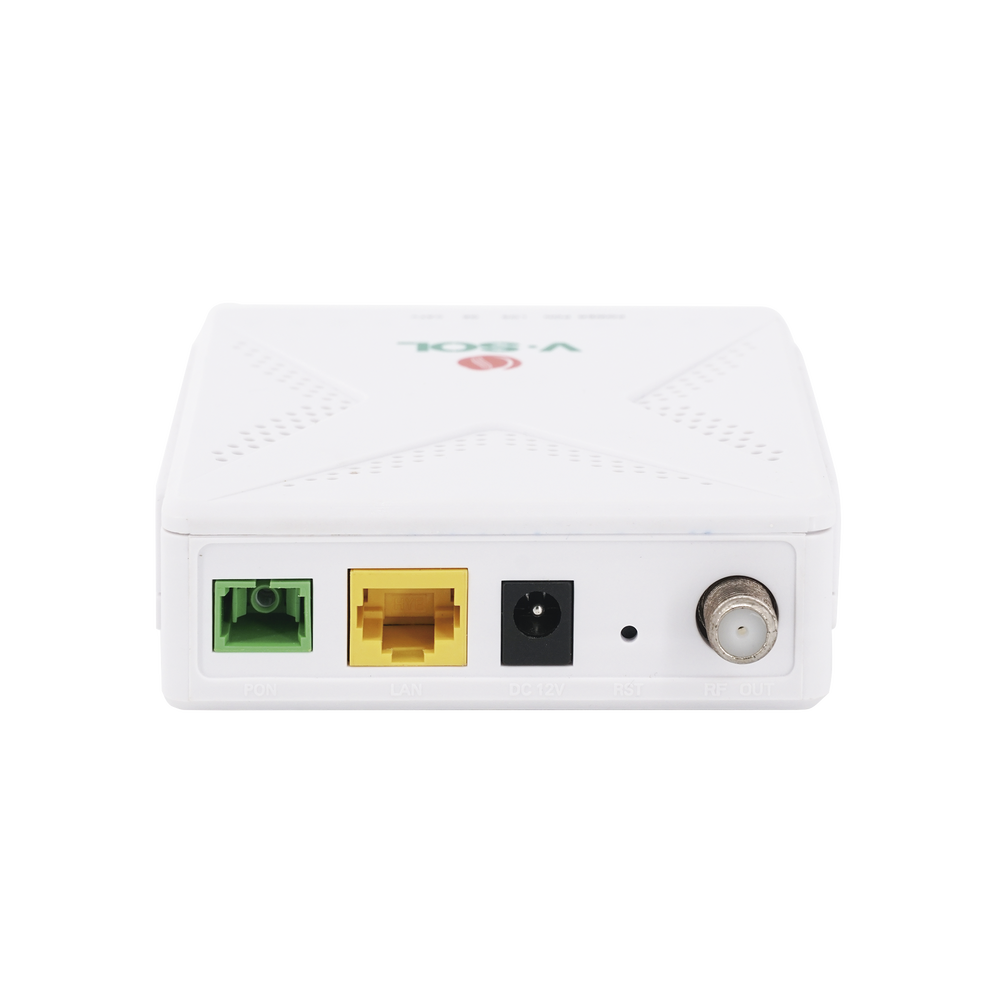

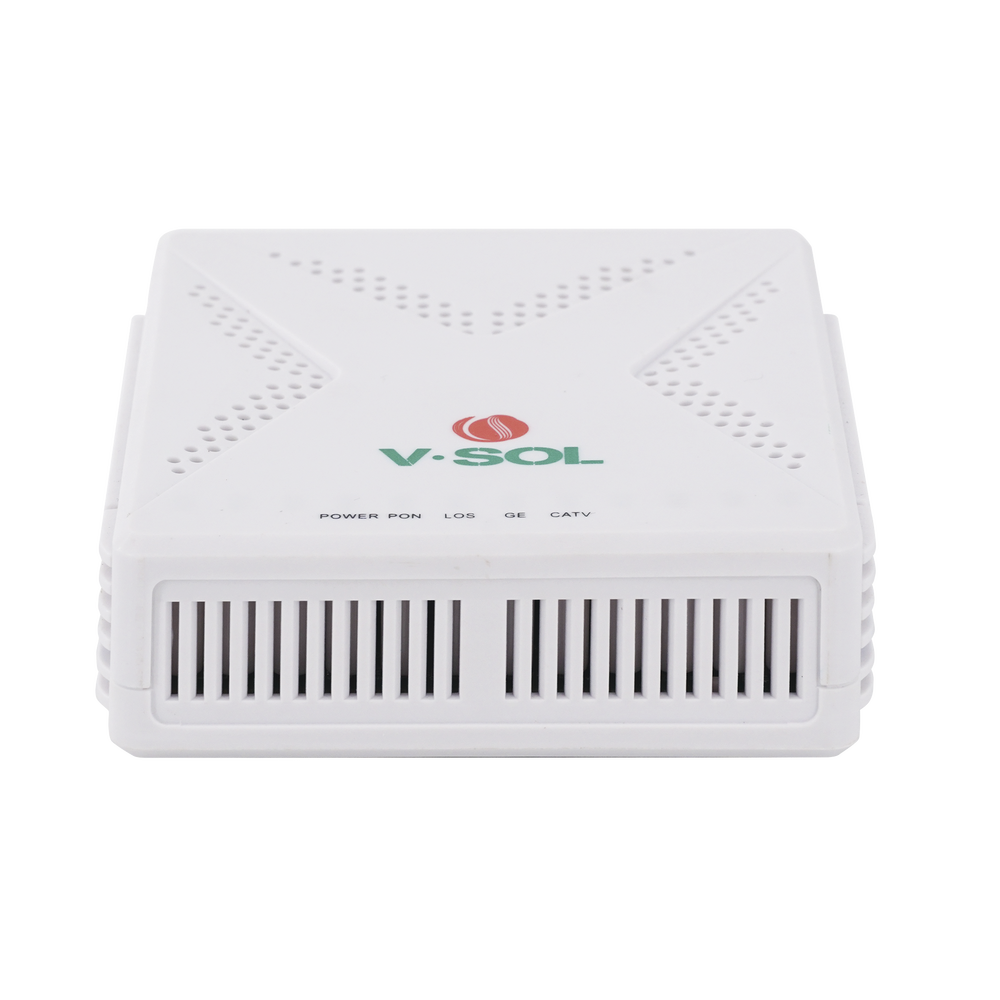

CATV ONT V2801D-1GT1

XPON Dual Mode | Gigabit LAN | CATV Service

Supports HGU/SFU function, flexible access network

Supports bridge mode and router mode

Flexible choice

Satisfy customer needs

Small size, Plug & Play

Easy to deploy

GPON/EPON dual-mode, small footprint, mobile app management, remote management software
