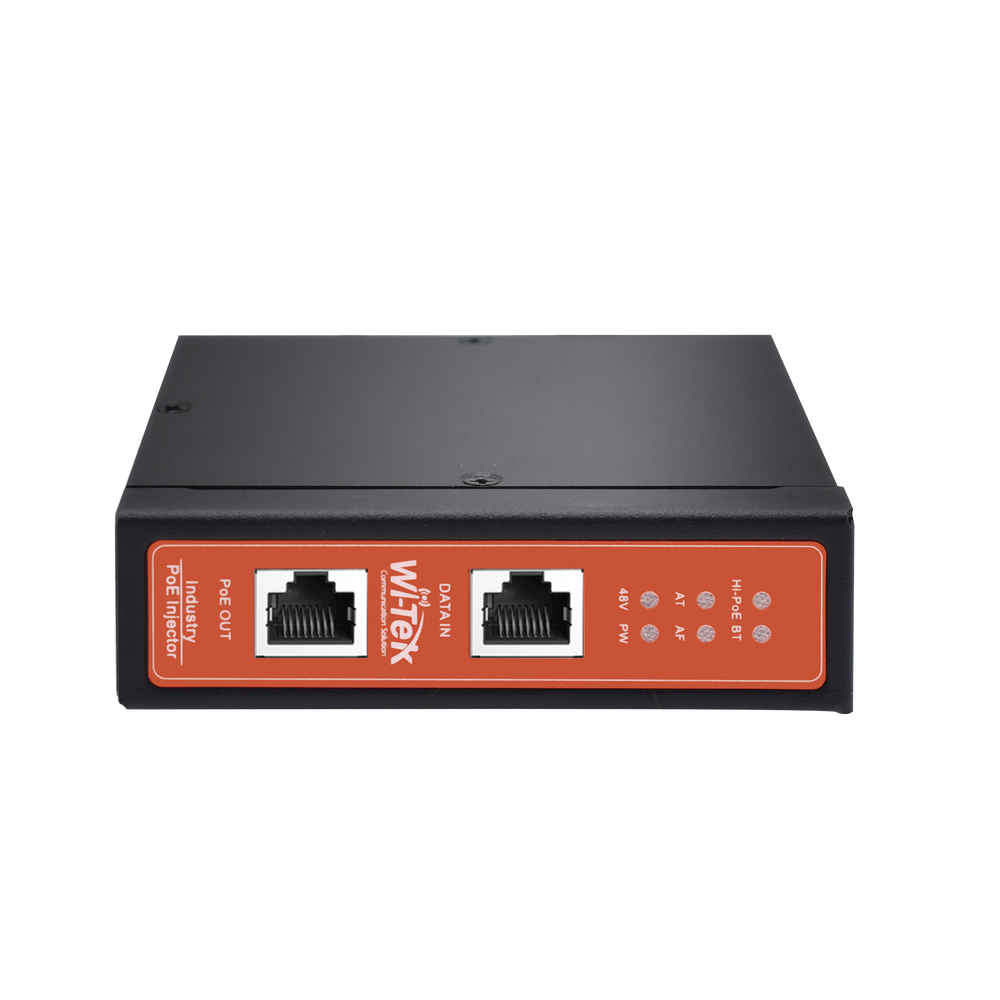

Industrial PoE Injector / DC input 12-57V / PoE output up to 90W / Metal housing / DIN rail / CCTV applications

Industrial PoE Injector / DC input 12-57V / PoE output up to 90W / Metal housing / DIN rail / CCTV applications

It has a reliable and efficient power supply system.

It adopts 12-57V DC power supply technology, with 48V PoE injector to solve the power supply problem, and provides an integrated power solution with a wide range of voltages.

Smart LED Indicator

Helps users monitor the current power input status and PoE power usage easily and efficiently in real time through LED indicators.

All in one device

Plug and play, the equipment already includes everything you need to simply arrive, install, and connect the cameras. In traditional applications, a larger number of components are required for the same application.

---

Specs
Dimensions	186 x 93 x 41 mm
Network Interfaces	(2) 10/100/1000 Mbps RJ45

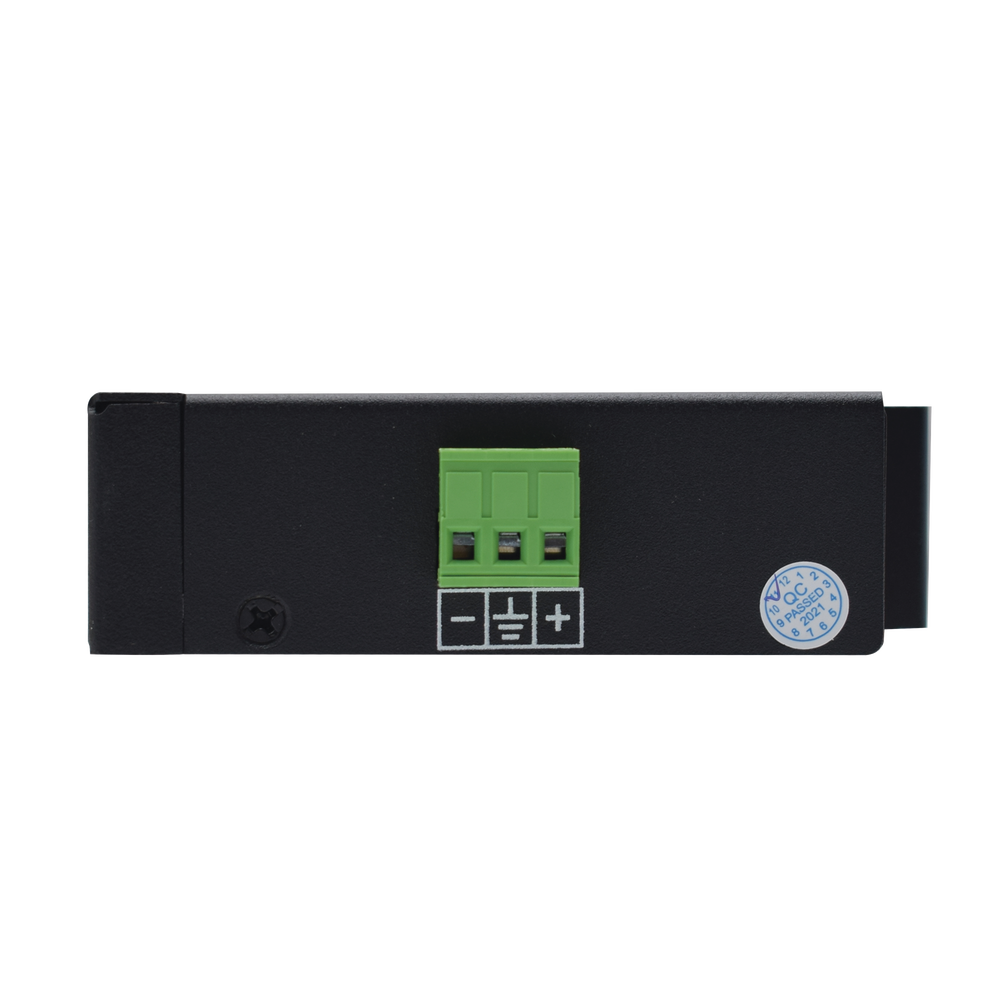

Power supply	12-57 Vdc
PoE ports (RJ45)	1 PoE port up to 90W
Bandwidth	2 Gbps
PoE PIN	1/2(-) 3/6(+); 4/5(+) 7/8(-)
Fans	No fans
Level of protection	Lightning protection 6KV 6KV ESD Contact discharge
Operating temperature	-40 to 80° C
Certifications	CE, FCC, RoHS
Characteristics
Transmission Method	Store-And-Forward
LED indicator	PoE bt: 90 W PoE at: 30 W PoE af: 15 W
Others
Package Contents	Industrial PoE injector Mounting kit User Guide/Warranty

PoE output up to 90 W, Temperature from -40 to 80 ° C, Voltage input 12 -57 V DC, 2 ports 100/1000 Mbps, Metal housing
