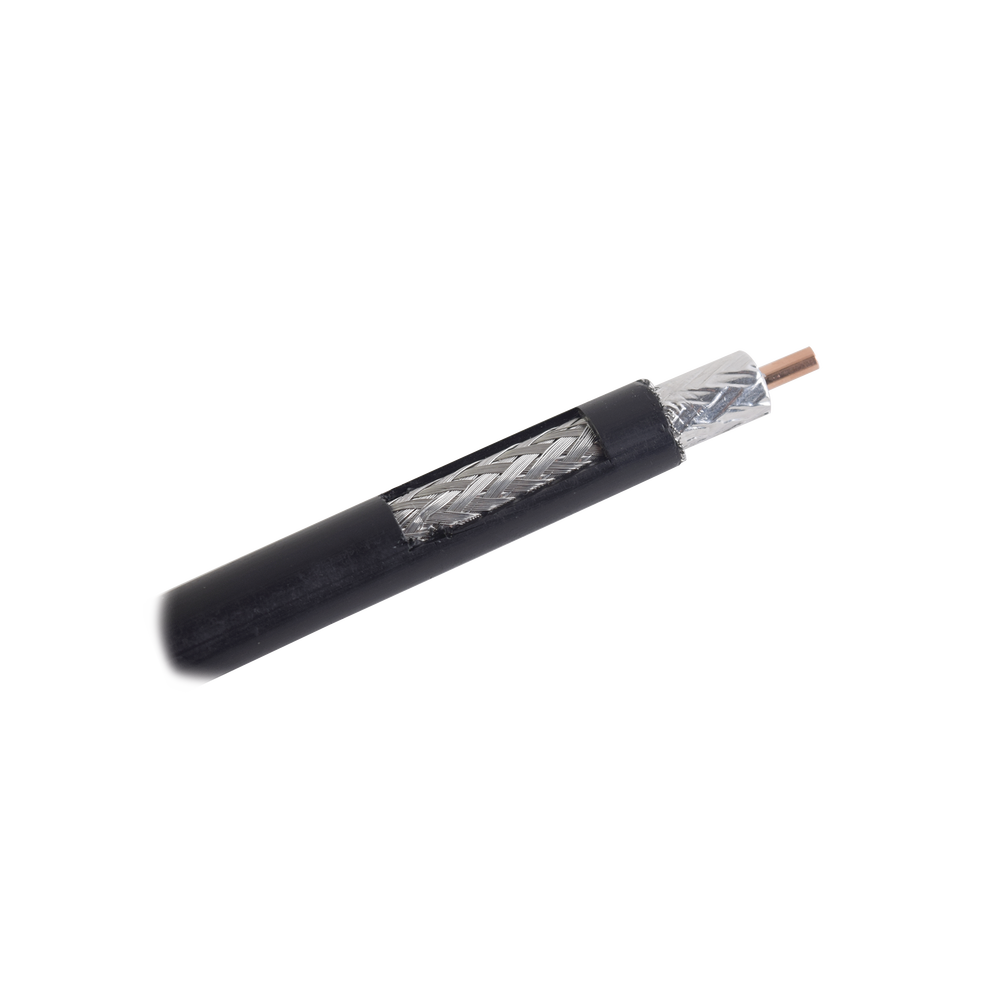

Meter of RG-8 LMRLW400 Low Loss Coaxial Cable, 50 Ohms

Meter of RG-8 LMRLW400 Low Loss Coaxial Cable, 50 Ohms

50 Ohm per meter Low Loss Coaxial Cable, Solid Copper Clad Aluminum Center Conductor

• High-performance Times LMR coaxial cable.
• Superior design with high flexibility and low loss, recommended for a wide variety of applications requiring a low-loss, easy-to-install RF cable.

Advantages of the LMR-400 Lite cable

• Direct replacement for models 9913 and CNT400.
• Cost and weight reduction thanks to its aluminum mesh .
• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Short cable installations.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 1.5 dB.
• Attenuation at 30 mts. at 450 MHz: 2.7 dB.
• Shielding Effectiveness: greater than 90 dB
• Speed ​​Factor: 85%.
• Nominal Power: 0.83 kW at 450 MHz.

Construction Specifications

• Center Conductor Material: Copper Clad Aluminum.
• Cable Outer Diameter: 10.29 mm
• Inner Conductor Diameter: 2.74 mm.
• Shielding: Aluminum Mesh.
• Dielectric Insulation: Polyethylene foam.

20 years of service abroad, Copper-coated conductor, Aluminum mesh
