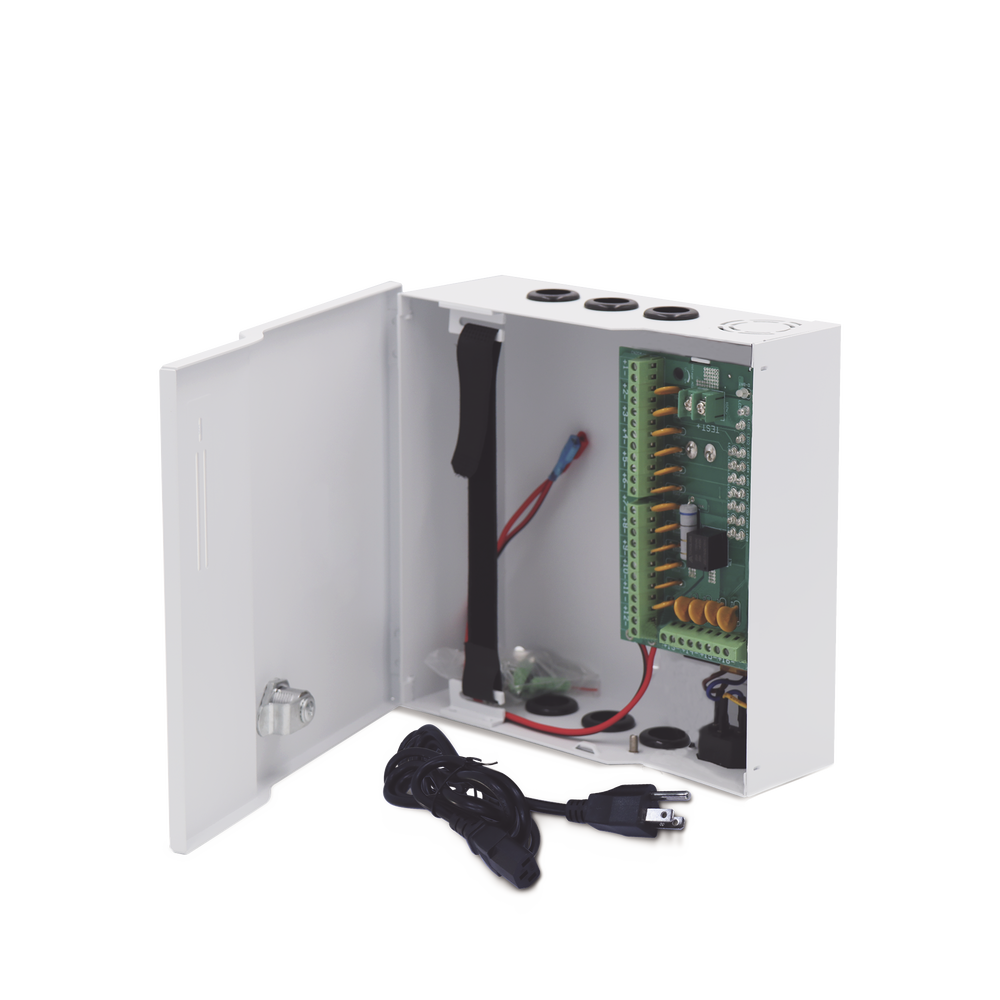

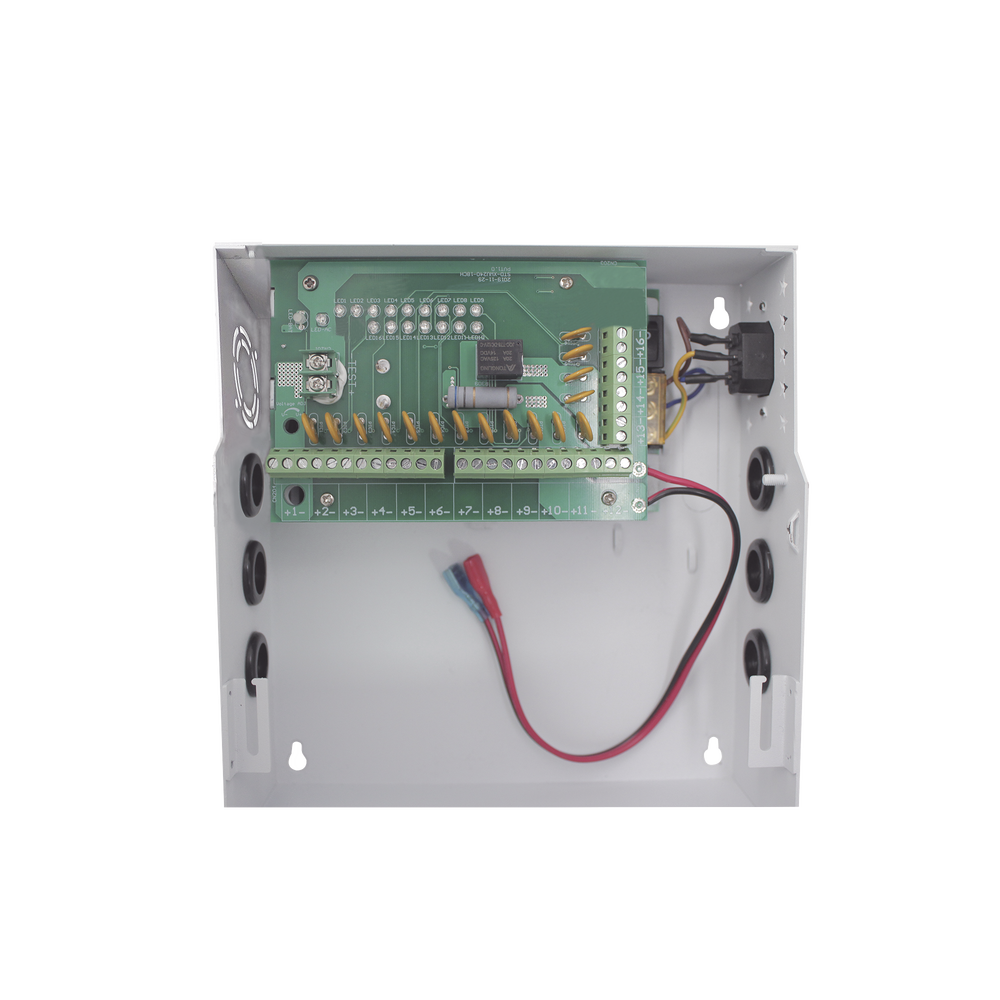

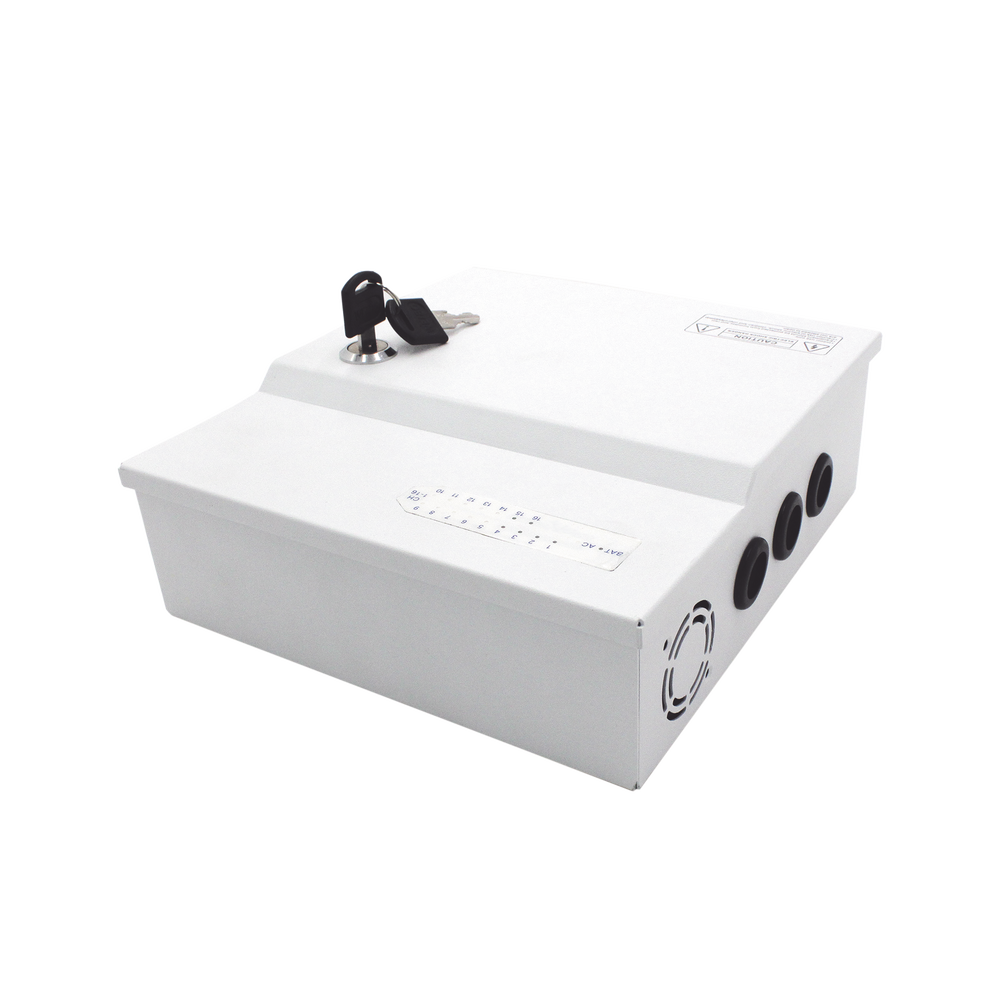

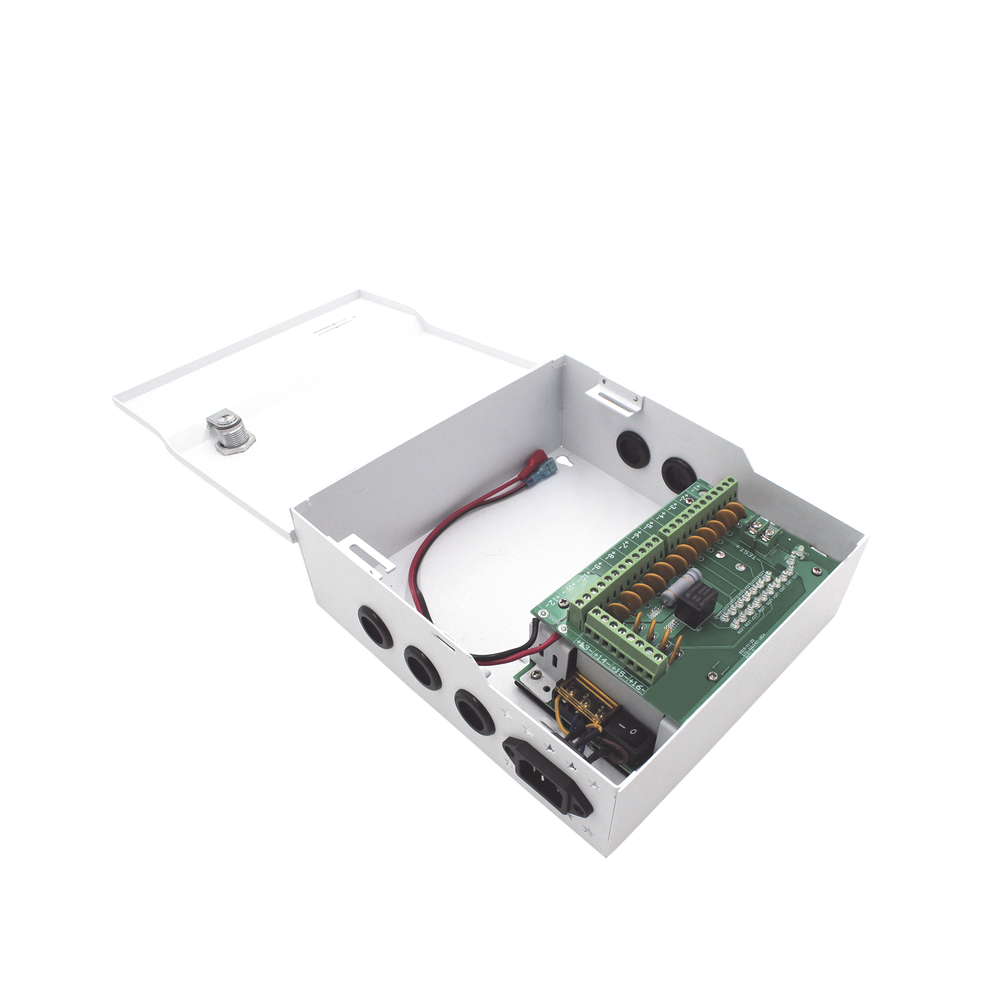

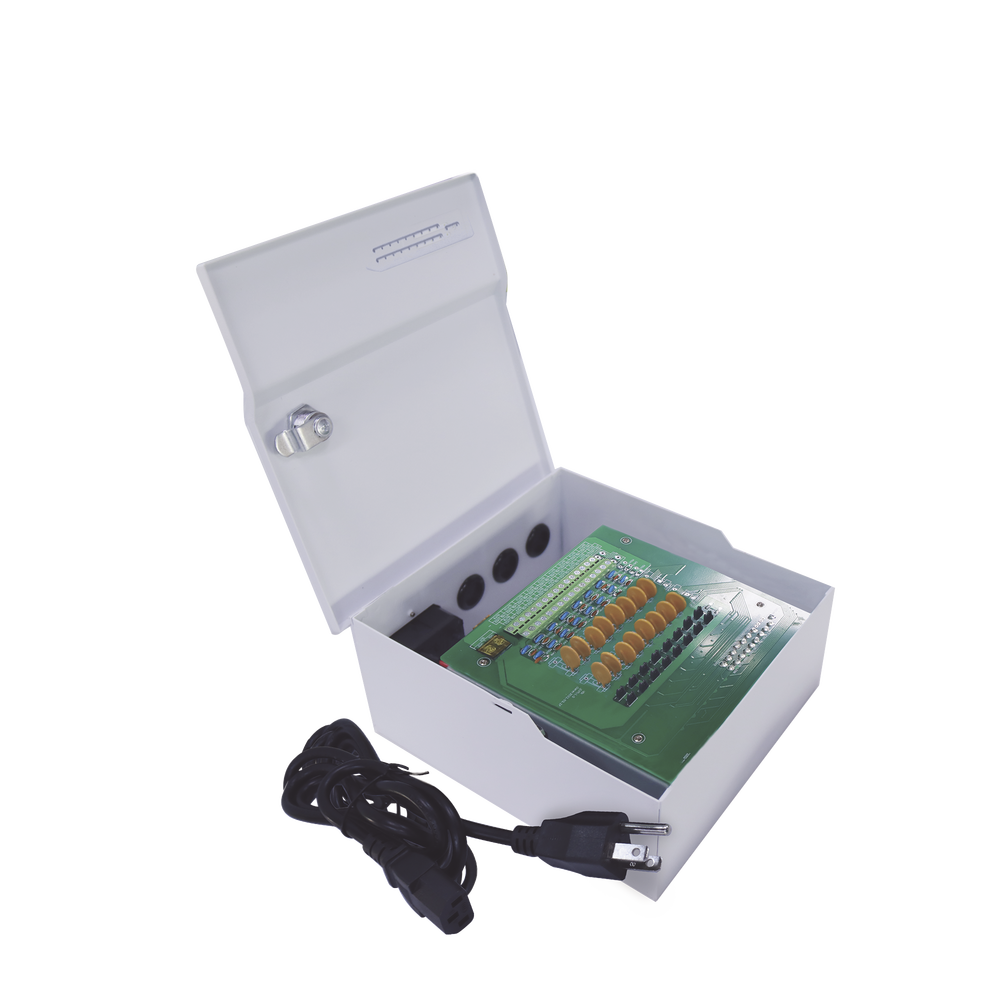

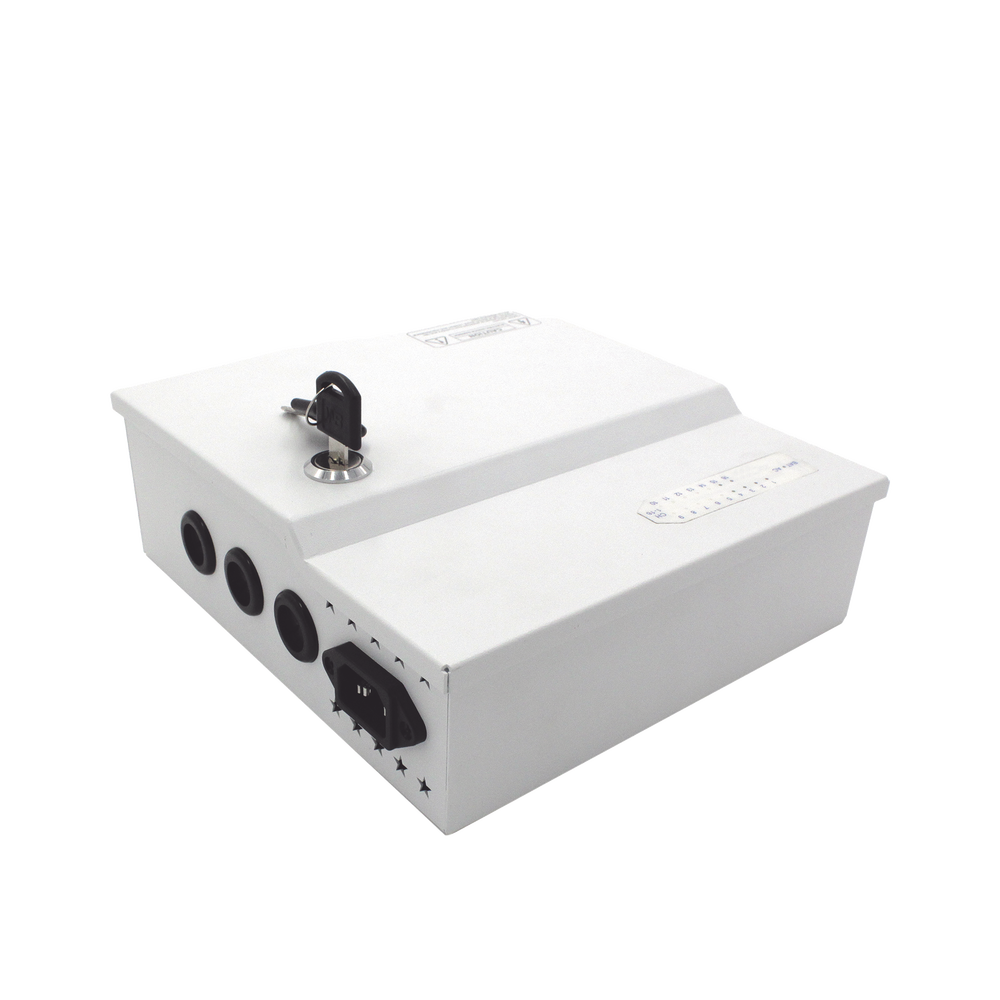

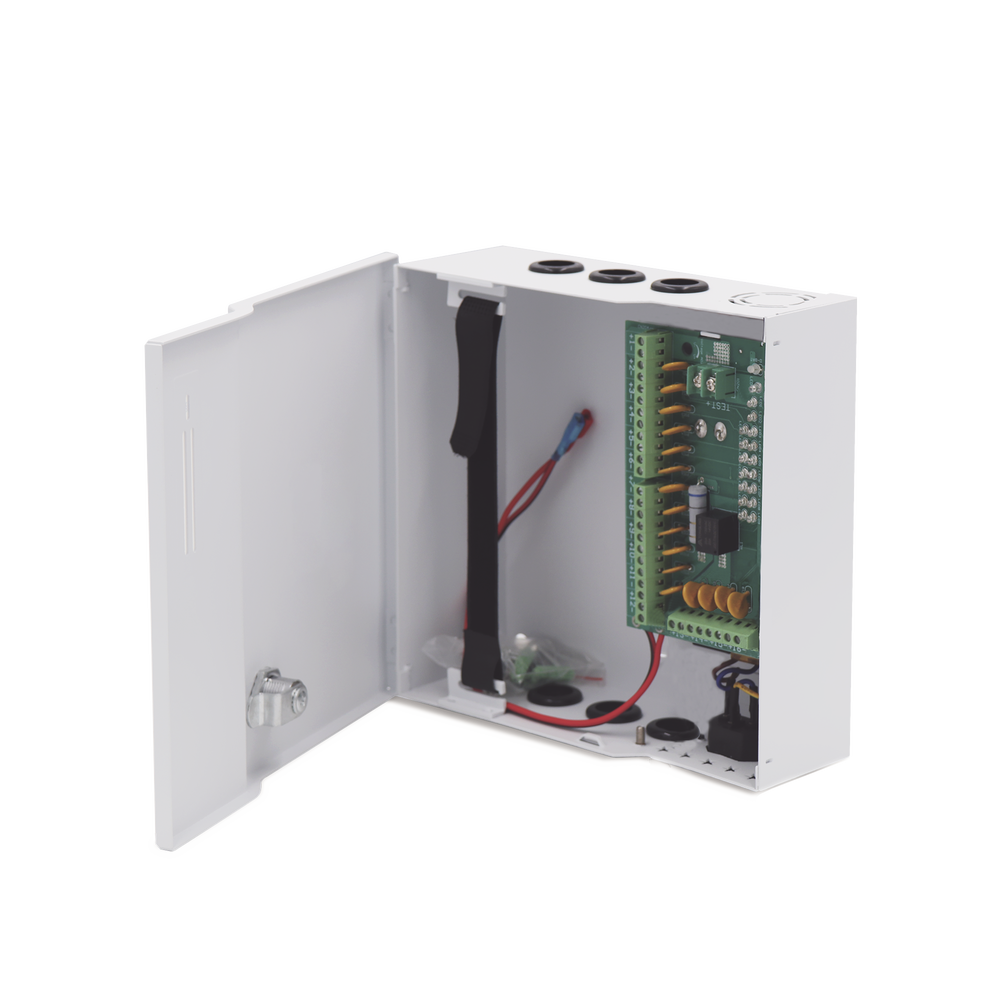

Professional 12V DC @ 16A power supply / for 16 cameras / With battery backup capability / Requires battery / 96-264V AC input voltage

Professional 12V DC @ 16A power supply / for 16 cameras / With battery backup capability / Requires battery / 96-264V AC input voltage

The new generation of power supplies specializes in providing efficient power, providing a better solution in security systems, unique in using chips
'Fairchild' in every power supply.
They are widely applied in security systems such as CCTV, alarms, access control.
These sources are certified with international standards such as CE, ROHS, FCC.

Characteristics:

• Easy to install fountain.
• With backup battery capacity.
• Battery not included.
• Suggested batteries: PL4.512 / PL712 / PL912.
• Short circuit, over current and over voltage protection.
• 5KA surge protection.
• Air convection cooling system.
• External indicator LEDs for each channel output.
• Built-in EMI filter against electromagnetic interference.

Specifications:

• Input voltage: 96-264 Vac.
• Output voltage: 12 Vdc.
• Output current: 16 Amp.
• Output channels: 16
• Backup battery capacity

Protection:

• Overcurrent protection: 120-150%
• Overvoltage protection: 20-150% (At rated output voltage)
• Short circuit protection: cuts off the output voltage, with automatic reset.

Safety standards

• IEC/EN/CSA, 60950 GB4943

Operating temperature

• -25 °C ~ 45 °C


Dimensions:

• 202 x 216.5 x 73 mm

Suggested backup battery not included:

• PL712

- 5 Year Warranty.
