• Model: DS-KV8113-WME1(B)
• 1080p camera with 3m IR, H.264, 129° angle.
• Access control function.
• Built-in Microphone and Speaker.
• Two-way audio
• WDR
• Protocol: TCP/IP 10/100mbps, RTSP, Self-Adaptive Ethernet.
• 2.4 GHz WiFi connection
• Alarm input: 4 in
• RS485 x 1
• Supports up to 10,000 Mifare cards (13.56MHz)
• Relay output x2 (opens 2 doors).
• Protection: IK08
• Operating voltage: 12 VDC, PoE Standard IEEE802.3af
• Consumption: 10W
• Protection level: IP65 & IK08.
• Operating Temperature: -40°C to +53°C (-40°F to 127.4°F)
• 2 Year Warranty.
• SD Memory Function not available at this time.

• Model: DS-KH6320-WTE1
• 7' color touch screen.
• Resolution: 1024 x 600
• Opening from monitor.
• Live view of street front.
• Built-in microphone and speaker.
• Supports up to 16 video channels.
• Alarm Input: 8 inputs.
• Micro SD max. 32G. for storing image captures.
• WiFi network, 10/100 Mbps Ethernet. TCP/IP, SIP, RTSP.
• Operating voltage: 12VDC, 1A PoE Standard IEEE802.3af.
• Power consumption: 6W
• Material: Plastic.
• Operating temperature: -10º ~ 55º C (14º ~ 131º F)
• Dimensions 200 mm × 140 mm × 15.1 mm (7.9' × 5.5' × 0.6')
• Warranty: 2 years.

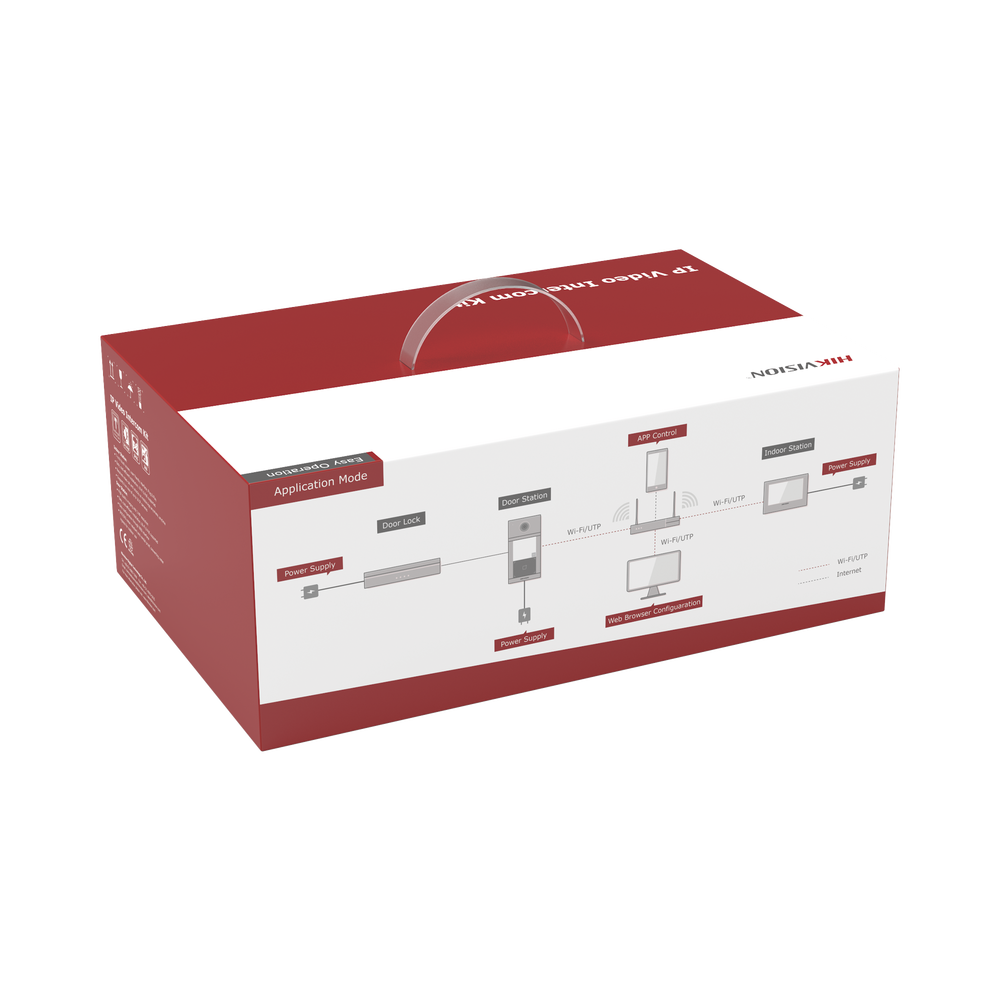

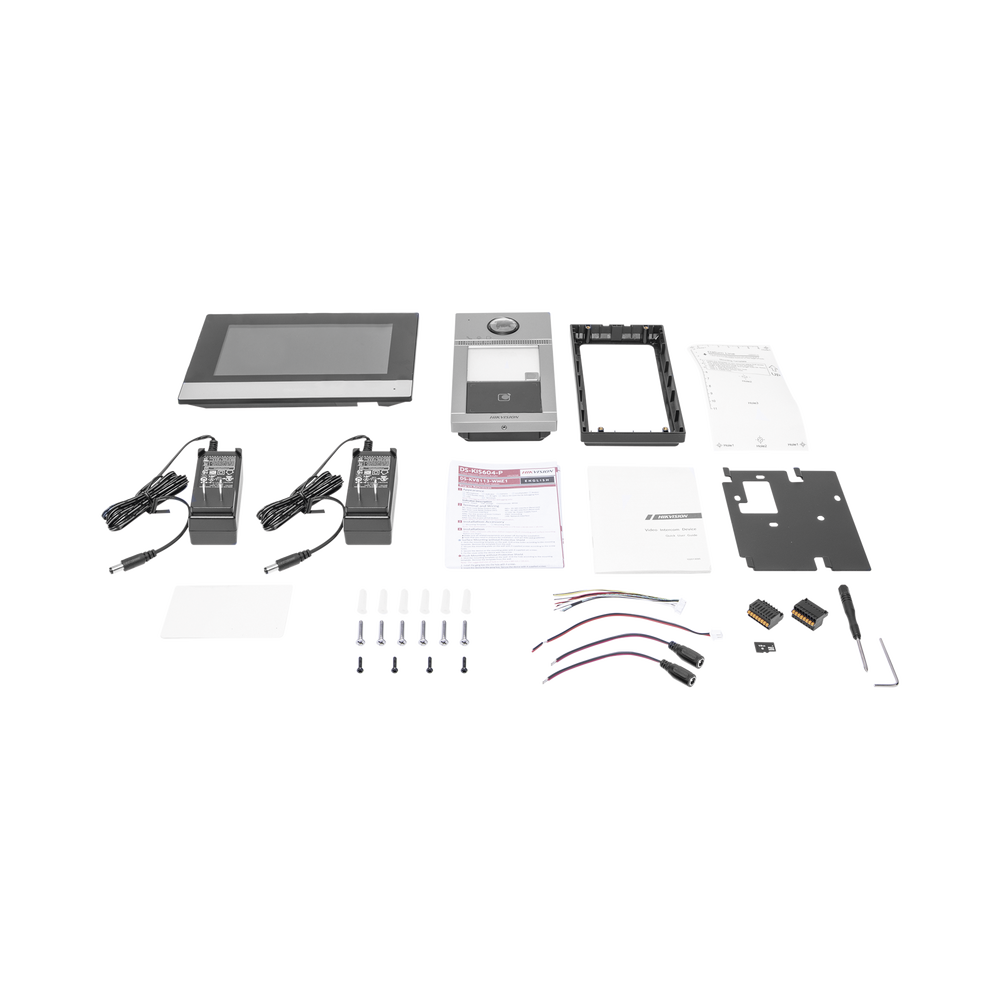

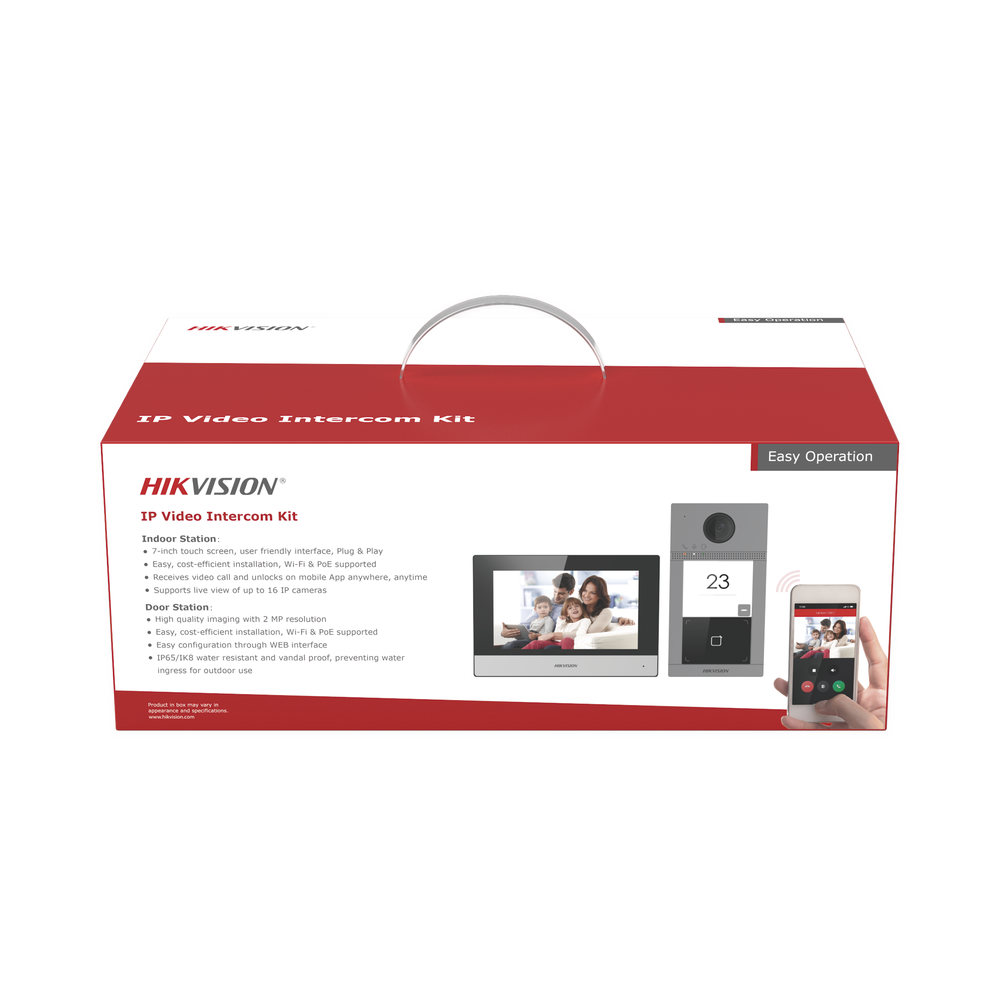

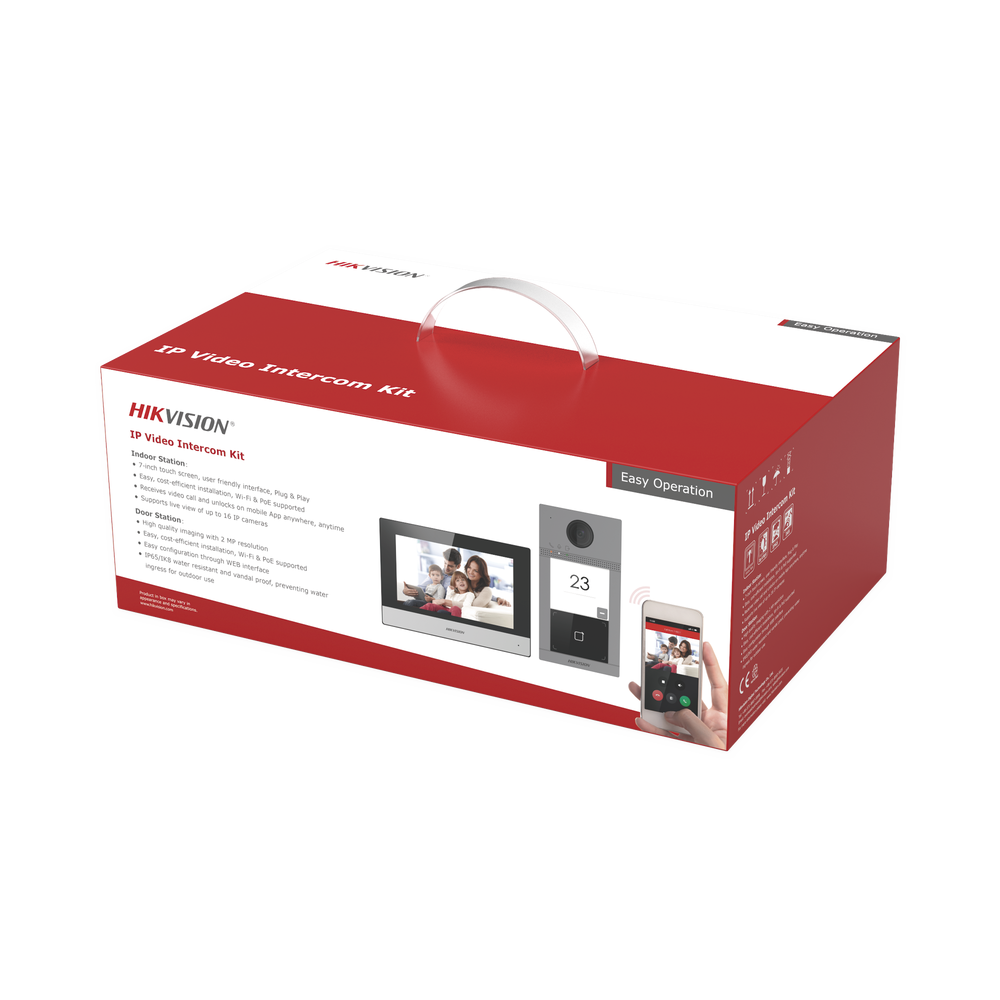

Latest Generation IP Video Intercom Kit

Supports Hik-connect P2P for remote notification/opening.

Allows viewing of IP cameras (2 MP) and street front cameras from the monitor (Audio, Video and door opening).

Supports up to 5 monitors as an extension ( Demo )

• Supports 9 street fronts in total.
• Supports 16 video channels in total (between street fronts and cameras).
• Supports opening 2 doors.
• Web interface programming
• Vandal-proof IK08 & IP6
• WiFi or Cable Connection (both the monitor and the front)
• MIFARE card reader.
