Fixed main unit kit for testing hard-to-reach point smoke detectors, used with the SCORP8000 Wall Controller

Scorpion is the best solution to try

smoke detectors in hard-to-reach facilities

Scorpion is the solution for buildings with difficult-to-access detectors. Suitable for both point-type detectors and aspirating smoke detection (ASD) systems, Scorpion ensures that all smoke detectors can be tested regardless of their location. The Scorpion main unit is permanently installed next to a point detector or to a sampling hole in an aspirating smoke detection (ASD) pipe. The smoke generator is connected to a SCORP25 access point mounted in a convenient and easily accessible location. Functional testing of the detector is then achieved easily and securely by connecting a SCORP7000 handheld controller to the access point. Alternatively, up to eight main units can be connected to a SCORP8000 wall-mounted control panel. Scorpion can be retrofitted into an existing system or installed with new systems. The time and effort required to install Scorpion into an existing system is quickly offset by the time and effort required to test the system without Scorpion.

• Easily test hard-to-reach point detectors.
• Ideal for testing detectors in elevator shafts, open ceilings, secure rooms, and high atriums.
• Cost savings, no additional access equipment or external personnel required.
• Time savings, less time spent organizing and performing tests.
• Compliance ensures that all detectors can be tested as required by regulations.
• Connects to the SCOR8000 wall controller
• Easy to use, store and transport

Any reasons why they are necessary?

• Ensures 100% functional testing of detectors as required by standards.
• You can test detectors in sensitive or inaccessible areas.
• No additional access equipment or subcontracted personnel are required.
• Reduces the risk of falls or accidents for engineers.
• Reduce testing time by avoiding after-hours visits with direct access to the detectors

Ideal for 24/7 public areas, areas with restricted access, or areas with continuous operations

• Public areas 24/7
• Hospitals
• Hotels
• Asylums
• Universities
• Penalties
• Airports
• Military bases
• Banks
• Power plants
• Manufacturing plants
• Warehouses
• Call centers
• etc

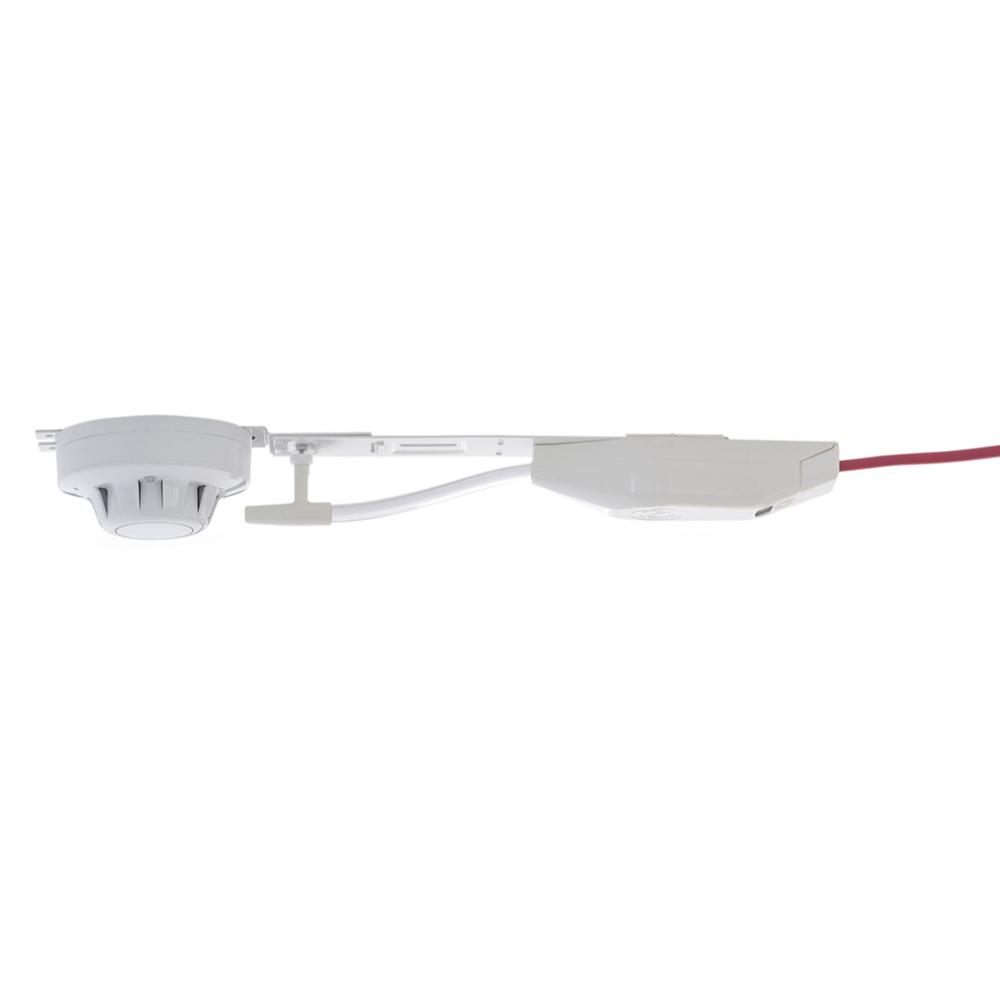

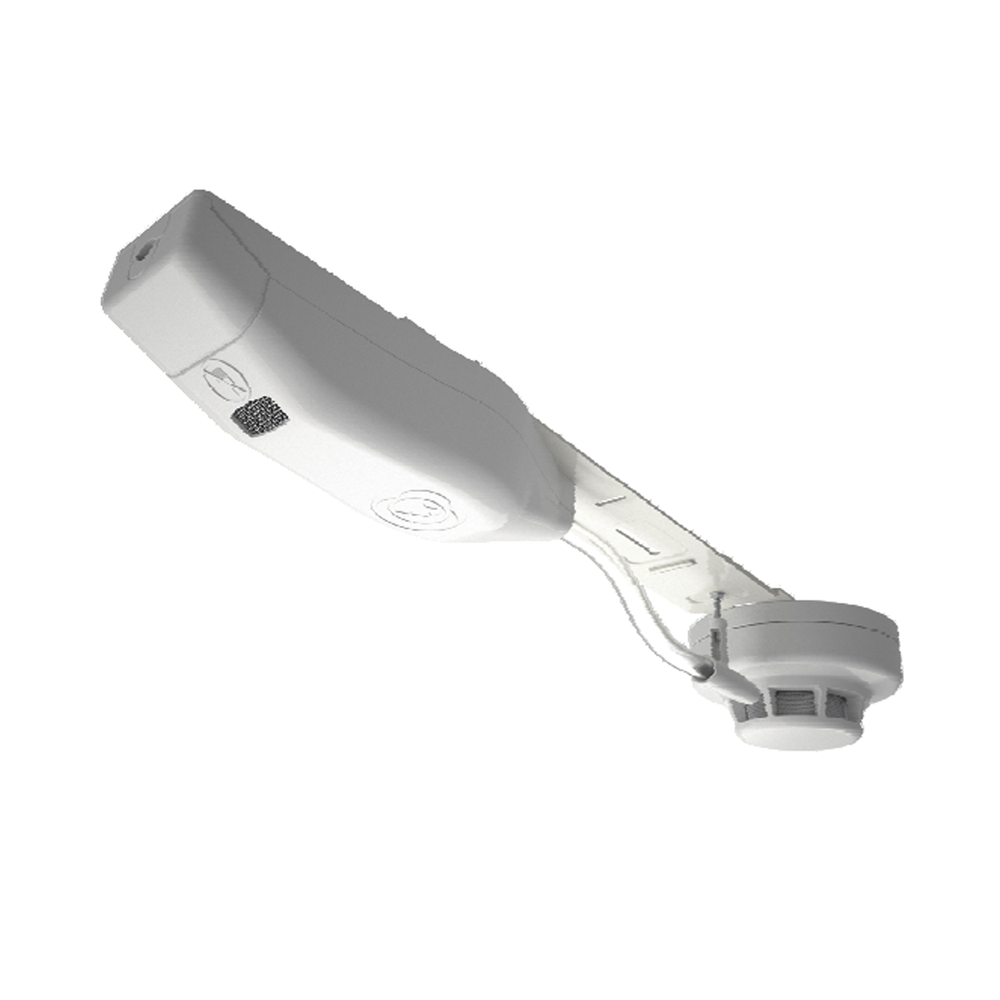

SCORP1001 smoke generator installed next to the point detector

SCORP1001 smoke generator inside the ceiling

NO EXCUSES FOR TESTING SMOKE DETECTORS

WITH DIFFICULT ACCESS

Ideal for conventional point-type and directional smoke detectors, Saves costs and time on testing and maintenance, Test capacity up to 240 tests, Use with the SCORP8000 Wall Controller
