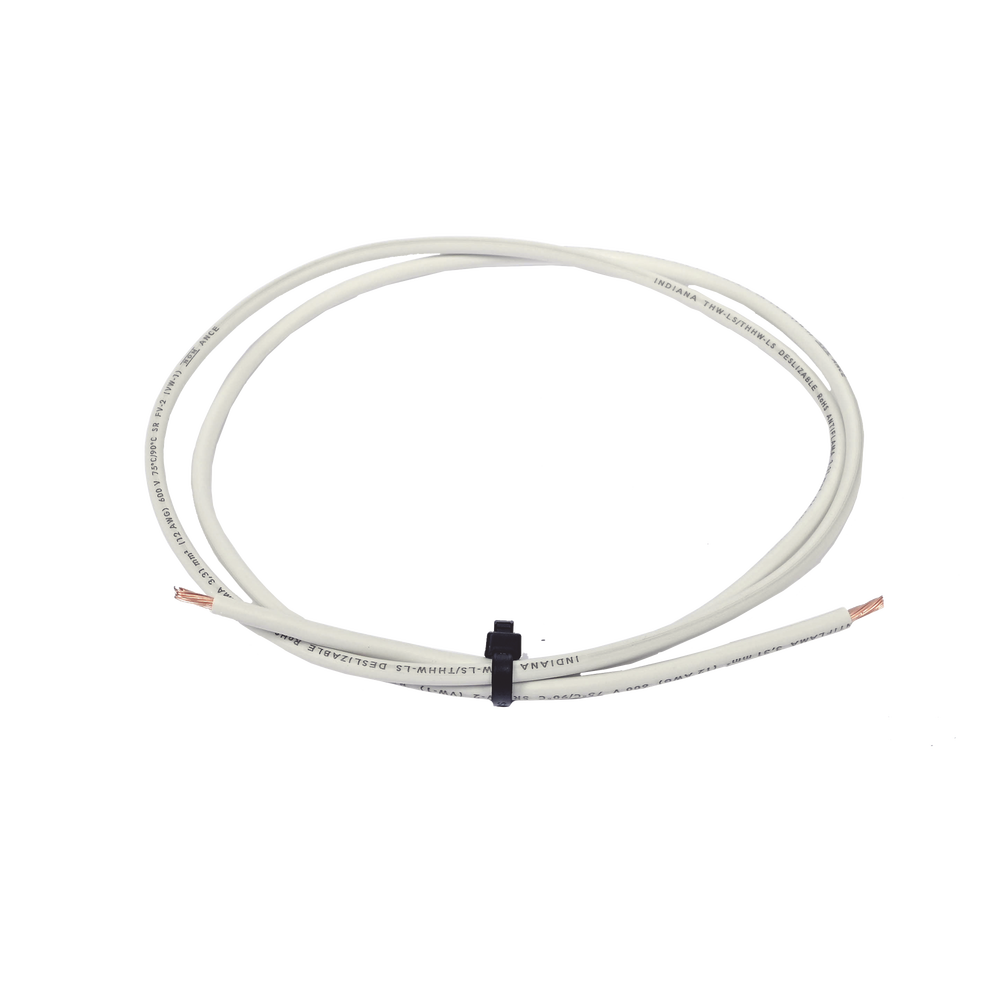

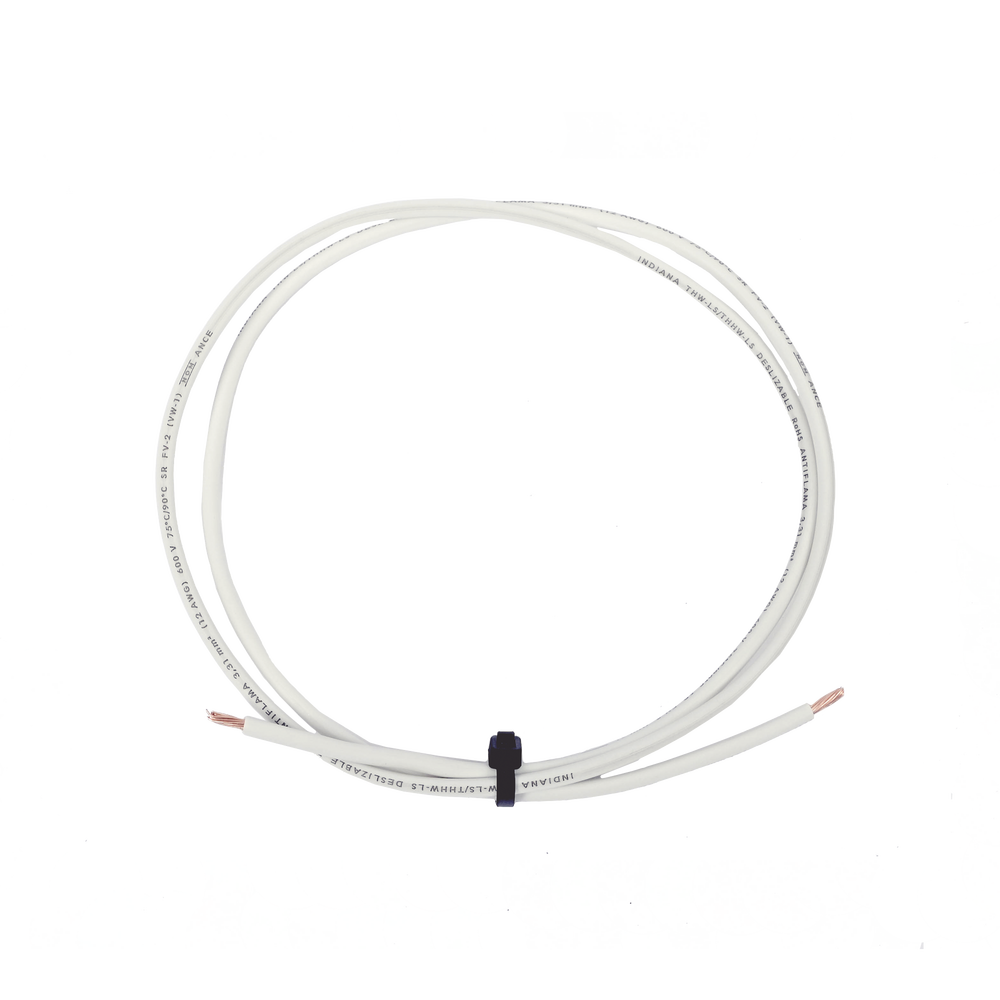

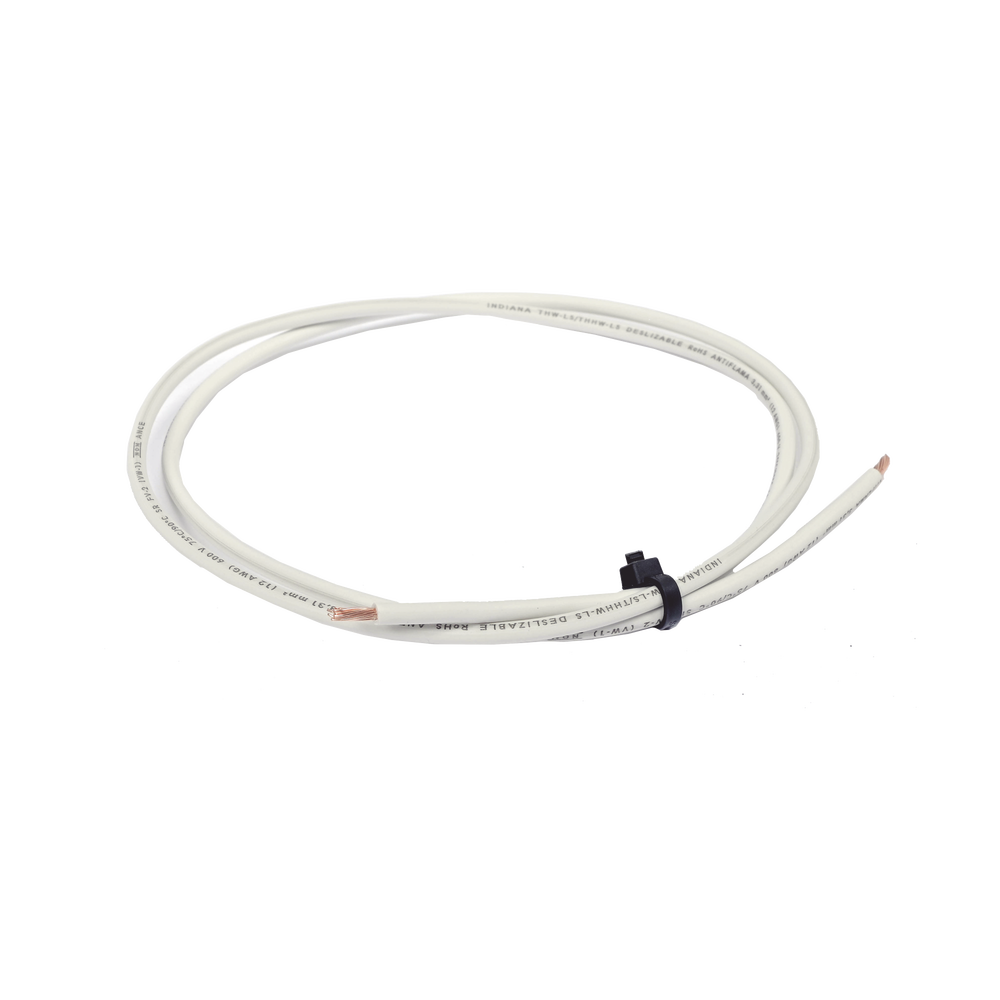

THW-LS Coated Copper Electrical Cable Gauge 12 AWG 19 Wires White Color (Sold by Meter)

THW-LS Coated Copper Electrical Cable Gauge 12 AWG 19 Wires White Color (Sold by Meter)

Soft copper conductor stranded with self-extinguishing PVC insulation. **Sold per 100-meter coil**

Physical Characteristics .

• Gauge: 12 AWG.
• Thread Count: 19.
• Conductor Area: 3.31 mm².
• Conductor Diameter: 2.33 mm.
• Insulation Thickness: .76 mm.
• Outer Diameter: 3.9 mm.
• Weight per Meter: 0.42 kg.
  Approximate data, subject to manufacturing tolerances.

Specifications: NMX-J-010-ANCE.

Benefits:

Indiana THW-LS Slide-On installs more easily in duct, reducing wiring time.

Applications:

THW-LS high-security conductors are manufactured for reliable use in dry, wet, or oil locations, and installed in duct, conduit, or trays.

Its excellent self-extinguishing properties make it ideal for installation in residential and small commercial buildings.

It is recommended for integration of Physical Earths.

Operating Temperature:

• In dry places 90° C.
• In Wet Places 75° C.
