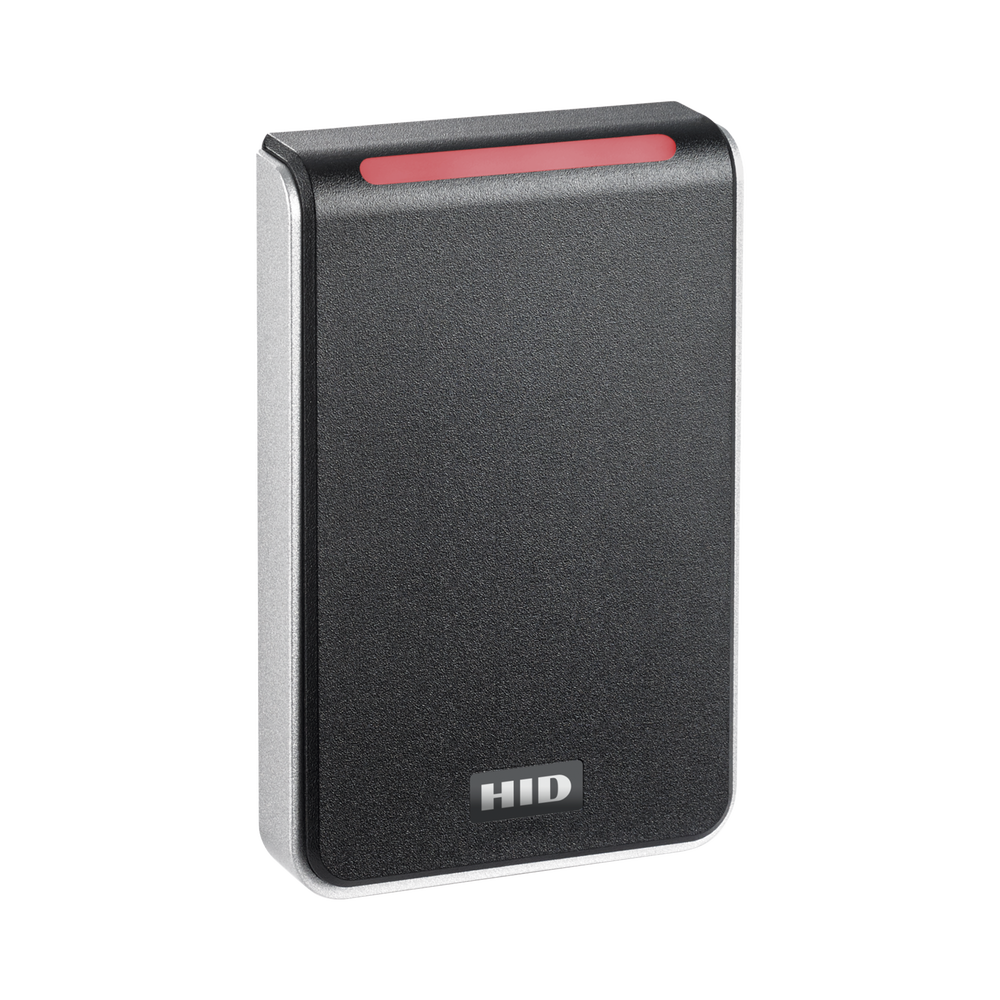

(40NKS-02-000000) Multi-technology SMART PRIORITY Card Reader / Lifetime Warranty / Pigtail / Wiegand and OSDP

(40NKS-02-000000) Multi-technology SMART PRIORITY Card Reader / Lifetime Warranty / Pigtail / Wiegand and OSDP

HID Signo™ is HID Global's iconic line of access control readers. The versatility, performance, and connectivity of HID Signo readers set a new industry benchmark as the most adaptable, interoperable, and secure solution for electronic access control.

Characteristics:

• Reader model 4 0NKS-02-000000
• Supply voltage: 12 V DC
• Supported technology: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, mobile credentials with Seos technology (HID Mobile Access, MID-SUB-T100 ).
• Does not support 125 KHz technology

• Ideal for installation in door frames or any flat mounting surface
• Dimensions: 80 mm x 121.5 mm x 19.5 mm (3.15 inches x 4.78 inches x 0.77 inches).
• Input: Tricolor LED, acoustic indicator, active low hold.
• Data output via Pigtail.
• Data output: Wiegand and RS-485 half-duplex ( OSDP ) via flexible cable (18 inches / 0.5 m) or terminal block
• Warranty: Lifetime.

How are readers programmed?

They only need to be programmed if you use NFC or Bluetooth, or when you want to adjust the ranges and colors of the LEDs.

• Here is a video tutorial . Tutorial
