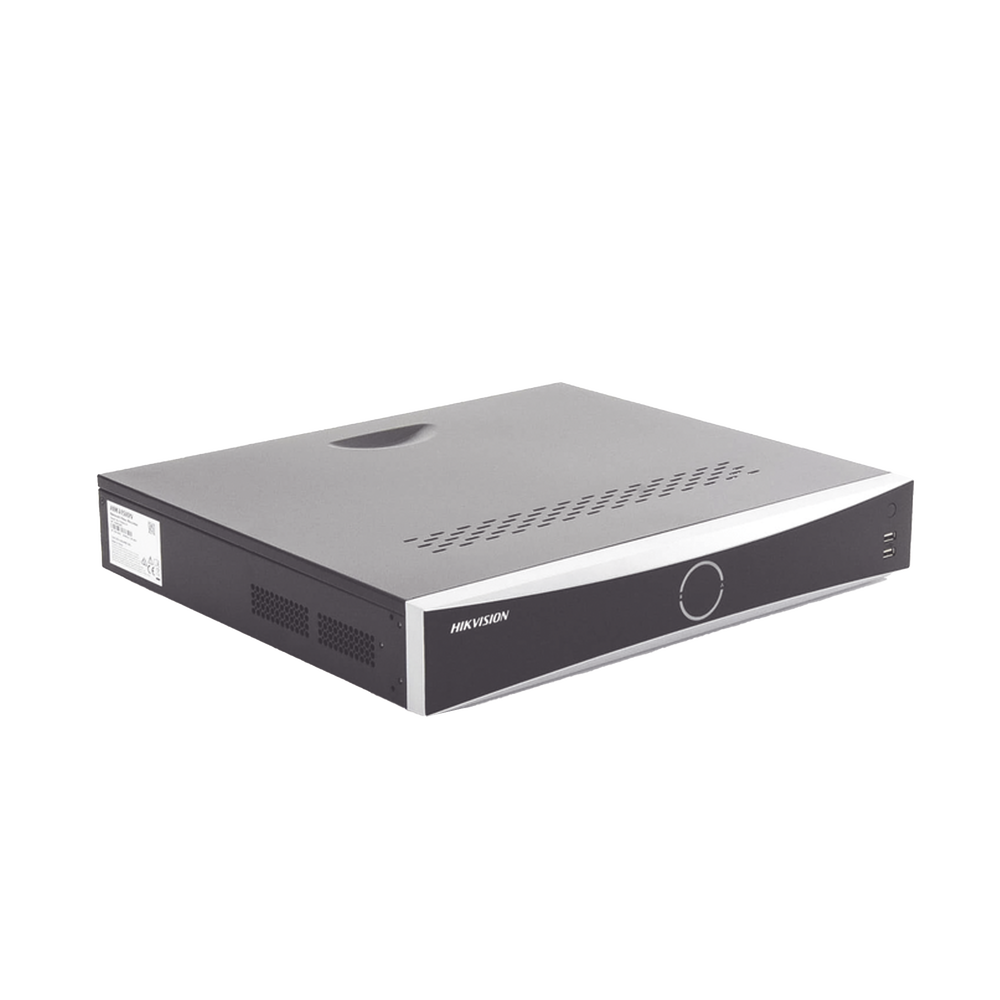

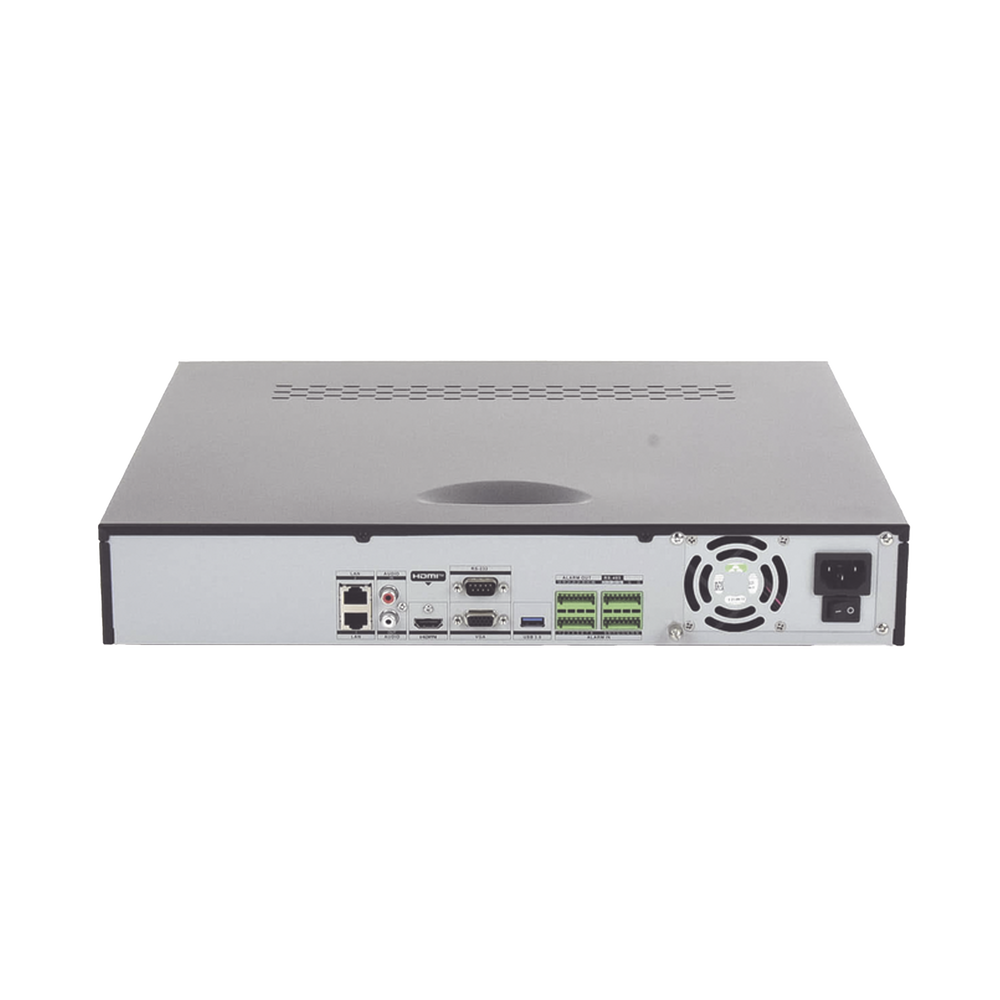

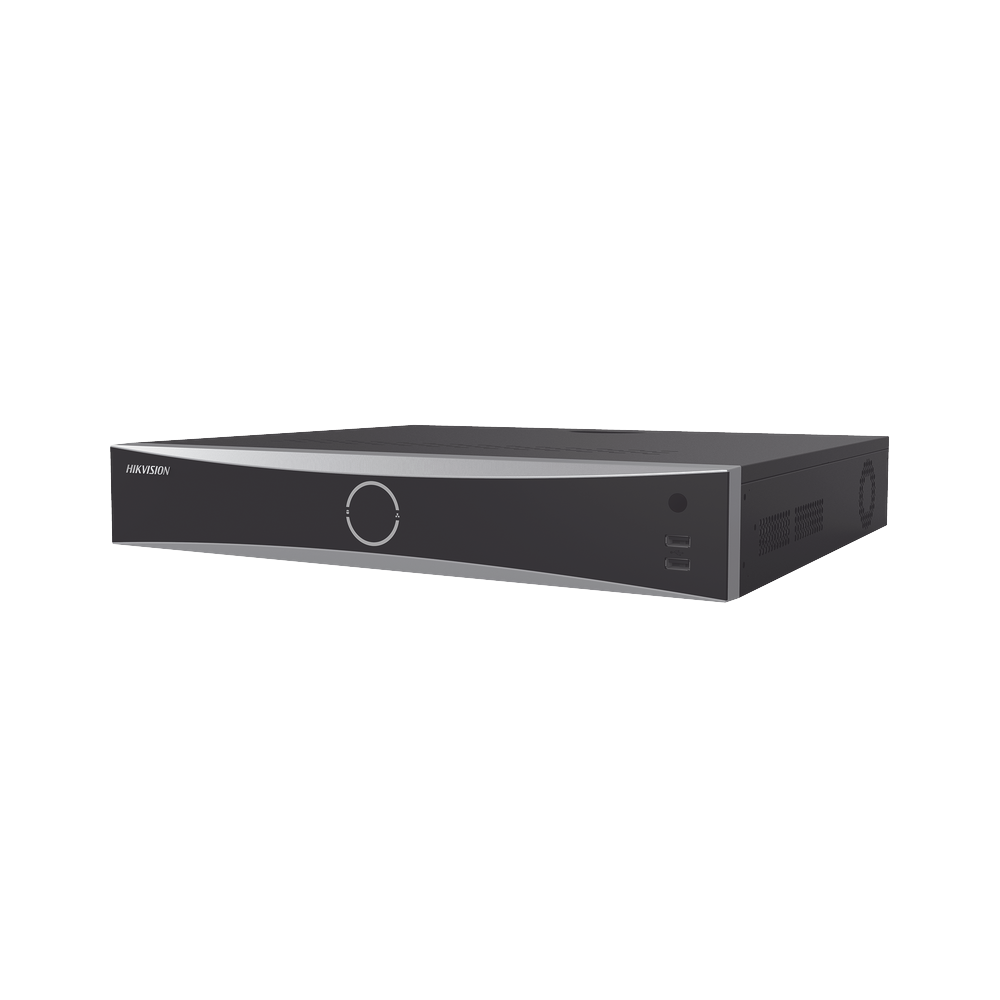

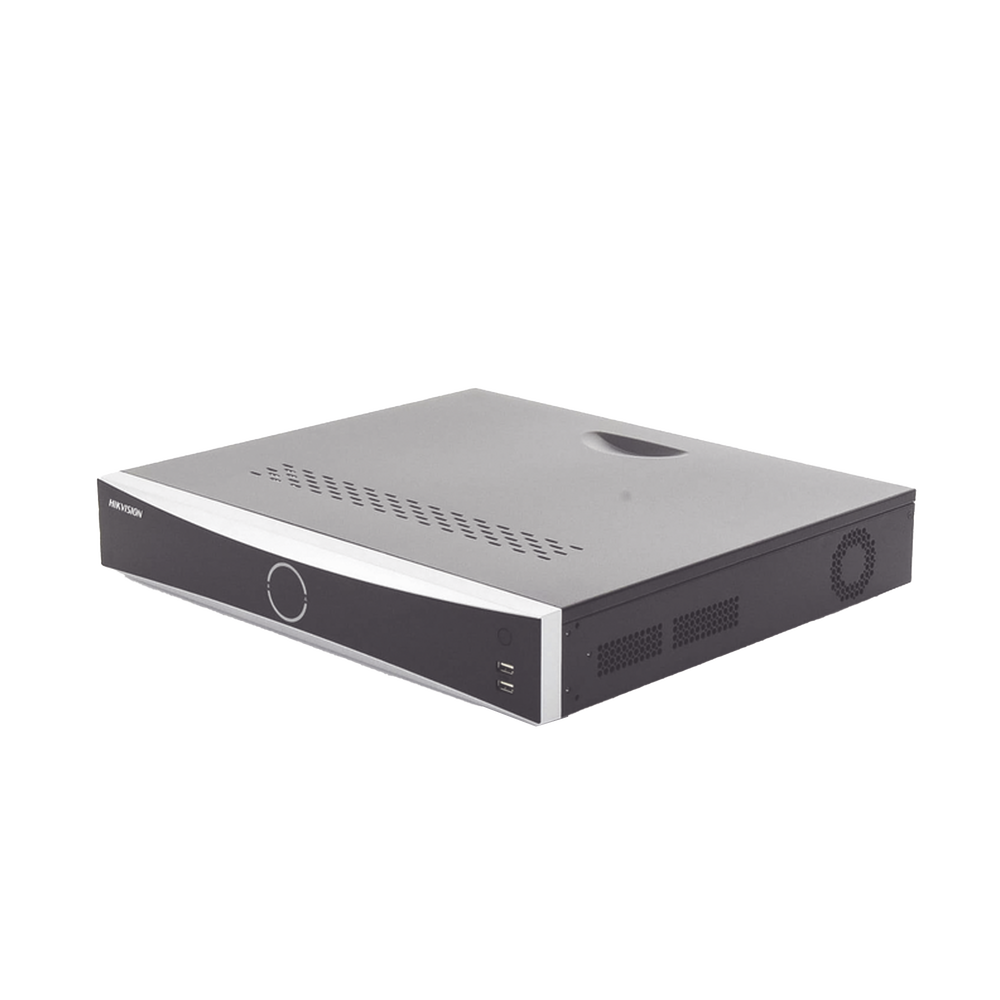

12 Megapixel NVR (4K) / 32 IP channels / AcuSemse / 4 Hard Drive Bays / 4K HDMI

• Video compression: H.265+ / H.265 / H.264+ / H.264.
• Supports USB mouse to operate (included).
• Supports 4 HDDs up to 10TB. (not included).
• Supports local or remote calendar search.
• Supports ANR technology with HIKVISION IP camera when the network is disconnected.
• Supports DDNS (Hik-Connect, DynDNS, No-IP, etc.).
• Supports Hik-Connect P2P (Hik-Connect).
• IVMS-4200 client software (free).

Processing capacity and network functions:

• Input throughput: 256 Mbps.
• Output throughput: 160 Mbps.
• 2 RJ-45 network ports: 10 / 100 / 1000 Mbps. (LAN)

• Dimensions: 445 x 400 x 75 mm.
• Power supply: 100 to 240 Vac / 20 W (without hard drives).
• Operating temperature: -10°C to 55°C.
• Weight: 5 Kg without HDD.
• Warranty: 2 years.
• Compatible with GAB-VID2-R2 metal cabinet.

Recording and Viewing Functions:

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Dual stream (main stream and sub stream).
• Supports fast forward, slow forward, frame by frame, etc.
• Supports SMART hard drive technology
• Supports multiple recording types, including real-time, manual recording, motion detection, motion detection and alarm, motion detection or alarm.
• Supports cyclic (overwrite) and non-cyclic recording.

• HDMI Output: 4K, 1080p, 720p.
• VGA output: 1080p, 720p.
• Independent HDMI and VGA output.
• Audio Input: 1 Channel.
• Audio Output: 1 Channel.
• Alarm Input: (not applicable).
• Alarm Output: (not applicable)
• Supports two-way audio (two-way audio).

Recording Resolution per Channel (recommended with H.265):

• 2 Megapixel: 8 Channels @ 30 IPS.
• 4 Megapixel: 8 Channels @ 30 IPS.
• 5 Megapixel: 8 Channels @ 30 IPS.
• 8 Megapixel (4K): 8 Channels @ 22 IPS.
• Synchronous playback on channels: 16 Channels.

• Facial Recognition:

• Up to 16 bookstores with a maximum of 20,000 total faces.
• Each photograph must weigh a maximum of 4 MB.
• When the camera detects a face and matches it with the database, you can: trigger recording, notify the remote software (iVMS-4200), send an email, trigger an alarm output, etc.
• Only support 1 channel video with face recognition, we can use cameras: DS-2CD2XX3G0 / DS-2CD2XX3G2 / DS-2CD2XX5.

• ACUSENSE (False Alarm Filter):

• With ACUSENSE technology we can avoid false alarms such as movement of trees, animals, etc.
• By activating ACUSENSE technology, it only detects human bodies and vehicles to truly detect important events and thus eliminate false alarms.
• Supports up to 32 channels with ACUSENSE using cameras: DS-2CD3XX / DS-2CD2XX3G2 (which support ACUSENSE).

Note: Only facial recognition or ACUSENSE can be enabled (you cannot have both at the same time).
