MIMOSA NETWORKS
Modular Radio ("Integrated 8dB Antenna") up to 700 Mbps, (4.9 - 6.4 GHz), IP67, Automatic adaptation to the environment, Monitoring via the cloud
Modular Radio ("Integrated 8dB Antenna") up to 700 Mbps, (4.9 - 6.4 GHz), IP67, Automatic adaptation to the environment, Monitoring via the cloud
Couldn't load pickup availability
Modular Radio ("Integrated 8dB Antenna") up to 700 Mbps, (4.9 - 6.4 GHz), IP67, Automatic adaptation to the environment, Monitoring via the cloud
Main features:
Mode of operation:
PTMP client up to 500 Mbps
PTP up to 700 Mbps
Frequency: 4900-6400 MHz.
Gain: 8 dBi (native).
12–25 dBi (with antennas).
Maximum output power: 27 dBm
IP Rating : IP67
Power consumption: 12.9 W max.
Requires PoE adapter ('POE-24V') and power cable (PCC53)
Note: For vertical alignment use U-MOUNT or FLEXIMOUNT (NOT INCLUDED).
Note : The equipment already includes an internal surge protector, it is recommended to ground to a physical ground.
Note: The device works only as a PTP for another C5x and as a client for an A5x or A5c
C5x
CLIENT/BACKHAUL
Modular and
Flexible

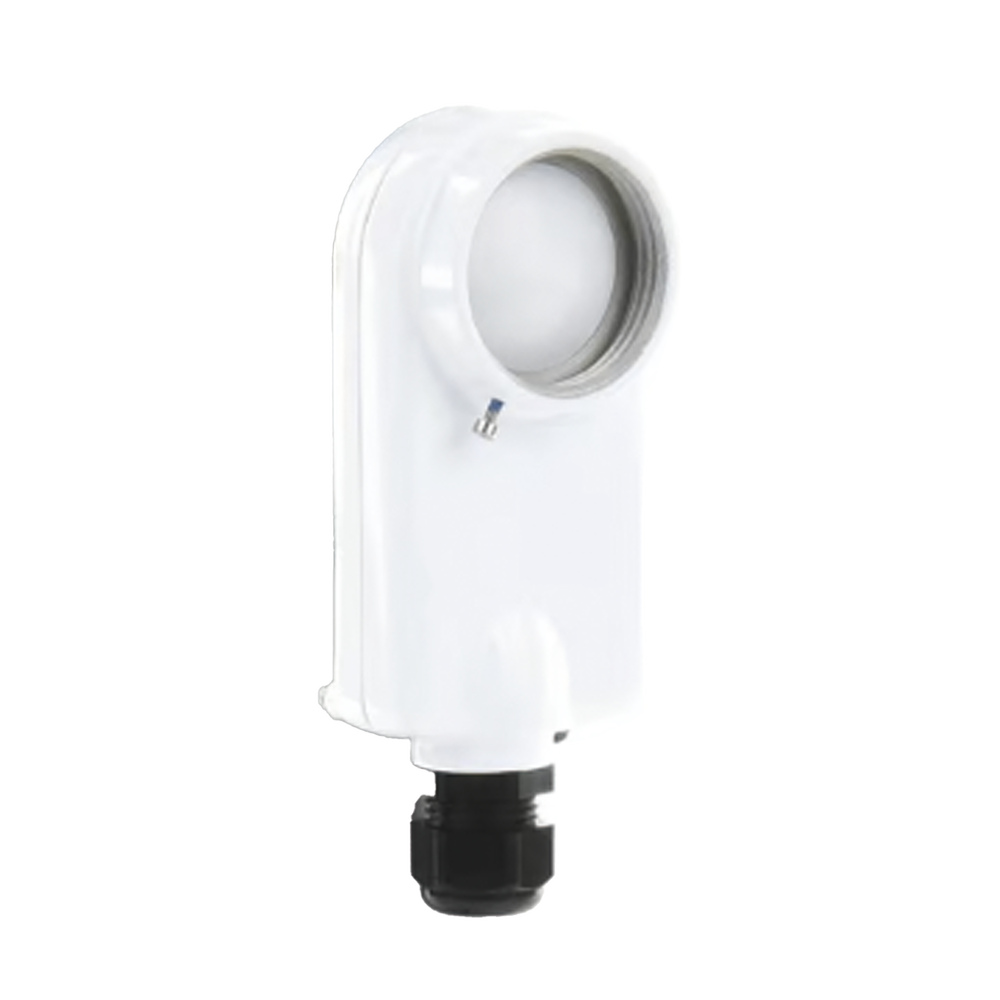

The Mimosa C5x is the industry's most versatile integrated radio, featuring four modular antenna options. This ultra-rugged solution provides extended frequency operation from 4.9 to 6.4 GHz, with best-in-class noise immunity. Offering the ultimate in flexibility and cost efficiency, the C5x is the ideal PTP or PTMP solution for 5 GHz deployments.
THE BASICS
APPLICATIONS
VERSATILE
Ultimate flexibility
Out of the box, the entry-level C5x can be used in PTMP or PTP mode with speeds up to 700 Mbps.
FLEXIBLE
Incredible RF performance
Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides interference immunity with revolutionary front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
BROADBAND
Extended Frequency
To escape the noise, the C5x lets you take advantage of public safety applications on 4.9 GHz and authorized frequencies up to 6.4 GHz, where local regulations allow. Custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.
DESIGNED
Ultra Resistant

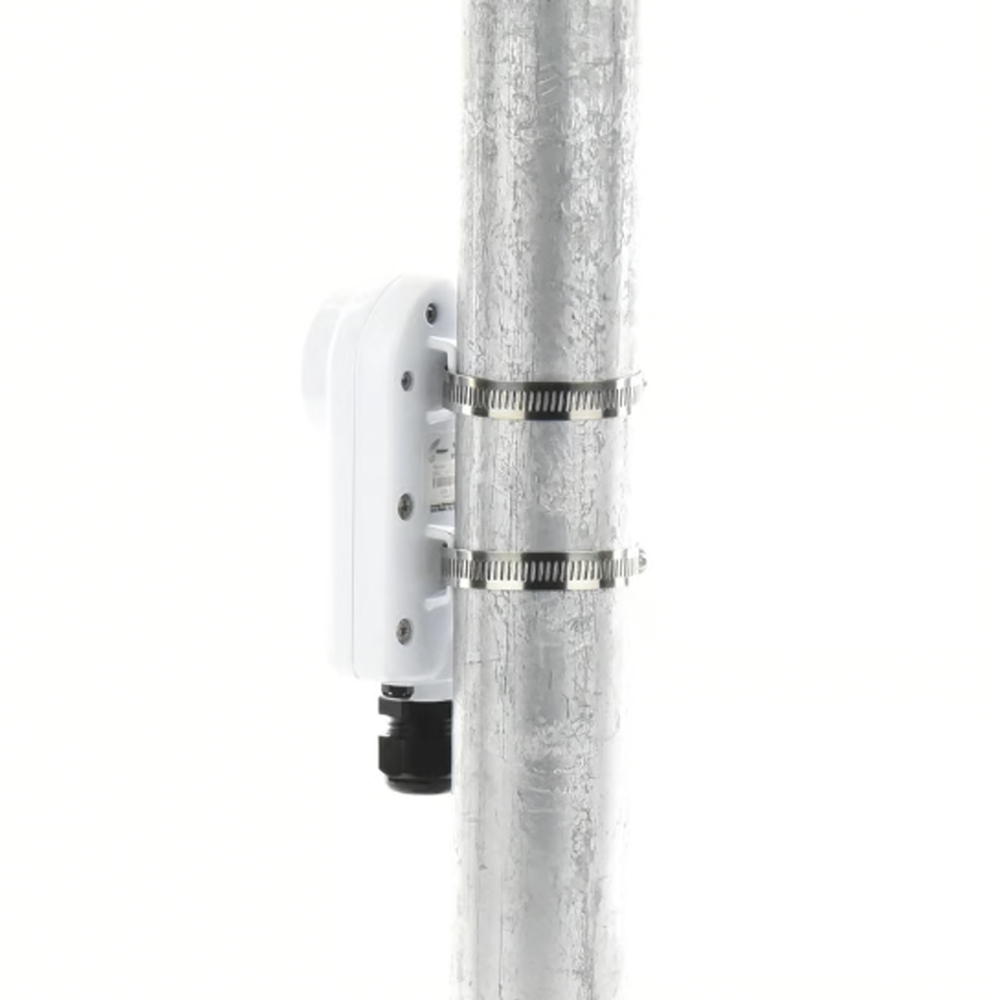

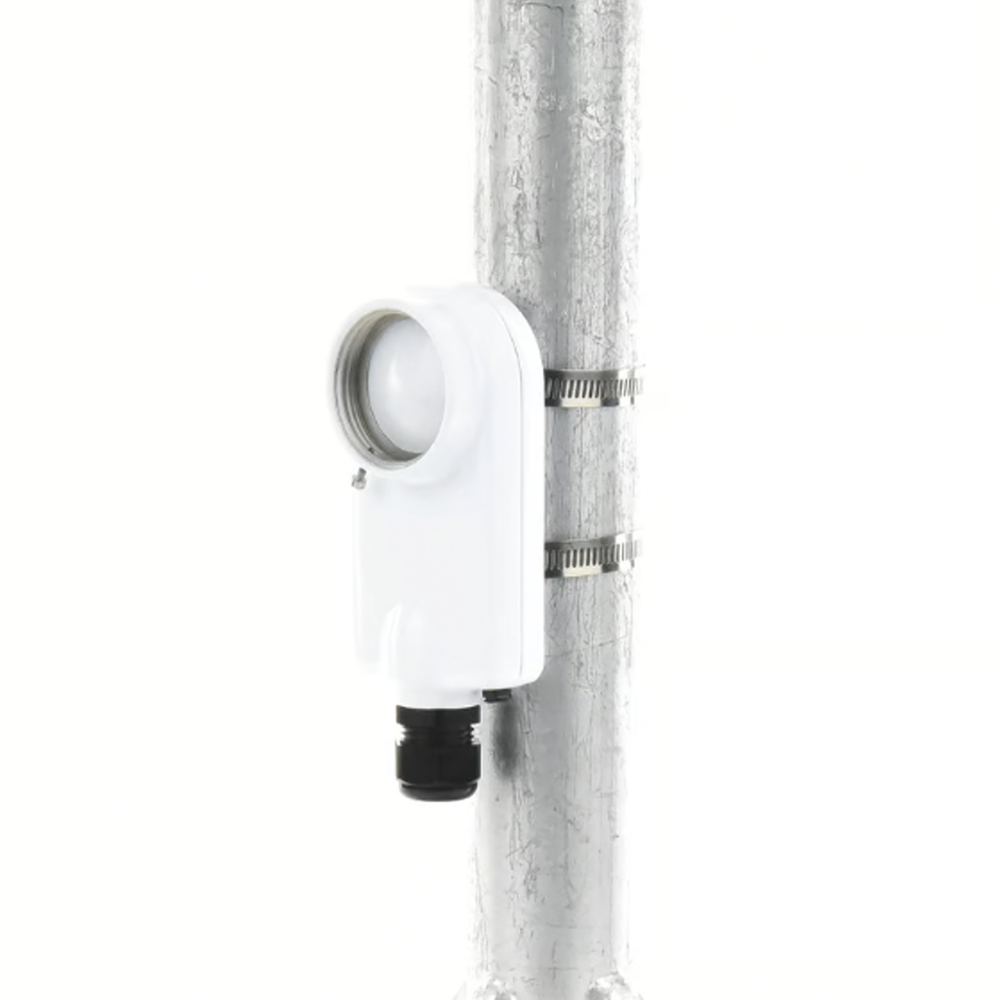

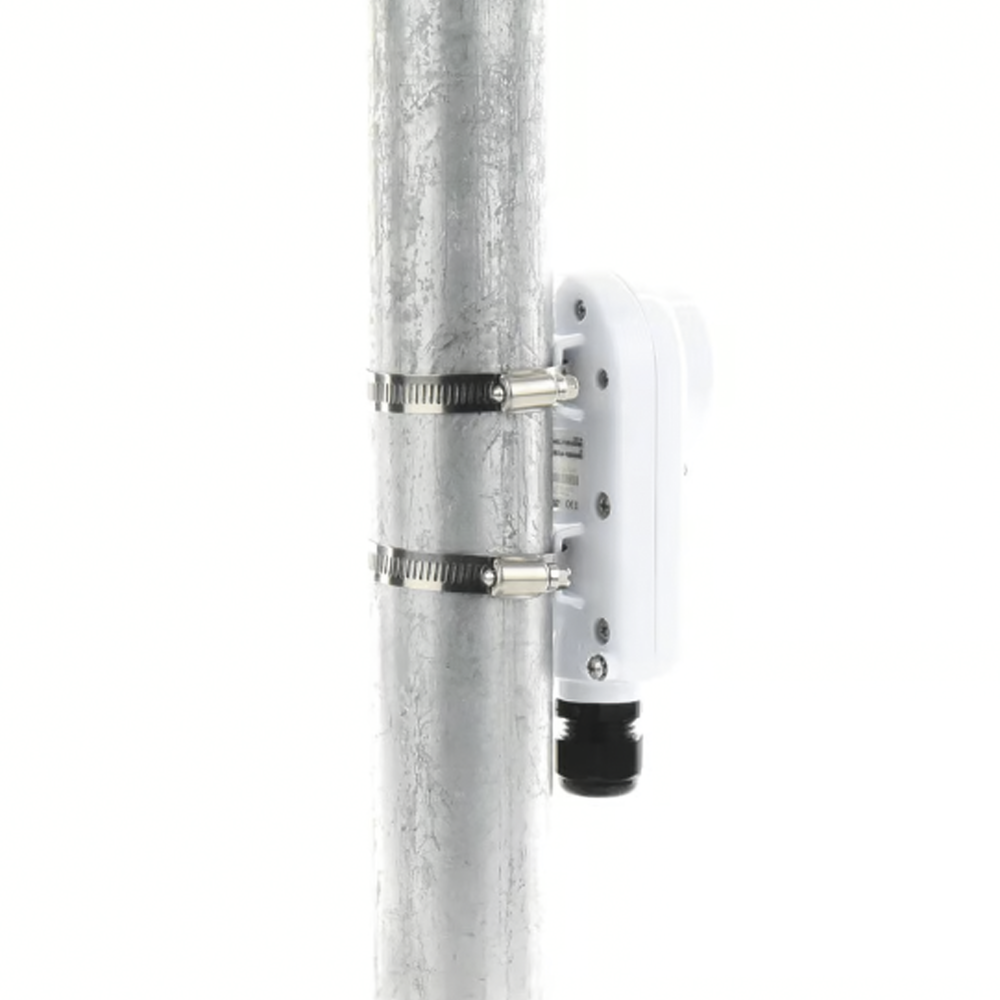

The C5x, with its die-cast aluminum housing, bipolar mounts, and industrial-grade screw-on antenna options, is optimized to reduce noise, withstand the elements, and stay mounted in extreme weather conditions.
- Super frequency range 4.9 - 6.4 GHz, Modular radio in antenna gain and required bandwidth, Most versatile integrated radio on the market, Ultra-rugged IP67, Low power consumption
290 in stock
MODELO: C5XIP67
