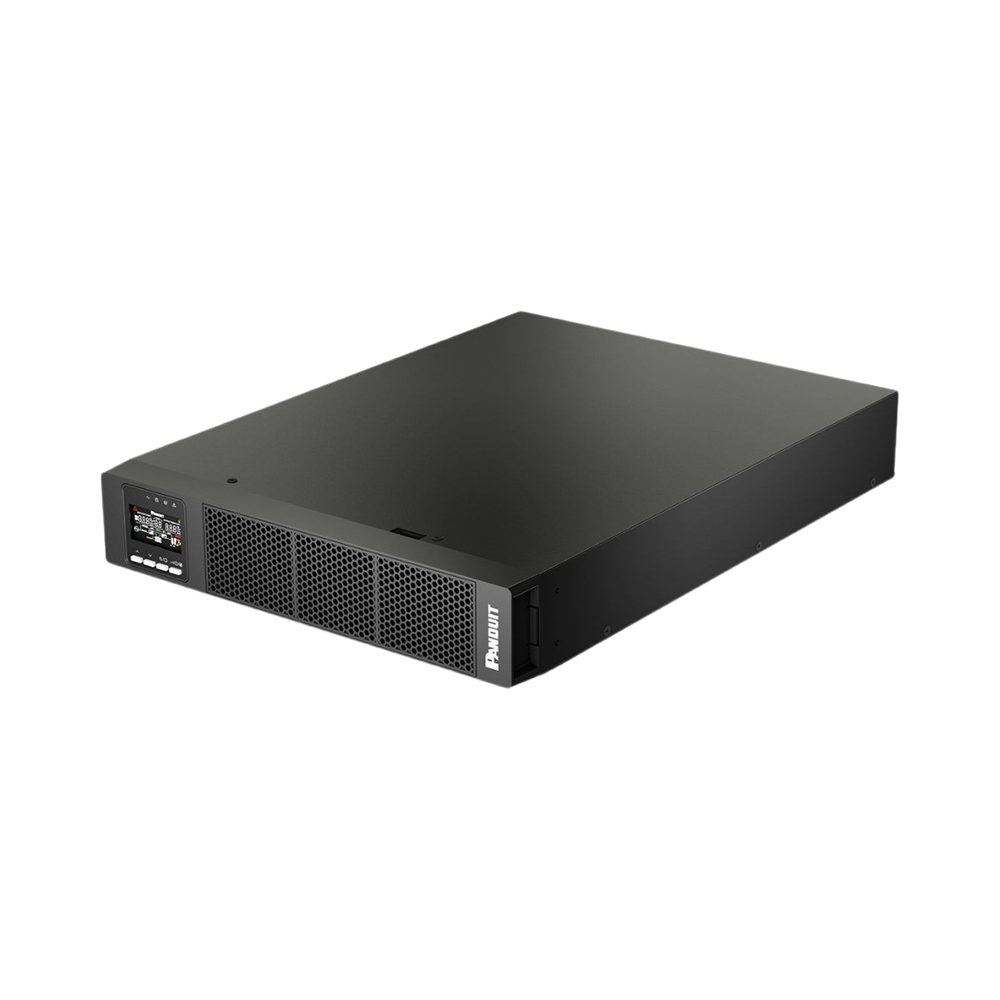

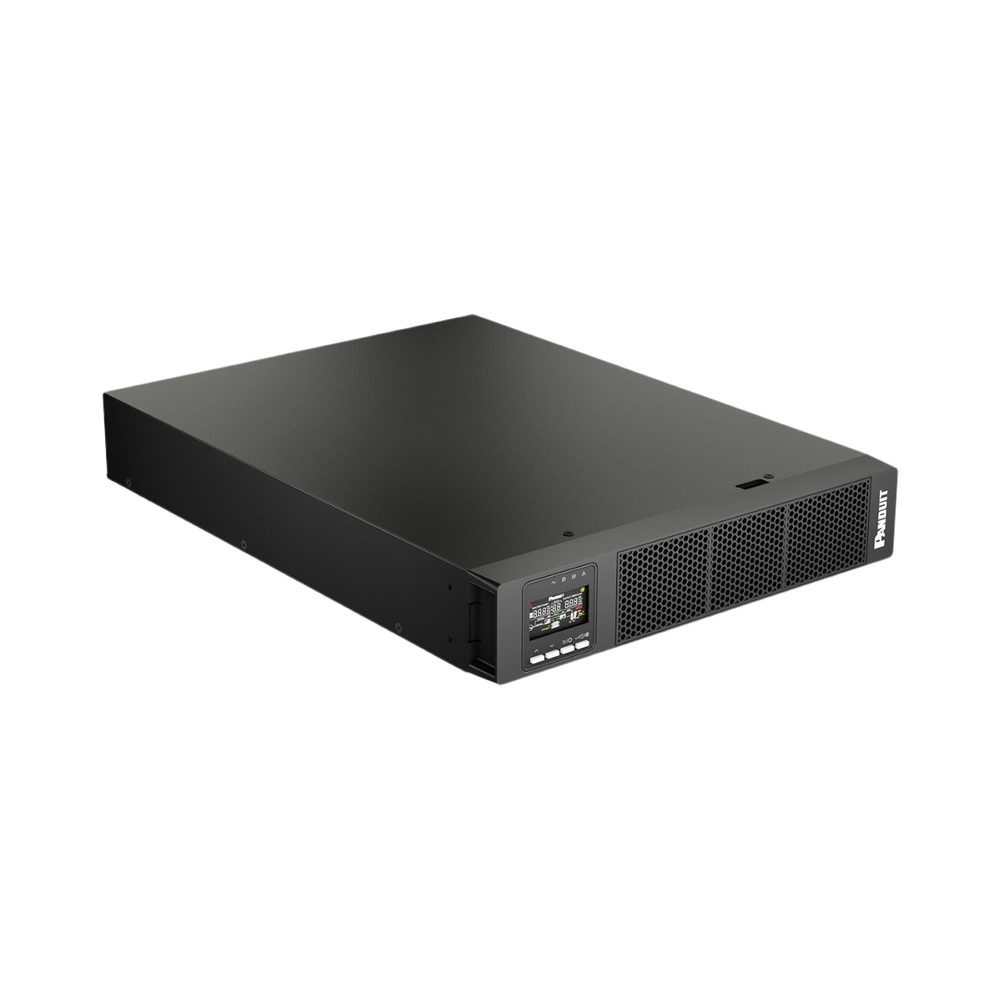

SmartZone 3000VA/3000W UPS, Online Double Conversion, 120VAC NEMA L5-30P Input, Pure Sine Wave, 2RU, With 4 NEMA 5-20R and 1 L5-30R Outlets, Includes Network Card and Rail Kit

SmartZone 3000VA/3000W UPS, Online Double Conversion, 120VAC NEMA L5-30P Input, Pure Sine Wave, 2RU, With 4 NEMA 5-20R and 1 L5-30R Outlets, Includes Network Card and Rail Kit

Panduit® SmartZone™ UPSs with maintenance-free VRLA batteries are 1 to 3 kVA, 120 V or 230 V, single-phase units. They are online, double-conversion units that provide highly efficient and reliable power protection and backup power for your IT or computing equipment. With excellent electrical performance, enhanced networking and intelligent monitoring features, they meet ENERGY STAR® 2.0, EMC, and safety standards to meet the ever-growing power demands of data center, enterprise, and Edge IT equipment.

Technical specifications:

• Topology: Online Double Conversion
• Transfer time: 0 ms
• Input voltage: 100 - 125 VAC
• Output voltage: 120 VAC (100/110/115/125 VAC selectable)
• Input frequency: 40 - 70 Hz
• Output frequency: 50/60 ± 4 Hz
• Input plug type: NEMA L 5-30P
• Cable length: 3 m.
• VA output: 3000
• Output Watts : 3000
• Power factor: 1.0

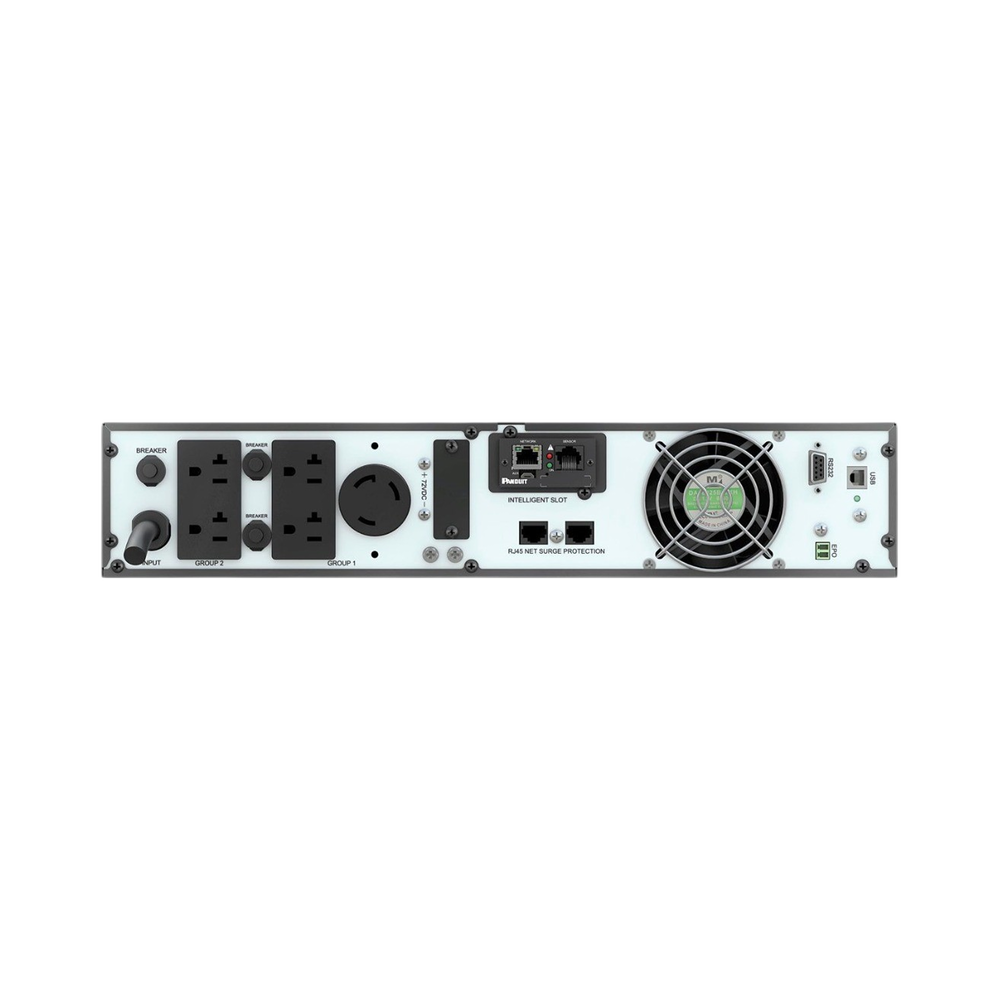

• Total output jacks: 5
• Type of Output Sockets: NEMA 5-20R (4) and 1 L5-30R
• Backup time with full load (3000 W): 4.6 Minutes
• Backup time with half load (1500 W): 14.01 Minutes
• Surge protection: Network grade surge protection
• SNMP/HTTP Remote Management: UNCP01 (included)
• Battery type: VRLA
• Extended Battery Module: UVP072

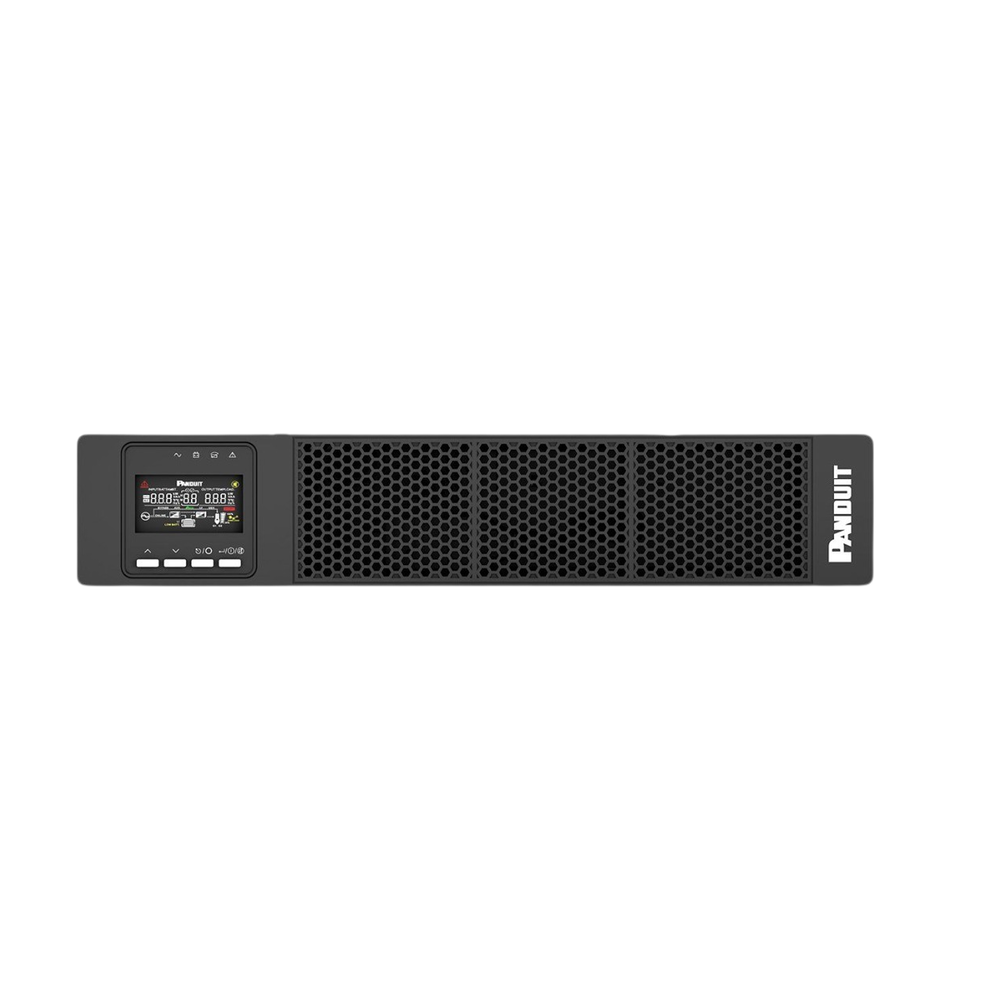

• Indicators: LCD reading display
• Rack Size: 2 RU
• Dimensions: 440 x 86.5 x 600 mm (Width x Height x Depth)
• Weight: 25.7 Kg
• 3-year warranty (2 years on batteries)
