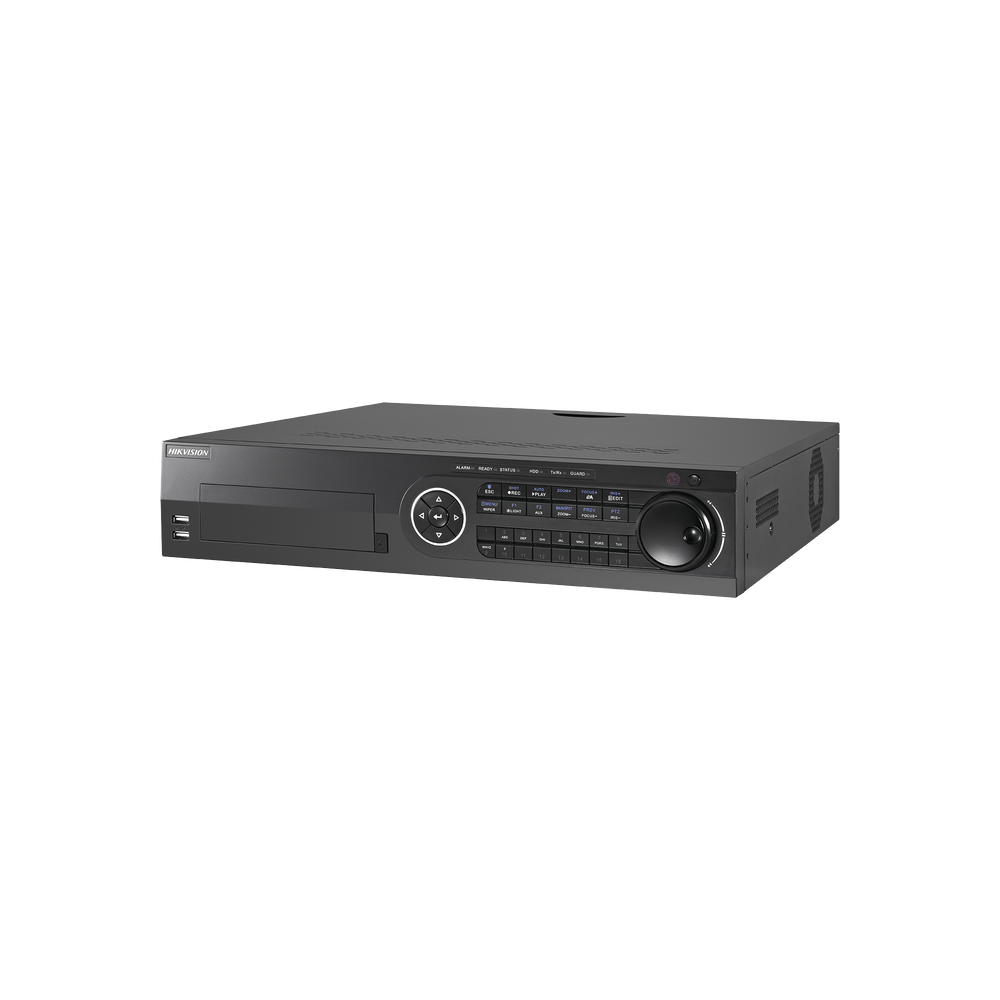

• DVR 4 Megapixel / 16 Canales TURBOHD + 4 Canales IP / 8 Bahías de Disco Duro / 16 canales de Audio / Audio por Coaxitron / 16 Entradas de Alarma / Soporta POS
1 1

HIKVISION

4 Megapixel DVR / 16 TURBOHD Channels + 4 IP Channels / 8 Hard Drive Bays / 16 Audio Channels / Audio via Coaxitron / 16 Alarm Inputs / Supports POS

4 Megapixel DVR / 16 TURBOHD Channels + 4 IP Channels / 8 Hard Drive Bays / 16 Audio Channels / Audio via Coaxitron / 16 Alarm Inputs / Supports POS

$0 COP
$0 COP $0 COP
Sale Sold out
Shipping calculated at checkout.

4 Megapixel DVR / 16 TURBOHD Channels + 4 IP Channels / 8 Hard Drive Bays / 16 Audio Channels / Audio via Coaxitron / 16 Alarm Inputs / Supports POS

Important note:

Thanks to the new updates (improvements) the DVR now allows accepting 4 Megapixel TURBOHD cameras, the DVR will be able to record at 4 Megapixel Lite, meaning that it is a signal coupling that allows accepting 4 Megapixel TURBOHD cameras with Lite recording.

  • 4 Megapixel Actual = 2560 X 1440.
  • 4 Megapixel Lite = 1280 X 1440.

Main features:
  • Pentabride System (AHD / TVI / CVI / Analogue / IP).
  • Compression: H.265+ / H.265 / H.264+ / H.264.
  • 16 TURBOHD video channels + 4 IP channels = 20 channels in total.
  • It also allows you to turn off analog channels to generate IP channels.
  • 16 Audio inputs / 2 audio outputs.
  • Capacity for 8 SATA hard drives up to 12 TB (96 TB total).
  • Independent HDMI1 (4K) / VGA (1080p) video outputs.
  • Supports Hik-Connect P2P.
  • Compatible with iVMS4200.
  • It has a coaxitron to move PTZ.
  • Supports audio via coaxitron

Video channels:

  • 16 Video Channels, resolution varies depending on camera technology.
    • TVI: 4MP lite /1080p / 720p.
    • AHD: 4MP Lite / 1080p / 720p.
    • CVI: 4MP Lite / 1080p / 720p.
    • IP: 6 Megapixels.
  • Input and output bandwidth processing capacity: 240Mbps
Physical and Electrical Characteristics:
  • Power / consumption: 100 to 240 Vac / 45 Watts (without hard drives).
  • 1 RS485 port.
  • 2 RJ-45 10/100/1000 Mbps self-adaptive network ports.
  • Operating temperature: -10° to 55° C.
  • Dimensions: 442 x 470 x 90 mm.
  • Weight: 10 Kgs.
  • Warranty: 2 years.

Video Encoding:

  • Main Stream:
    • 4MP lite @15fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 30fps.
  • Sub Stream: 4CIF, CIF, QCIF,QVGA.
  • Bitrate from 32kbps to 6Mbps.

Audio Channels:

  • 16 Audio channels, RCA connector input.
  • 16 Audio channels via coaxitron
  • 2 Audio outputs, RCA connector.

To connect IP cameras you need a switch/poe switch (not included)

Highlighted Features:

  • The DVR allows you to turn off analog channels to generate IP channels, which allows it to work as if it were an NVR, however it is necessary to add a switch since the equipment does not have network interfaces to connect cameras directly, only through the LAN network.



    It has 8 hard drive bays, supports hard drives up to 12TB, has coaxitron audio, supports POS, allows you to turn analog channels on and off, to generate IP channels

Out of stock

MODELO: IDS-8116HQHI-M8/S

View full details
