• Conector N Hembra (L4.5PNF-RC) para Cable 5/8" Modelo LDF4.5-50
1 1

ANDREW / COMMSCOPE

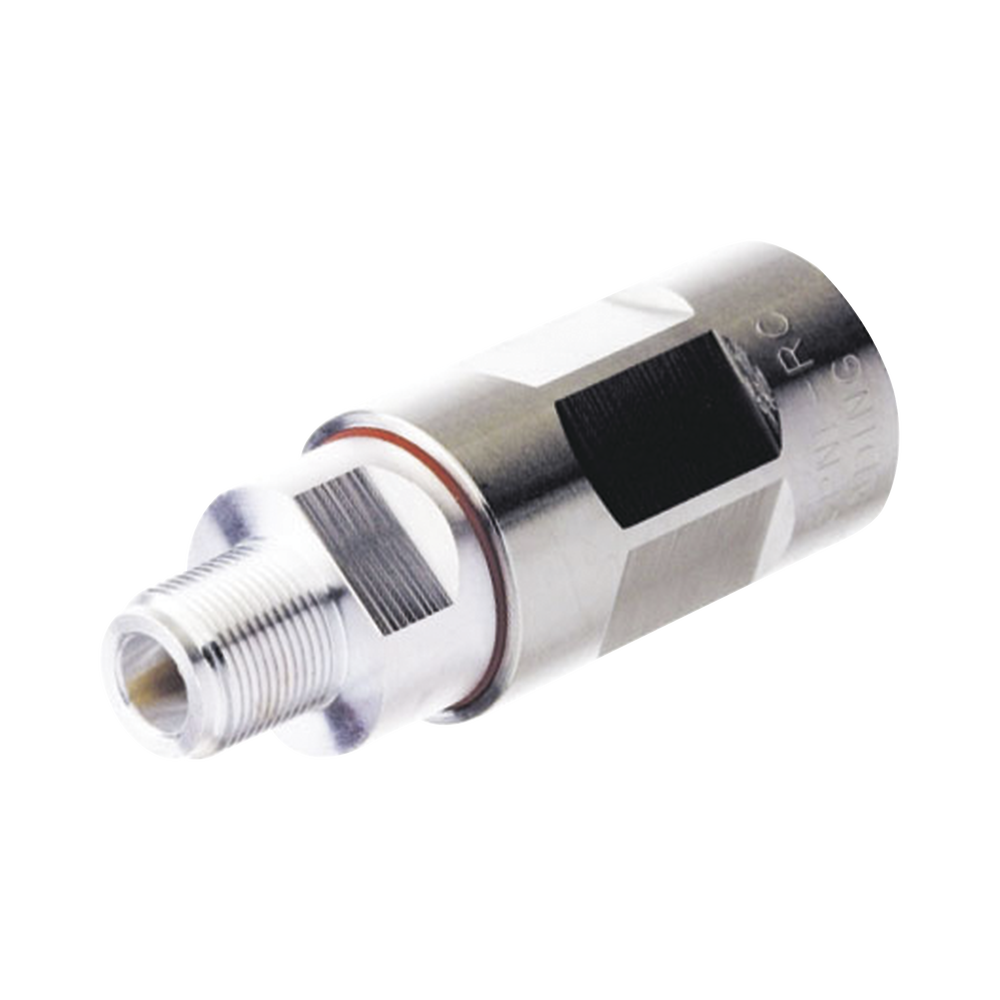

N Female Connector (L4.5PNF-RC) for 5/8" Cable Model LDF4.5-50

N Female Connector (L4.5PNF-RC) for 5/8" Cable Model LDF4.5-50

$414.103 COP
$452.925 COP $414.103 COP
Sale Sold out
Shipping calculated at checkout.

N Female Connector (L4.5PNF-RC) for 5/8" Cable Model LDF4.5-50

General Specifications
Interface  N Female
Body Style  Straight
Brand  HELIAX®
Mounting Angle  Straight

Electrical Specifications
Connector Impedance  50 ohm
Operating Frequency Band  0 – 6100 MHz
Cable Impedance  50 ohm
RF Operating Voltage, maximum (vrms)  707.00 V
DC Test Voltage  2000 V
Outer Contact Resistance, maximum  0.30 mOhm
Inner Contact Resistance, maximum  2.00 mOhm
Insulation Resistance, minimum  5000 MOhm
Average Power  0.6 kW @ 900 MHz
Peak Power, maximum  40.00 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness  -110 dB

    Out of stock

    MODELO: L45PNF-RC
