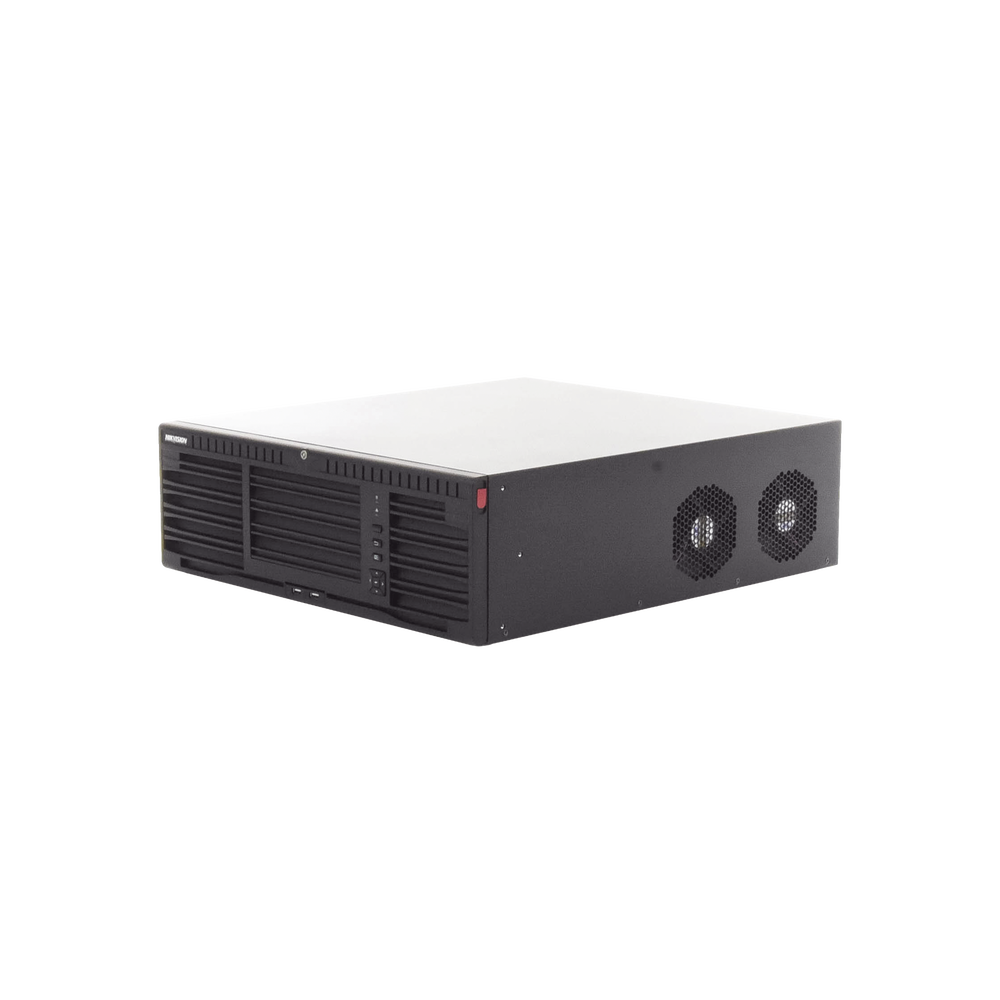

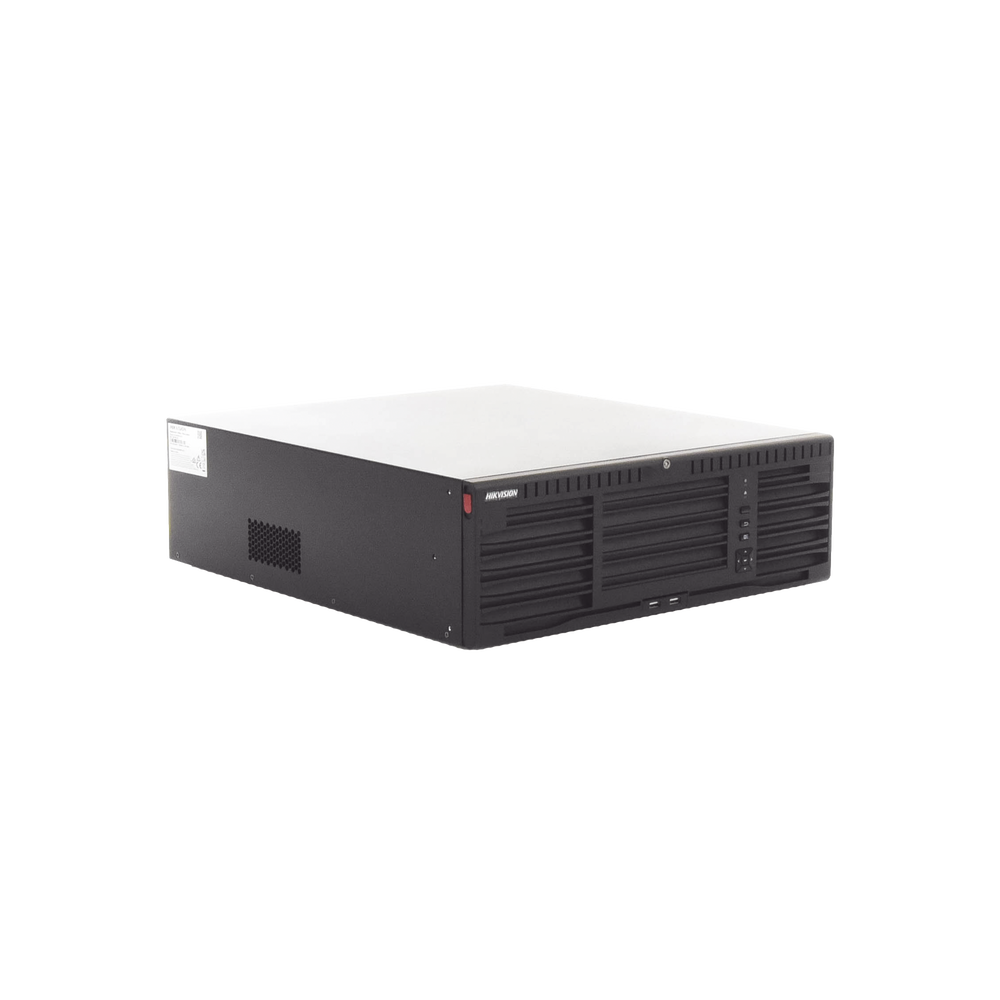

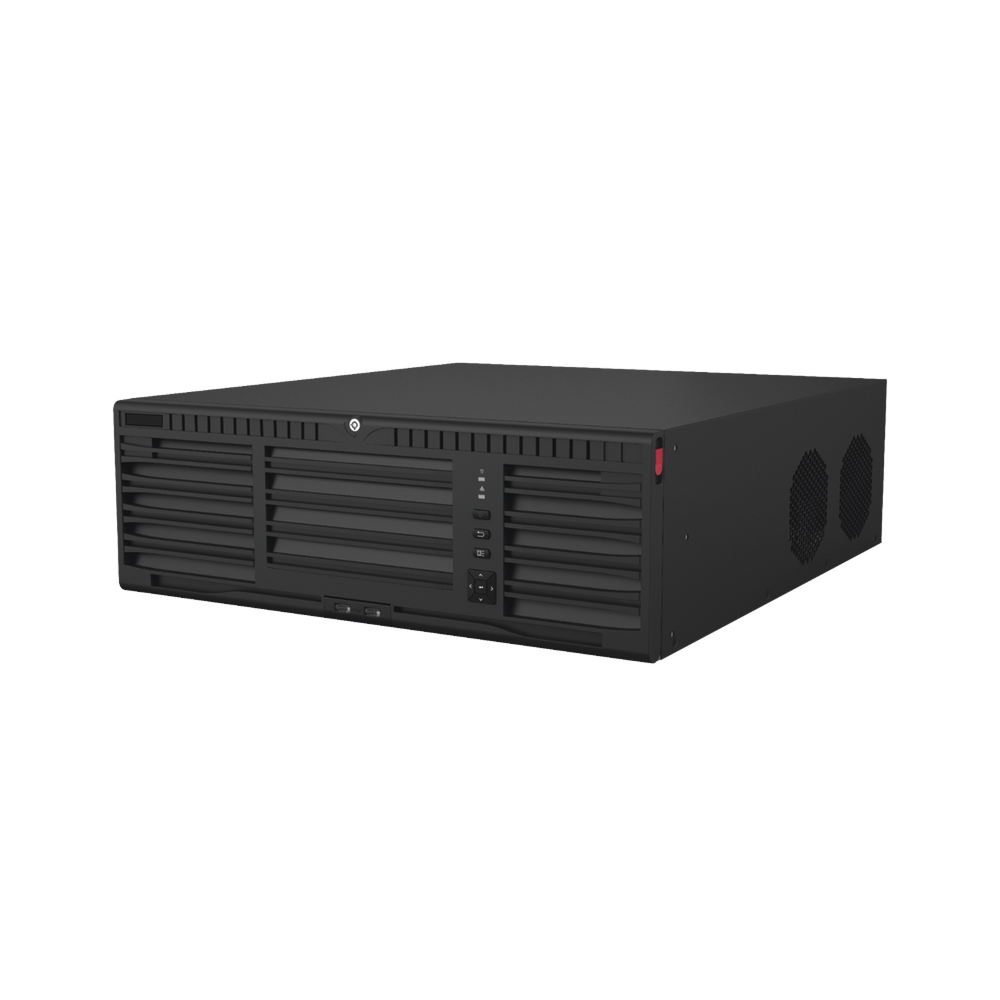

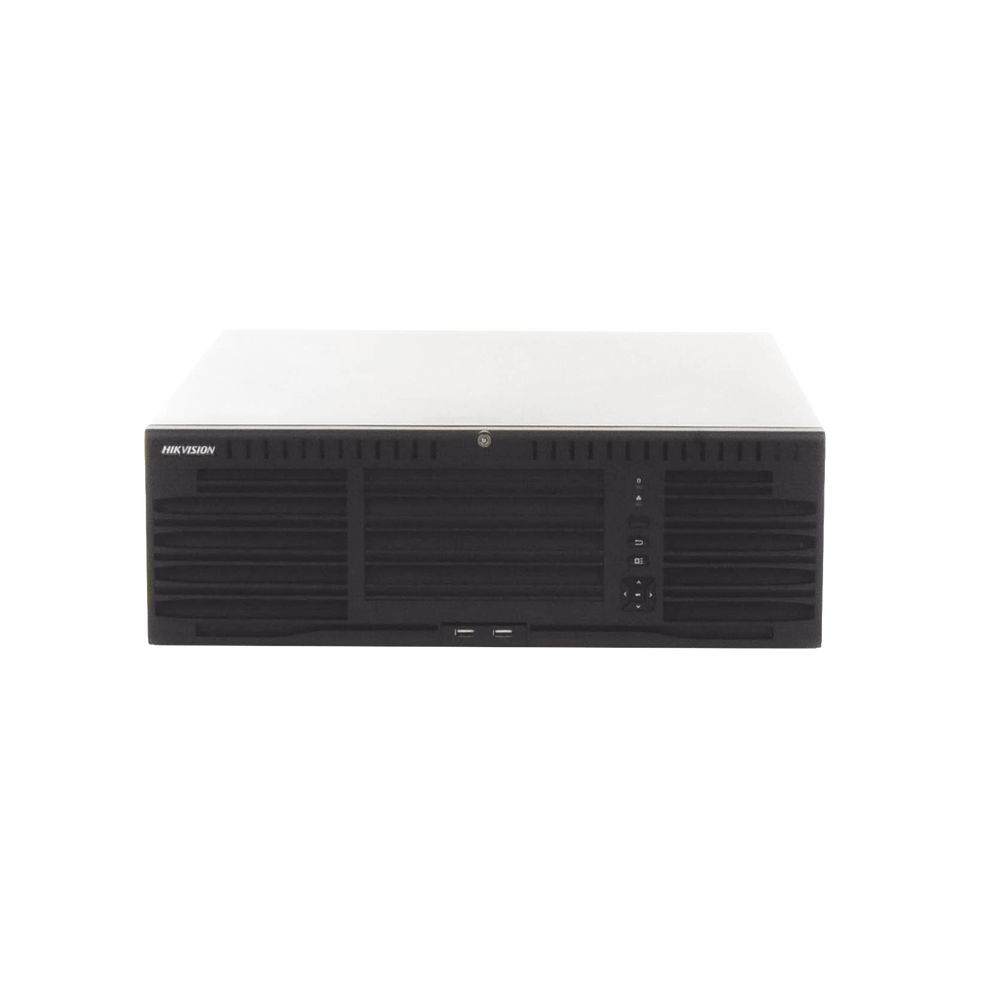

8K Megapixel NVR / 64 IP Channels / Supports AcuSense Cameras / 16 HDD Bays / 2 Network Cards / Supports RAID with Hot Swap / 8K HDMI / Supports POS

• Video compression: H.265+ / H.265 / H.264+ / H.264.
• Supports USB mouse to operate (included).
• Supports 16 HDDs up to 16 TB (not included).
• Supports HOT SWAP with RAID 0,1,5,6,10 array.
• Supports local or remote calendar search.
• Supports ANR technology with HIKVISION IP camera when the network is disconnected.
• Supports Hot Spare so you never lose recording if your NVR fails (another NVR that also supports the feature is required).
• Supports DDNS (Hik-Connect, DynDNS, etc.).
• Supports Hik-Connect P2P (Hik-Connect).
• IVMS-4200 client software (free).
• Supports multiple brands using the ONVIF protocol.

• Dimensions: 445 × 496 × 150 mm (3U chassis).
• Power supply: 100 to 240Vac / 50 W.
• Operating temperature: -10°C to 55°C.
• Weight: 12.5 Kg without HDD.
• Warranty: 5 years.

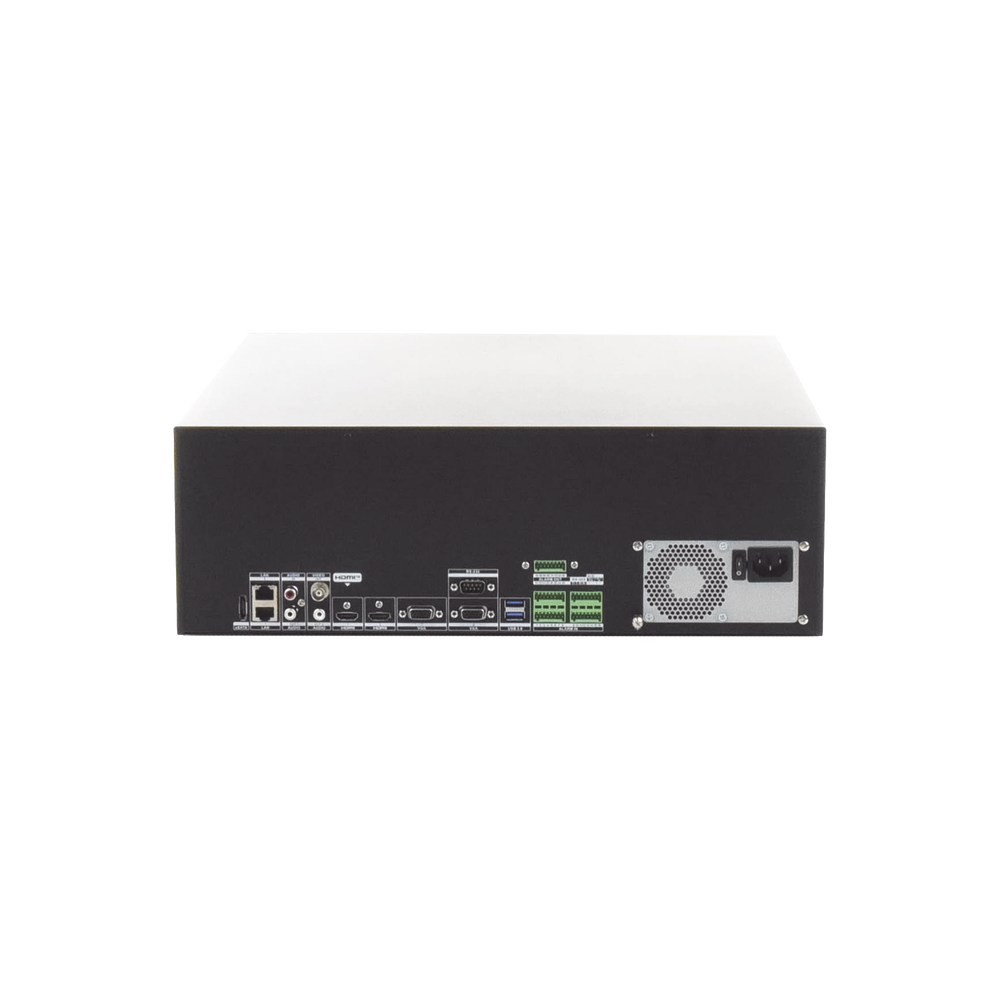

Input/Output Interfaces:

• HDMI Output 1: 8K / 4K / 1080p / 720p.
• HDMI 2 output: 4k / 1080p / 720p.
• VGA Output 1: 1080p/720p.
• VGA Output 2: 1080p/720p.
• Independent HDMI 1 and HDMI 2 output.
• Independent VGA 1 and VGA 2 output.
• Audio Input: 1 Channel.
• Audio Output: 2 Channels.
• Alarm Input: 16
• Alarm Output: 9
• Supports two-way audio (1 channel two-way audio).

Recording Resolution per Channel (recommended with H.265):

• Decoding:
• 1080P: 64 Channels @ 30 IPS.
• 5 MP: 64 Channels @ 30 IPS.
• 4K (8MP): 64 Channels @ 15 IPS.
• Synchronous playback on channels: 16 Channels.

• Input throughput: 400 Mbps.
• Output throughput: 400 Mbps.
• 2 x 10 / 100 / 1000 Mbps network port. (LAN)
• Network card functions: load balancing and multi-direction.
• Local and remote parameter configuration.
• Download and playback of recorded files on the NVR over the network.
• Supports remote download of NVR alarm log.

Recording and Viewing Functions:

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Dual stream (main stream and sub stream).
• Supports fast forward, slow forward, frame by frame, etc.
• Supports SMART hard drive technology
• Supports multiple recording types, including real-time, manual recording, motion detection, motion detection and alarm, motion detection or alarm.
• Supports cyclic (overwrite) and non-cyclic recording.

Supports cameras with ACUSENSE (False Alarm Filter):

• With ACUSENSE technology we can avoid false alarms such as movement of trees, animals, etc.
• By activating ACUSENSE technology, cameras will only detect human bodies and vehicles to identify truly important events and thus eliminate false alarms.
• Supports up to 64 channels with ACUSENSE technology using cameras: DS-2CD3XX / DS-2CD2XX3G2 / DS-2CD2XX7G2 (which support ACUSENSE).


• The DS96XXX recorder series works under a client-server architecture, so a workstation is required for proper operation. If you have any questions, please contact the security engineering department.
• To support RAID array it is necessary to handle at least 4 TB HDD and at least 3 drives.
