IP intercom, 2 SIP lines, 2 relays with call button, vandal-resistant, IP65 and IK10, PoE

IP intercom, 2 SIP lines, 2 relays with call button, vandal-resistant, IP65 and IK10, PoE

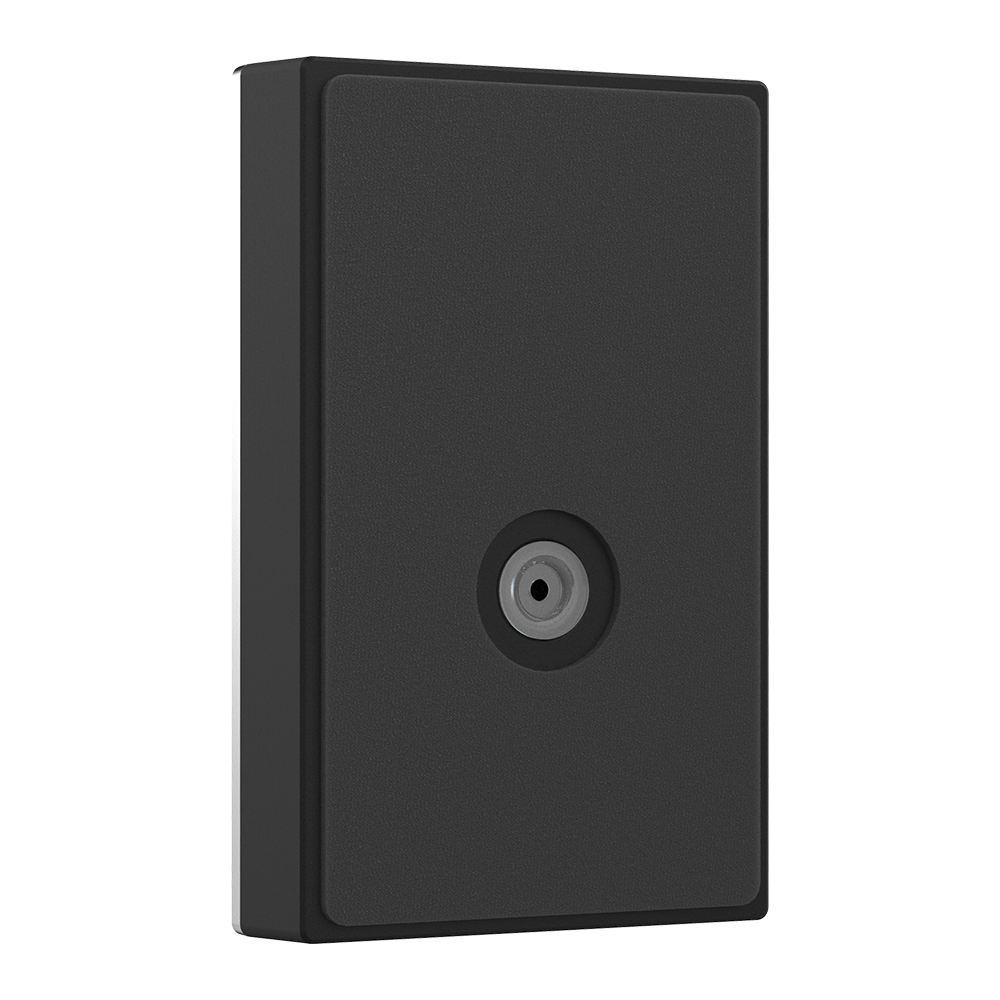

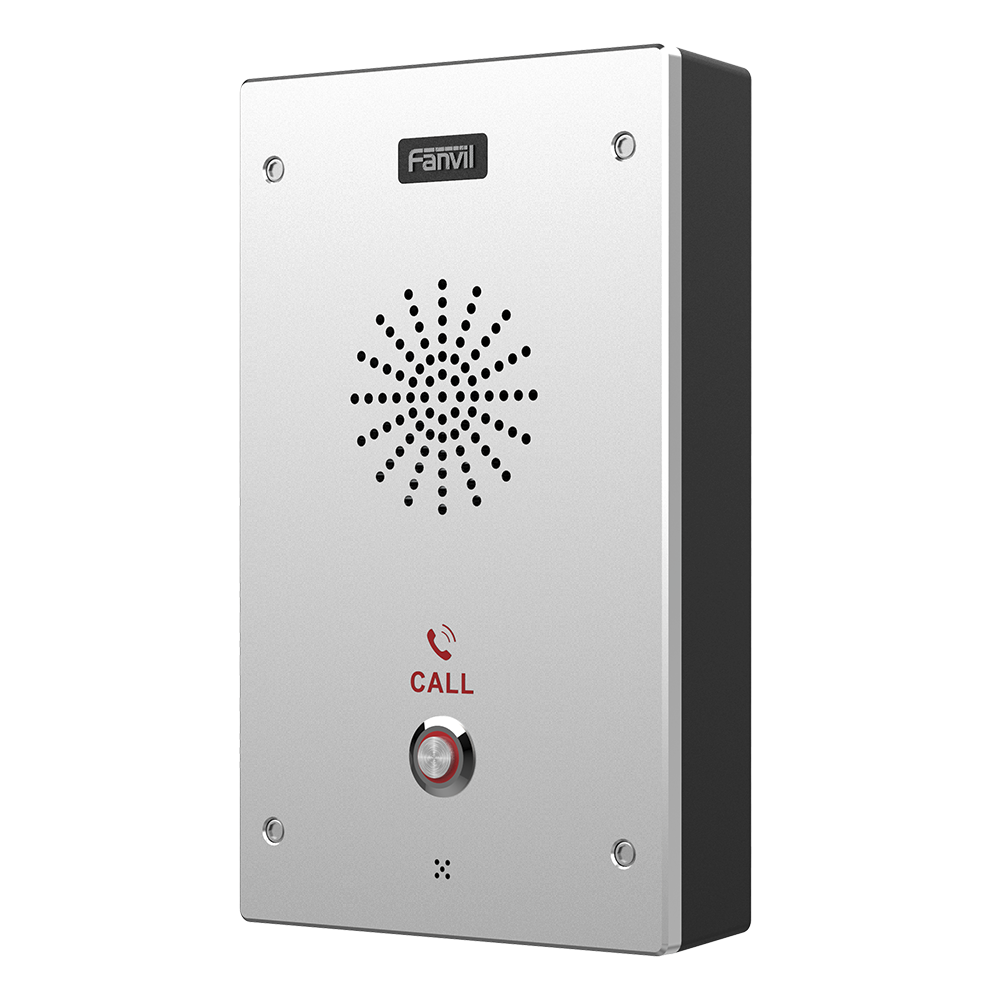

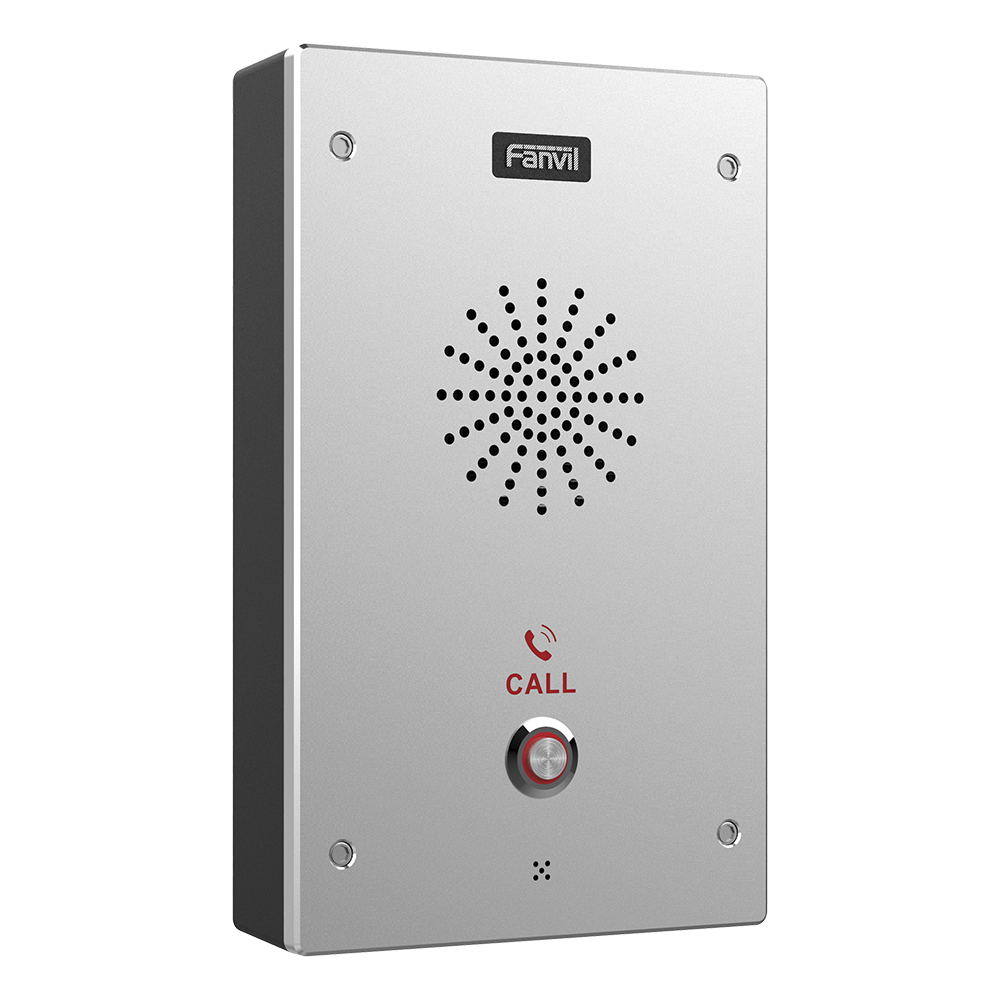

The Fanvil i16S SIP intercom is designed for outdoor scenarios with high reliability, HD Audio, and IP65/IK10 protection. It combines security, audio intercom, and broadcasting features to deliver the best communication experience. The i16S SIP intercom can be easily configured for a variety of applications and scenarios, including banks, schools, mining, cities, and more.

General

• 2 SIP Accounts
• PoE Enabled
• HD voice quality with built-in 3W speaker and acoustic echo
• Intelligent DSS Button (Speed ​​Dial/intercom etc)
• Noise Reduction or integrated with dual MICs.
• Omnidirectional pickup
• Integrated anti-dismantling alarm
• Powered by external power source (power supply not included)
• Multicast
• Call recording output interface
• All in ONE intercom and paging service and Selurity Linkage
• Wall mounting

Call Functions

• Voice
• Speed ​​dial key
• Auto-answered (per line)
• Voice Message (over server)
• Barge in and calls switched automatically
• 3-way local conference


Network Features

• 802.3af PoE
• IP Settings: Static / DHCP / PPPoE
• Network access control: 802.1x
• VPN: L2TP / PPTP / IPSec
• VLAN: 802.1p/q
• QoS: DSCP
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• Tr069


Physical Specifications

• Keypad: 1 DSS Button (Speed ​​Dial)
• 2 Ethernet interfaces: 1 Fast Ethernet PoE (802.3 af) and 1 Fast Ethernet bridged to the network
• Main Chipset: Broadcom
• 1GB DDR3 SDRAM
• Active speaker output interface
• Audio recording output interface
• 2 12V DC output relays
• Audio amplifier: 2.5W
• Speaker: 2W / 4 Ohms
• Cables: CAT5 or better
• Power supply：9-16Vdc, 1.0A or PoE 802.3af
• Housing material: Cast-Aluminum back case
• Protection level: IP65 and Ik10
• Storage temperature: -40~70℃
• Operating humidity: 10~90%
• Overall dimensions: 195 x 120 x 39 mm (W x H x L)
• Package Weight: 0.85 Kg

Panic button connection topology.

* Can be used without an IP switch or with an IP switch for special functions (group ringing, answering from a cell phone via softphone, etc.)

*1 year warranty.
