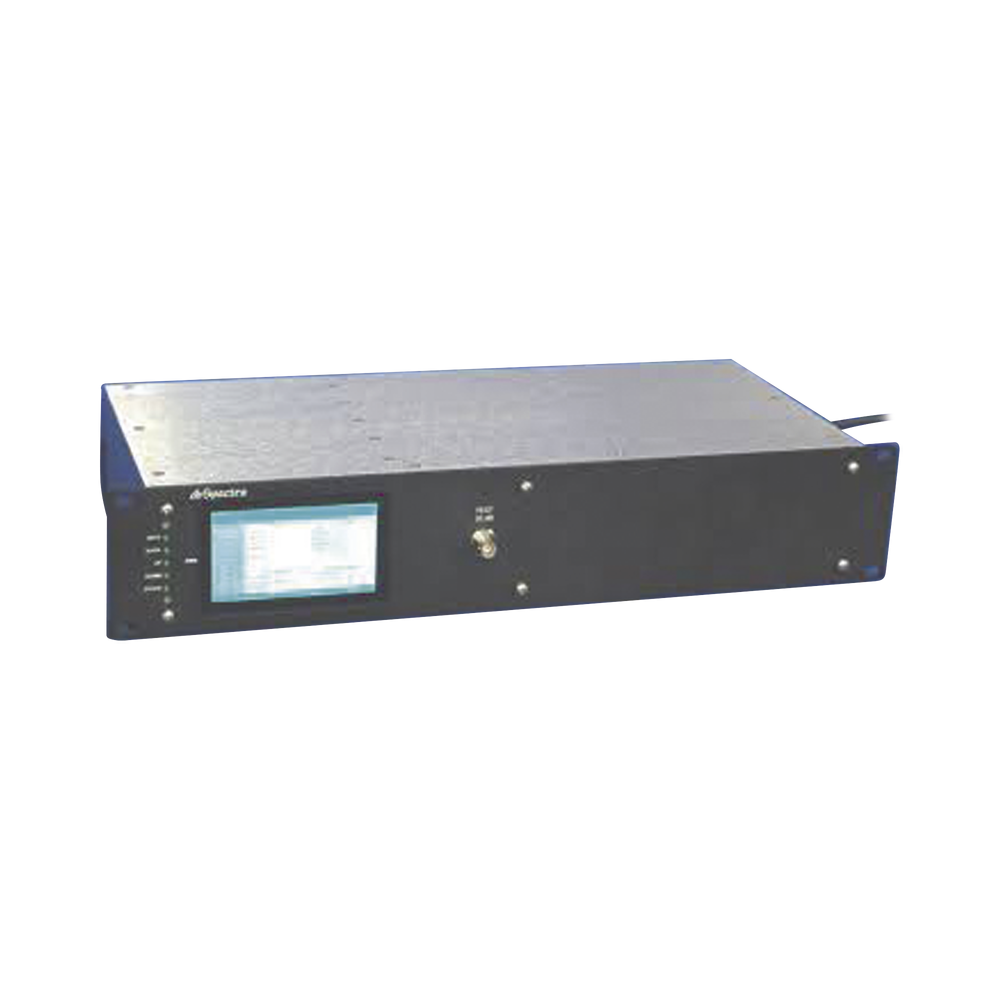

Multicoupler for 794-824 MHz, 8 Channels, 2 RU, -48 Vdc with (PDU) Power Distribution Unit for TTA at 18-24 Vdc, with Test Port, N/ BNC Females.

Multicoupler for 794-824 MHz, 8 Channels, 2 RU, -48 Vdc with (PDU) Power Distribution Unit for TTA at 18-24 Vdc, with Test Port, N/ BNC Females.

Multicoupler 794-824 MHz, 8C, 2UR, Power Distribution Unit / TTA at 18-24 Vdc, Test Port.

• For use with Tower Amplifiers.
• Quadrature coupled low noise amplifier (LNA).
• Alarm sensors monitor amplifier current and power supply voltage.
• Status LEDs on the front panel indicate the status of the multi-connector receiver, the top of the amplifier tower, and the power supply.
• 2RU 19-inch rack mount.
• Step adjustable attenuator is provided in front of the LNA for net gain adjustment of the system.
• PolyPhaser® Bias-T surge protector.
• Remote alarm monitoring through dry contacts.
• Frequency range: 794-824 MHz.
• Number of channels: 8 (No Charges Required in Non-Use).
• LNA Noise Figure (maximum): 6.8 dB.
• Gain: 20 dB (Expansion Ports), 8 dB (Dividers).
• IP3 input: 15 dB.
• Receiver to Receiver Isolation: >20 dB.
• Return Loss (Input/Output): 14 dB in Passband.
• Impedance: 50 Ohm.
• Power Supply: -48 Vdc.
• Output Voltage to TTA: 18-24 Vdc.
• Voltage at Test Port: 6 Vdc.
• Adjustable Attenuator: 0-15 dB in 0.5 dB Increments.
• Finish: Black / Alodine Gold.
• Input Connector / Output Connector: N (F) / BNC-Female.
• Test Port Connector: BNC Female.
• Mounting: EIA 19-inch Rack.
• Temperature Range: 0 ºC to +50 ºC.
• Dimensions (H x W x D): 482.6 x 88.9 (2RU) x 292 mm.
• Net Weight / Shipping Weight: 3.63 / 5.45 kg.

* Ask about Delivery Time.
