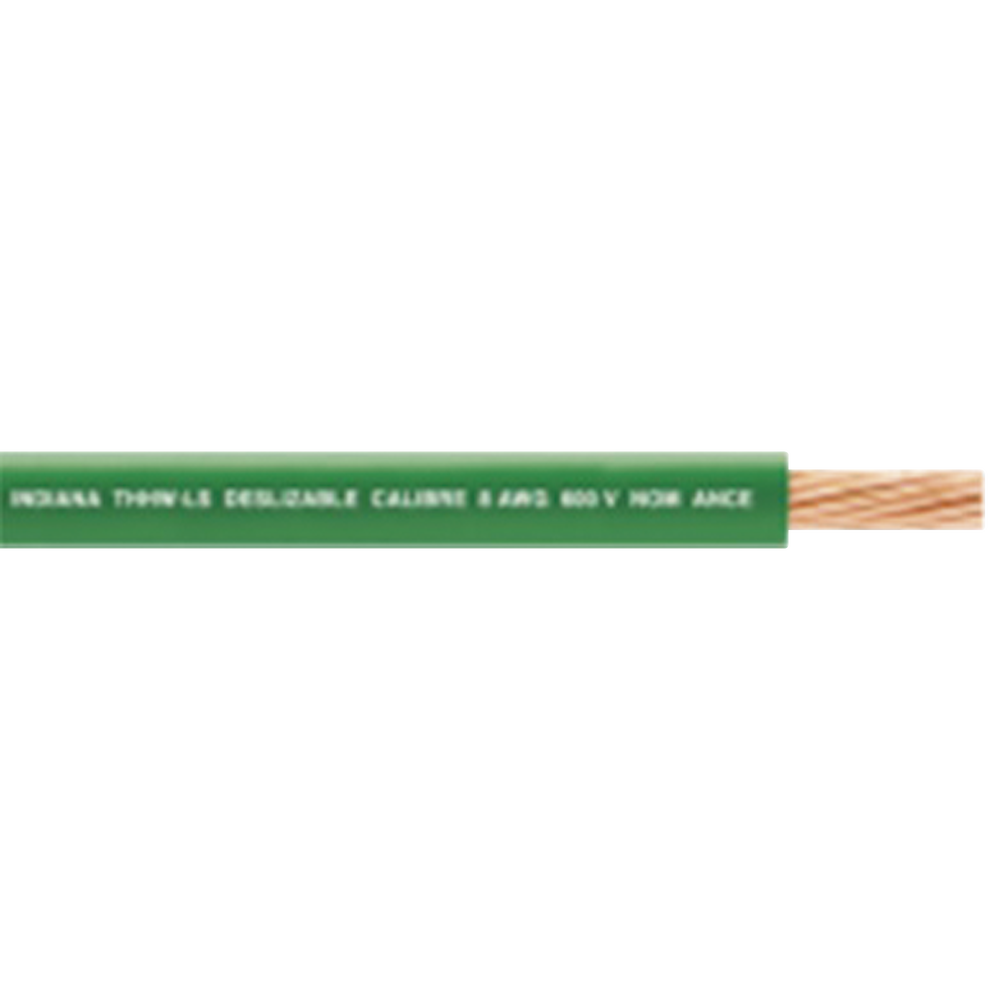

THW-LS Coated Copper Cable Gauge 4 AWG 19 Wires Green Color (1 Meter Scrap)

THW-LS Coated Copper Cable Gauge 4 AWG 19 Wires Green Color (1 Meter Scrap)

Soft copper conductor stranded with self-extinguishing PVC insulation. **1 METER SCRAP**

Physical Characteristics .

• Gauge: 4 AWG.
• Thread Count: 19.
• Conductor Area: 21.2 mm².
• Conductor Diameter: 8.89 mm.
• Insulation Thickness: 1.52 mm.
• Outer Diameter: 8.8 mm.
• Weight per Meter: 0.248 kg.
• Coating Color: Green.
  Approximate data, subject to manufacturing tolerances.

Specs:
NMX-J-010-ANCE.

Benefits:
Indiana THW-LS Slide-On installs more easily in duct, reducing wiring time.

Applications:
THW-LS high-security conductors are manufactured for reliable use in dry, wet, or oil locations, and installed in duct, conduit, or trays.

Its excellent self-extinguishing properties make it ideal for installation in residential and small commercial buildings.

It is recommended for integration of Physical Earths.

Operating Temperature:

• In dry places 90° C.
• In Wet Places 75° C.
