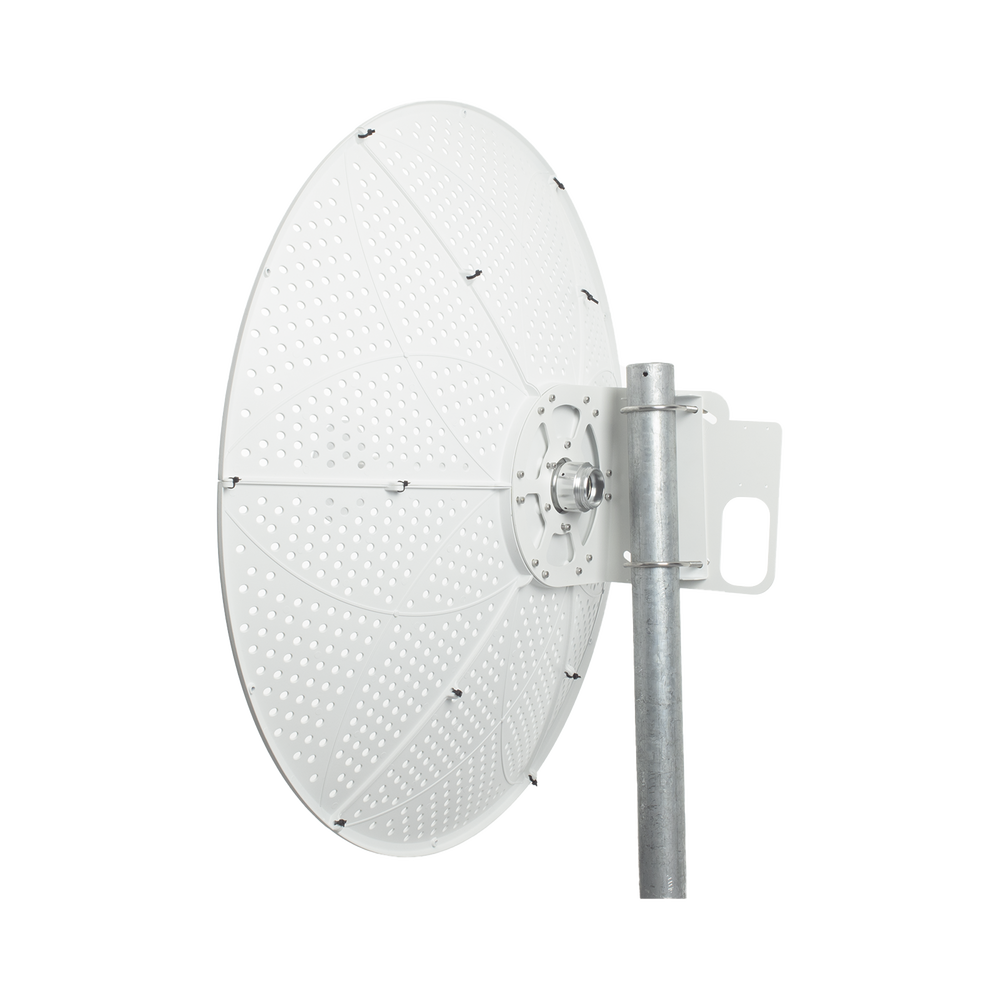

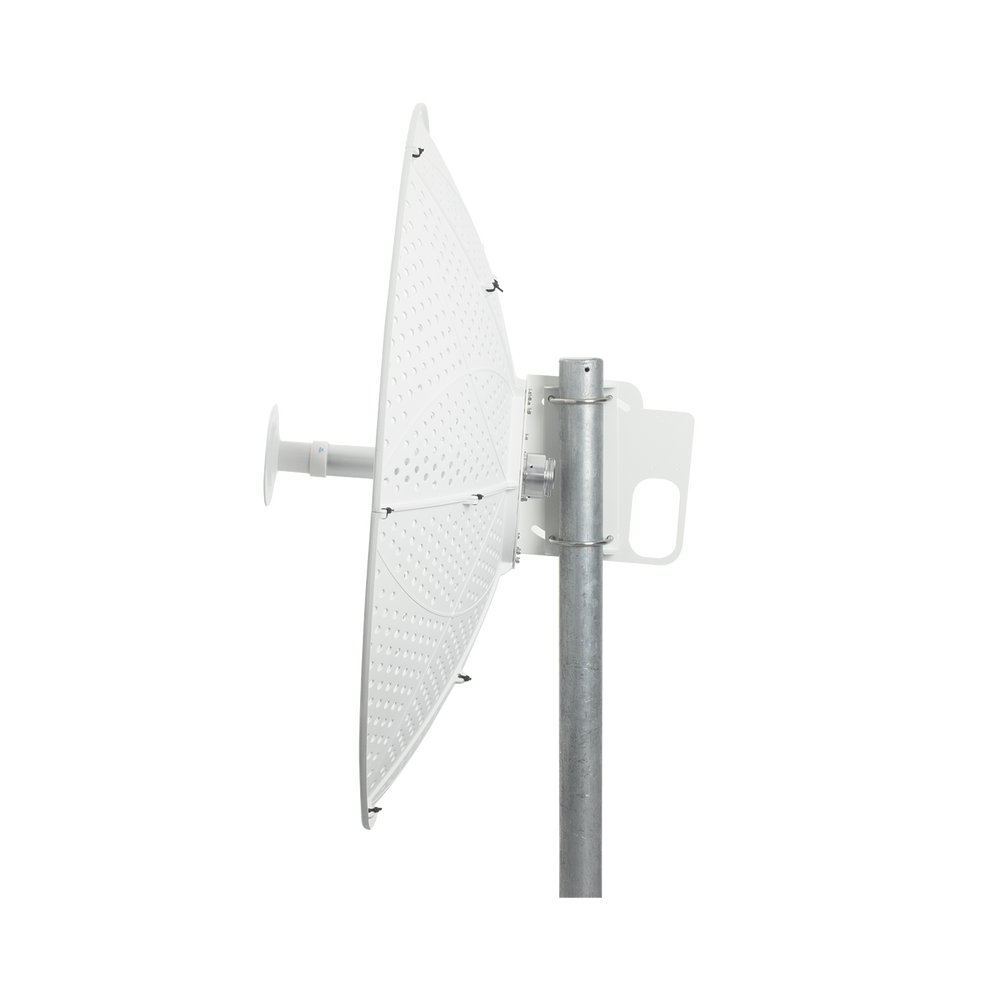

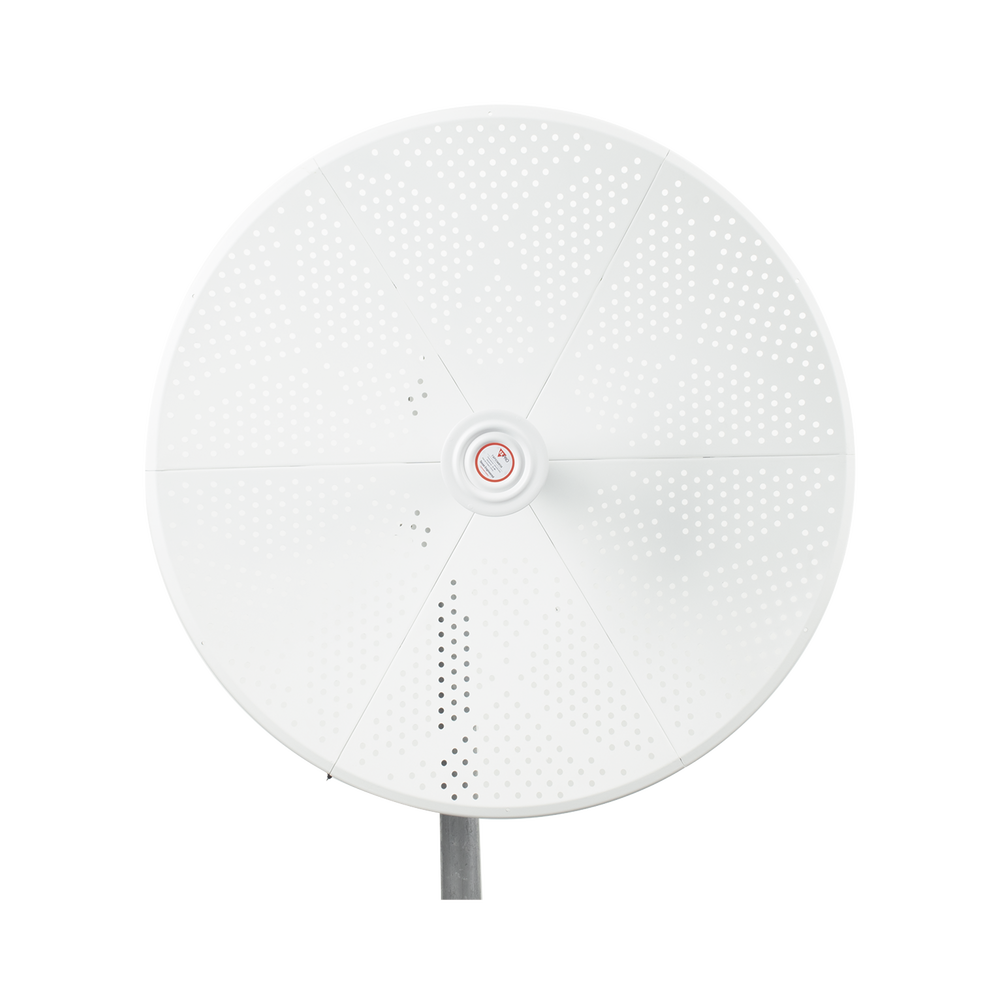

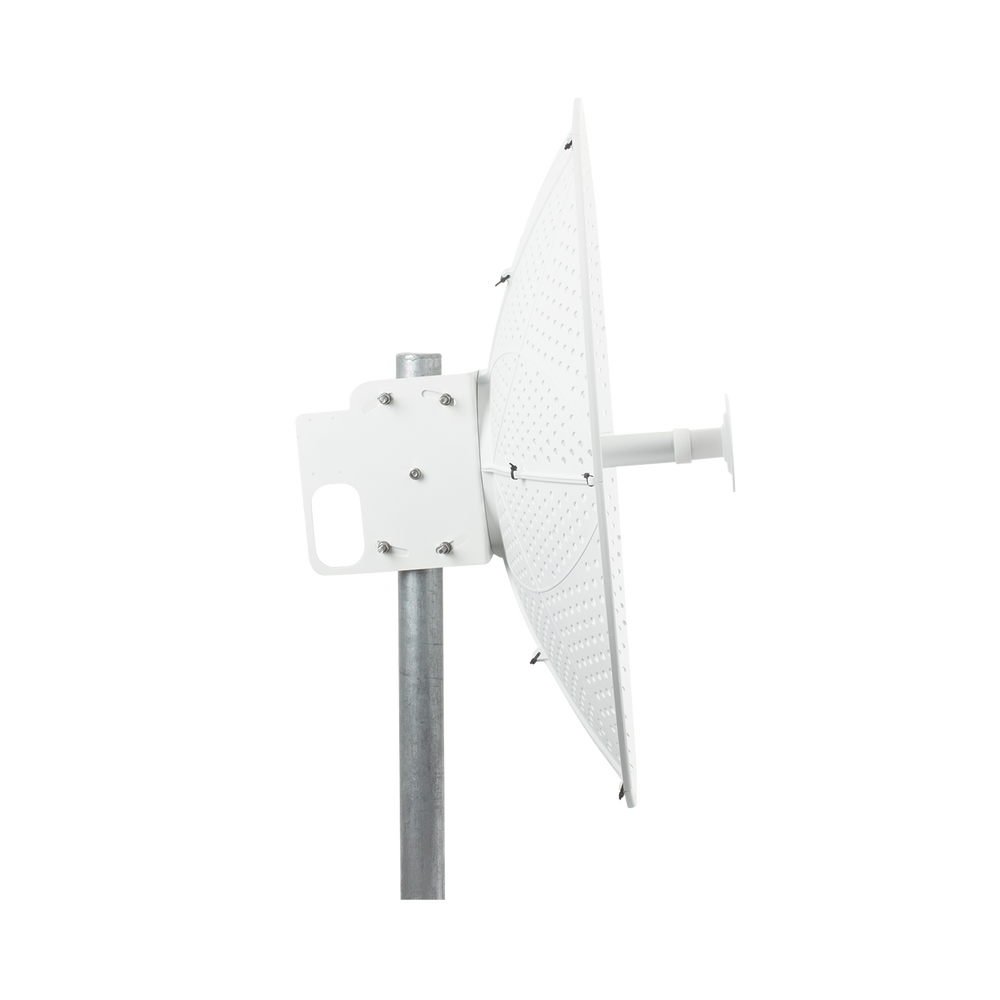

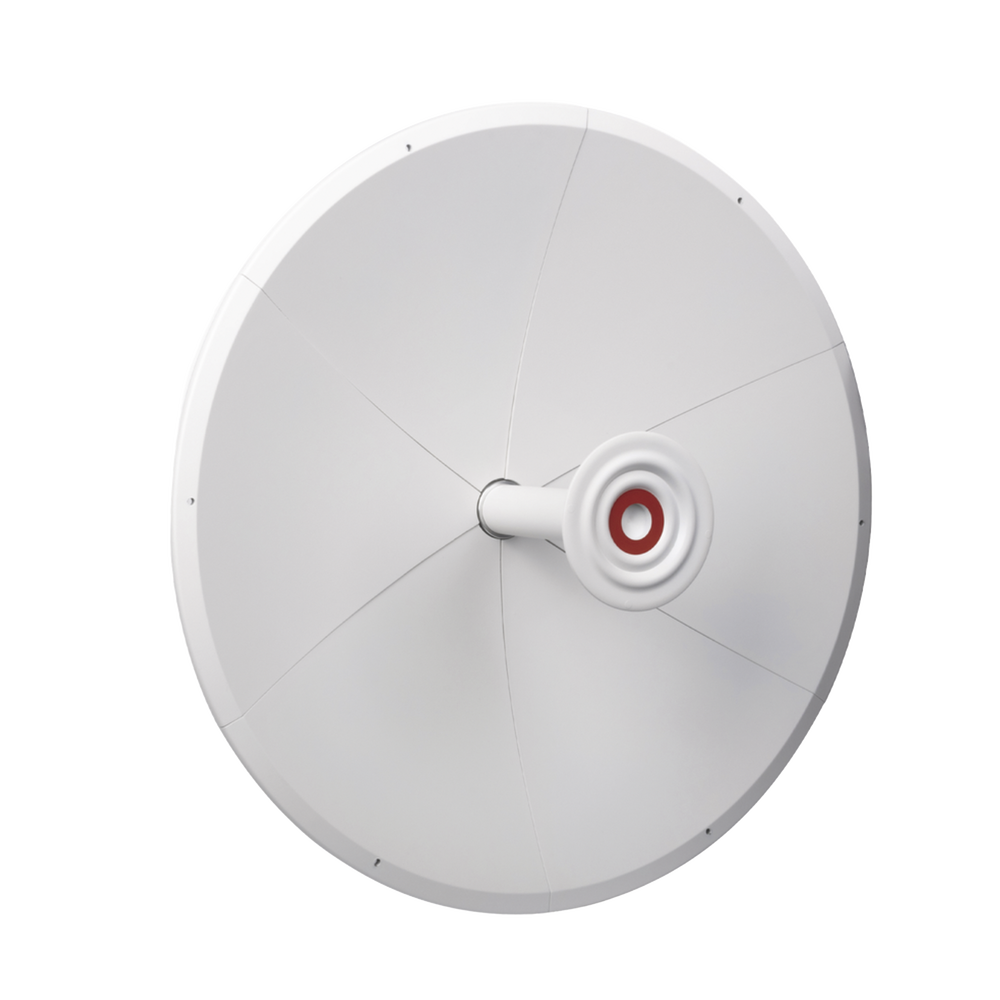

Directional Antenna for C5x and B5x, Dual Polarity 45° and 90°, 4.9 - 6.5 GHz, 2 ft, 34 dBi Gain, Mount Included

Directional Antenna for C5x and B5x, Dual Polarity 45° and 90°, 4.9 - 6.5 GHz, 2 ft, 34 dBi Gain, Mount Included

Electrical Specification

• Frequency range 4.9 to 6.5 GHz
• 34 dBi gain
• VSWR <2.0
• Double polarization
• Isolation >30 dB
• F/B > 35 dB
• Horizontal beamwidth 5°
• Vertical beamwidth 5°
• Maximum power per port 50 W
• Impedance 50Ω

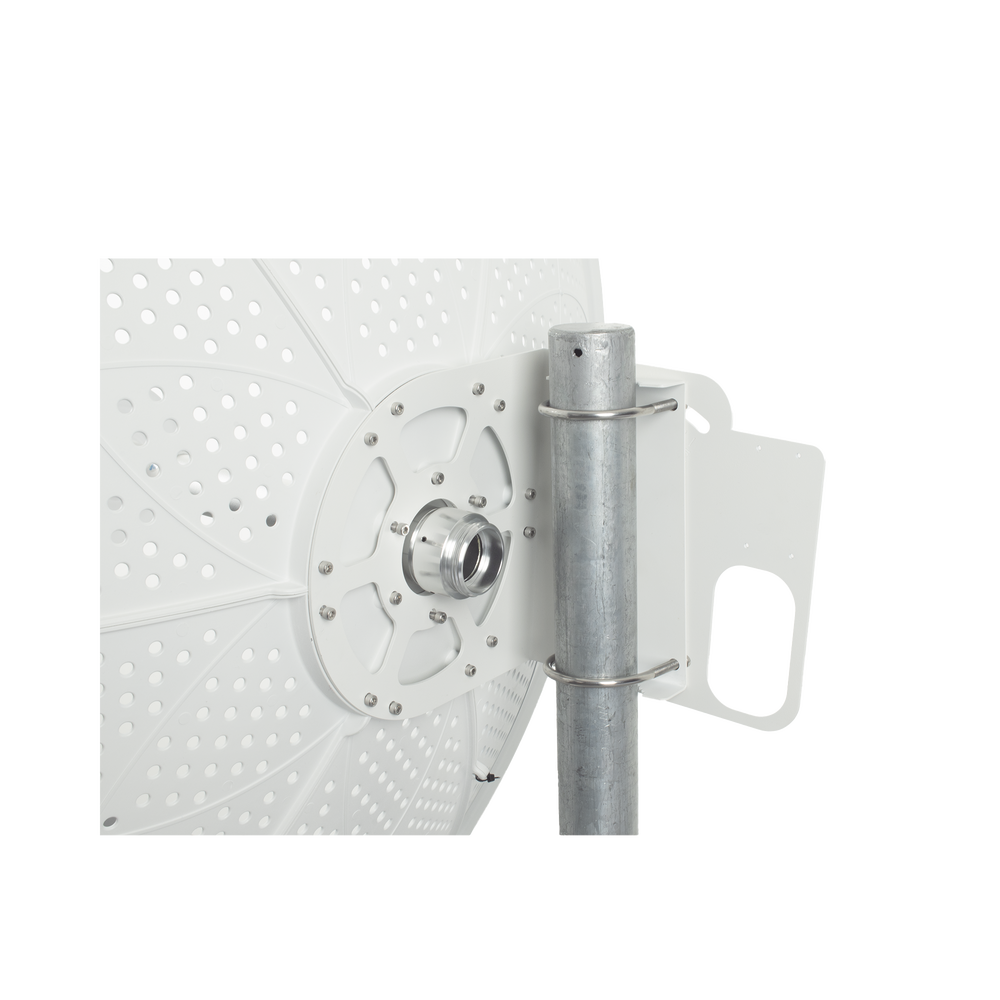

Mechanical Specification

• Connector to C5x
• Weight 6.5 kg
• Suitable diameter for mast or tower 30 cm to 80 cm
• Operating temperature -40°C to +70°C (-32°F to +158°F)

An antenna designed specifically for the C5x, with the ability to increase distance range and improve your link.

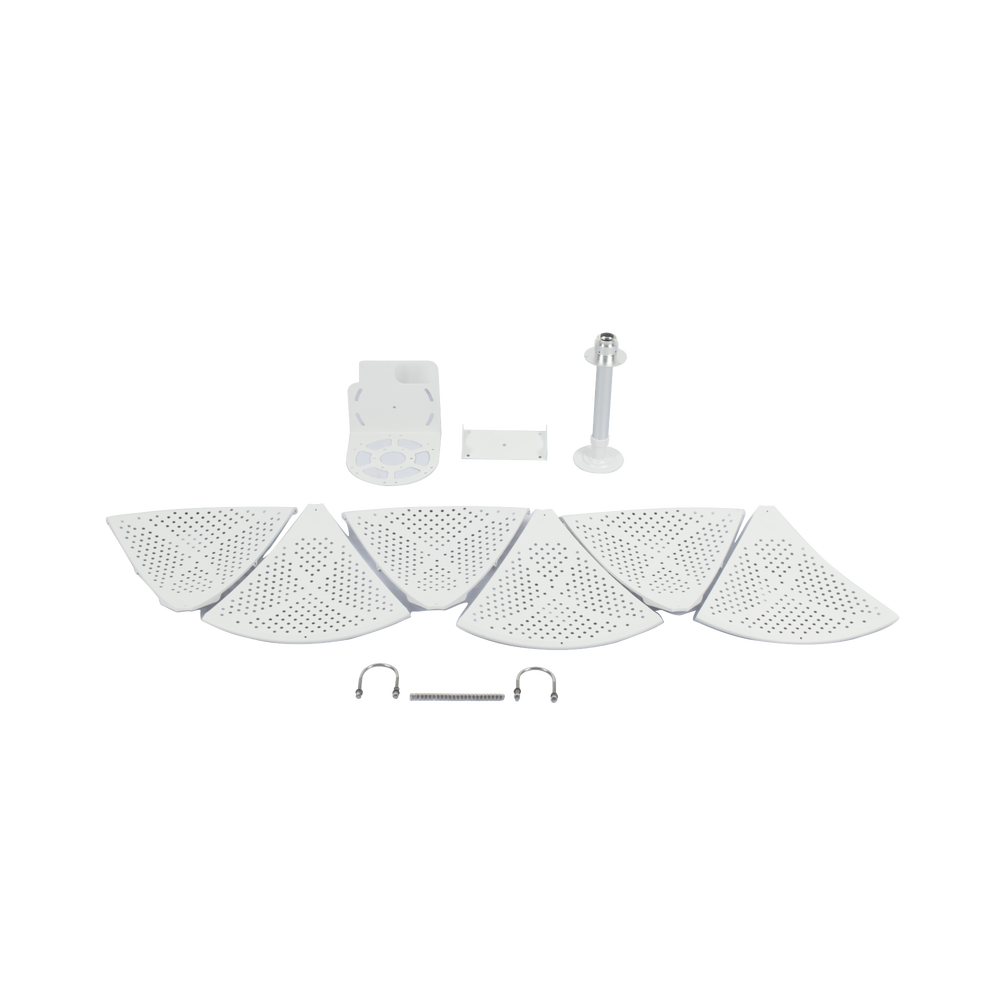

Dual Polarity 45° and 90°, No backlobes, With waveguide, Ideal for distances up to 50 km
