CCR2216-1G-12XS-2XQ, 16 core CPU, 12 SFP28 25 Gbps, 2 QSFP28 100 Gbps
CCR2216-1G-12XS-2XQ, 16 core CPU, 12 SFP28 25 Gbps, 2 QSFP28 100 Gbps
Couldn't load pickup availability
CCR2216-1G-12XS-2XQ, 16 core CPU, 12 SFP28 25 Gbps, 2 QSFP28 100 Gbps
Start your 100 Gigabit journey with our newest flagship product: the Cloud Core Router 2216! powerful 16-core CPU can trade blows with the powerful 72-core Tile CPU of our former flagship: the CCR1072.
But the exceptional Marvell Prestera Aldrin2 chip really takes it to the next level with L3 Hardware Offloading ! Our previous CCR2116 featured a switch chip with four 10G CPU connection lines, but this time there are four 25G lines!

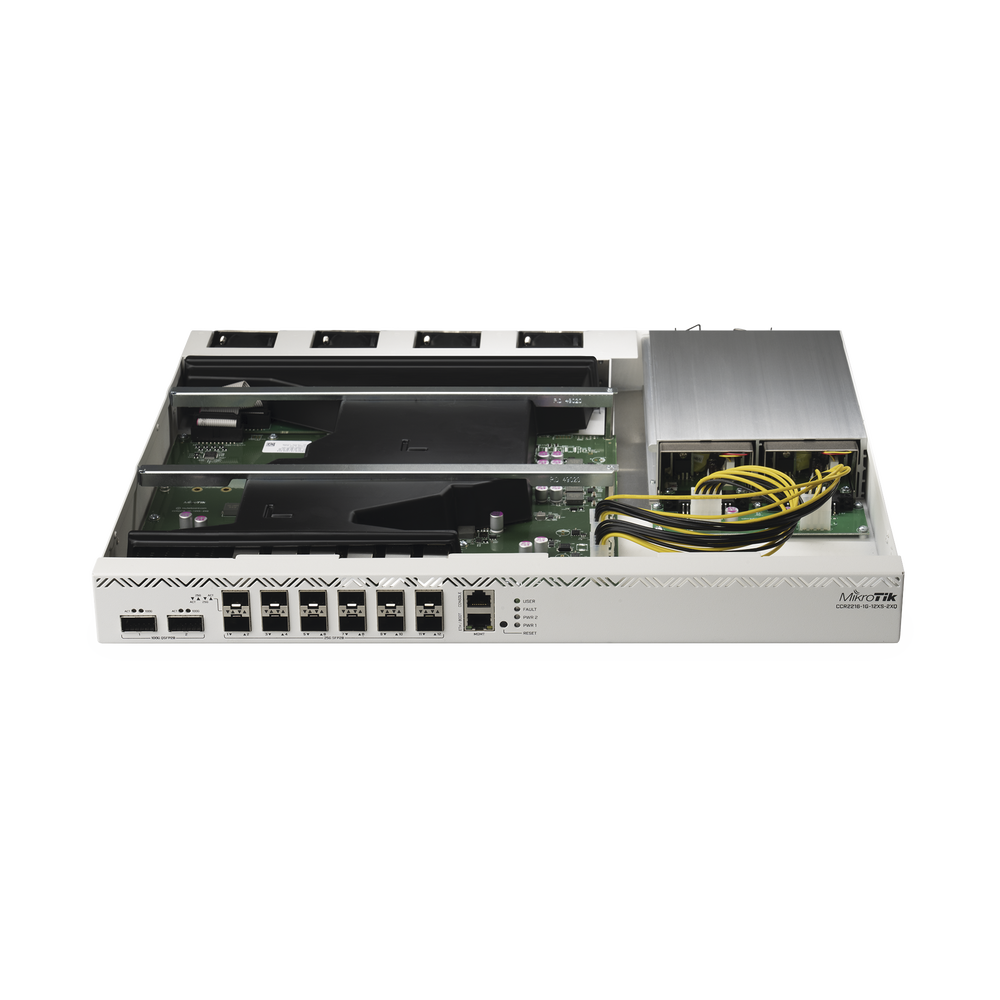

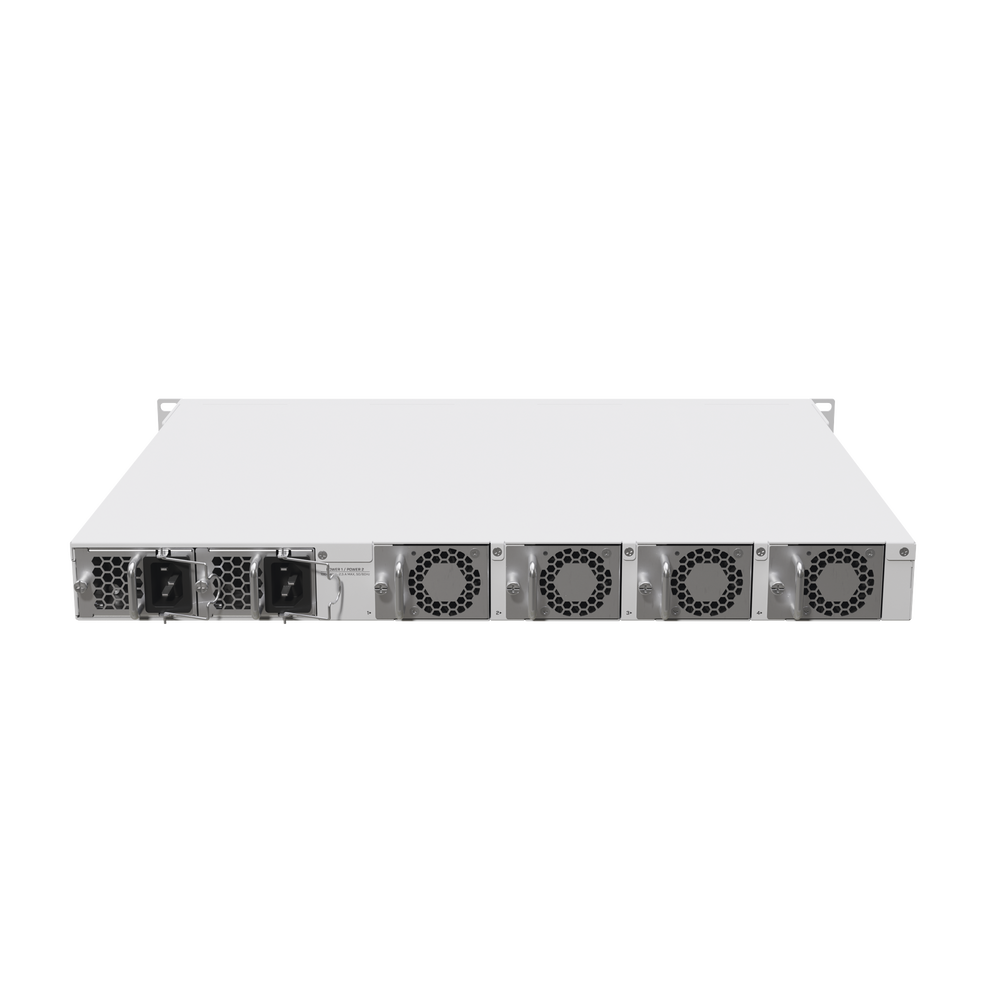

There is 2 cages QSFP28 for ultra-fast 100 Gigabit connectivity, 12 cages SFP28 for 25 Gigabit networks and a port Gigabit Ethernet . The device comes with 16GB of RAM , decent NAND storage and two SATA M.2 slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swappable power supplies. And these power supplies might look familiar if you've used our CCR1072 before—you can continue to use your previous hot-swappable power supplies and SFP modules.
You're saving time and money on accessories, while getting better performance with lower energy consumption. This is the perfect upgrade for existing CCR1072 setups!
Specs
details | |
---|---|
Product code | CCR2216-1G-12XS-2XQ |
Architecture | 64-bit ARM |
CPU | AL73400 |
CPU core count | 16 |
Nominal CPU frequency | 2000 MHz |
Dimensions | 443 x 367 x 44 mm |
RouterOS License | 6 |
Operating system | RouterOS (v7 only) |
RAM size | 16 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200,000 hours at 25°C |
Room temperature tested | -20 °C to 60 °C |
Empowering
details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Maximum energy consumption | 128 W |
Maximum power consumption without accessories | 80 W |
Cooling type | 4 fans |
Ethernet
details | |
---|---|
10/100/1000 Ethernet ports | 1 |
fiber
details | |
---|---|
Number of 25G SFP28 ports | 12 |
Number of 100G QSFP28 ports | 2 |
Peripherals
details | |
---|---|
Serial console port | RJ45 |
Number of M.2 slots | 2 |
others
details | |
---|---|
CPU Temperature Monitor | YEAH |
PCB Temperature Monitor | YEAH |
Voltage monitor | YEAH |
Certification and approvals
details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
Parts included
The device comes with a pre-installed and licensed operating system. No separate purchase is required; the product is ready to use. The device includes free software updates for the life of the product, or for a minimum of 5 years from the date of purchase.
- 16-core processor, 2 GHz, 16 GB RAM, Connectivity: 1 RJ45 gigabit, 12 SFP28 25 Gbps, 2 QSFP28 100 Gbps, Management: RJ45 Serial Console Port
Share
Out of stock
MODELO: CCR2216-1G-12XS-2XQ
