cnPilot XV2-21X WiFi 6 802.11ax Access Point, Dual Band, WPA3 Access Security, Application Control Policies, Up to 256 Clients, Cloud Management

XV2-21X Wi-Fi 6 Access Point

802.11ax
Standard + MESH 256
Omi users
360º cnMaestro or XMS Controller

XV2-21X continues the convergence of the Enterprise network with an intelligent edge Access Point managed by the best Wi-Fi system on the market with applications that will help control our network and keep us informed of everything.

Free management in cnMaestro Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	Designed for high capacity Triple Play Supports up to 256 active users with high traffic and up to 16 SSIDs.

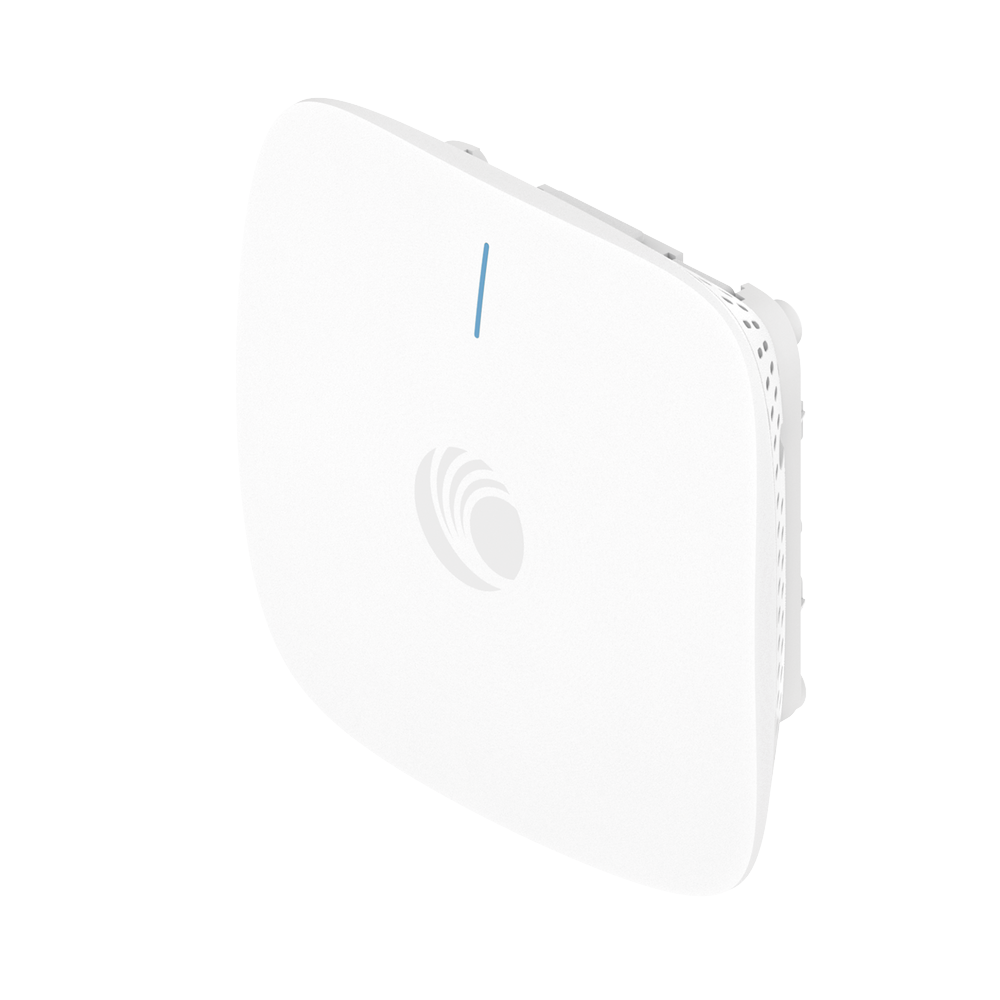

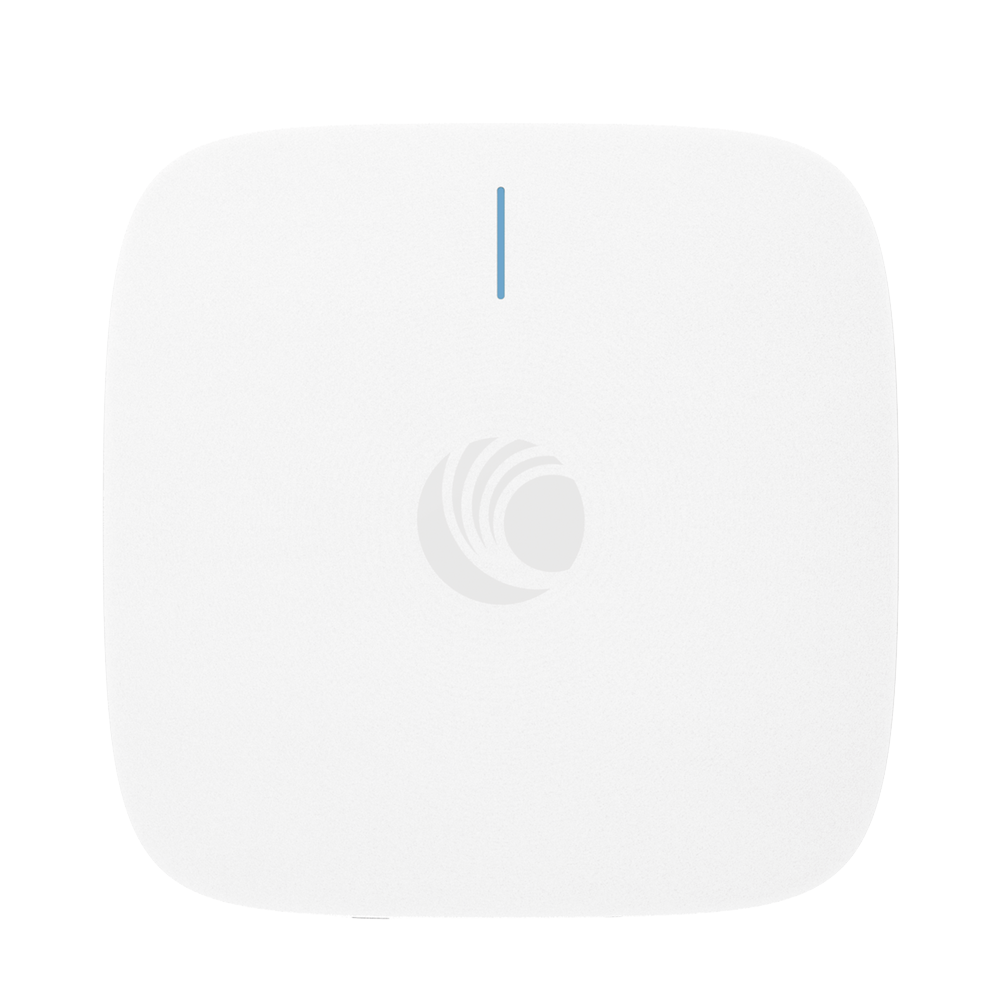

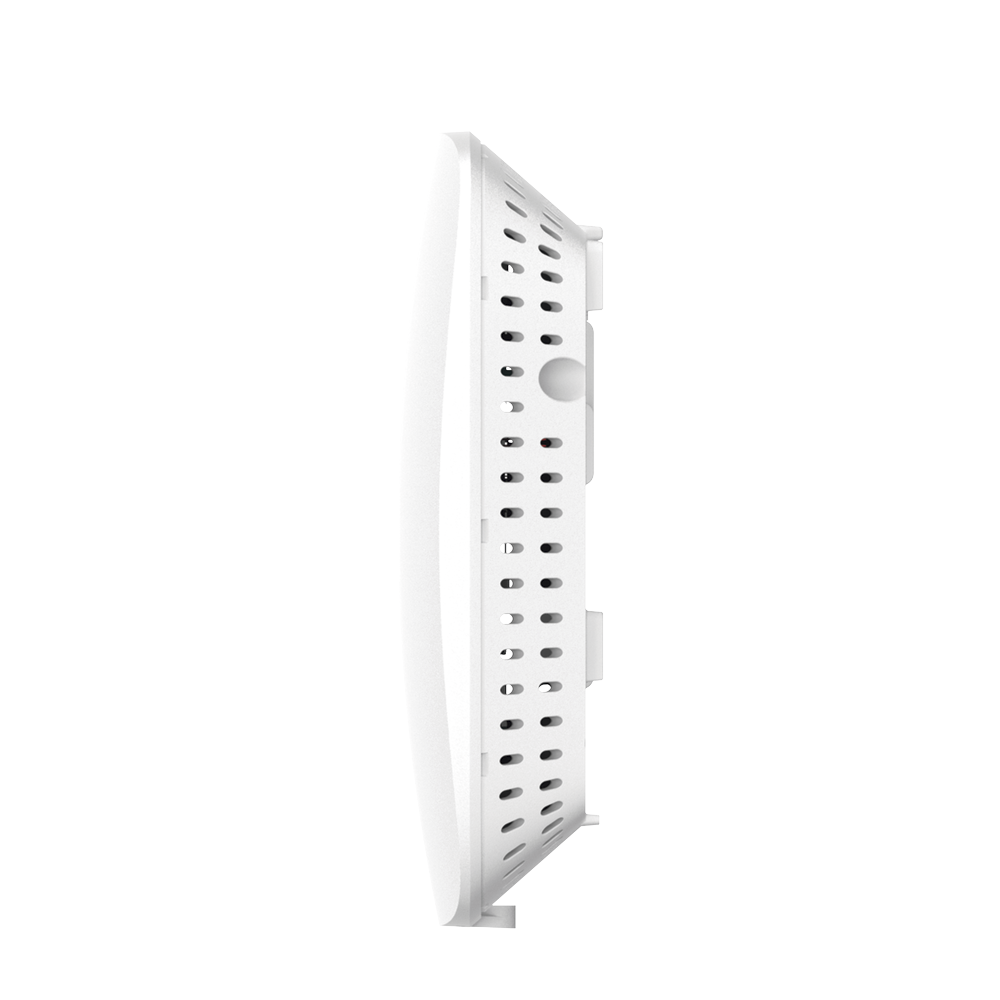

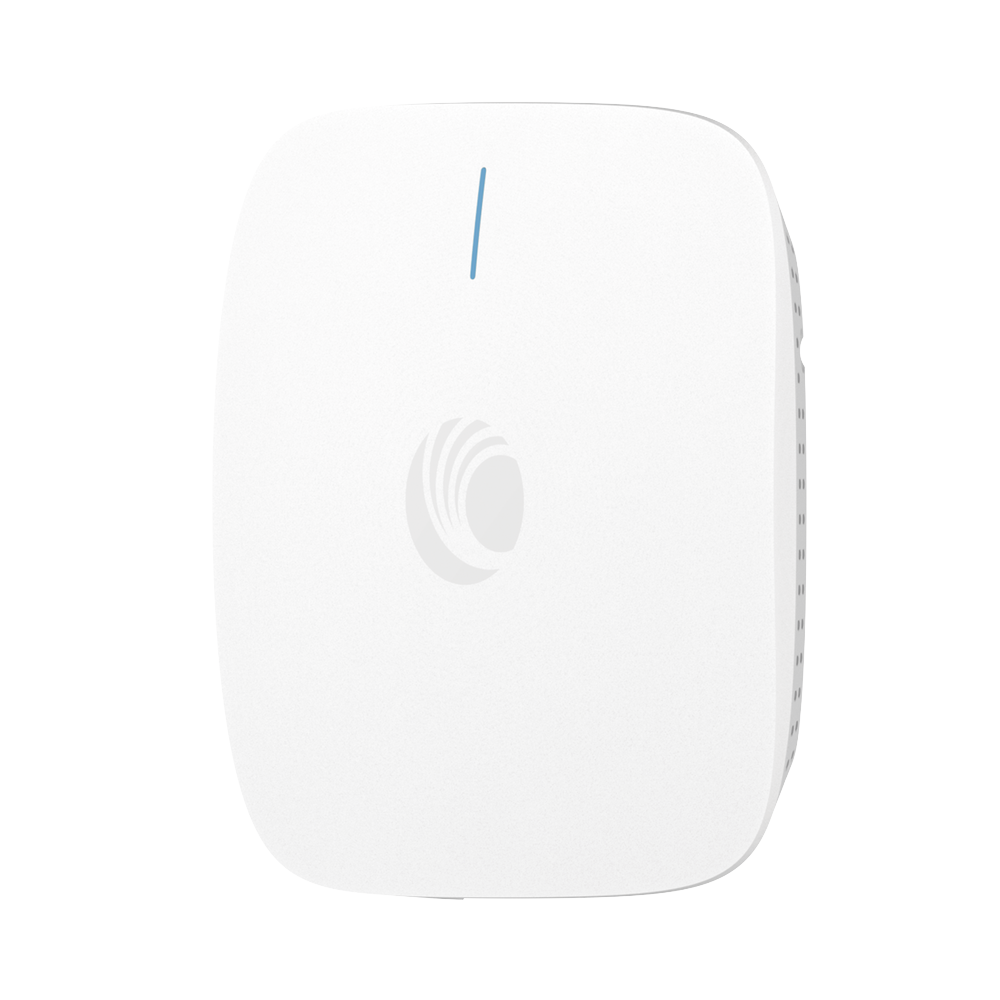

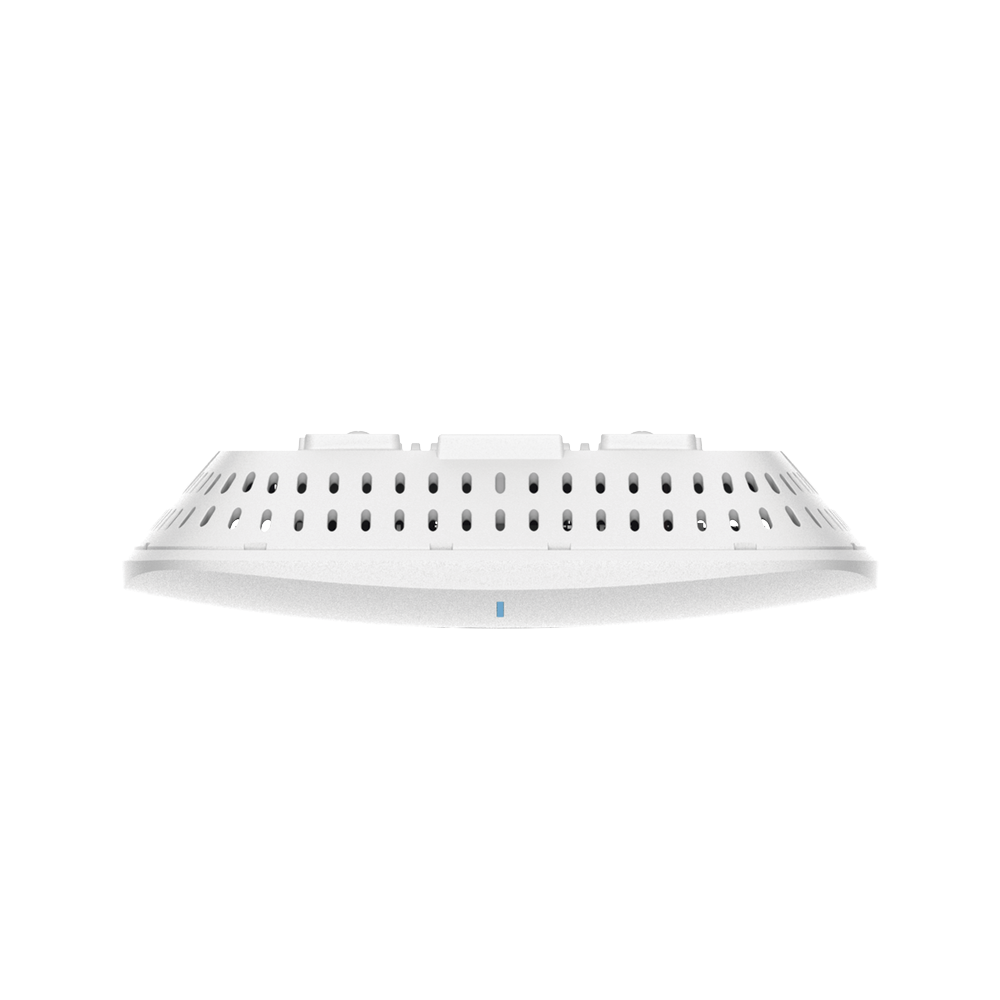

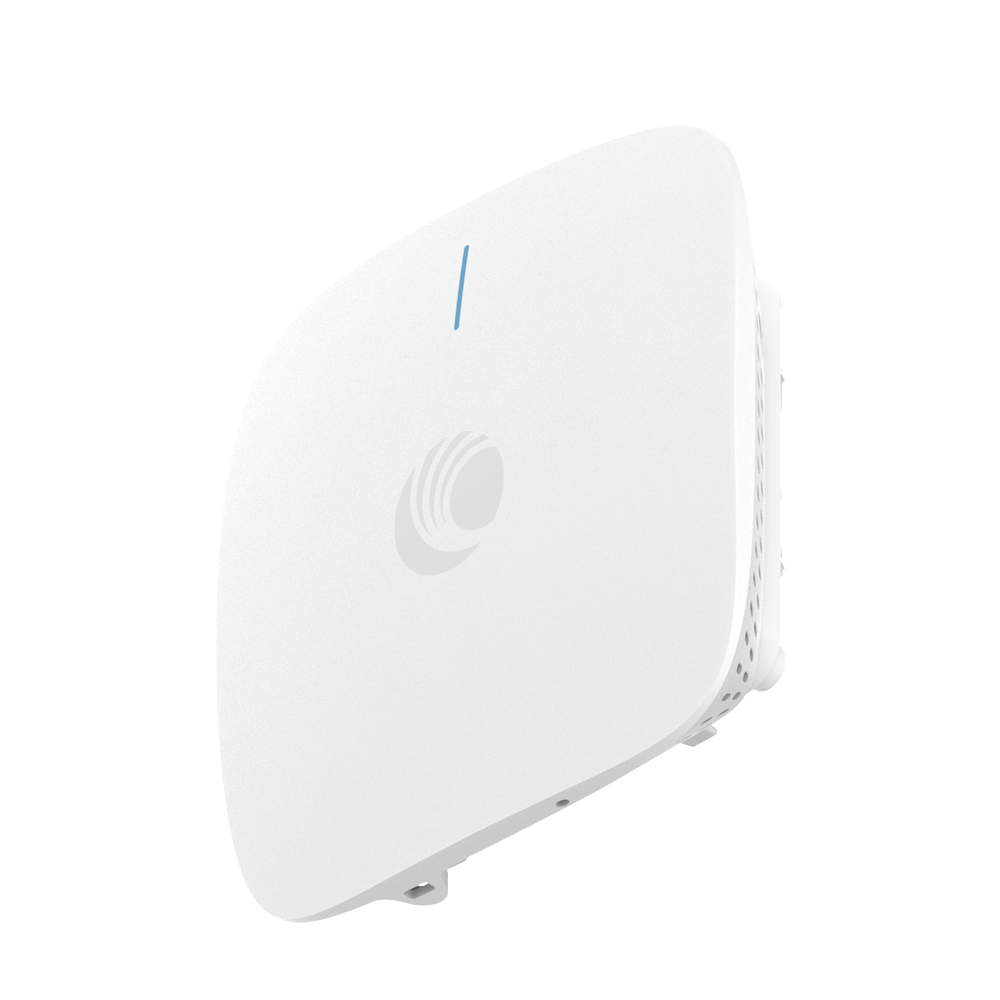

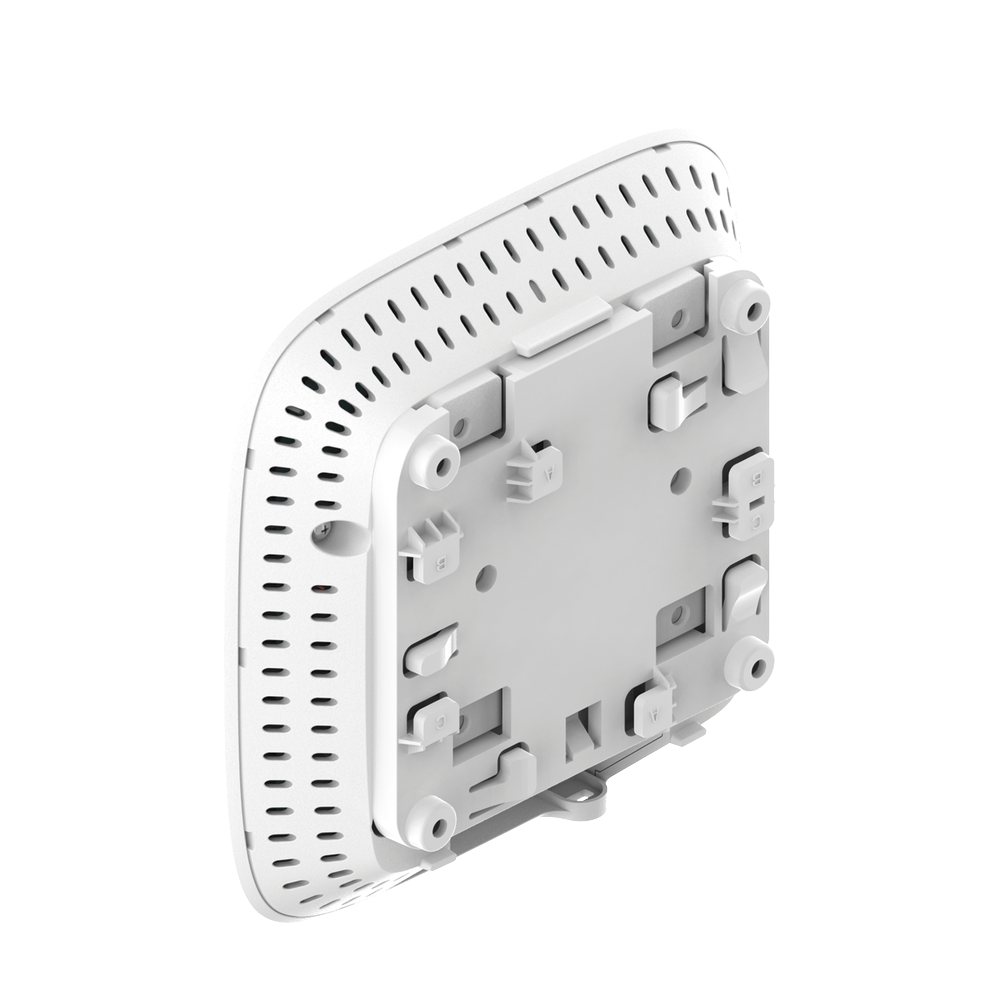

Aesthetic design for ceiling Designed to be installed on the ceiling of hallways or offices without sacrificing the aesthetics that a network device might create, it adapts to any setting.	Roaming and MESH Backhauling capability for MESH designs and supports Roaming to avoid losing connectivity when moving around rooms.
Guaranteed, categorized as the best Cost-benefit Access Point The XV2-21X offers a reliable, high-capacity indoor Wi-Fi networking solution at a significantly lower cost than its high-end competitors. You'll save network nodes, and we offer a 5-year warranty on the equipment.	Monitor what's happening on your network. Limit access to restricted pages using the cn Maestro ACL

Wi-Fi 6 designed for mobile and IoT devices.

The XV2-21X is a dual-radio Wi-Fi 6 Access Point designed to deliver next-generation networking with edge services at a very competitive price point. Wi-Fi 6 technology delivers higher network speeds and enables more connected devices with higher packet quality. Wi-Fi 6 brings a deterministic model to the radio frequency (RF) layer where the AP controls client connections, including when they sleep, when they wake up, and how to transmit and receive packets. The XV2-21X is fully backward compatible with existing Wi-Fi technology and enables massive growth in low-power, low-speed IoT devices to add infrastructure intelligence to any market.

Maximum number of connected devices: 256 Wi-Fi devices.

Operating modes: Access Point or Router (NAT, DHCP Server and Firewall).

Main features:

802.11 a/b/g/n/ac Wave 2/ax standard.

Dual band (2.4 and 5 GHz).

MU-MIMO 2X2.

Up to 573.5 Mbps at 2.4 GHz.

Up to 2,402 Mbps at 5 GHz.

Omnidirectional Antennas: 5 dBi at 2.4 GHz and 6 dBi at 5 GHz.

EIRP: 32 dBm at 2.4 GHz and 33 dBm at 5 GHz.

General characteristics:

Management type: Standalone, cnMaestro Cloud Managed (free), and cnMaestro on-premises VM or XMS Cloud.

Up to 16 SSIDs (Flexible on any band)

Fast Roaming: Browse from cell to cell without losing connection.

ACL: Create blocking rules for web pages.

ACS function for automatic channel switching to avoid interference.

Schedule SSID to activate SSID on desired days at certain times.

Captive portal Hotspot from the cloud, customizable vouchers.

Limit bandwidth per user or SSID.

Isolation between clients to prevent broadcast and multicast storms from entering the network.

Load Balancing to balance the load between each band.

Supports MESH.

Physical and electrical characteristics.

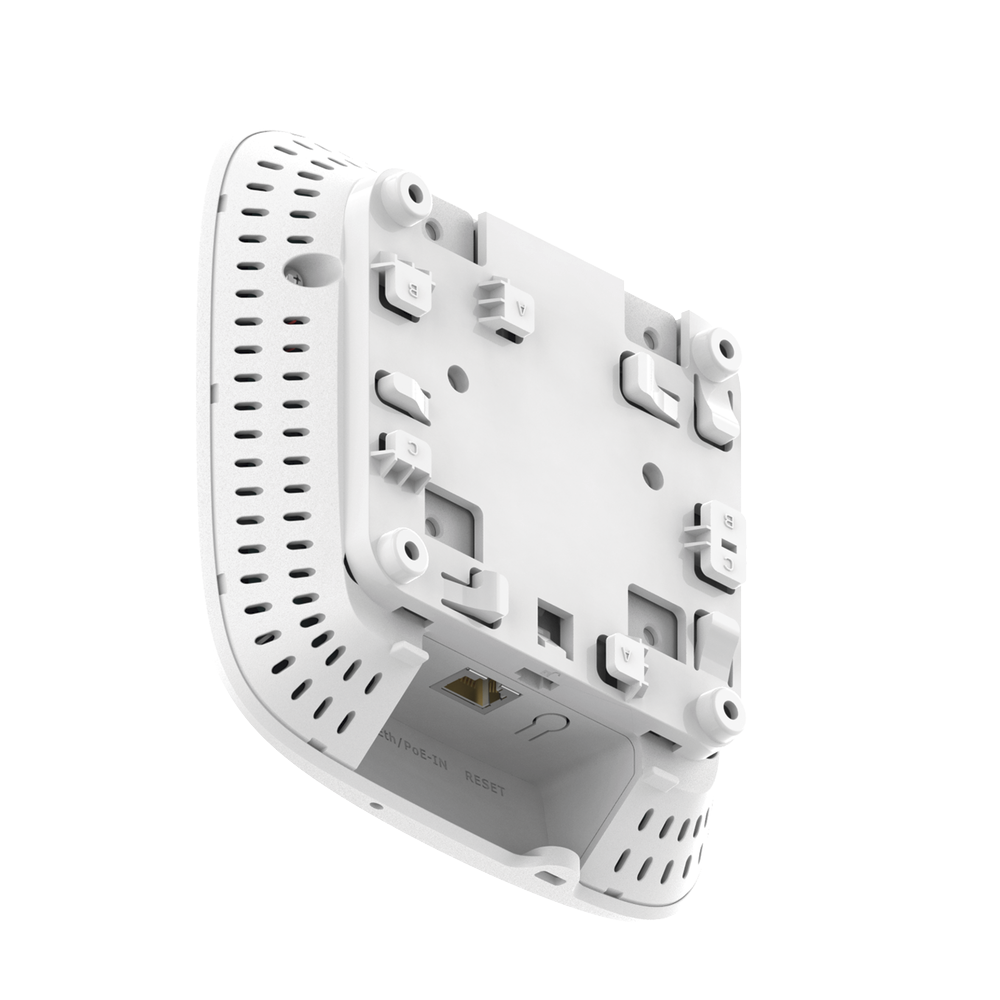

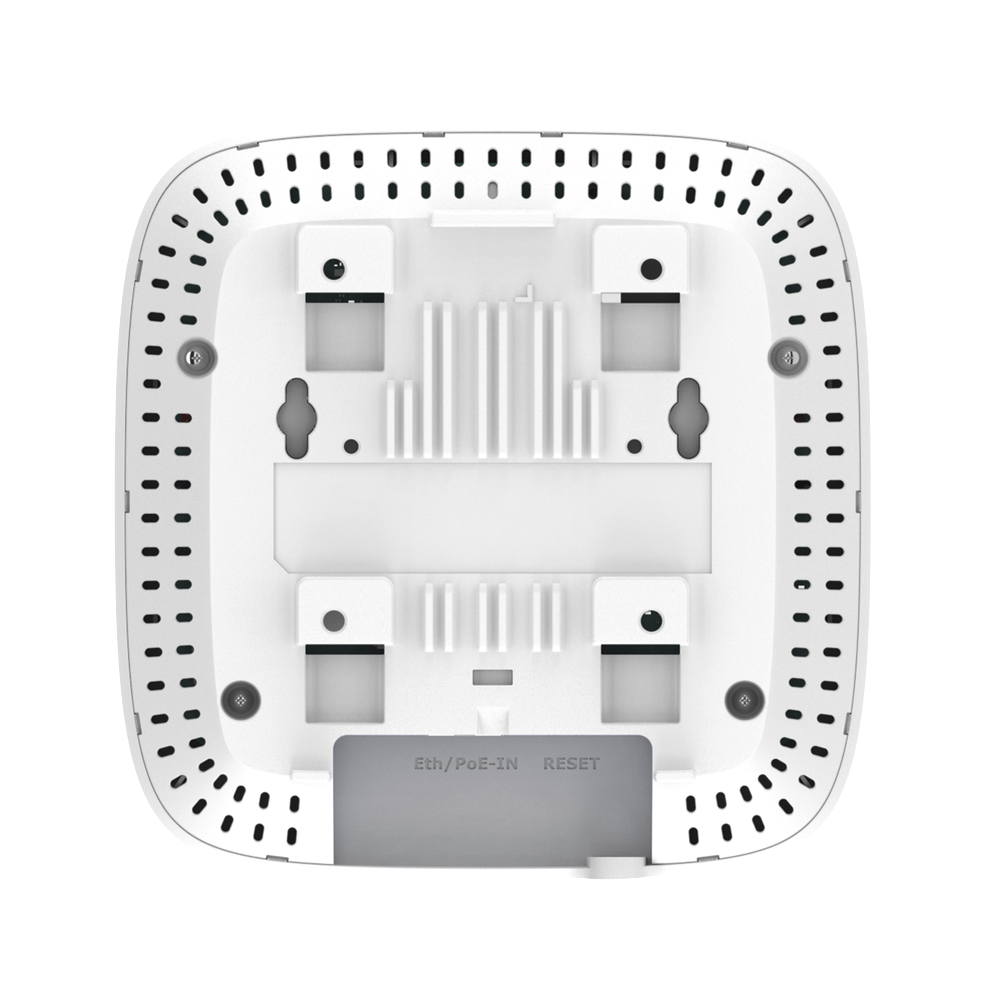

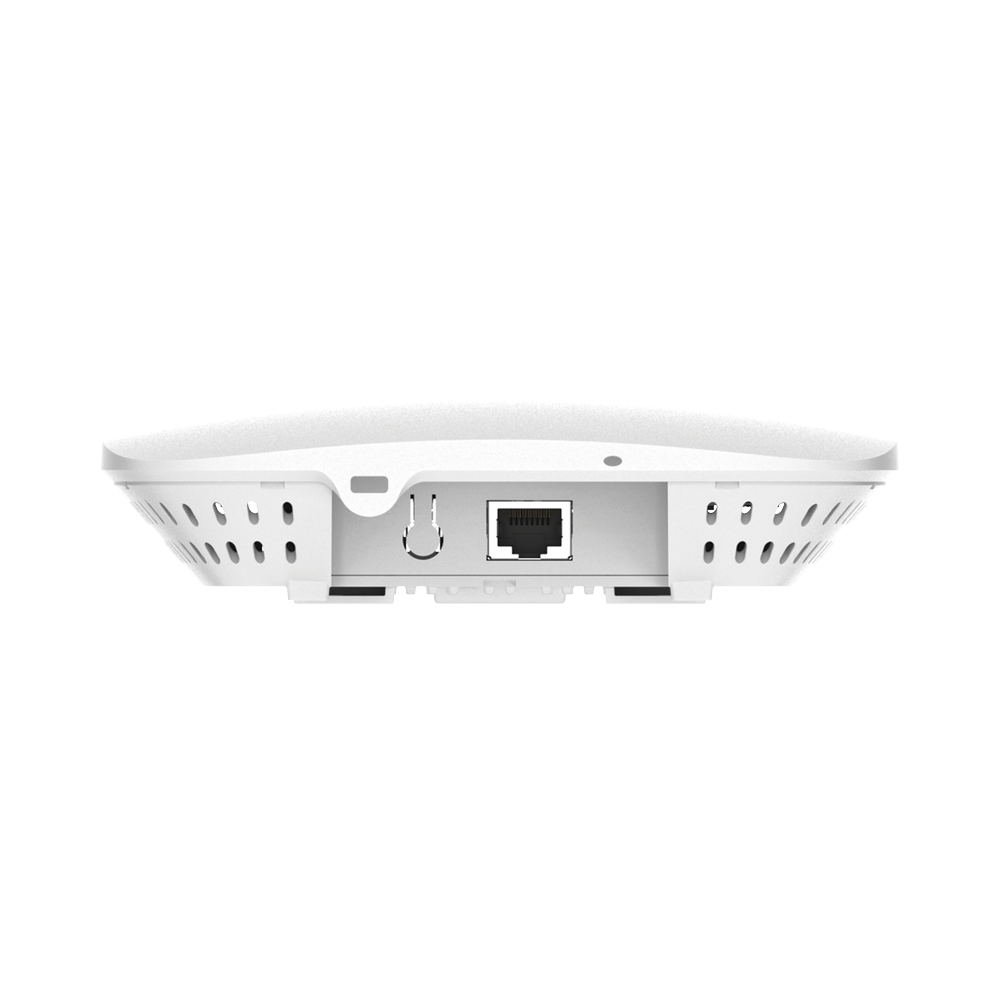

1 Gigabit PoE IN 802.3at port, powered by cnMatrix Switches or PoE power supply model POE-CNPILOT (not included).

Maximum consumption: 11 W

Free management via cnMaestro controller from the cloud, no additional hardware required.

Integration with cnMaestro or XMS platforms (Alerts, Captive Portal, Software Defined Radio, Policy Control, etc.), Beamforming Antenna to reduce beamwidth in communication with each device, APC: Application Policy Control, blocks or allows necessary applications such as Facebook, YouTube, etc., Certifications: Shock and vibration, medical use, fire and smoke (plenum), WPA3: Latest standard for Hacker-proof access security
