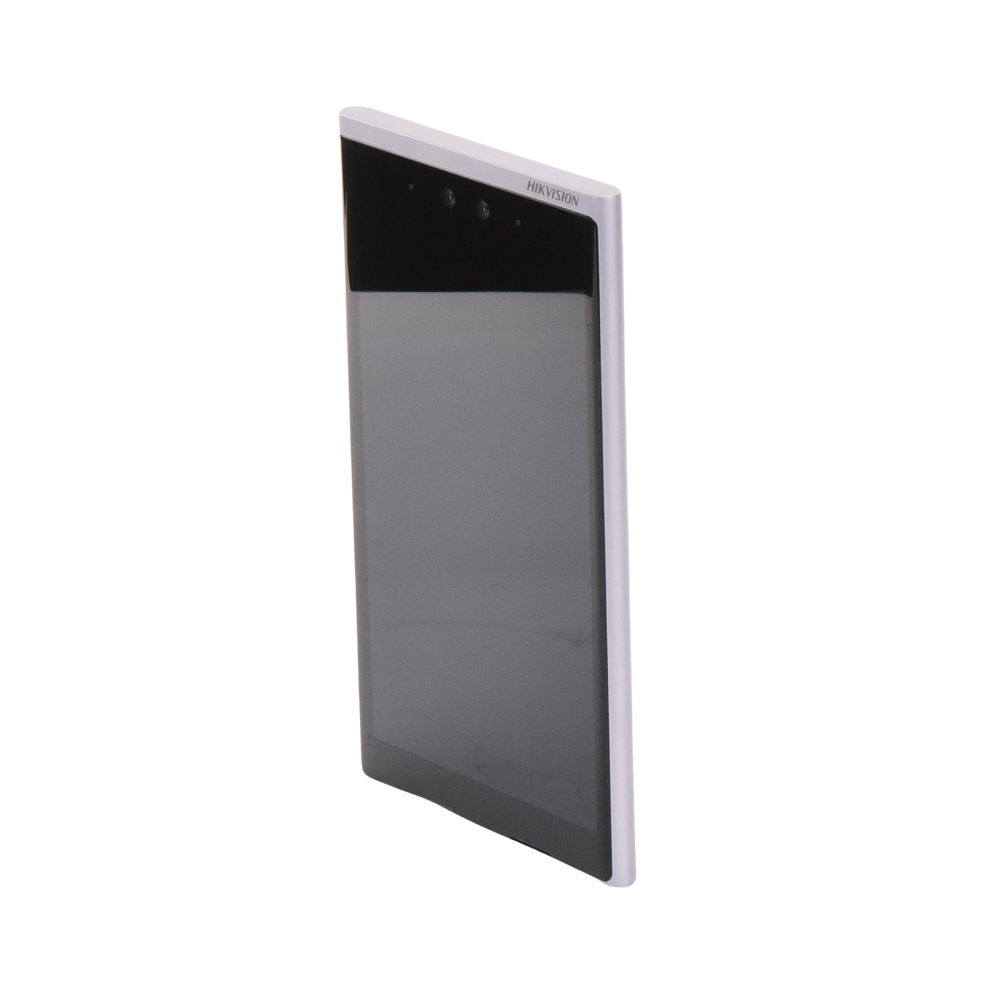

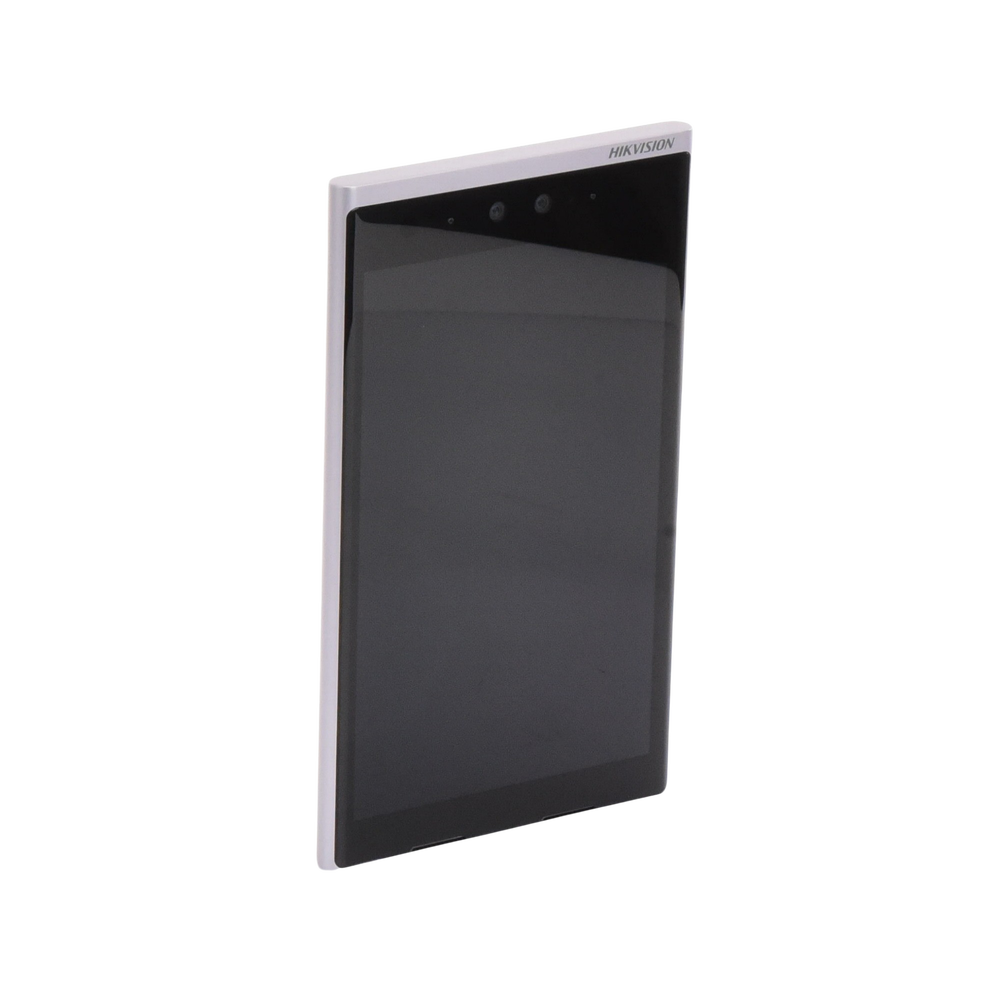

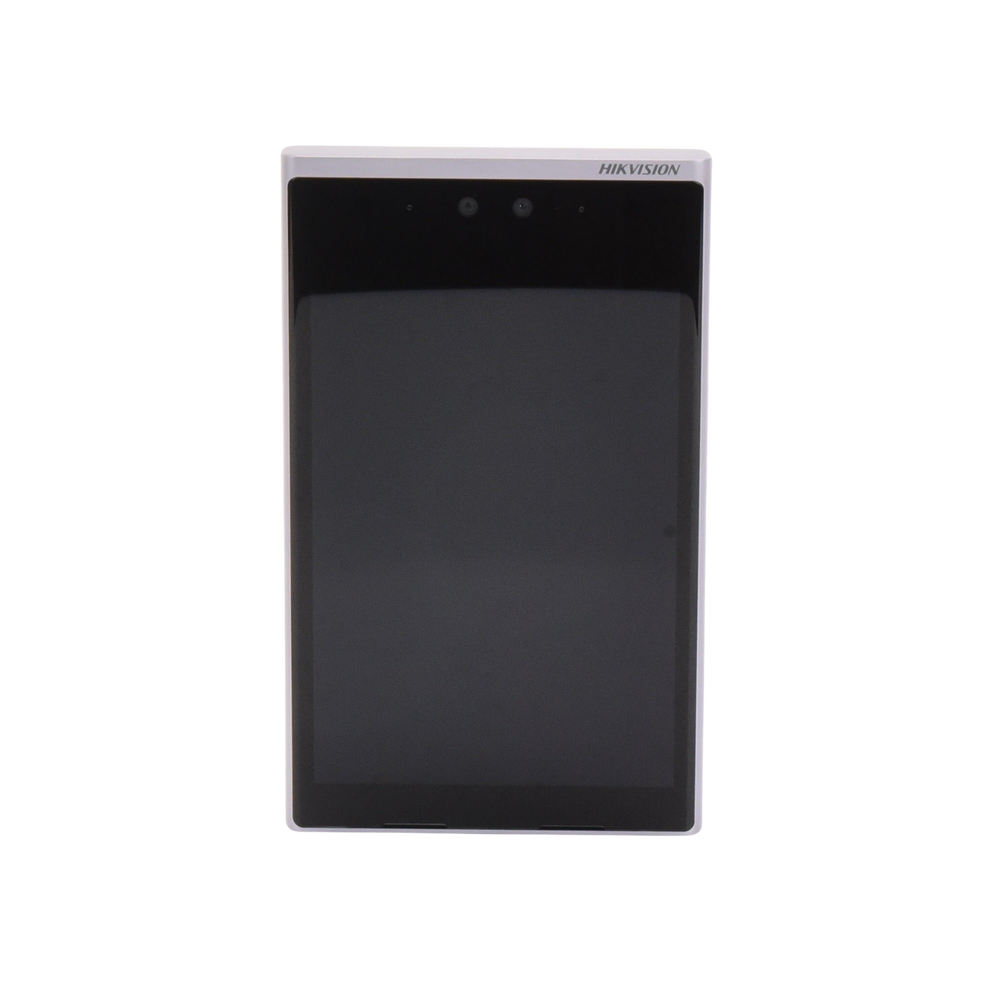

IP Street Front 2 Megapixel (1080p) / Multi-apartment / 10.1" Touch Screen / Facial Recognition / Android / IP65 / IK07 / Supports Button and Fingerprint Module (Separate) / Free HCC Licensing!

• 10.1-inch 2.5D curved IPS touchscreen
• Multiple forms of authentication
• Recognition Distance 0.3 to 2 m
• Optional submodule DS-KDM9633-FKP / DS-KDM9633-KP.
• Supports up to 10,000 faces.
• User capacity 20,000
• Supports up to 10,000 cards (Mifare)
• Recognition with face masks.
• Warranty: 2 Years.

• Power supply : 12 Vdc / 2 Amp / 24 W. (Not included)
• Application : Indoor / Outdoor protected (IP65 / IK07)
• Temperature : -30°C to 60°C (-22°F to 140°F)
• Dimensions : 271 mm × 159.2 mm × 26.5 mm (10.7'' × 6.3'' ×1'')

Interfaces:

• 1x Electric Lock (can grow to 2 with DS-KDM061).
• 1x RJ45
• 1x RS-485 port (1 for slave reader and one for DS-K2M061)
• 2x Exit buttons (one for door and one for DS-K2M061).
• 2x Door sensor inputs.

In conjunction with the HikCentral Connect (HCC) platform, it enables the management of subdivisions, multi-apartment buildings, etc., with the following scopes:

• Residents can receive video intercom calls on the HCC App.
• Residents can create QR codes for visitors from the HCC App.
• Residents can open their doors remotely from the app, or with their face, fingerprint, QR code, or PIN directly from the street.
• Residents can review missed calls and records of their visits.

*License required, full license list here .

Currently, until December 31, 2024, all equipment purchased to work with the HikCentral Connect App will have permanent free licensing. To request licenses, please review the following frequently asked questions:

• How do you apply?
  • You must contact your sales representative, sharing the purchase invoice for this device and mentioning the number of licenses needed for this project.
• Which software do the licenses apply to?
  • Wireless video intercom DS-KD9633-WBE6 or DS-KV9503-WBE1 can apply in HikCentral Connect .

• What are the different types of licenses available for the DS-KD9633-WBE6 or DS-KV9503-WBE1 ?
  • Two licenses for video intercoms, 1 year or lifetime , HC-Intercom/1Room/1Y and HCINTERCOM/1ROOM/LIFETIME .

• Maximum licenses per computer?
  • Unlimited according to user needs

• Are the licenses per apartment?
  • Each license supports one apartment, with a maximum capacity of 6 people. If the number exceeds 6, a shared account can be created for unlimited additional people.

• Are they free? If so, until what date? If not, please provide the cost.
  • The Free Wireless Video Intercom License promotion is for projects invoiced before December 31, 2024. Once delivered and activated before this date, the license is free for life. Starting January 1, 2025, license fees will be charged based on the number of apartments in the project.
