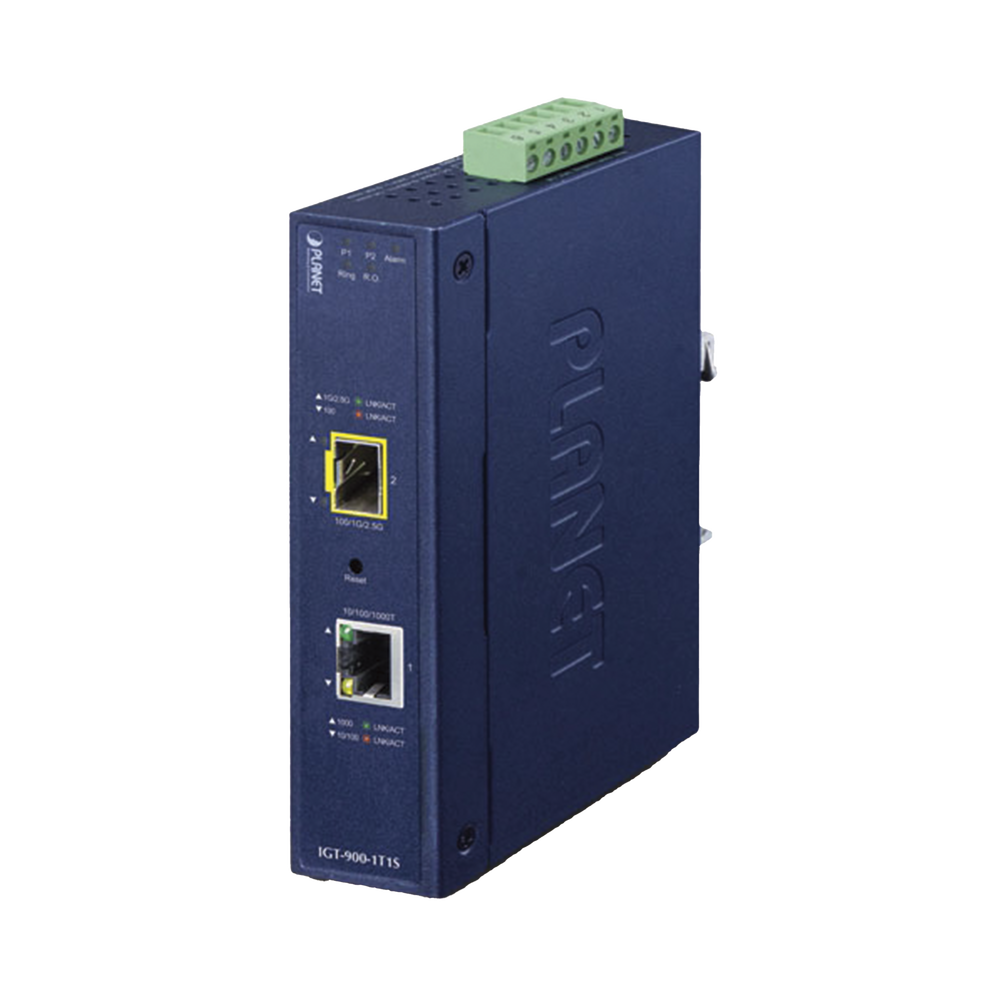

• Convertidor de Medios Industrial Administrable, Puerto Ethernet 10/100/1000 BASE-T a Puerto SFP 100/1000/2500X
1 3

PLANET

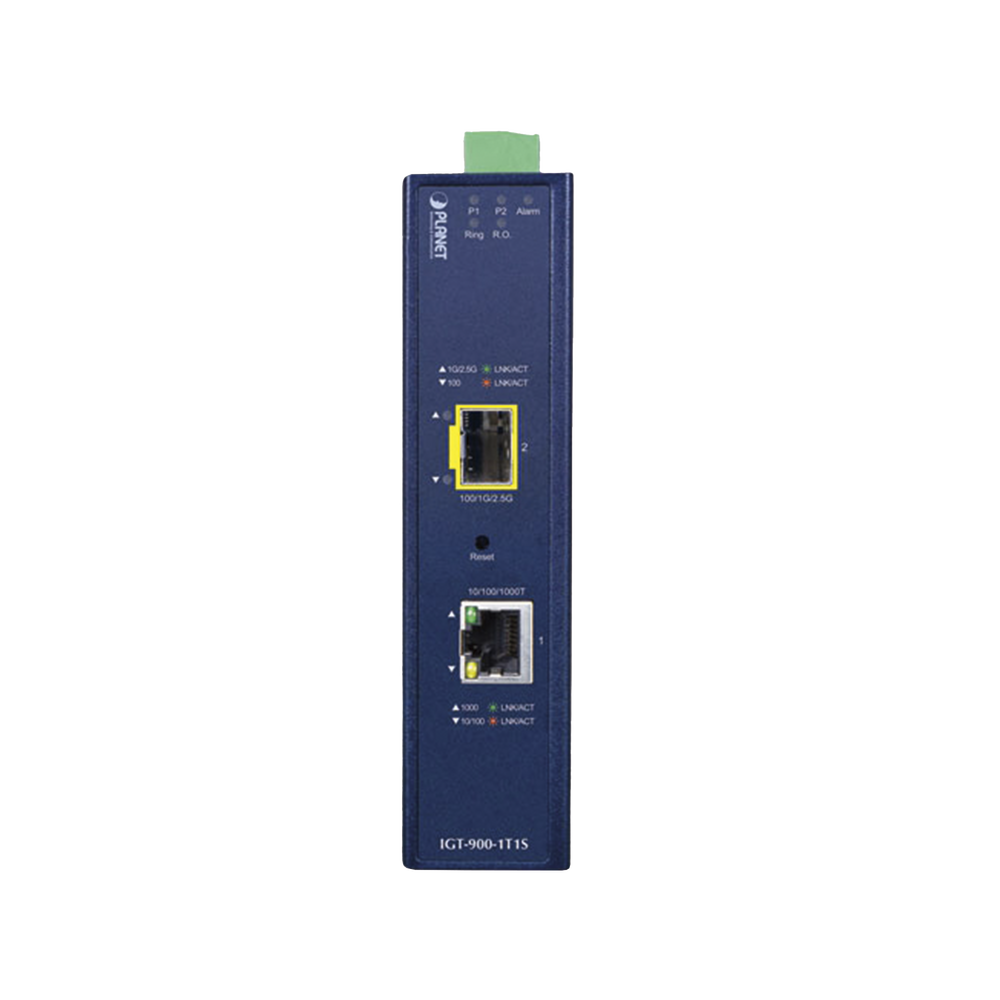

Industrial Managed Media Converter, 10/100/1000 BASE-T Ethernet Port to 100/1000/2500X SFP Port

Industrial Managed Media Converter, 10/100/1000 BASE-T Ethernet Port to 100/1000/2500X SFP Port

$864.038 COP
$1.250.378 COP $864.038 COP
Sale Sold out
Shipping calculated at checkout.

Industrial Managed Media Converter, 10/100/1000 BASE-T Ethernet Port to 100/1000/2500X SFP Port

RING
Cyber ​​Security
1588 PTP
SFP DDM
LFP
Specs
Copper interface 1 x RJ45 10/100/1000BASE-T Auto-MDI/MDI-X ports
Optical interface 1 x 100/1000/2500FX SFP port
Wire 		Twisted pair
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 m
100BASE-TX: 2-pair UTP Cat. 5, up to 100 m
1000BASE-T:

  • Cat 5.6 4-pair STP fiber optic cable up to 100 m

  • 50/125 μm or 62.5/125 μm multimode fiber cable, up to 220/550 m.

  • 9/125μm single-mode cable, extending long distances up to 10/20/40/60/80/120km (varies depending on the fiber transceiver or SFP module)

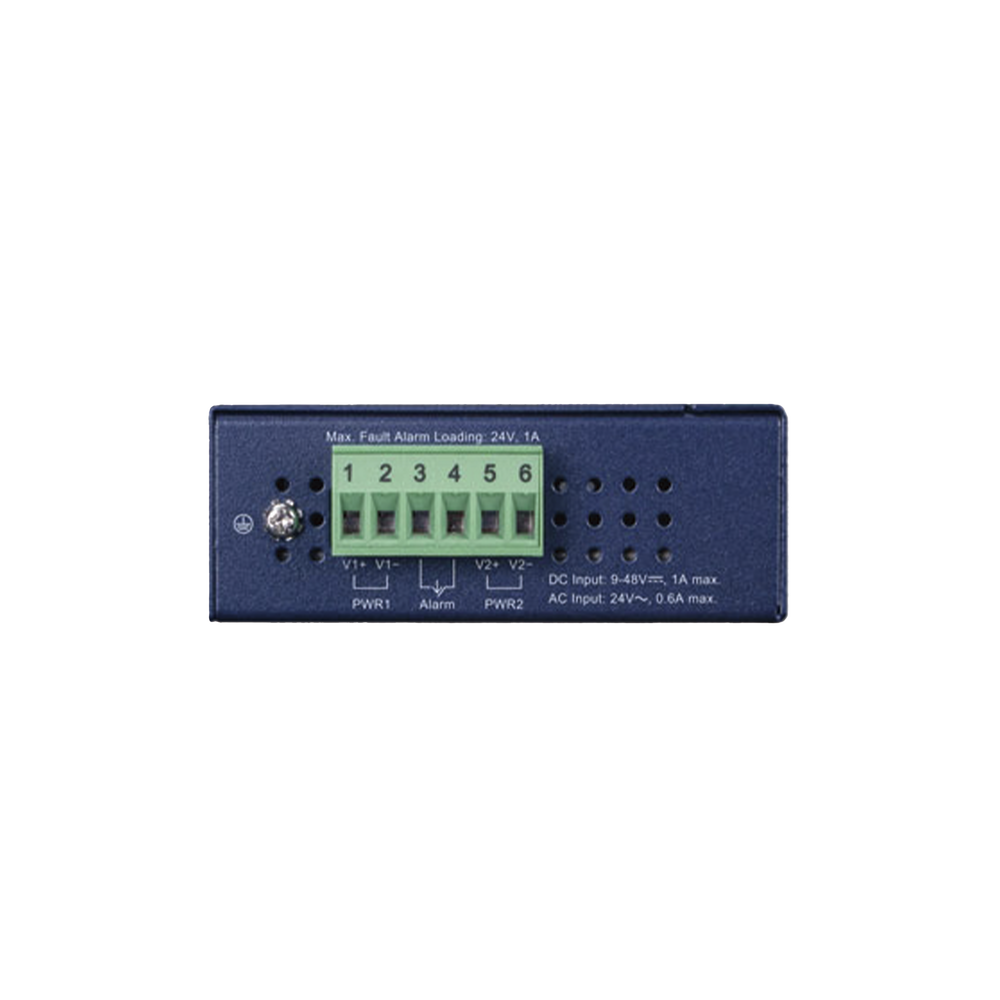

Power input

(Power supply not included)

DC 9 Vdc to 48 Vdc

With redundant source.

Reverse polarity protection

Energy consumption 8 Watts / 27 BTU (maximum)
Operating environment Temperature: -40 ~ 75 degrees C
Humidity: 5~90% non-condensing
Dimensions 135 x 87 x 32 mm
Weight 273 g
Facility DIN Rail and Wall Mount Ear Kit
Layer 2 management functions

Management Interface, Port Configuration

IEEE 802.1q tag-based VLAN, 4K

VLAN ID, up to 16 VLAN groups
Q-in-Q VLANQoS, Bandwidth Control

Package Included:

1 x IGT-905A Media Converter

1 x Installation Guide

1 x Wall mount

1 x DIN rail mount

Manageable Media Converter for Rugged Environments

The PLANET IGT-900-1T1S , It is a fully managed Gigabit Media Converter for harsh environments, it features one 10/100/1000Mbps copper port, one 100/1000/2500X SFP port and redundant power system in a compact yet rugged IP30 rated housing. The IGT-900-1T1S can be installed in any harsh environment and operate under temperatures ranging from -40 to 75 degree C. With such a slim housing, it does not require a large installation space. The media converter features easy-to-use yet advanced IPv6/IPv4 management interfaces, rich L2/L4 switching features and Layer 3 static routing capability. It allows DIN rail or wall mounting for efficient use of cabinet space. With SFP fiber slot.



    Dual input for redundant power, IP30-rated housing, Wall or DIN rail mount, Built-in IP-based web interface for remote management, VLAN support

Out of stock

MODELO: IGT9001T1S
