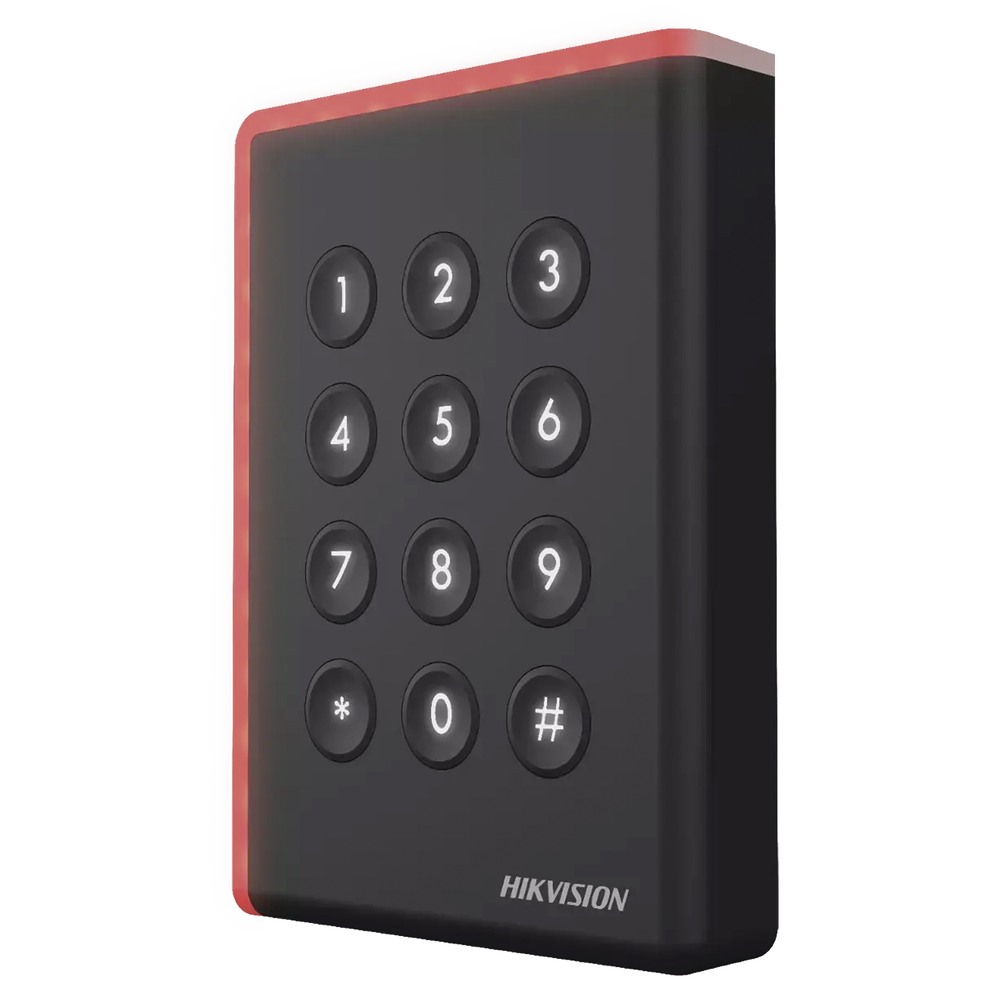

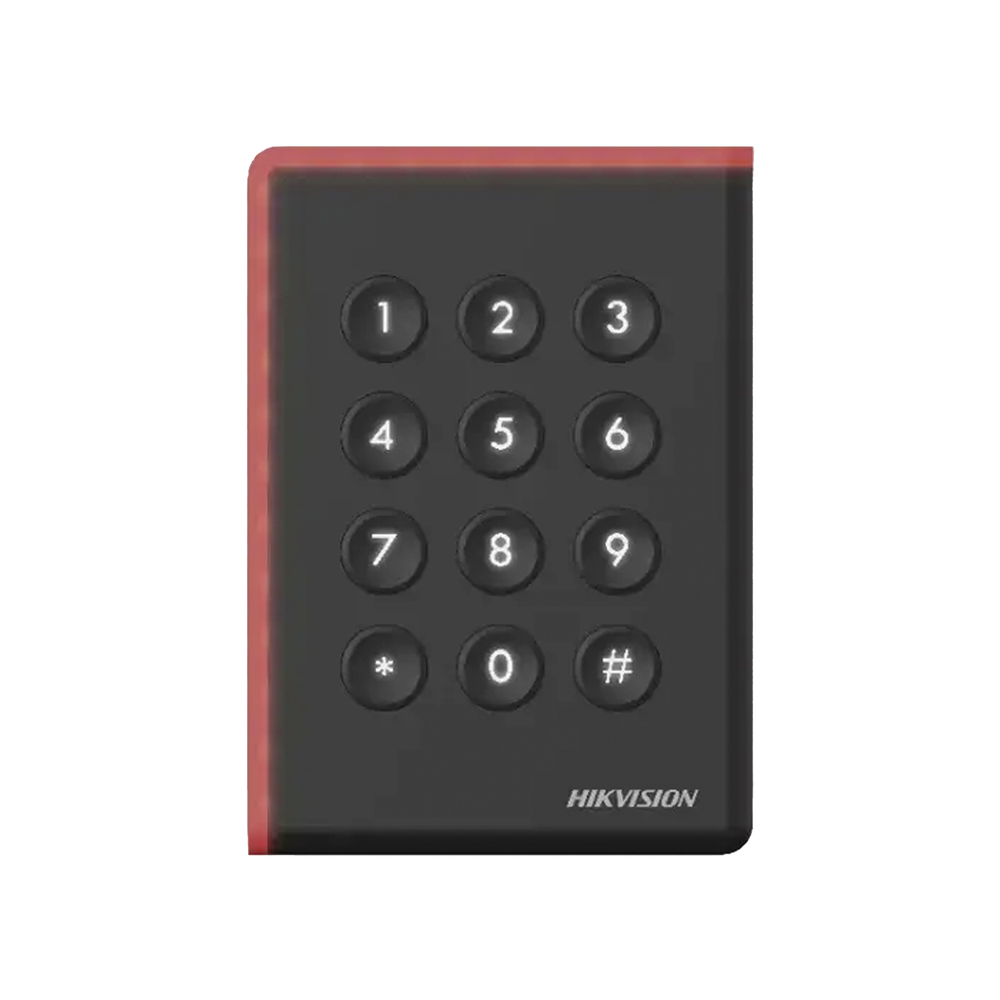

MIFARE Card Reader and Keypad / Wiegand Connection / RS-485 / OSDP / Aesthetic and Easy to Use / LED Indicator

• LED indicator and Buzzer for power and status.
• Supports Wiegand Protocol (W26/W34)
• Supports OSDP Protocol
• Supports RS-485 Protocol
• Tamper
• Reading MIFARE® cards (Frequency: 13.56 Mhz).
• IP65 protection (protected exterior, not weatherproof).
• Wall mount.
• Warranty: 2 years

Suggested cards : ACCESS-CARD-M1K / ACCESS-CARD-M4K .

• Operating voltage: 12VDC, 0.5 A
• Operating temperature: -20°C to +65°C (-4°F to 149°F)
• Dimensions: 123 mm × 88 mm × 21 mm (4.84' × 3.46' × 0.83')
• Weight: 0.14 Kg
• Supports Wiegand, RS485 or OSDP connection.
• DIP switch for RS485 addressing.

This reader connects via Wiegand to any access control panel that supports this protocol. We recommend panels from the same brand HIKVISION (any series) but also compatible with ZKTeco, Rosslare, Suprema, AccessPRO, etc. panels.

It also supports RS485 connection to achieve greater distances (only compatible with Hikvision DS-K26 series controllers).
