• Kit Barrera Vehicular 620 RPD con Brazo Rectangular de 3.8 metros / Incluye Brazo, Resorte y Enganche
1 1

FAAC

620 RPD Vehicle Barrier Kit with 3.8 meter Rectangular Arm / Includes Arm, Spring and Hook

620 RPD Vehicle Barrier Kit with 3.8 meter Rectangular Arm / Includes Arm, Spring and Hook

$7.401.763 COP
$7.982.311 COP $7.401.763 COP
Sale Sold out
Shipping calculated at checkout.

620 RPD Vehicle Barrier Kit with 3.8 meter Rectangular Arm / Includes Arm, Spring and Hook

Main Features:
  • Continuous use barrier.
  • FAAC 620 RPD Version.
  • Hydraulic technology barrier.
  • Configurable direction on site.

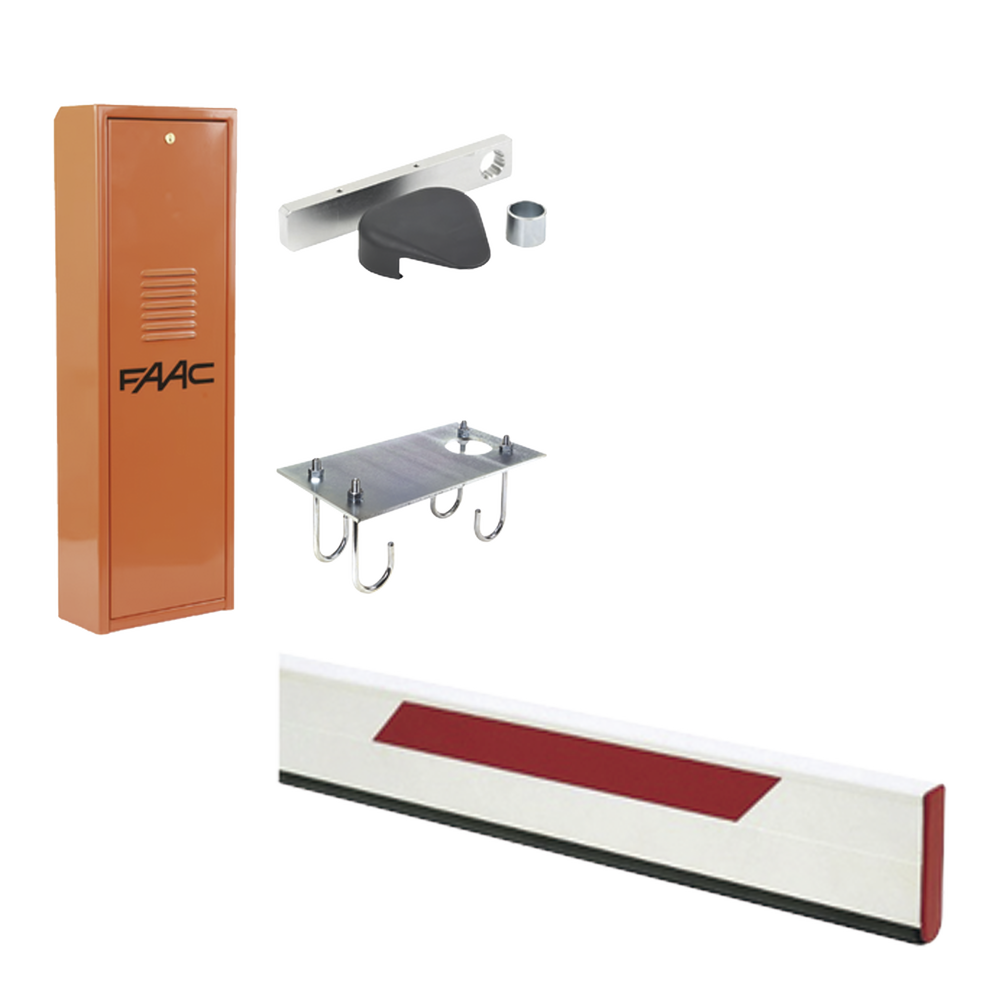

Kit Contents:

  • 1 x 1046358 FAAC 620 fast barrier / hydraulic / up to 3.8 m / opening in 2 to 3 seconds / continuous use.
  • 1 x 28090 3.8 meter rectangular arm for FAAC 620 and FAAC 615 barriers.
  • 1 x 28342 Hook or hook for rectangular arm of FAAC 620 and FAAC 615 barriers.
Physical and Electrical Characteristics:
  • 220 V power supply.
  • IP44 protection rating.
  • Thermal protection 120°C.
  • Weight 73 kg.
Highlighted Features:
  • Up to 2 million cycles before severe failure.
  • Supports arm up to 3.8 meters.
  • Opening time 3 seconds.
  • Equipment for residential, commercial and industrial use.

The Kit includes:

  • 1 x 1046358 FAAC 620 fast barrier / hydraulic / up to 3.8 m / opening in 2 to 3 seconds / continuous use.
  • 1 x 28090 3.8 meter rectangular arm for FAAC 620 and FAAC 615 barriers.
  • 1 x 28342 Hook or hook for rectangular arm of FAAC 620 and FAAC 615 barriers.

Additional features of the barrier:

  • Electronic braking system that allows for smoother and more fluid movement on the barrier, extending the life of the mechanism
  • Dual-channel mass sensor integrated into the board.
  • 624 BLD programmable logic board.
  • Equipment dimensions 350 x 1080 x 170 mm.
  • Use Shell Tellus 22 oil for maintenance.

Ideal for monitoring large areas such as parking lots, shopping malls, hospitals, industrial parks, etc.

The FAAC barrier range is equipped with a hydraulic anti-crushing safety lock, retention lock during closing and opening, manual release with a triangular key, and a collision-resistant steel cabinet .

Grades:

  • The barrier has a 1-year warranty against manufacturing defects.
  • The FAAC620REP model supports two types of arms: Rectangular and S-type.

NOTE: Consider XB-POST armrests on arms 4 m or longer to avoid premature damage to the mechanism.

    Hydraulic barrier system, up to 2,000,000 cycles before severe wear, 3-second opening time, arm up to 3.8 meters

Out of stock

MODELO: KIT620R4M
