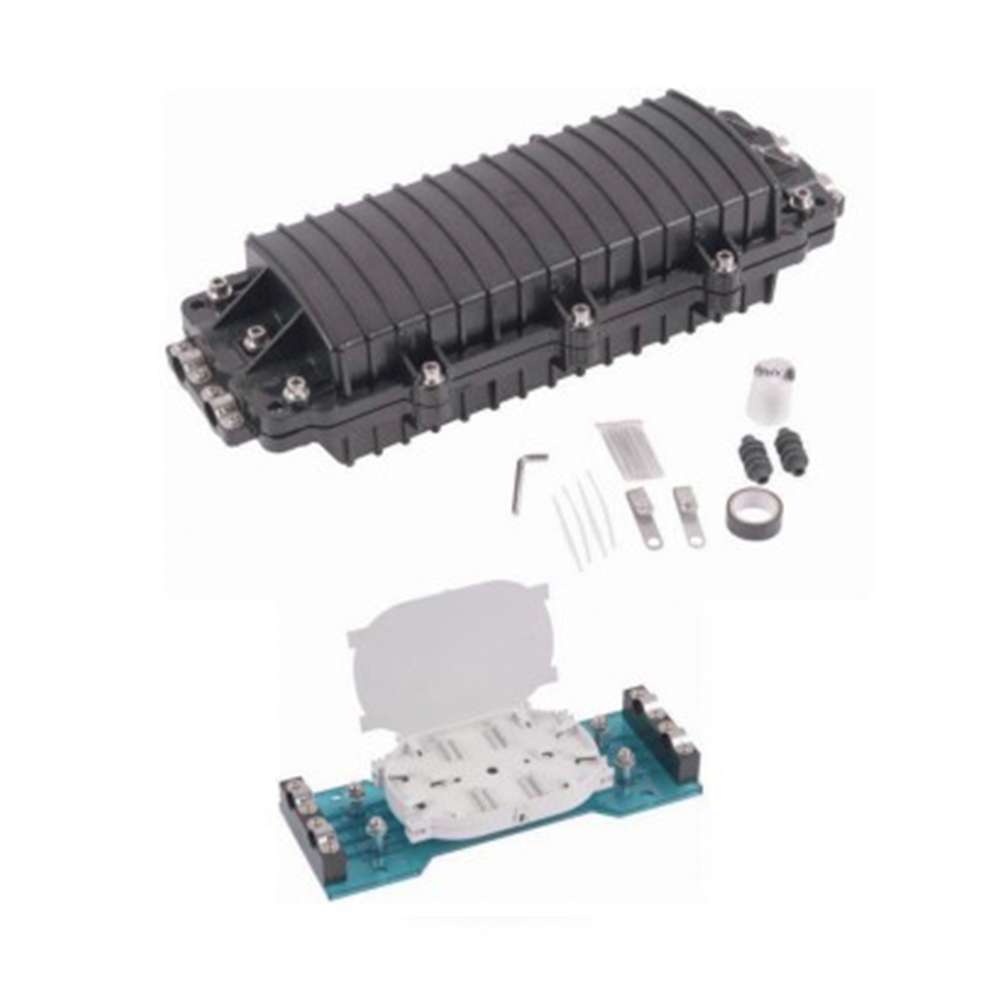

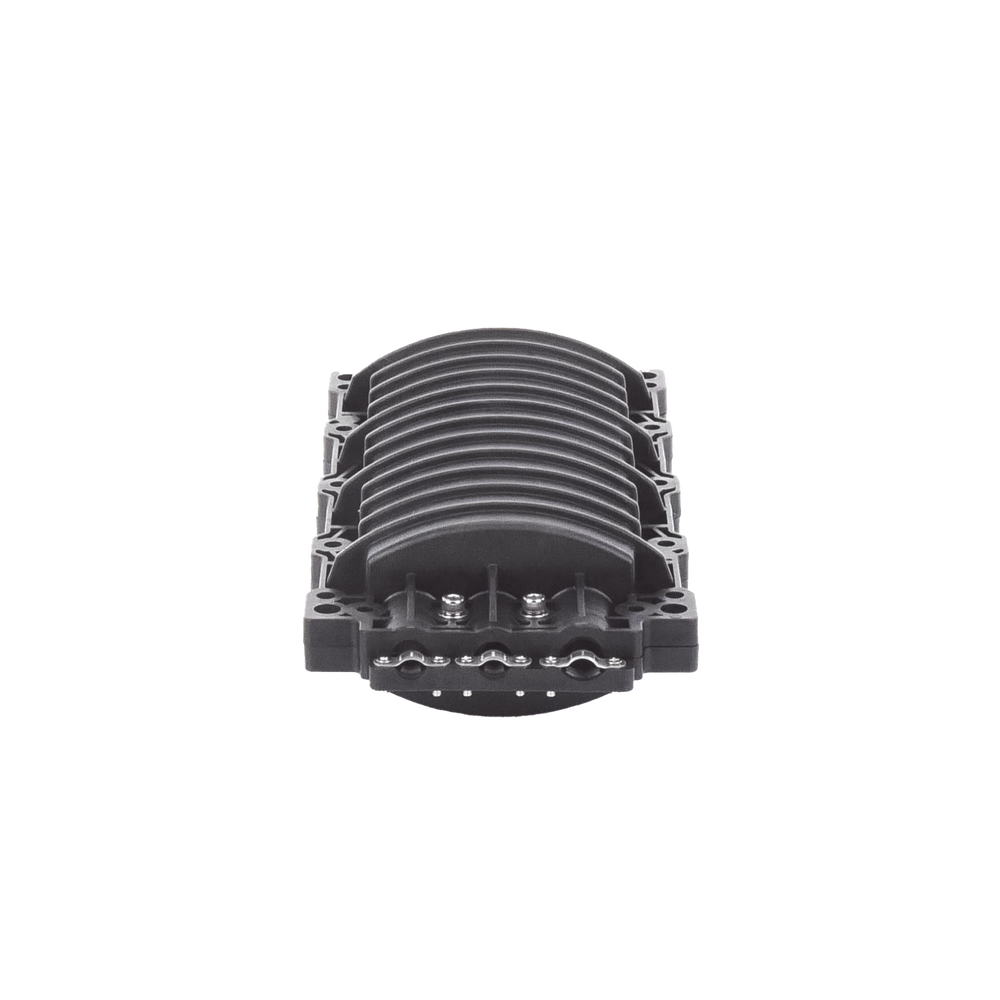

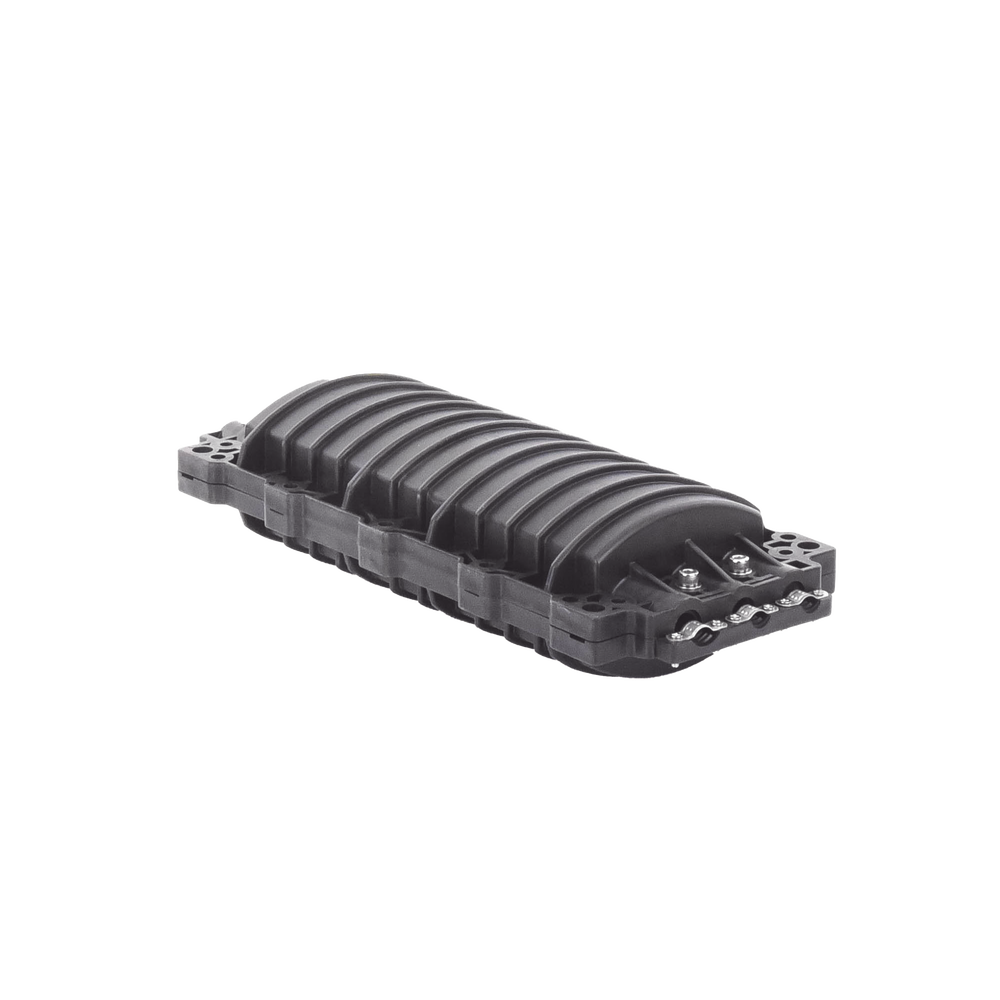

Horizontal Fiber Optic Distribution Box, up to 96 splices, Outdoor IP68

Horizontal Fiber Optic Distribution Box, up to 96 splices, Outdoor IP68

Waterproof horizontal splice closure

Aerial splice closures are used to join and route main fiber optic cables from one end to the other. This model features the ability to be installed with four large-capacity splice trays. The splice closure is made of high-performance materials.

Characteristics:

• Junction box capable of storing different types and diameters of cables.
• The splice entry port is for 96-core cable, 48-core cable and 24-core fiber cable,
• Compliant with IP68.
• Horizontal Type.
• High strength modified polypropylene material.
• Trays to contain all the splice points.
• Fully equipped with brackets, protective sleeves, splice trays, supports, etc.
• High mechanical resistance, anti-UV
• Splicing capacity up to 96 wires.
• Multi-function trays with easy tube installation and multi-tube guides with tape.
• Fiber core routing capability within the junction of one tray to another.
• Fusion splicing.

Technical specification:

• Type: Horizontal
• Material: PC
• Dimensions: (L*W*H,mm) 480*200*120mm
• Cable ports: 2 inputs / 2 outputs
• Inlet diameter: Φ7 - Φ15 mm
• Fiber capacity: 96h
• Maximum number of trays installed: 4pcs
• Weight: 2.5kg
• Sealing: Adhesive tape or silicone rubber material.
• Install: Overhead, Wall, Pole.
• Protection level: IP68

Mechanical Seal, 2 cable entries Ø 7 - 15 mm
