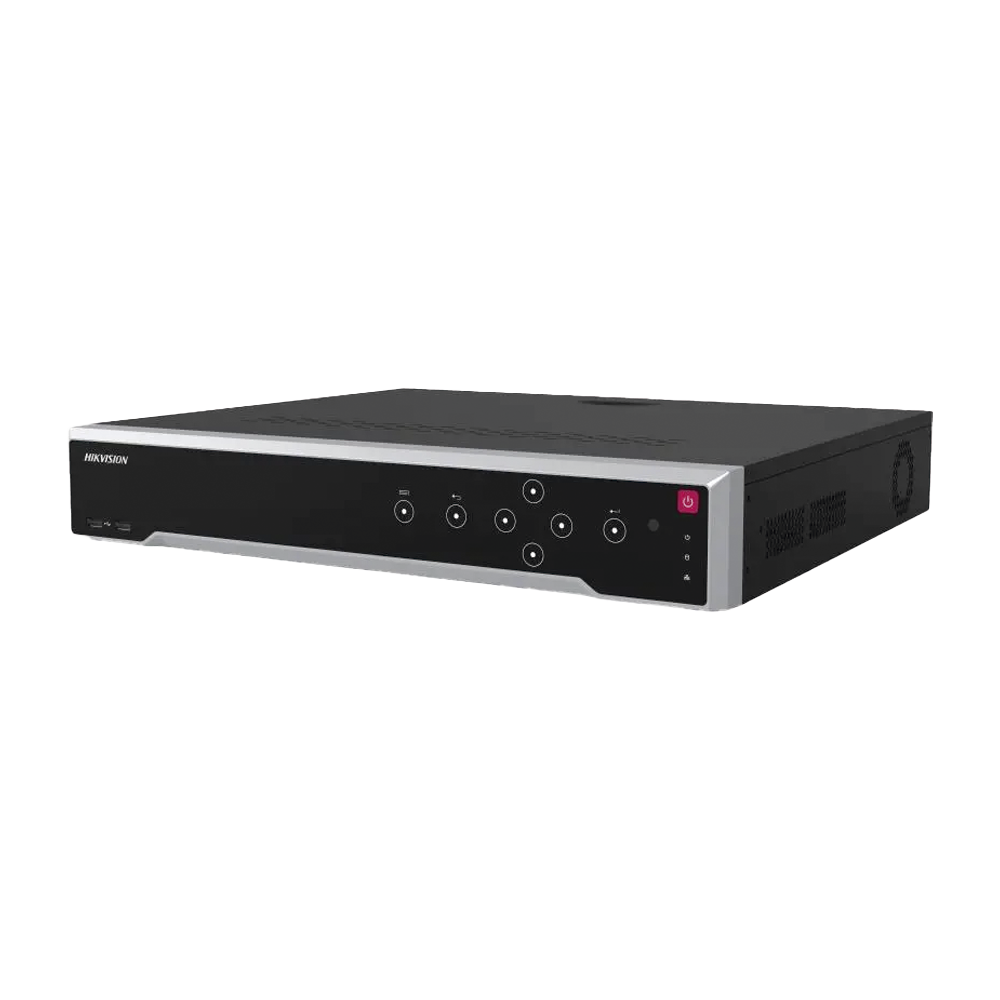

8 Megapixel (4K) NVR / 32 IP Channels / Supports AcuSense Cameras / 4 Hard Drive Bays / 4K HDMI / Video Analytics

• Video compression: H.265+ / H.265 / H.264+ / H.264.
• Supports USB mouse to operate (included).
• Supports 4 HDDs up to 16 TB. (not included).
• Supports local or remote calendar search.
• Supports ANR technology with HIKVISION IP camera when the network is disconnected.
• Supports DDNS (Hik-Connect, DynDNS, No-IP, etc.).
• Supports Hik-Connect P2P.
• Remote access via phone: Android, iPhone, iPad (IVMS-4200 / Hik-Connect).
• Support for IE, Safari, Chrome (ietab) browsers.
• IVMS-4200 client software (free).
• Supports multiple brands such as: AXIS, ONVIF, PANASONIC, PSIA, SAMSUNG, ACTi, SANYO, ZAVIO, VIVOTEK among others.
• Compatible with GAB-VID2-R2 metal cabinet.

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Dual stream (main stream and sub stream).
• Supports fast forward, slow forward, frame by frame, etc.
• Supports SMART hard drive technology
• Supports multiple recording types, including real-time recording, manual recording, motion detection, motion detection and alarm, motion detection or alarm.
• Supports cyclic (overwrite) and non-cyclic recording.

Recording Resolution per Channel (recommended with H.265):

• 2 Megapixel: 40 Channels / 30 IPS.
• 4 Megapixel: 20 Channels / 30 IPS.
• 8 Megapixel (4K): 12 Channels / 30 IPS.
• Synchronous playback on channels: 16 Channels.

• HDMI Output 1: 8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1600 × 1200/60Hz, 1280×1024/60Hz, 1280× 720/60Hz, 1024×768/60Hz.
• HDMI Output 2: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
• VGA output: 1080p (Full HD) / HD (720p).
• Independent HDMI and VGA output.
• Audio Input: 1 Channel.
• Audio Output: 1 Channel.
• Alarm Input: 16.
• Alarm Output: 9.
• Supports two-way audio (two-way audio).
• External Recording: iSCSI and NFS (SYNOLOGY) / up to 1.6TB (2 LUNs 8TB)
• SATA disk capacity: 4 HDDs of up to 16 TB.
• e-SATA Support: 1.
• Disk arrangement: N/A.

Physical and electrical characteristics:

• Dimensions: 445 × 400 × 75mm.
• Power supply: 100 to 240 Vac / 15 W.
• Operating temperature: -10°C to 55°C.
• Weight: 5 Kg without HDD.
• Warranty: 2 years.

• Input throughput: 320 Mbps.
• Output throughput: 400 Mbps.
• 1 network port 10 / 100 / 1000 Mbps. (LAN)
• Remote parameter configuration.
• Download and playback of recorded files on the NVR over the network.
• Supports remote download of NVR alarm log.
• Remote parameter configuration.

Supports cameras with ACUSENSE (False Alarm Filter):

• With ACUSENSE technology we can avoid false alarms such as movement of trees, animals, etc.
• By activating ACUSENSE technology, cameras will only detect human bodies and vehicles to identify truly important events and thus eliminate false alarms.
• Supports up to 32 channels with ACUSENSE technology using cameras: DS-2CD3XX / DS-2CD2XX3G2 / DS-2CD2XX7G2 (which support ACUSENSE).
