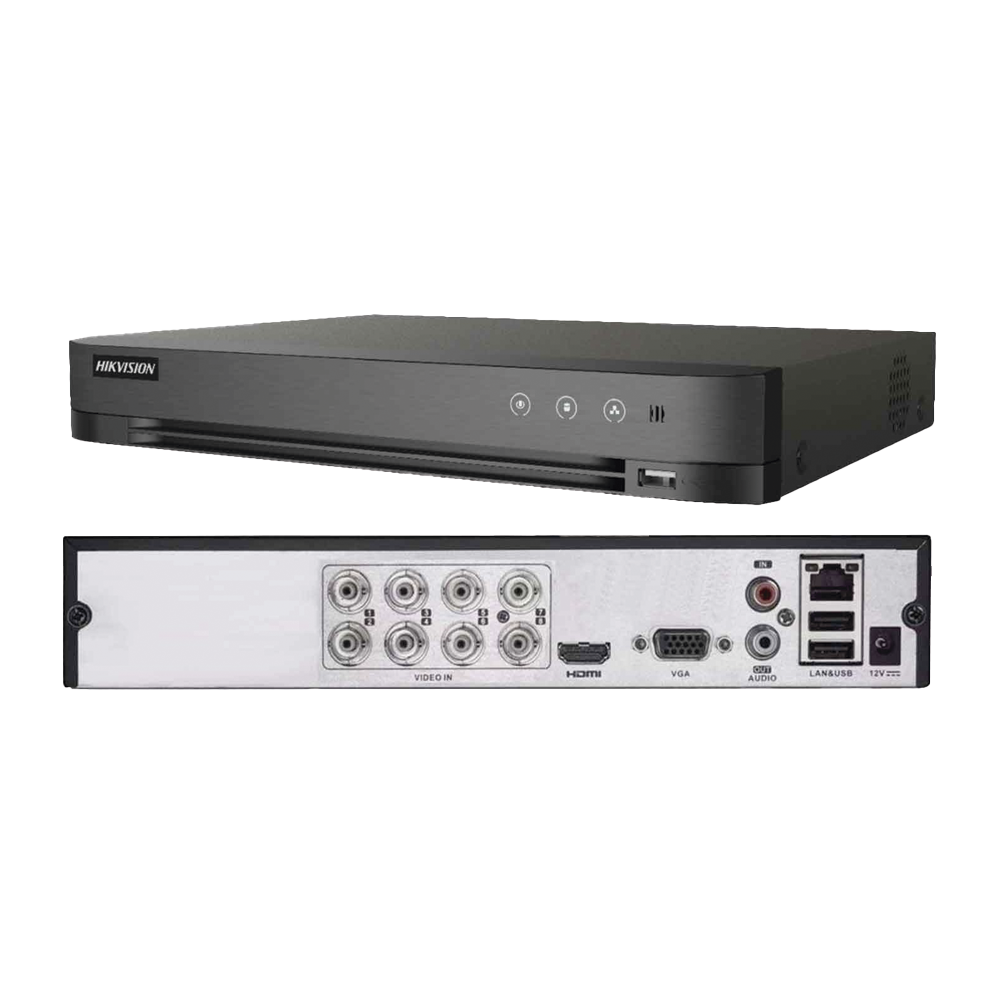

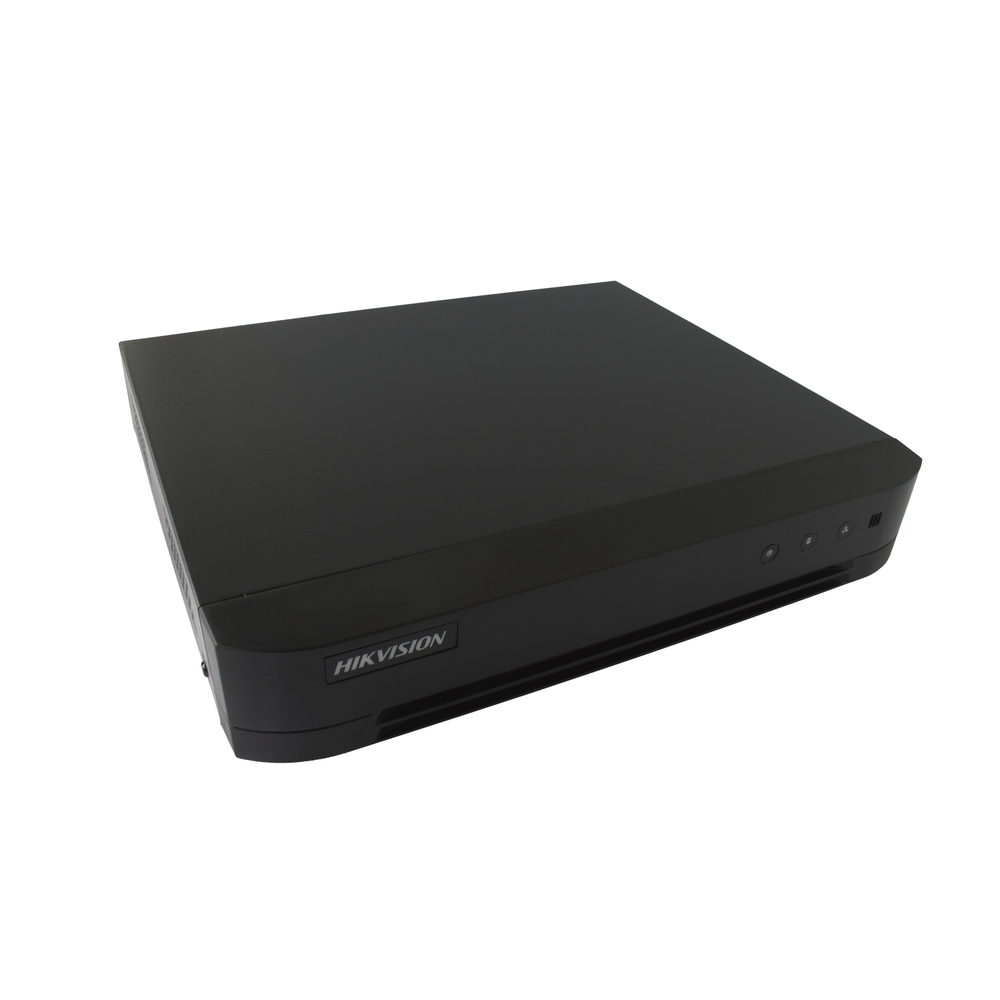

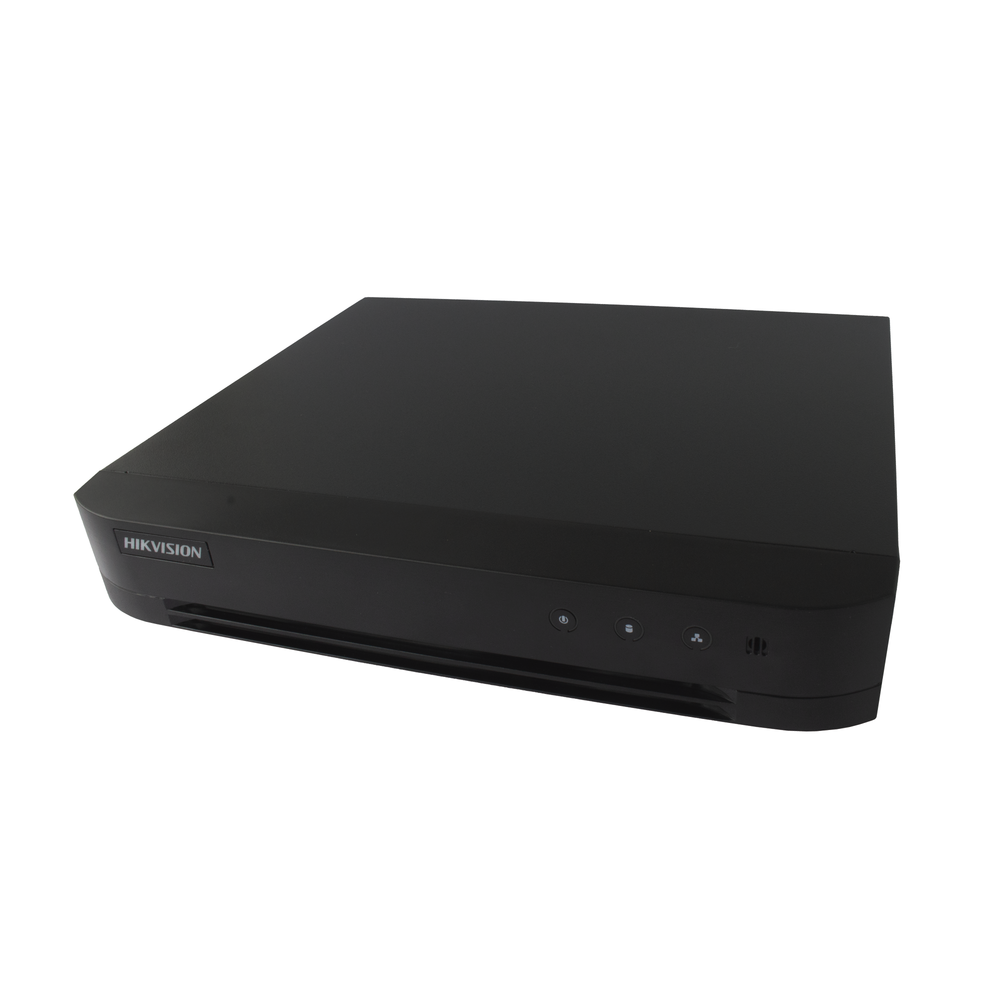

1080P Lite Pentahybrid DVR / 8 TURBOHD Channels + 2 IP Channels / H.264+ / 1 Hard Drive Bay / Coaxitron Audio

1080P Lite Pentahybrid DVR / 8 TURBOHD Channels + 2 IP Channels / H.264+ / 1 Hard Drive Bay / Coaxitron Audio

Main features:

• Pentahybrid System (CVI / AHD / TVI / CVBS / IP).
• 8 Turbo HD Video Channels + 2 5MP IP Channels = 10 channels total.
• Maximum resolution of turbo 1080p lite cameras
• 1 Audio Input / 1 Audio Output.
• Capacity for 1 SATA Hard Drive up to 4 TB.
• Simultaneous HDMI / VGA Video Outputs Full HD 1080p.
• Hik-Connect P2P support .
• Compatible with iVMS-4200 Client Software (Windows), Hik-Connect (Android, iPhone, iPad).
• Audio by Coaxitron

Video Encoding:

• Main stream: 1080p Lite @ 30fps , 720p, VGA, WD1, 4CIF, CIF.
• Sub stream: CIF, QCIF, QVGA.
• Bitrate from 32 Kbps to 6 Mbps.

Audio Channels

• 1 Audio Input Channel (RCA Connector).
• 1 Audio Output Channel (RCA Connector).

Audio Coding:

• G.711U compression.
• Bitrate of 64 Kbps.

Video Outputs:

• Simultaneous HDMI and VGA video output.
• Supports resolutions of 1920x1080, 1280x1024, 1280x720, 1024x768 in HDMI or VGA.

Recording:

• Recording with automatic overwriting.
• Configurable to start recording with a single click.
• Recording scheduling by calendar, manual or event/alarm.

Search and Play:

• Instant playback of a camera in Live Multi-View mode.
• 8-channel synchronous simultaneous playback at 1080p.
• Local and remote playback
• Locking important recording segments to prevent overwriting.

Grid:

• Supports Main and Sub Stream.
• Supported protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS

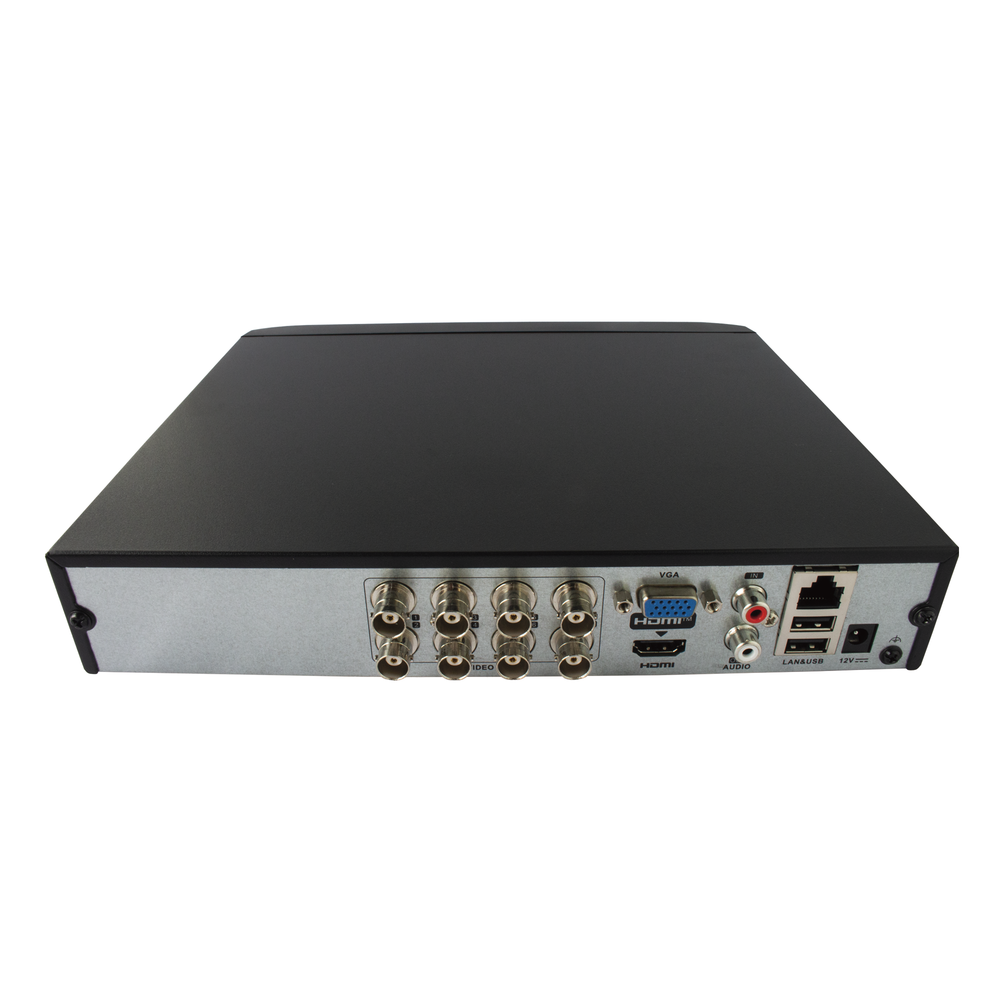

Interfaces:

• 2 USB 2.0 Ports (Supports Mouse for control, included).
• 1 RJ-45 10/100 Mbps Network Port.
• Alarm Inputs/Outputs: NA

Physical and electrical characteristics:

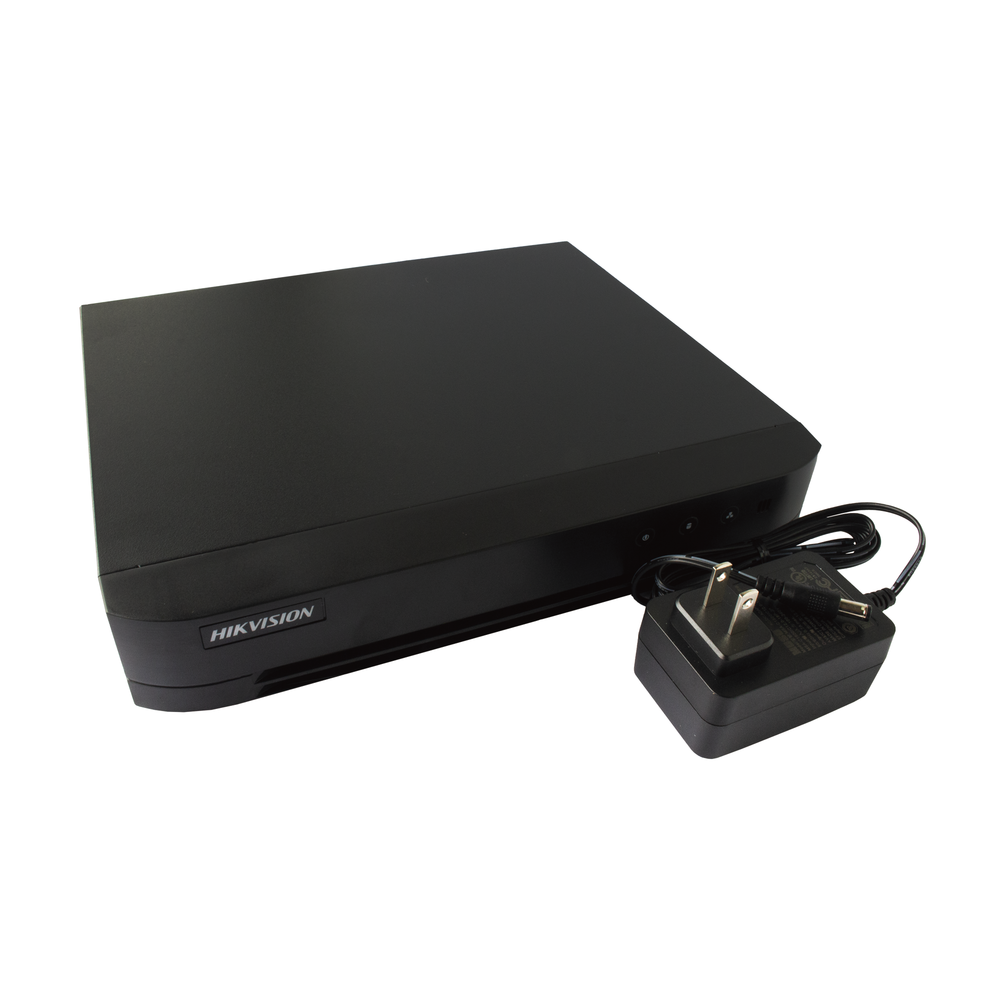

• Power supply included: 12 VDC
• Consumption without hard drive 17 W.
• Operating temperature: -10~55 ºC.
• Dimensions: 260 x 222 x 45 mm.
• Weight: 1 Kg.
• 2 Year Warranty.

Supports 2 IP cameras, Compatible with multiple technologies (AHD, CVI, TVI, CVBS), Supports P2P Hik-Connect
