POCKET2 - Portable Thermal Imaging Camera 3.5mm Lens (256 × 192) / WiFi / IP54 / 16 GB Internal Memory / Up to 4 Hours of Continuous Operation

Handheld Thermal Camera

M Series Thermal Camera Description

M Series Thermal Camera Unboxing

Main features:

• Maximum Resolution: 256 × 192
• Fixed Lens: 3.5mm (F 1.0)
• Focus: Manual.
• 8MP Optical Lens.
• Internal Memory: 16 Gb.
• Image Storage: Up to 60,000 images (JPEG).
• Temperature Reading Range: -20°C to 400°C
• Supports Wi-fi: 802.11 b/g/n (2.4 and 5 GHz).
• Supports Bluetooth 4.2

Physical and Electrical Characteristics:

• Operating Temperature: -10°C to 50°C.
• Power supply: 5Vdc / 1.92 Watts.
• Charging via USB: 5V DC/2A
• Up to 4 continuous hours of use.
• 3.5' display with a resolution of 640 x 480.
• Integrated Li-ion battery.
• Protection: IP54
• Dimensions: 138.5mm × 85.2mm × 23.6mm
• Weight: 218 grams.
• 3-year warranty.

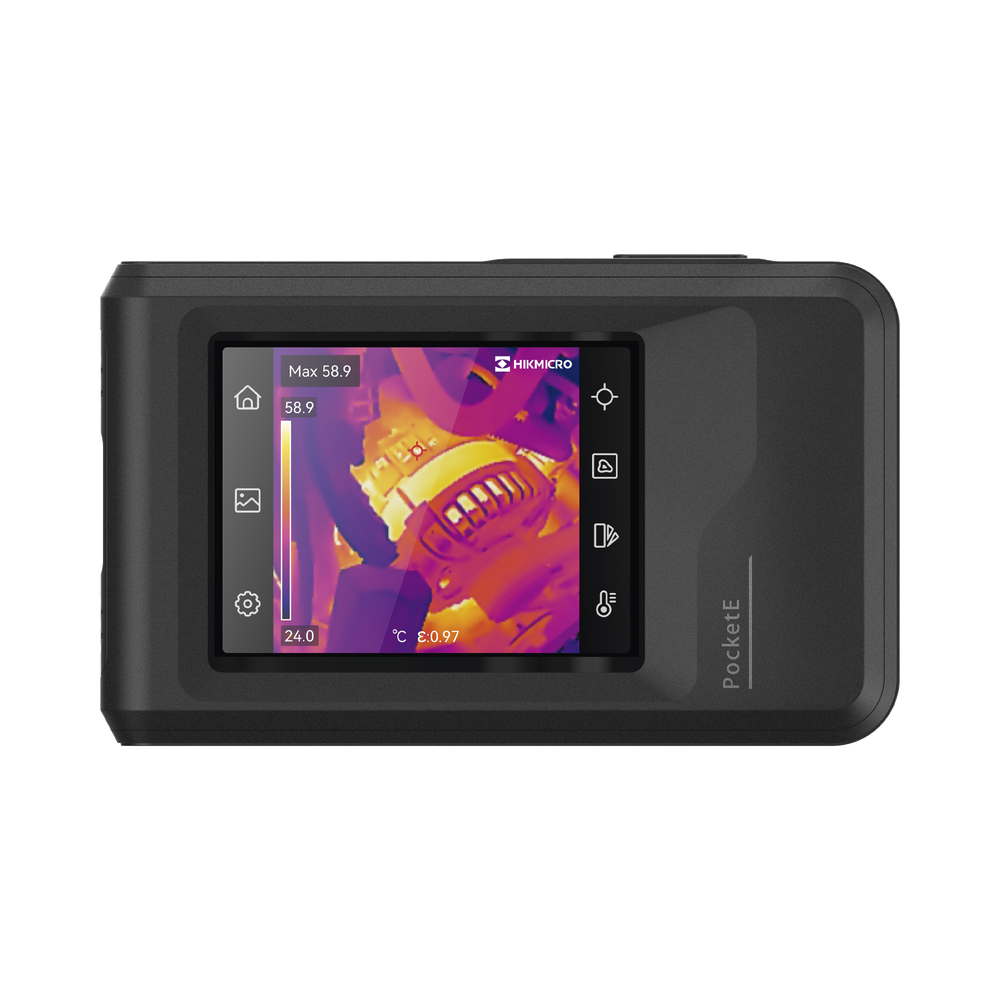

High Image Quality

A high-sensitivity HIKMICRO VOX detector (NETD<4mK) provides a clear thermal view of the target.

Multi-Image Mode

You can select your preferred view from Thermal, Fusion, PIP, and Optical modes to work at your best.

Rapid Temperature Measurement

In full screen you can select different settings to make the measurement which can be: Center Spot, Hot Spot, Cold Spot, Custom Point, Line, Box.

Wi-Fi connectivity

It connects via the HIKMICRO Viewer App through Wi-Fi and can share the image easily and quickly.

Manual Focus

Manual focus ring adjustment allows you to clearly view objects at close or long distances.
