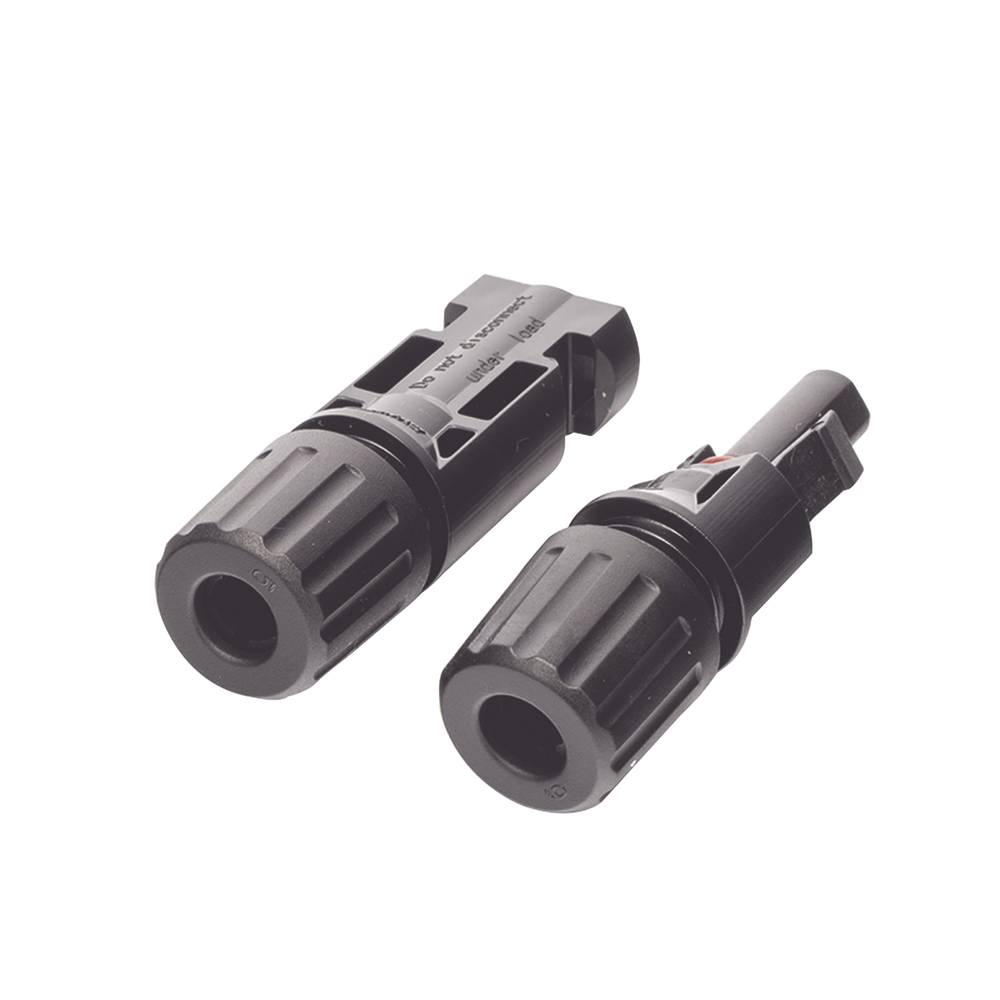

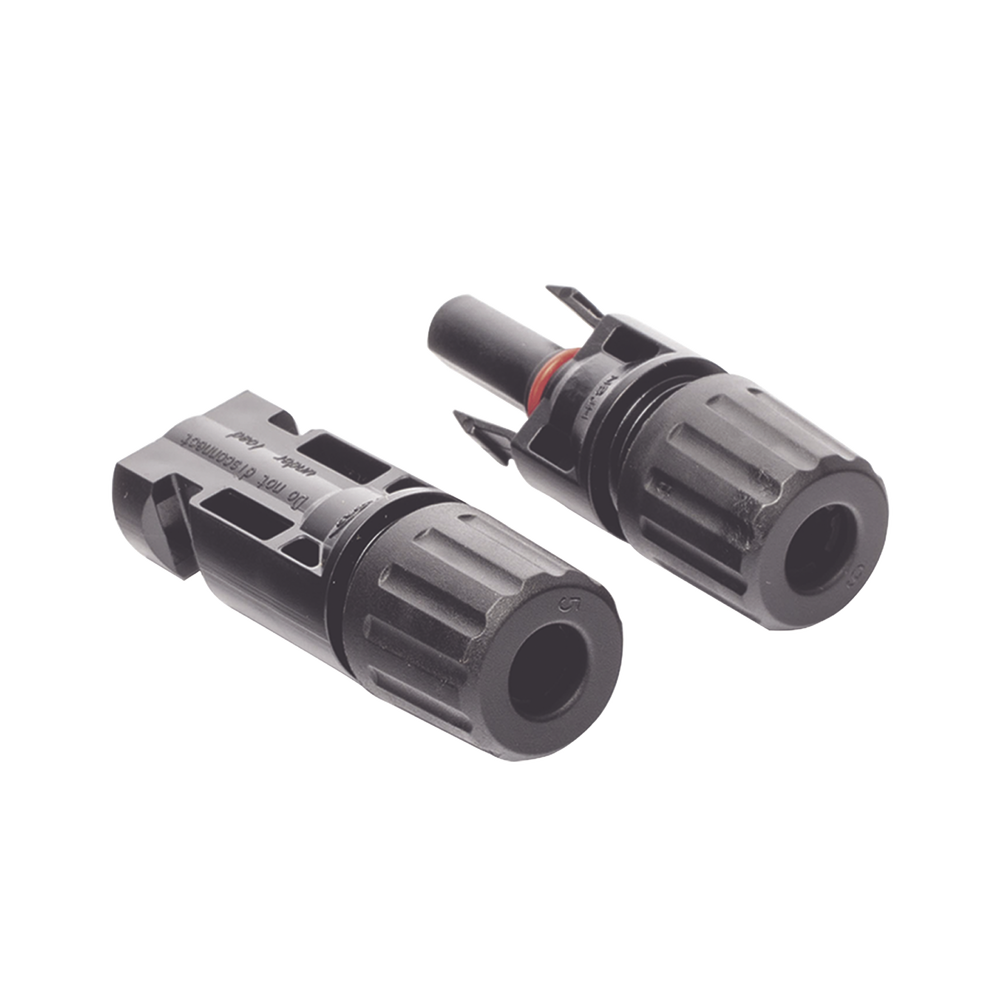

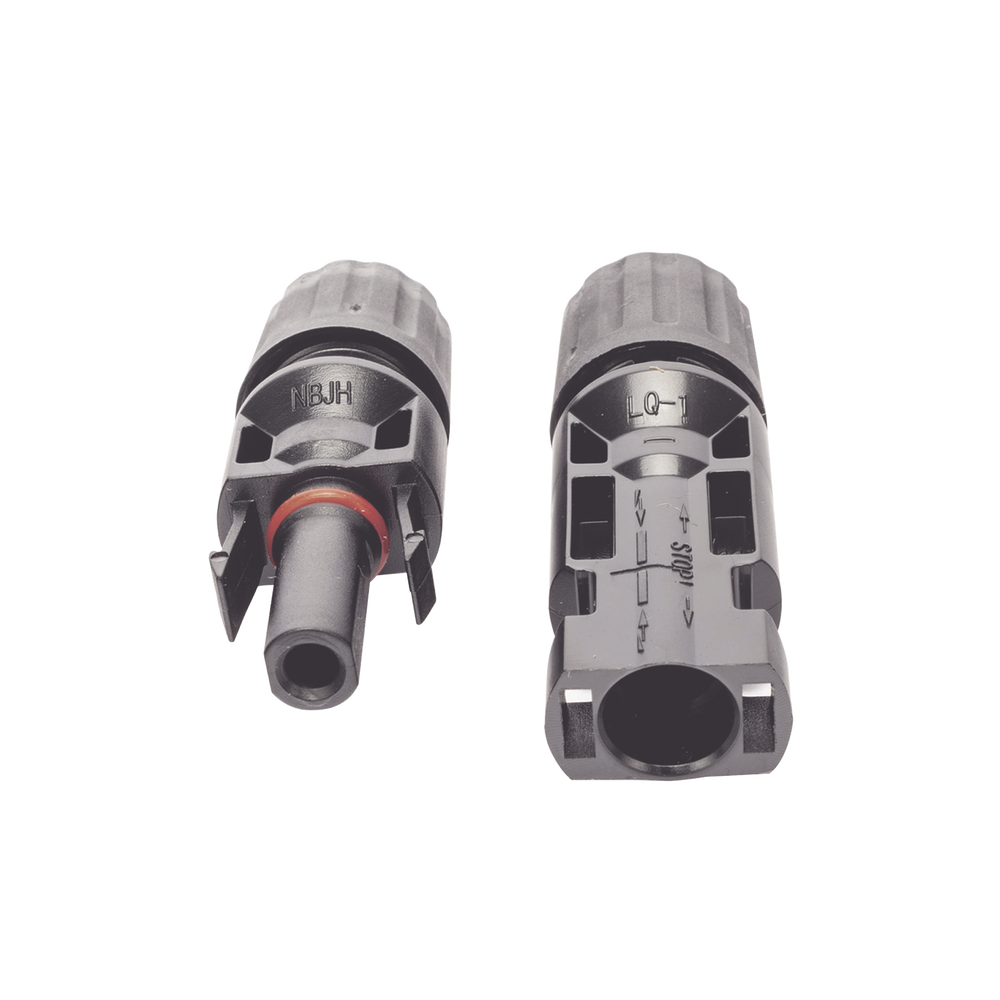

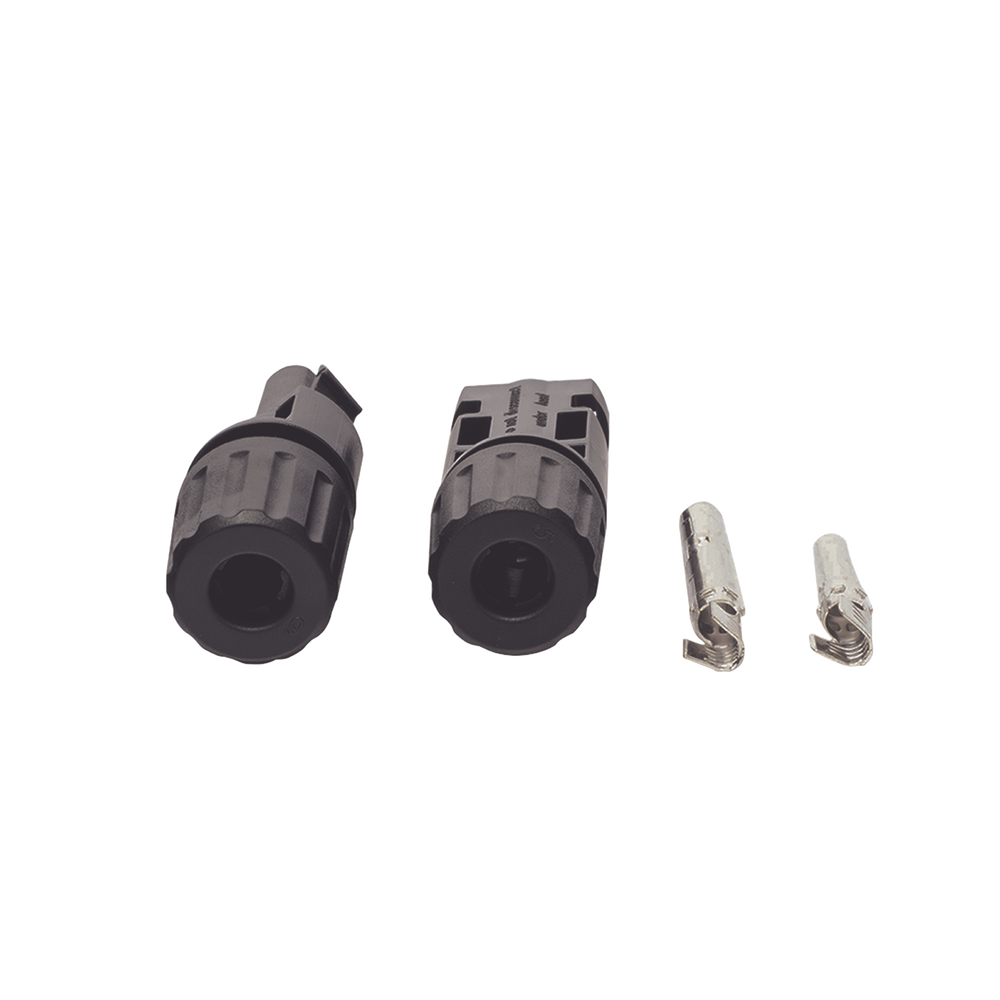

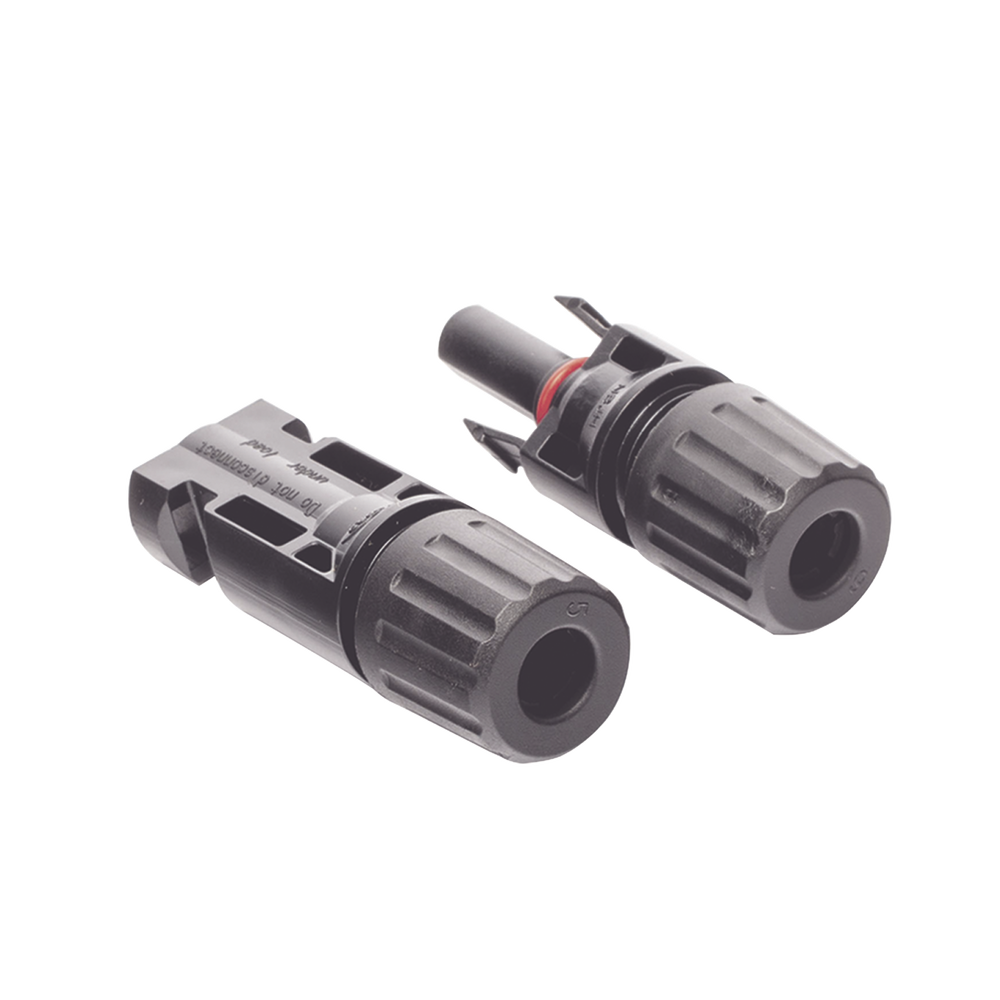

Pair of Male-Female Connectors for MC-4 Type Photovoltaic Modules

Pair of Male-Female Connectors for MC-4 Type Photovoltaic Modules

MC4 type connectors for photovoltaic modules

With excellent UV resistance, which allows it to be
used in severe environments. The cable connection is
easy to install and works as a lock to prevent counterfeiting
contacts.

PROSECA01

Technical specification:
• Maximum working voltage: 1000 Vdc.
• Nominal current: 30 A.
• Flame class: UL94-V0.
• Pollution level: 2.
• Contact resistance: ≤5 mmΩ.
• Protection level: IP67.
• Connection line specification: 4 mm2.
• Ambient temperature range: -40 to 90 ºC.
• Security level: class II.
• Insertion force: ≤50 N.
• Extraction force: ≥50 N.

For punching it is recommended to use the EPMC4

WARRANTY.

1 Year against manufacturing defects.
