• Switch PoE+ / Administrable / 8 Puertos 10/100 Mbps PoE+ / 1 Puerto 100 Mbps Uplink / PoE hasta 250 metros / 60 W
1 1

HIKVISION

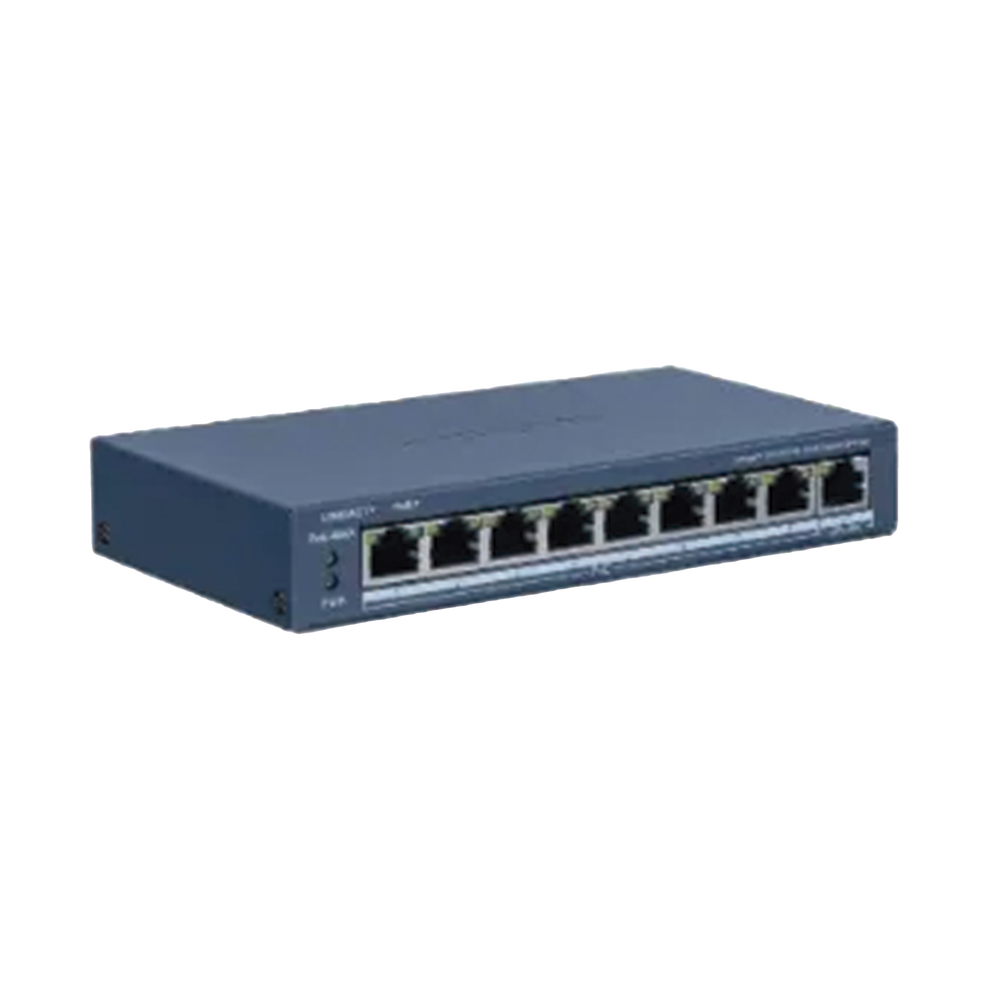

PoE+ Switch / Manageable / 8 Ports 10/100 Mbps PoE+ / 1 Port 100 Mbps Uplink / PoE up to 250 meters / 60 W

PoE+ Switch / Manageable / 8 Ports 10/100 Mbps PoE+ / 1 Port 100 Mbps Uplink / PoE up to 250 meters / 60 W

$308.929 COP
$337.891 COP $308.929 COP
Sale Sold out
Shipping calculated at checkout.

PoE+ Switch / Manageable / 8 Ports 10/100 Mbps PoE+ / 1 Port 100 Mbps Uplink / PoE up to 250 meters / 60 W

Main features:
  • Extended mode available to achieve wired transmission up to 250 meters.
  • When enabling EXTEND mode, the bandwidth will be 10Mbps and the power supply should not exceed 8W maximum per port.
  • It is recommended to use 100% copper Cat 6 cabling for extended mode.
  • Buffer optimization to ensure smooth video streaming.

Physical and Electrical Characteristics:
  • Maximum Wattage: 60 W.
  • Maximum Watts management per port: 30 W.
  • 8 802.3af/at PoE ports supporting EXTEND mode.
  • Power supply: 48 Vdc / 1.35 A. (Fluent included).
  • Dimensions: 170 mm x 27.6 mm x 93.1 mm.
  • Weight: 0.89 Kg.
  • Warranty: 2 years
  • NOT rack mountable
Supports one-click activation and remote management via Hik-Partner Pro. Supported features:
  • Displays the port speed.
  • Display the port bandwidth utilization rate.
  • Display PoE power usage.
  • Display topology information.
  • Displays the alarm status.
  • Restart ports and devices.
  • Enable the port's long-range mode.
  • Update the device remotely.

Driving Mode 1

The HIKVISION PoE switch allows us to reach distances of up to 500 meters in total when using a HIKVISION PoE extender model DS-1H340101P .

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

Driving Mode 2

Enabling extended mode allows us to reach distances of up to 250 meters per port.

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

    Out of stock

    MODELO: DS-3E1309P-EI/M
