• Terminal Min Moe WiFi de Reconocimiento Facial y Huella con lector MIFARE / Exterior IP65 / Hasta 1.5 mts en lectura de rostro / Soporta P2P Hik-Connect / 1,500 Rostros / 3,000 Huellas / Videoportero / POE.
1 7

HIKVISION

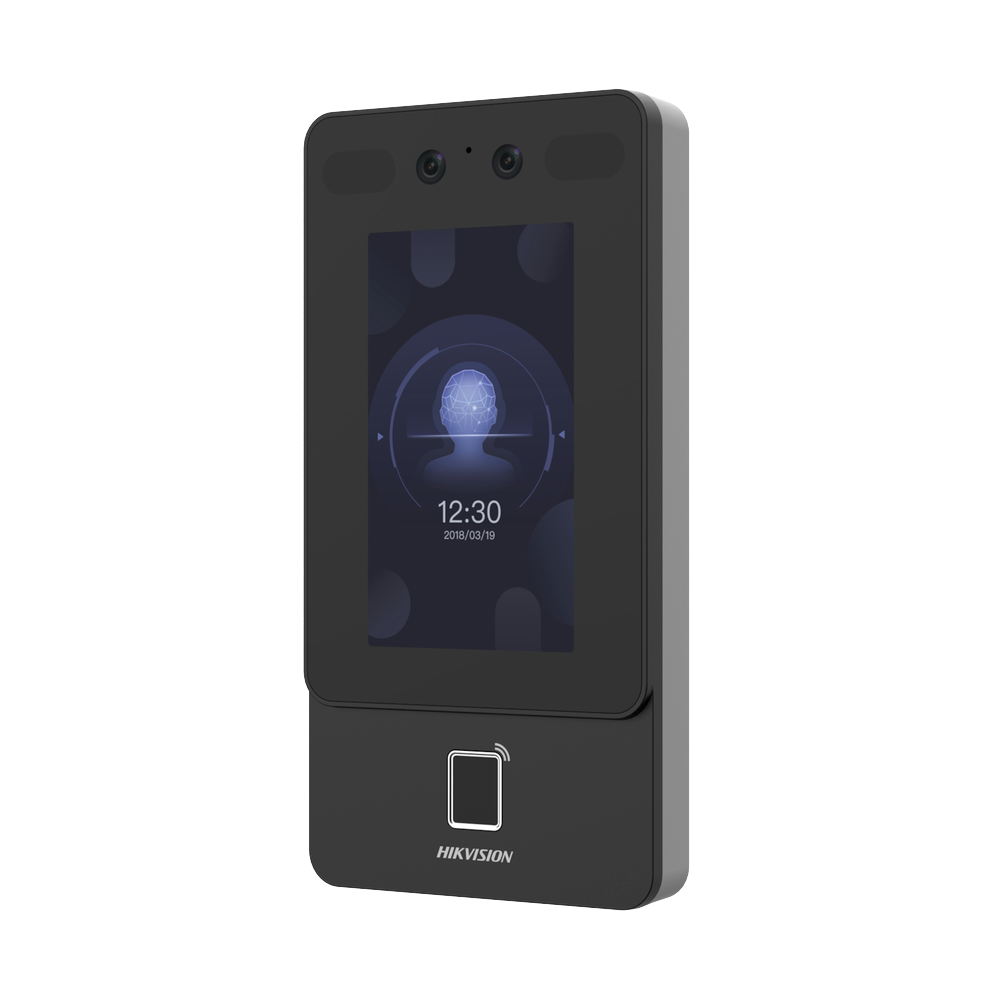

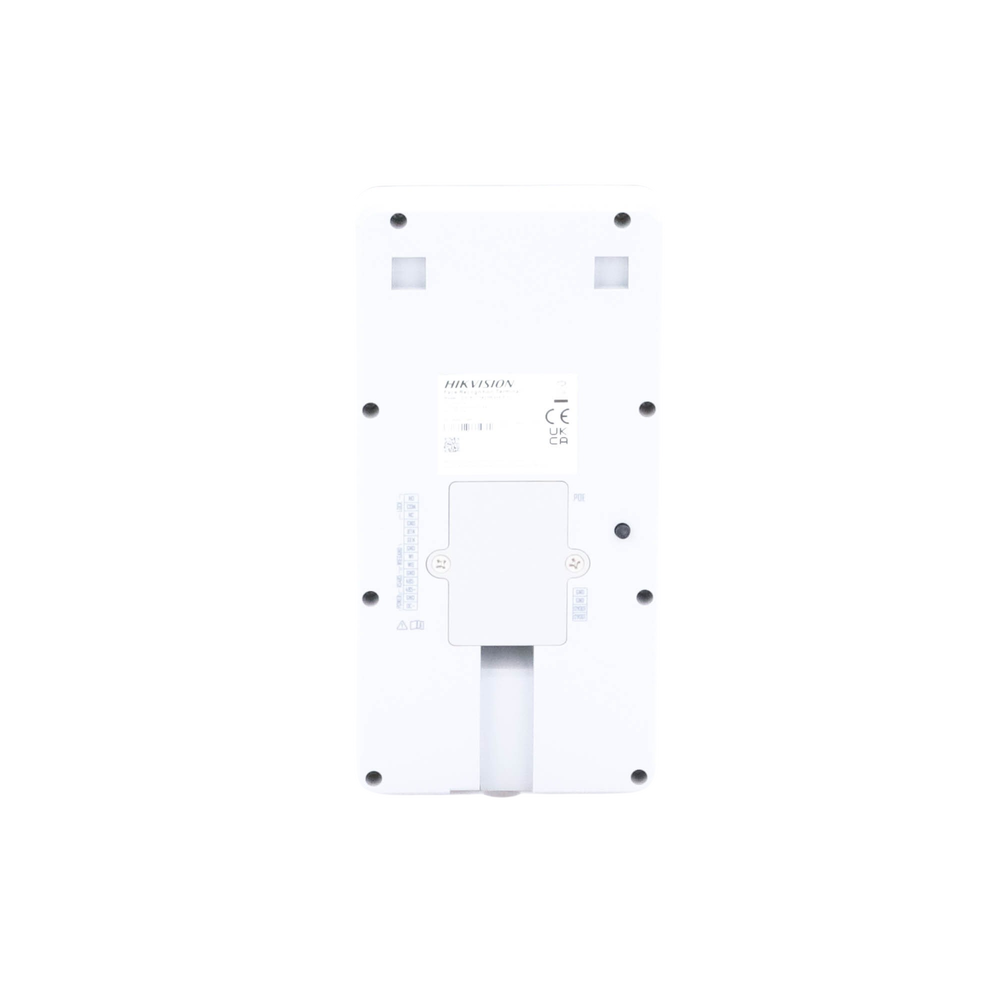

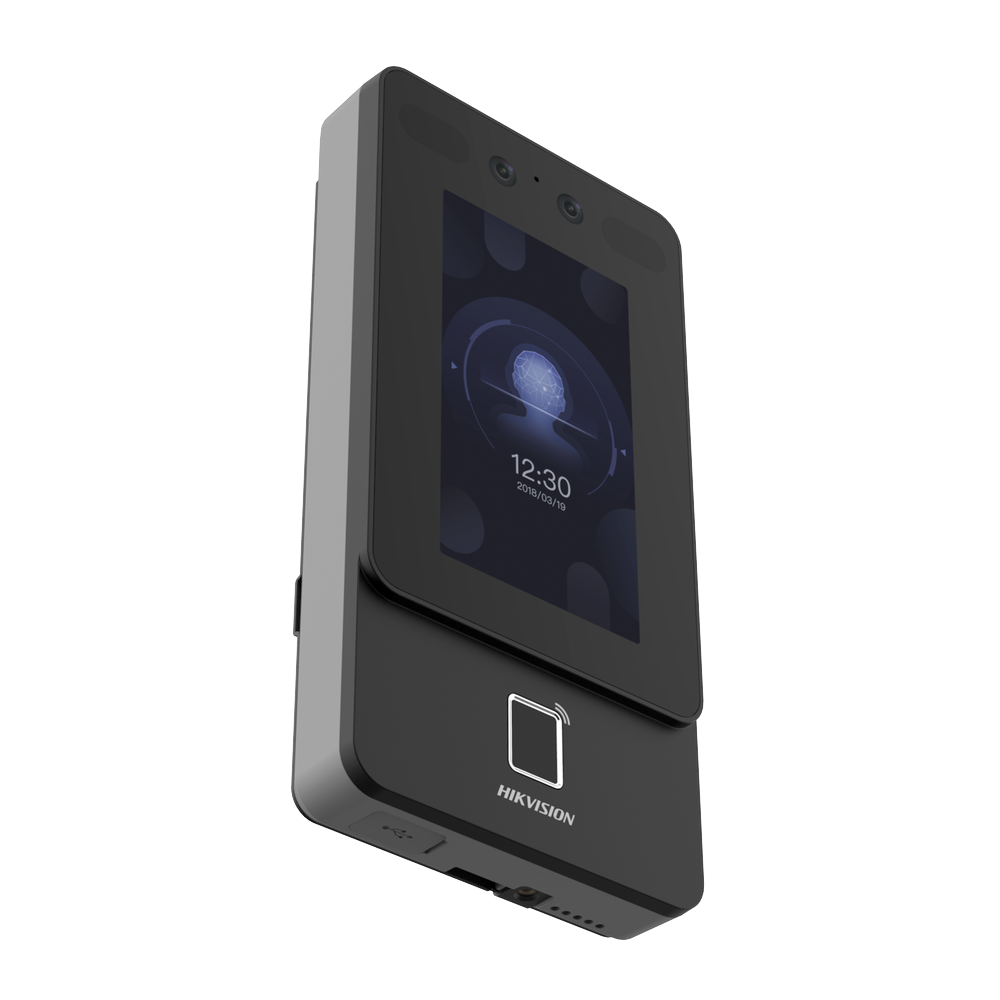

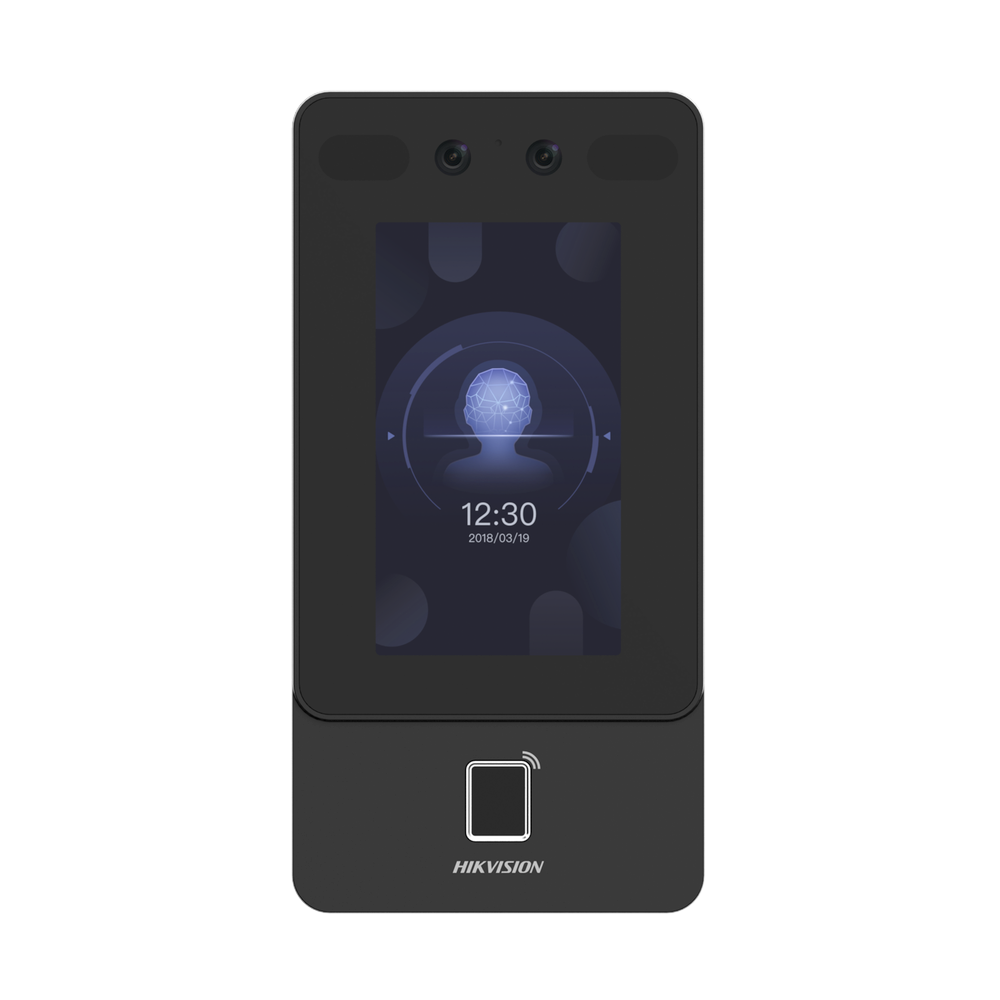

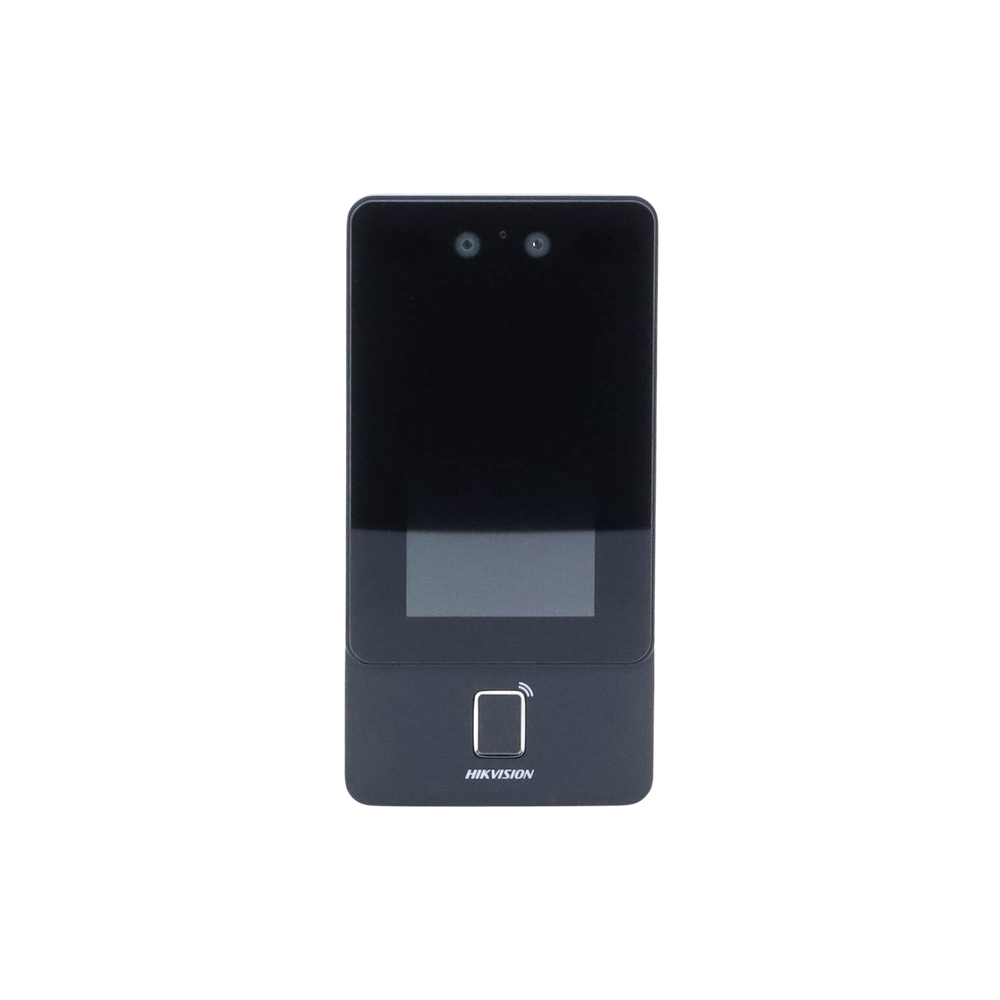

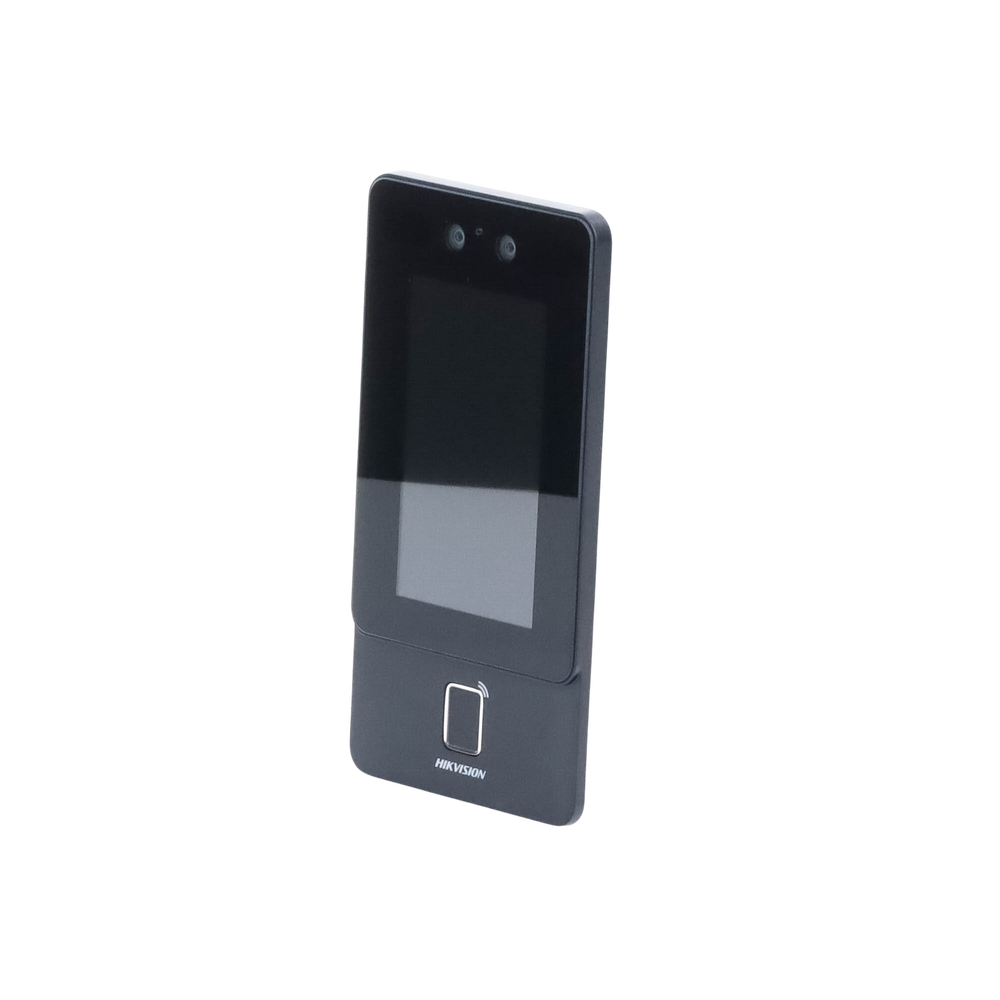

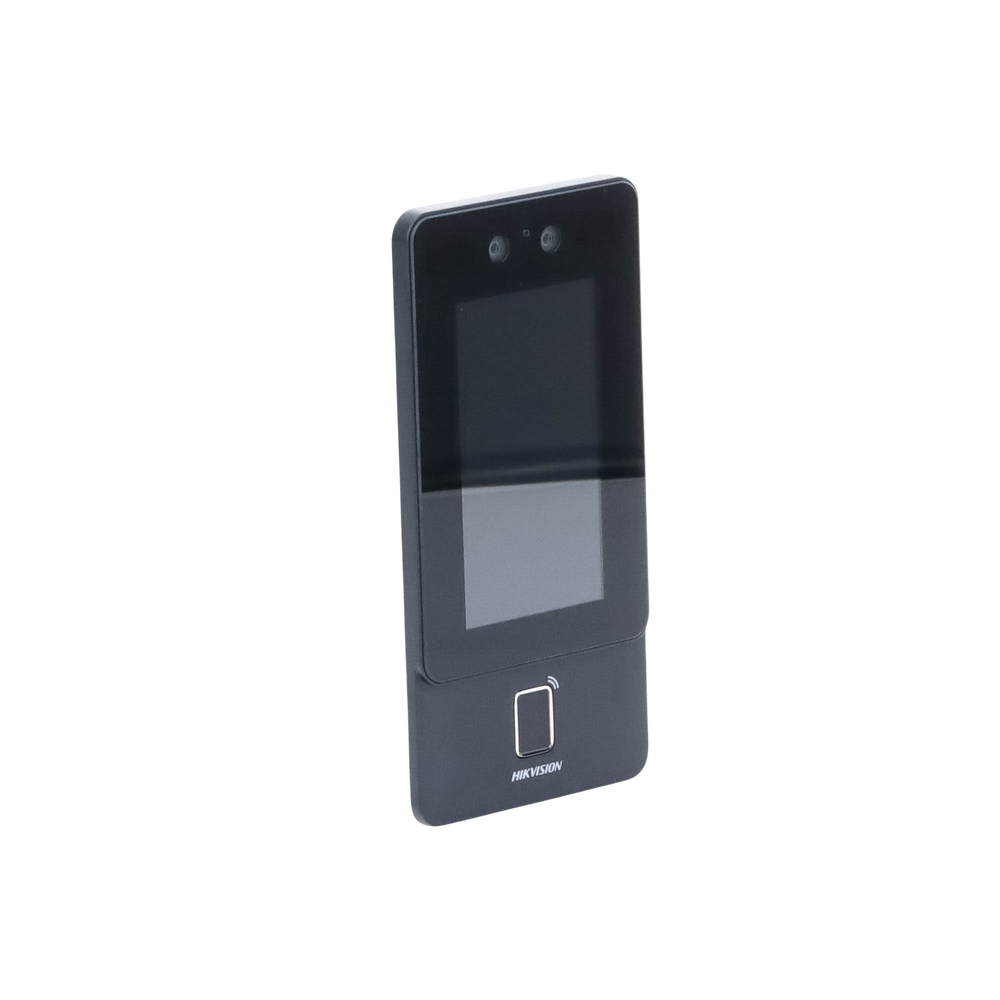

Min Moe WiFi Terminal for Facial and Fingerprint Recognition with MIFARE reader / IP65 Exterior / Up to 1.5 meters in facial reading / Supports P2P Hik-Connect / 1,500 Faces / 3,000 Fingerprints / Video intercom / POE.

Min Moe WiFi Terminal for Facial and Fingerprint Recognition with MIFARE reader / IP65 Exterior / Up to 1.5 meters in facial reading / Supports P2P Hik-Connect / 1,500 Faces / 3,000 Fingerprints / Video intercom / POE.

$891.836 COP
$975.445 COP $891.836 COP
Sale Sold out
Shipping calculated at checkout.

Min Moe WiFi Terminal for Facial and Fingerprint Recognition with MIFARE reader / IP65 Exterior / Up to 1.5 meters in facial reading / Supports P2P Hik-Connect / 1,500 Faces / 3,000 Fingerprints / Video intercom / POE.

Deep Learning Speed ​​Demo

Test on Twins with Deep Learning

Speed ​​at Turnstiles with Deep Learning

Main features:
  • 4.3-inch touchscreen
  • Wi-Fi
  • ISAPI, ISUP5.0
  • 2 MP camera with dual lens, wide angle.
  • Face detection distance: 0.3 m to 1.5 m.
  • Recognition Distance 0.3 to 1.5 m
  • Supports up to 1,500 faces.
  • Supports up to 3,000 fingerprints
  • Capacity for 150,000 events.
  • Supports up to 3,000 cards (Mifare)

  • Recommended cards: ACCESSCARM1K, ACCESSCARDM4K, ACCESKFBM1K, ACCESSWB65M1K, ACCESSWB74M1K . See here.

  • Standalone operation or with IVMS4200.
  • Warranty: 2 Years.
  • - IVMS4200 Scope (data sheet)
  • – HikCentral (via license).

Physical and Electrical Characteristics:
  • Power supply: 12 Vdc / 2 Amp / 24 W. (Included) / Standard POE
  • Application: Indoor / Outdoor protected (IP65)
  • Temperature: -30°C to 60°C (-22°F to 140°F)
  • Dimensions: 172.5 mm × 83.2 mm × 22.7 mm

  • Interfaces:

    • Electric Lock: 1
    • Ethernet: 1
    • Wifi: 1
    • USB 2.0: 1
    • RS-485: 1 (Supports slave reader See here )
    • Exit button: 1
    • Wiegand: 1
    • Door sensor: 1
    • Tamper: 1
Highlighted Features:

The DS-K1T342 series head-mounted terminal adopts a DEEP LEARNING algorithm that helps recognize people's faces faster and more accurately. It's applicable in scenarios such as buildings, enterprises, industries, and other important areas.

Supports slave reader See here

Considerations:


Patented DEEP LEARNING algorithm

Reader developed with the world's most advanced facial recognition algorithm, faster than any other and more secure due to its patented, unforgeable algorithm.

  • ✓ Works as a Multi-apartment IP Video Intercom (Touch).
  • ✓ Proximity card opening for residents.
  • ✓ Opening with QR codes from Smartphone.
  • ✓ Records as a conventional IP camera on a DVR or NVR
  • ✓ Compatible with IVMS4200 Integration software.
  • ✓ IP65 for protected outdoor installation (Not weatherproof).

* Mounting for installation on DS-KAB6-ZU1 turnstile

Free SDK for your own integrations available: Download Here.

* HikConnect Smartphone App call function is possible through Hikvision IP monitors such as model  DS-KH6320-WTE1 if the system is multi-apartment. It can be configured without monitors but to always dial to a single HikConnect account.

HIKVISION Magnetic Plate

Model: DS-K4H258S (Not included in this biometric)

Hikvision launches its own magnetic sheet model, allowing the entire solution to be seen under one brand.

– 600 lbs of force (280 Kg).

✓ CE certified.

✓ LED indicator

Z and L mounts (Required)

The 'Z' and 'L' mounts are required for the installation of the magnetic plates, they are purchased separately and the model is DS-K4H258-L/Z.

IVMS4200 Integration Demo

(Access + Assistance + CCTV + Video Intercoms)

Implementation of integration with APP and other products

    32 in stock

    MODELO: DS-K1T342MFWX-E1

    View full details
