Layer 3 Managed Switch, 12 SFP+ 10G BASE-X ports, 1 RJ45 Console Port.

Layer 3 Managed Switch, 12 SFP+ 10G BASE-X ports, 1 RJ45 Console Port.

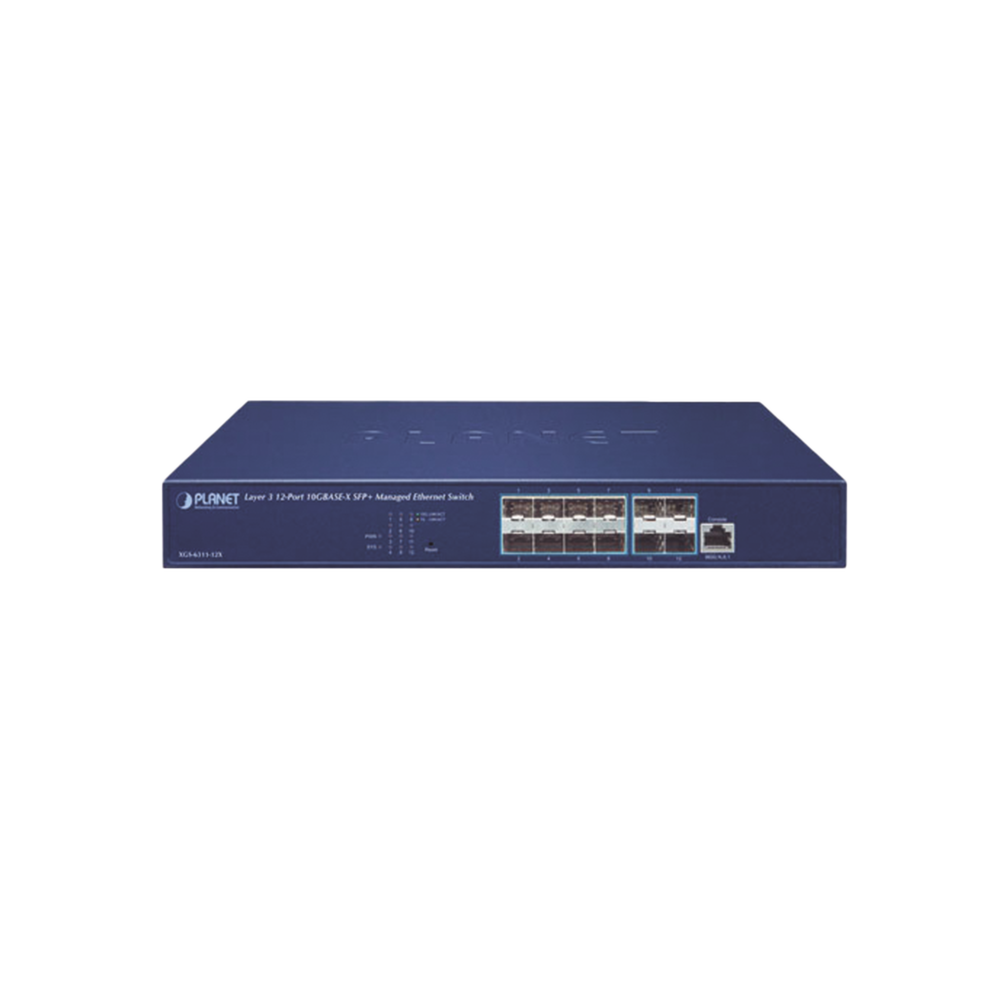

The PLANET XGS-6311-12X is a 10Gbps managed switch designed to meet the demands of high-bandwidth networking equipment such as Wi-Fi 6/6E wireless APs, NAS, and workstations. It features 12 10GBASE-X SFP+ fiber ports that are flexibly designed to extend connection distances.

Main features:

Physical ports

• 12 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
• RJ45 type RS232 console interface for basic switch management and configuration
• CPU: MIPS 800MHz
• RAM: 512 Mbytes
• Dimensions: 330 x 230 x 43.6 mm, 1U
• Weight: 1.98 kgs
• Maximum consumption: 30.2 Watts
• Input voltage: 100 - 240V, 50/60 Hz

Layer 3 Functions

• IP Routing Protocol (Static Route, RIPv1/v2, OSFPv2).
• Layer 3 protocol (ARP, ARP Proxy, IGMP Proxy).
• Other: ICMPv6, ND, DNSv6

Layer 2 Features

• Port Configuration
• Port State
• VLAN
• Bandwidth control
• Link Aggregation
• QoS
• Multicast

Security

• Access control list
• Port isolation
• L2/L3/L4-based ACL identification and filtering
• Defense against DOS or TCP attacks
• Suppression of unknown broadcast, multicast, and unicast packets
• DHCP Snooping
• AAA
• Authentication: IEEE 802.1x port-based network access control

Management

• System configuration (Console, Telnet, web browser, SNMP v1, v2c).
• Secure management interfaces (SSHv2, TLSv1.2, SNMPv3).

Temperature :

• Temperature 0 - 50 °C
• Relative humidity 5 - 90% (non-condensing)

Warranty

• 3 years

The box includes:

• Installation Guide
• Console cable
• Rack mounting kit
• XGS Series Switch
• Power cable
• 12 SFP port hoods
• 4 rubber feet
