• NVR 100 Canales / Standalone / 32 Licencias Gratuitas / 5 ranuras HDD / E-MAP
1 1

ACTI

100-Channel NVR / Standalone / 32 Free Licenses / 5 HDD Slots / E-MAP

100-Channel NVR / Standalone / 32 Free Licenses / 5 HDD Slots / E-MAP

$12.985.824 COP
$14.203.245 COP $12.985.824 COP
Sale Sold out
Shipping calculated at checkout.

100-Channel NVR / Standalone / 32 Free Licenses / 5 HDD Slots / E-MAP

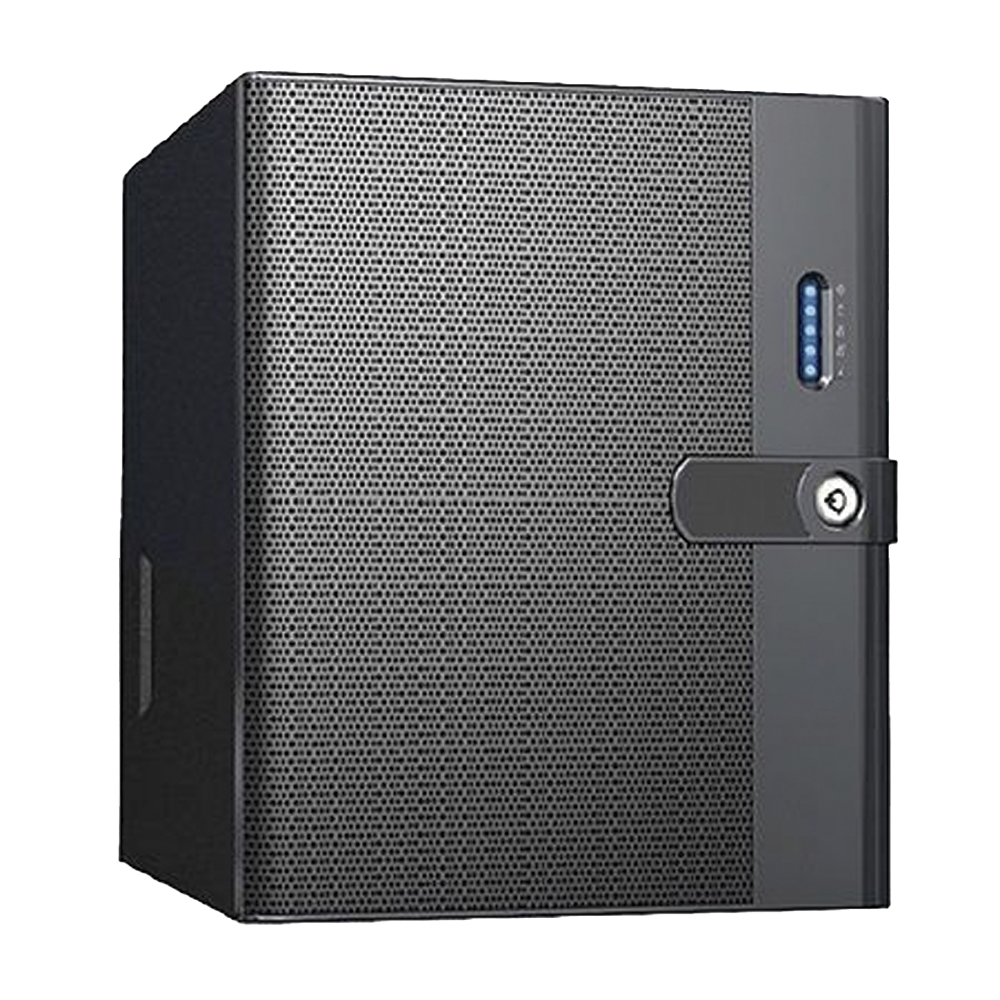

Network Video Recordel GNR-340 Standalone

The ACTi GNR340 is a 5-channel network video surveillance system that supports up to 100 video devices. It offers visual monitoring. The system is powerful and flexible, making it suitable for a variety of applications, including commercial security, residential security, and public safety.

Main features:
  • Maximum number of video channels: 100
  • Maximum video resolution: Supports all ACTi cameras of all resolutions.
  • CPU: Intel Core i3-9100
  • RAM: 16 GB
  • Storage: Up to 22TB with 5 slots.
  • Maximum number of clients: 1 Local, 4 Remote.
  • Free licenses: 32 (32 channels for ACTi and 1 channel for third-party cameras)
  • Video analysis functions: visual tracking.
  • Remote access: PC, mobile device, web browser
  • Integration with third-party systems: building management systems, alarm systems
  • Supports multiple brands such as: AXIS, ONVIF, PANASONIC, PSIA, SAMSUNG, ACTi, SANYO, ZAVIO, VIVOTEK among others.
Physical and Electrical Characteristics:
  • Dimensions: 210mm x 240mm x 258mm (8.27' x 9.45' x 10.16')
  • Power supply: 100 to 240Vac / 250 W.
  • Operating temperature: 0°C to 40°C (32°F - 104°F).
  • Weight: 6130g (13.51lb) without HDD.
  • It has a fan.
  • Works under humidity of 5% - 85% RH.
  • 3 years warranty.
  • 2 RS-232 ports.
  • 1 HDMI port.
Processing capacity and network functions:
  • Network protocol: IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi.
  • 2 Ethernet ports (1000 Base-T).

Recording and Viewing Functions:

  • Schedule recording, event recording, manual recording, Dual Stream management .
  • Digital zoom in viewing and recording.
  • Forward and reverse playback at different speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame by frame, pause, stop.
  • Supports SMART hard drive technology
  • Supports multiple recording types, including real-time recording, manual recording, video recording, video recording and alarm, and video recording or alarm.
  • Supports cyclic (overwrite) and non-cyclic recording.
  • Digital zoom in recording.

Input/Output Interfaces:
  • HDMI Output 1: 4K.
  • Audio Input: 1 Channel.
  • Audio Output: 1 Channel.
  • Alarm Input: NA
  • Alarm Output: NA
  • Supports two-way audio (two-way audio).
  • 3.5mm phone jack
  • 2-USB 2.0 Port, 2-USB 3.1 Port, 2-USB Type C Port.
  • Support for e-SATA: 5 port.
  • Minimum hard drive capacity of 22 TB.
  • PTZ control, Speed ​​control, 32 Preset points.

Highlighted Features:
  • Upload image for e-Map, Google Maps preset settings and management, Camera positioning, Camera viewing angle and pointing direction, View positioning.
  • PTZ mode using the mouse to control video streams in e-Map
  • CE, FCC, UL (for built-in power adapters).
  • Disk full event, disk not found, disk available, SMART failure and normal, schedule service start and stop, video push start and stop, CPU limit exceeded for server PC, CPU limit exceeded for NVR services, GPU load detection for workstation only, memory limit exceeded for server PC and NVR services, network send/receive limit exceeded for server PC.
  • Video event motion detection, passive IR sensor, external device via digital input, sound detection, intelligent event detection, video push start and stop, video loss, disk write failure.
  • Reaction to a pop-up window with event confirmation and live video activation, switch to an access point window, switch to customize the view, command a PTZ device to go to a preset point, play an alert sound, activate an external device via a digital output, execute a system command to activate other programs, upload a video or snapshot to an FTP server, Email with notifications and photos, Push notification, Send Snapshot to Line Messenger.
  • Search for video recordings by time, events, channel, bookmarks, displaying them as chronologically sorted thumbnails for high-resolution viewing and image downloads.
  • Multi-Language.

The GNR340 model can be accessed remotely via a PC, mobile device, or web browser. The system also supports integration with third-party systems, such as building management systems and alarm systems.

What is H.265?

H.265 storage is a video compression format that can reduce video file sizes without compromising image quality by removing redundant information from the video. This is achieved through the use of a variety of techniques, such as spatial prediction coding, temporal prediction coding, and keying, resulting in video file sizes reduced by 50% or more compared to H.264 storage. This means that more video can be stored in the same storage space, or that the bandwidth required to transmit the video can be reduced.

    5-Bay NVR, 100 Video Channels, 32 Free Licenses, System Monitoring and Notifications, Location-Based Management with e-Map and Google Map, Workstation, Web Client, Mobile Client, Intel Core i3-9100, 16GB

Out of stock

MODELO: GNR340

View full details
