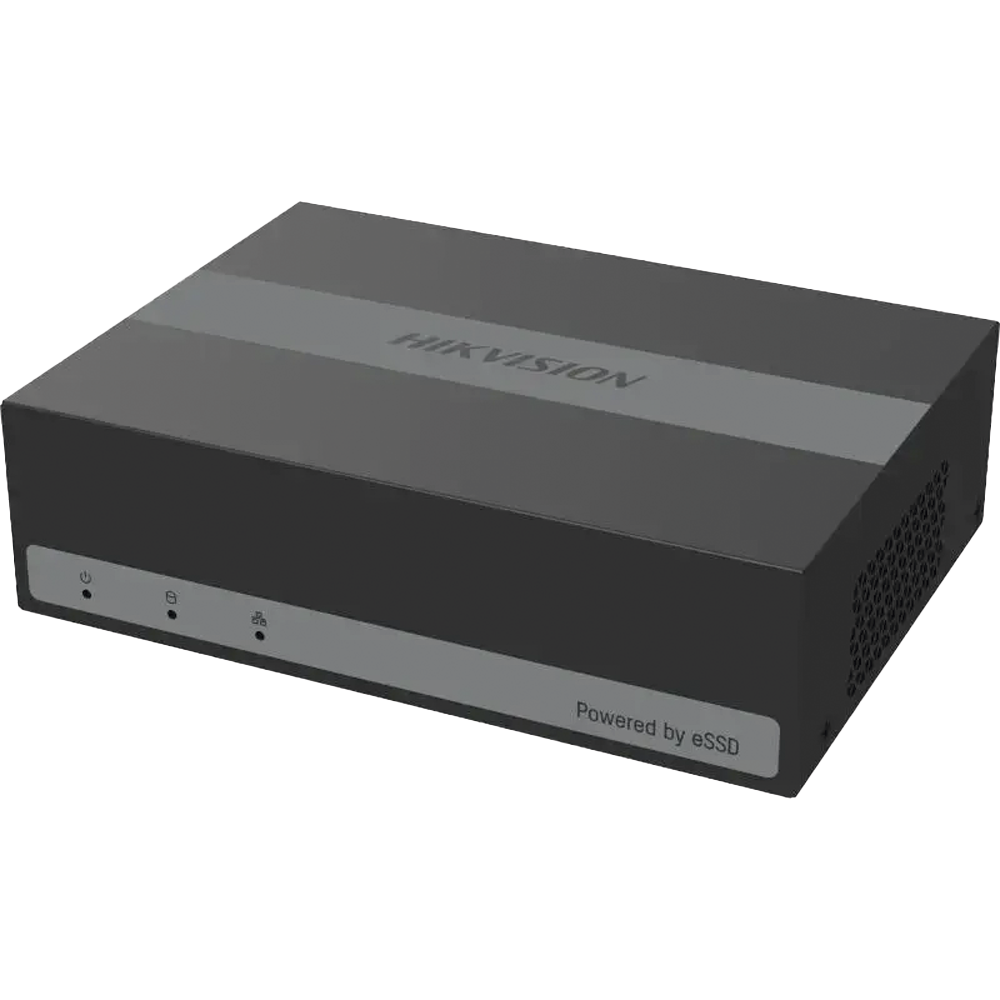

2 Megapixel DVR (1080P) Lite / 4 TURBOHD Channels + 1 IP Channel / eSSD Hard Drive Included (960 GB) / H.265+ / ACUSENSE Lite / Ultra Compact Design / Extra Silent / Coaxial Audio
2 Megapixel DVR (1080P) Lite / 4 TURBOHD Channels + 1 IP Channel / eSSD Hard Drive Included (960 GB) / H.265+ / ACUSENSE Lite / Ultra Compact Design / Extra Silent / Coaxial Audio
Couldn't load pickup availability
2 Megapixel DVR (1080P) Lite / 4 TURBOHD Channels + 1 IP Channel / eSSD Hard Drive Included (960 GB) / H.265+ / ACUSENSE Lite / Ultra Compact Design / Extra Silent / Coaxial Audio
Audio, Video and Data over the Same Cable
- Pentahybrid DVR: HD-TVI / HD-CVI / Analogue / IP / AHD.
- Multi-site client software up to 32 channels (iVMS-4200).
- Compatible by Hik-Connect or Web Service.
- Advanced Features: Line Crossing Detection & Intrusion Detection.
- Audio by coaxitirion on all 4 channels (1.0 Vp-p, 75 Ω).
- Supports 1 SSD up to 1024GB (included) with default settings, can record up to a total of 4 weeks (for reference, varies depending on configuration).
- Audio is received via the TVI signal.
- You can add up to 1 IP camera with up to 6 MP resolution (Supports cameras with H.265+).
- Analog and IP input signal types are not configurable, and the analog channel cannot be disabled to increase the maximum accessible number of network cameras.
To connect the IP channel you need to use a switch / poe switch (not included).
- Power supply: 12 Vdc (power supply included) / 1 A.
- Consumption without HDD: 5.4 watts (Without SDD).
- Operating temperature: -10 ºC to 45 ºC (14 °F to 113 °F) .
- Dimensions: 151 x 121 x 46 mm (5.94' × 4.76' × 1.81').

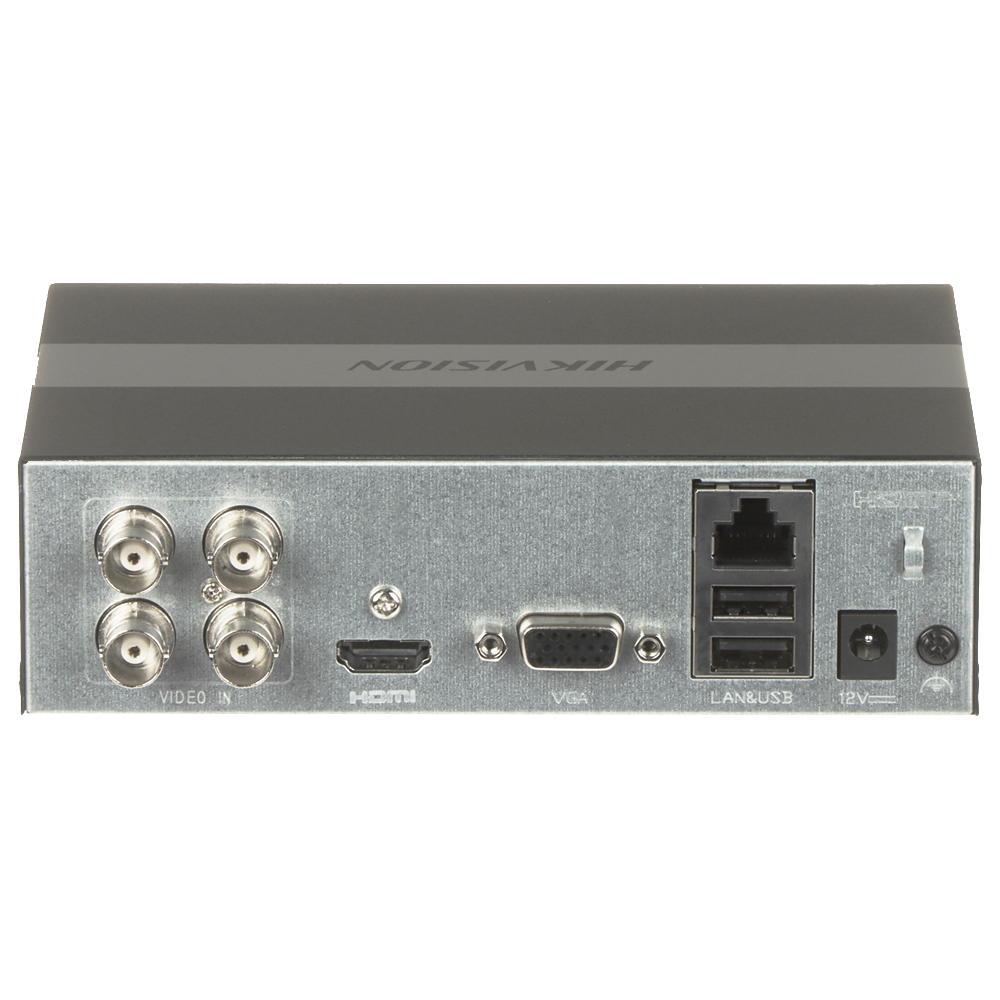

- HDMI output: 1 channel 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz.
- VGA output: 1 channel , 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz.
- Incoming bandwidth: 72 Mbps.
- USB 2.0 inputs: 2.
- Weight: 0.5 Kg without SDD.
- Warranty: 3 Years.
Compression and resolution:
- Compression: H.265+ / H.265.
- Supports 4 TURBOHD channels + 1 IP channel = 5 channels in total.
- Supports 5 Technologies (TVI / AHD / CVI / CVBS / IP).
The DVR supports 4 video channels with human body detection or vehicle detection activation, this allows us to be more precise when having a recording to be able to download any other type of movements.
It's necessary to consider which of the analytics will be used, as it's not possible to use both at the same time. When human body detection is activated, vehicle detection cannot be activated, and vice versa.
- Human and Vehicle Filter Configuration Guide click here
Supports audio on all its channels via coaxitron using cameras with integrated audio ( see compatible models ).
To use 2-way audio it is recommended to place a microphone in the audio input, a camera with audio via coaxitron is not recommended for 2-way audio.
AcuSense Technology
AcuSense technology is based on Hikvision's Deep Learning algorithm. Deep learning algorithms are much more in-depth than conventional intelligent algorithms, which only operate superficially. They perform feature learning, providing amazingly accurate and consistent video content analysis (VCA) performance.
AcuSense is capable of accurately differentiating between a human body and a vehicle in a crowded environment. Not only can it detect human and vehicle intrusion, but it can also filter out false alarms that could have been triggered by moving objects that pose no risk.
The technology also provides a powerful and fast target search function that can analyze recordings and select all human or vehicle images that match the relevant video clip.
What is H.265+?
It is an intelligent compression format that allows saving up to 80% of storage and bandwidth . For compression to be active, we must have an IP camera and NVR that support the same compression format.
80% less consumption than H.264
Same storage days but with fewer hard drives
Up to 20 Full HD cameras in real time with a bandwidth of 20Mbps
Resources
- eSSD hard drive installed, Supports cameras with coaxitron audio, Supports human and vehicle filtering by motion detection
99 in stock
MODELO: DS-E04HGHI-D(B)
