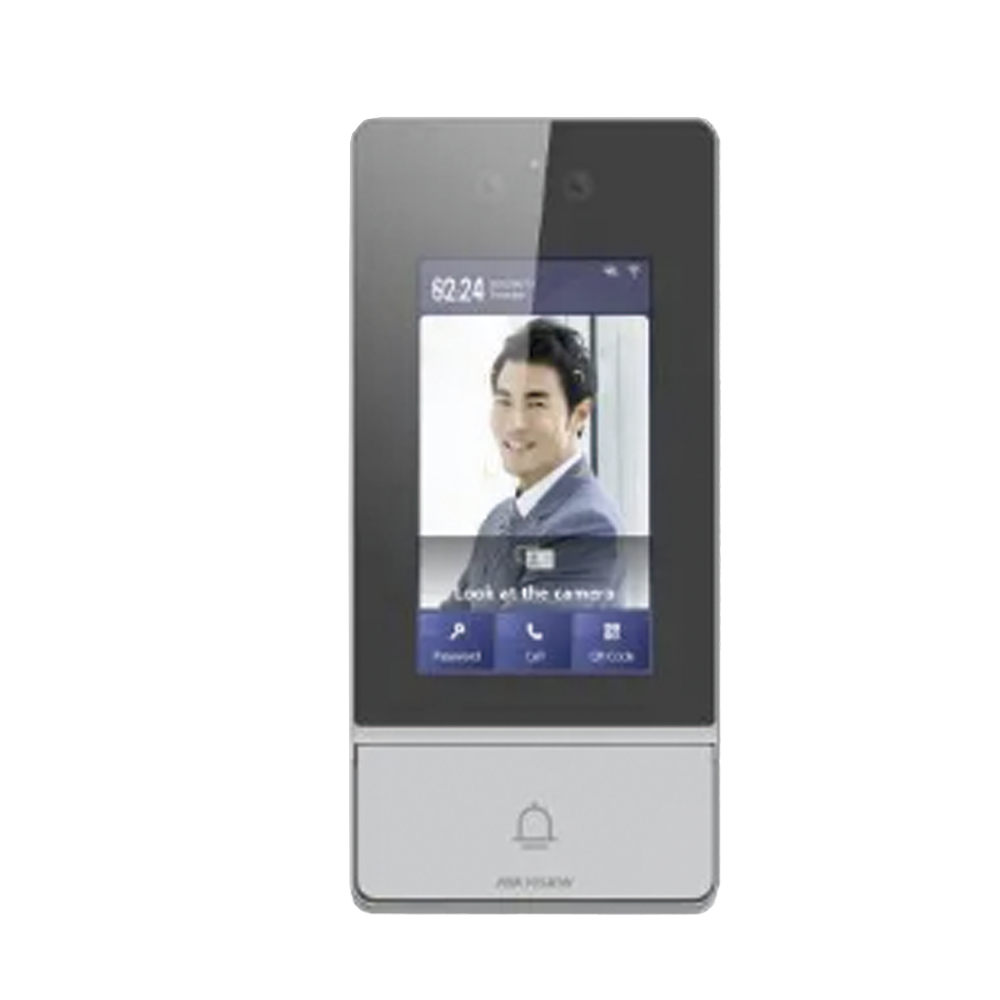

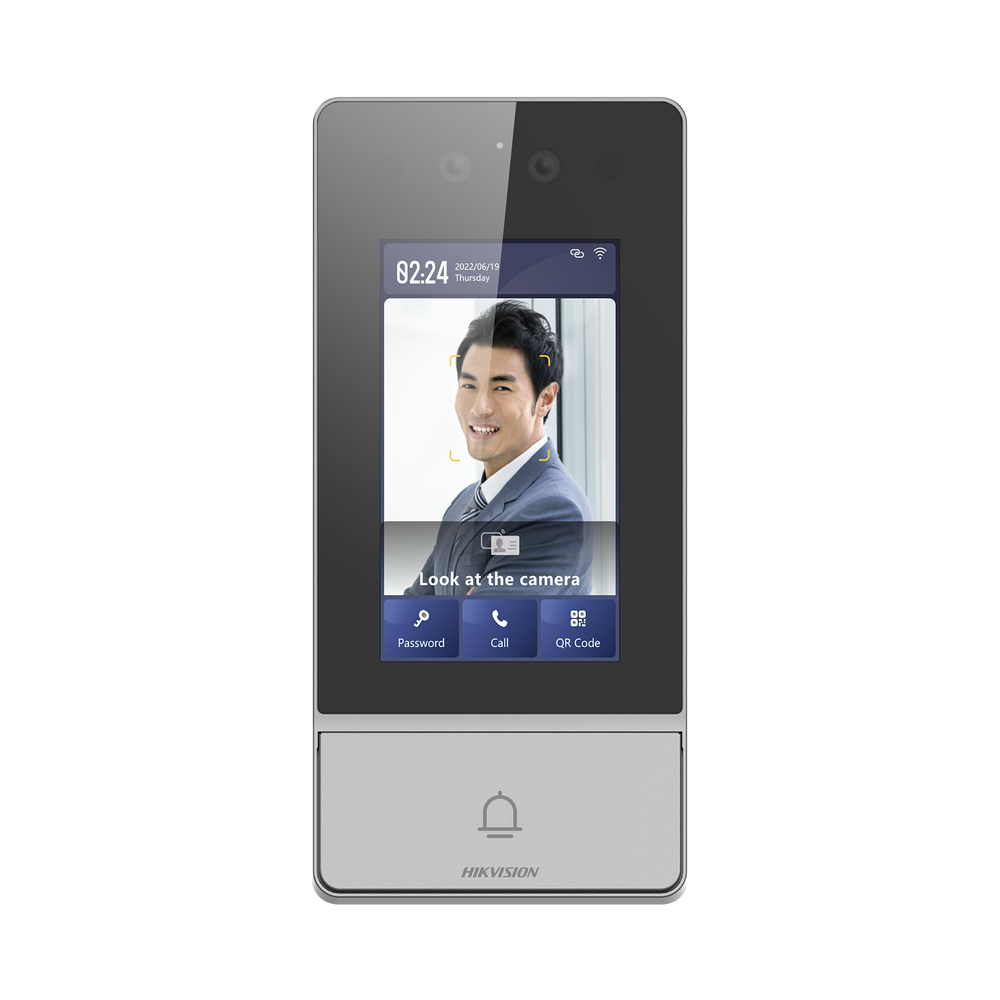

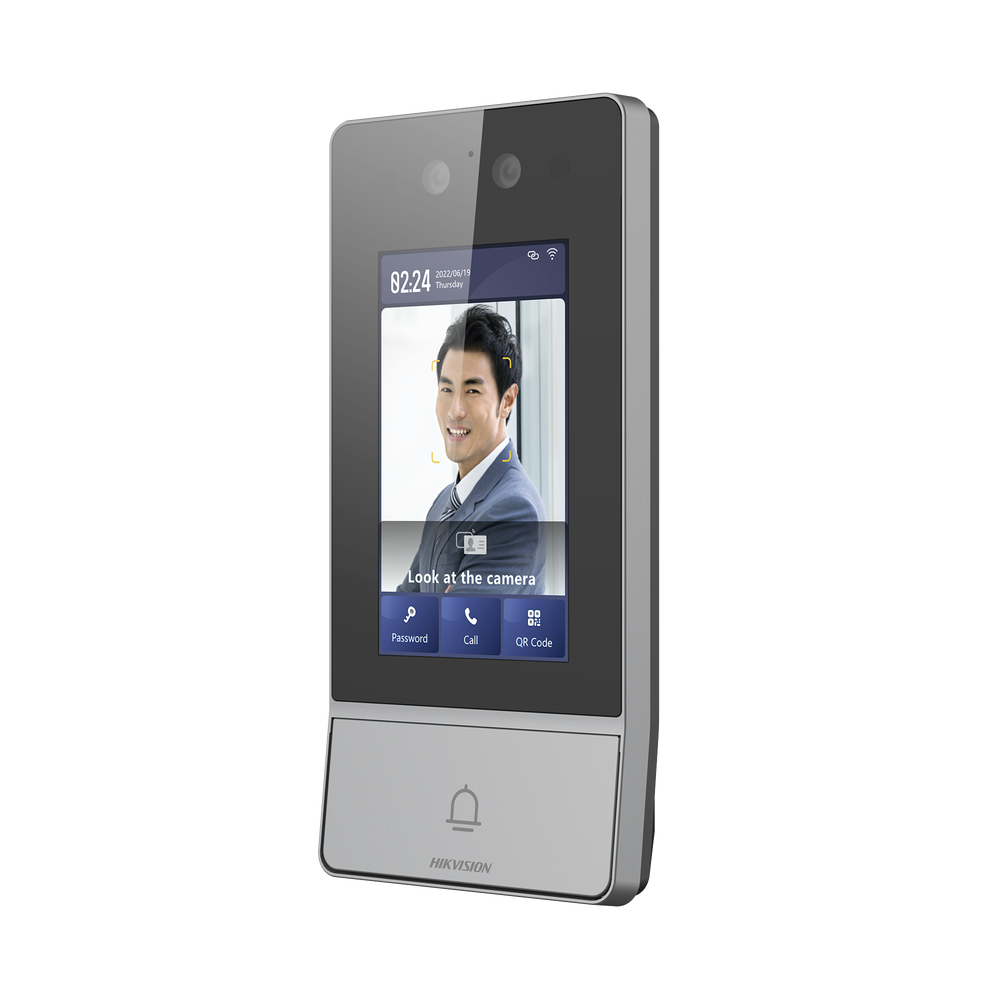

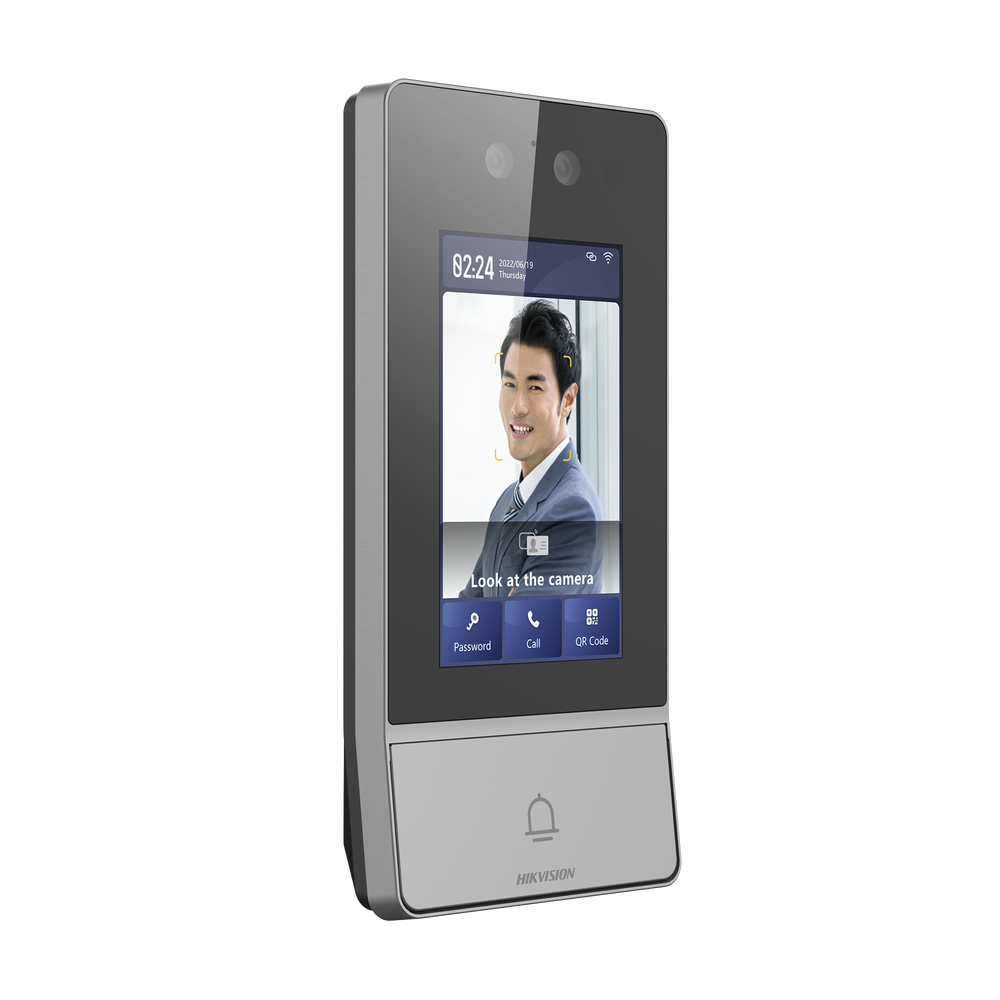

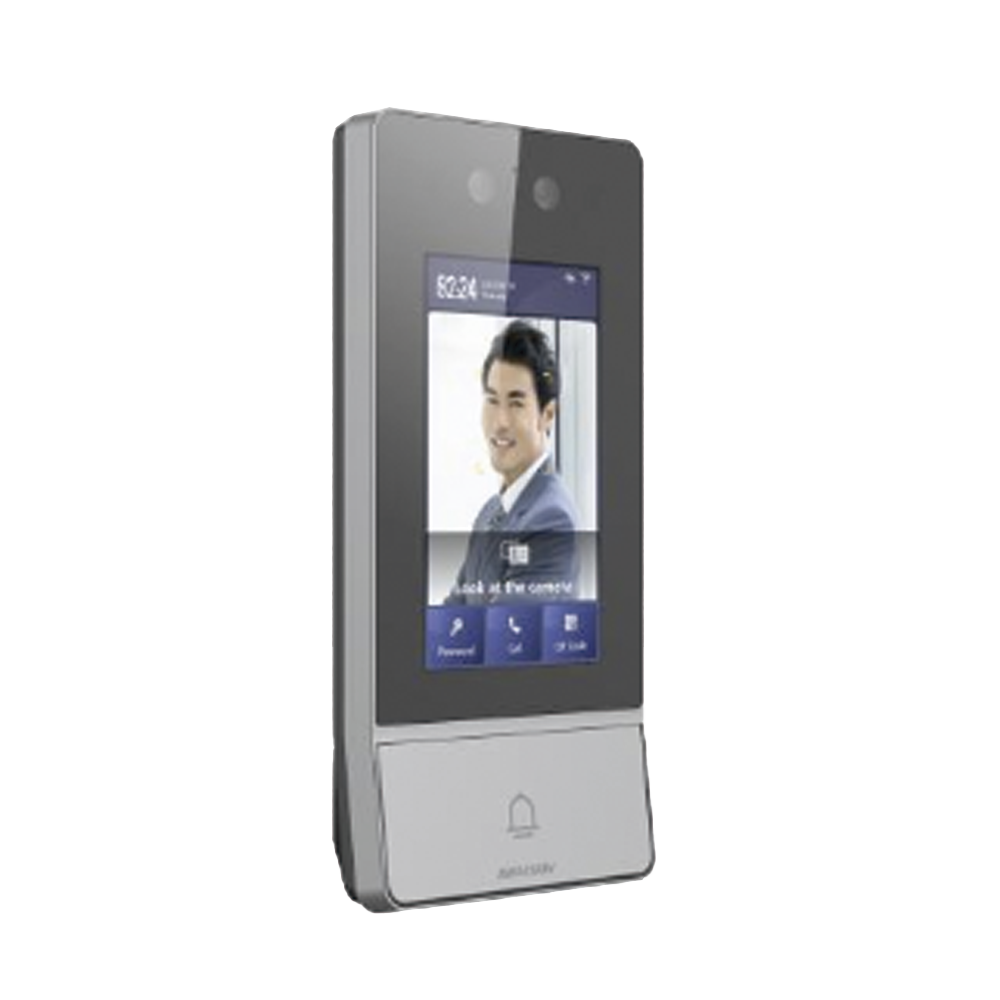

IP Villa Door Station / Face Recognition / 4.3 Inch Colorful LCD Display / Superior Protection Level IK08 & IP65 / Free HCC Licensing!

• Video intercom function to connect with monitor and HikConnect App.
• 2 lenses 2 x 2 megapixels.
• H.264 primary and secondary stream, H.264 third stream
• Field of view: Horizontal 88°, Vertical 44°
• Access control function.
• IR 3m
• Built-in Microphone and Speaker.
• Two-way audio
• WDR: Supports 120 dB
• Protocol: TCP/IP 10/100 mbps, RTSP, Self-Adaptive Ethernet.
• Alarm input: 4 (S Exit buttons and 2 door contacts by default).
• RS485 x 1
• Mifare cards (13.56MHz): 100,000.
• Relay Output x 2
• Warranty: 2 years.

• Operating voltage: 12 VDC, 1.5A, PoE Standard IEEE802.3af - (Power supply not included)
• Consumption: 6W
• Protection level: IP65, IK08
• Operating Temperature: -40°C to +60°C (-40°F to 140°F)
• Dimensions: 182mm × 85mm × 26mm.
• Weight

*In case of connection failure with P2P platform, it may be due to reasons external to the equipment, such as network restrictions or those of the ISP.

• Basic equipment configuration click here
• If you want to perform advanced functions, configure multiple street fronts, monitors and learn more about this solution, click here.

Supports Web Interface.

• User capacity: 20,000.
• Face capacity: 10,000.
• Card capacity: 100,000.
• Apartment capacity: 500.
• Capacity of 16 slave video intercoms.
• Facial recognition distance: 0.3 to 2 meters.
• Facial recognition accuracy: 99%

Two ways to operate in Hik-Connect for remote calling and opening.

2.- It works linked to a monitor, and to the App.

Compatible monitors ( not combinable if more than one is required )

• DS-KH6220-LE1
• DS-KH6320-WTE1
• DS-KH8520-WTE1
• DS-KH9510-WTE1
• DS-KH9310-WTE1

• Which software do the licenses apply to?
  • Wireless video intercom DS-KD9633-WBE6 or DS-KV9503-WBE1 can apply in HikCentral Connect .
• What are the different types of licenses available for the DS-KD9633-WBE6 or DS-KV9503-WBE1 ?
  • Two licenses for video intercoms, 1 year or lifetime, HC-Intercom/1Room/1Y andHCINTERCOM/1ROOM/LIFETIME .
• Maximum licenses per computer?
  • Unlimited according to user needs

• Are the licenses per apartment?
  • Each license supports one apartment, with a maximum capacity of 6 people. If the number exceeds 6, a shared account can be created for unlimited additional people.

• Are they free? If so, until what date? If not, please provide the cost.
  • The Free Wireless Video Intercom License promotion is for projects invoiced before December 31, 2024. Once delivered and activated before this date, the license is free for life. Starting January 1, 2025, license fees will be charged based on the number of apartments in the project.
