Mini OTDR para Fibra Óptica Monomodo / Longitus de Onda 1310nm y 1550nm / Función VFL / Función OPM / Mapeo de Cables de Red RJ45 / Recargable

Mini OTDR for Single-Mode Fiber Optics / Wavelengths 1310nm and 1550nm / VFL Function / OPM Function / RJ45 Network Cable Mapping / Rechargeable

Sale price  $1,493,461 Regular price  $1,747,936
Skip to product information
Mini OTDR para Fibra Óptica Monomodo / Longitus de Onda 1310nm y 1550nm / Función VFL / Función OPM / Mapeo de Cables de Red RJ45 / Recargable

Mini OTDR for Single-Mode Fiber Optics / Wavelengths 1310nm and 1550nm / VFL Function / OPM Function / RJ45 Network Cable Mapping / Rechargeable

Sale price  $1,493,461 Regular price  $1,747,936
Shipping calculated at checkout.
Marca
LINKEDPRO BY EPCOM
Referencia / SKU
LP-M-OTDR
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Mini OTDR for Single-Mode Fiber Optics / Wavelengths 1310nm and 1550nm / VFL Function / OPM Function / RJ45 Network Cable Mapping / Rechargeable

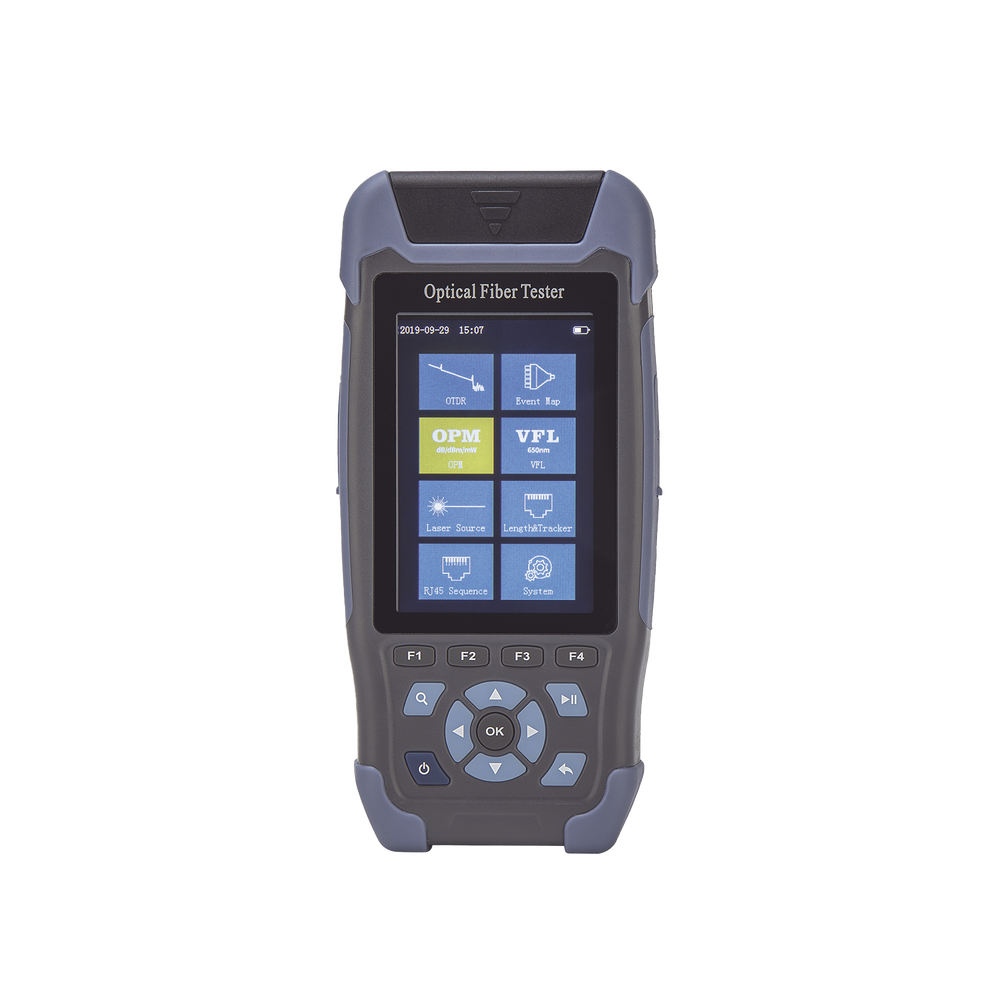

The LP-M-OTDR-PRO Mini Pro features a 3.5-inch color display for clear and detailed data viewing. Its user-friendly interface is designed to ensure an intuitive experience for all users. This device combines multiple functions, from OTDR to stable light source, optical power meter, visual fault location, cable sequence, cable length, cable tracker, and flashlight, providing a comprehensive solution for network testing and maintenance. It also incorporates intelligent power management, ensuring a long measurement time of up to 12 hours, enabling efficient field testing and maintenance over extended periods. Its versatility encompasses accurate measurement of length, loss, connection quality, and other parameters of both RJ-45 and fiber optic cables, making it an indispensable tool for telecommunications and network professionals seeking exceptional performance and simple operation.

Main features of the OTDR:
  • Compatible with Single Mode Optical Fiber.
  • Wavelength: 1310nm, and 1550nm.
  • Dynamic range: 24dB/22dB.
  • Loss analysis: 4 and 5 point method.
  • Dead zone between events: 3 meters.
  • Laser safety level: Class II.
  • Support SC, FC and ST connectors.
  • RJ45 Network Cable Mapping.
  • Operating temperature: -10ºC to 50ºC.
  • 4000mAh lithium-ion polymer battery.
Visual Fault Locator (VFL):
  • Wavelength: 650nm.
  • Output power: >10mW
  • Mode: CW/1Hz/2Hz
  • Compatible connector: FC, ST and SC
Optical Power Meter (OPM):
  • Wavelengths: 800nm ​​to 1700nm
  • Test range: -50dBm to 26 dBm.
  • Calibration wave: 850nm / 980nm / 1300nm / 1310nm / 1490nm / 1550nm /1625nm / 1650nm.
  • Compatible connector: FC, ST and SC.
    Compatible with Single Mode Optical Fiber, Wavelengths: 1310nm and 1550nm, Dead zone of 3 meters between events, Test range: 500m / 1km / 2km / 4km / 8km / 16km / 32km / 64km, Compatible with FC, SC and ST connectors, To make the measurement more accurate it has an additional number of points from: 16k to 128k, Includes the Visual Fault Locator (VFL) function, Includes the Power Meter (OPM) function, Includes the RJ45 network cable mapping function, Reduced dimensions for better handling in the field
