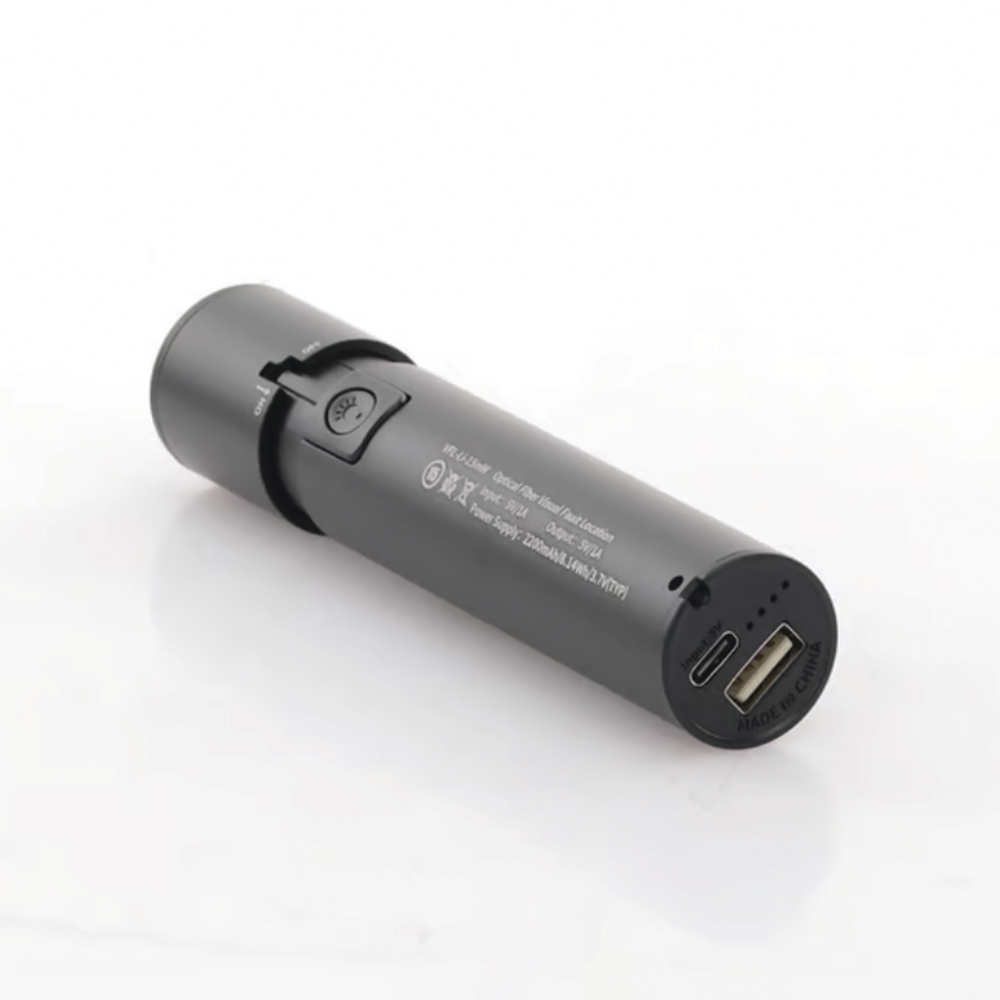

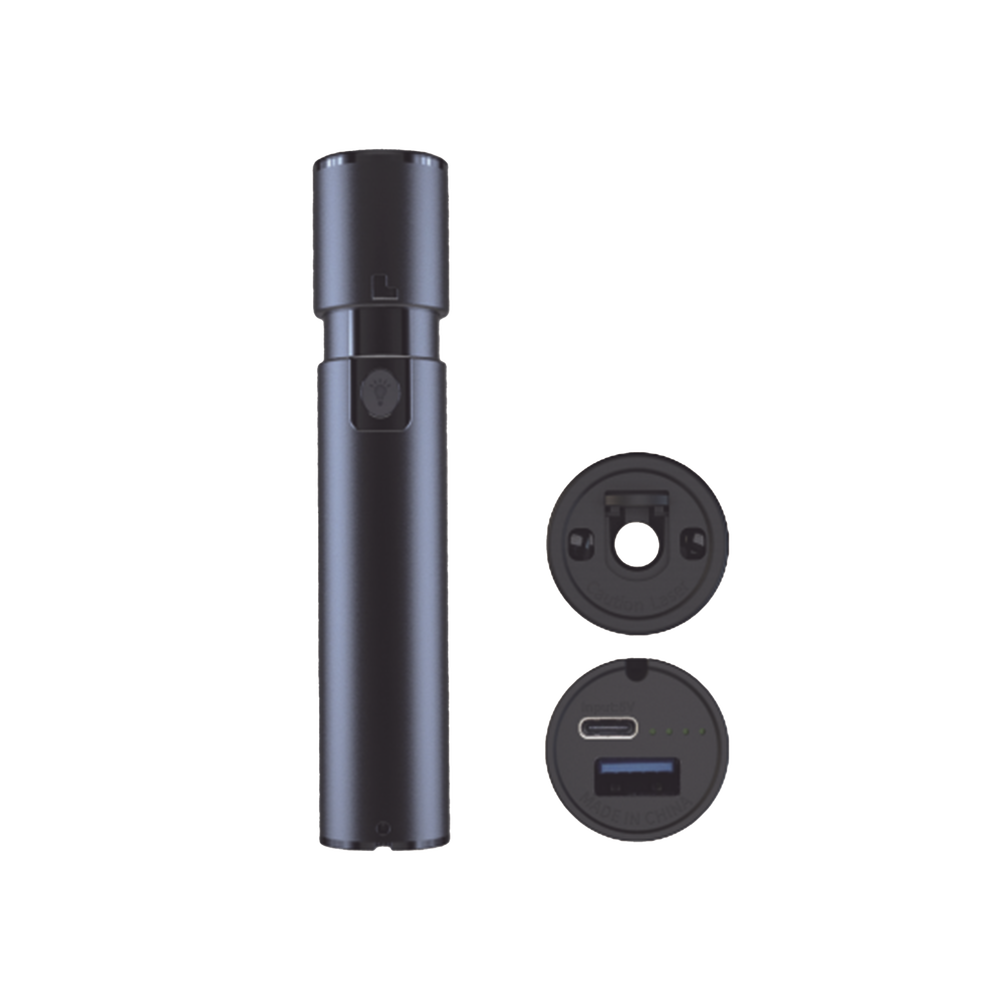

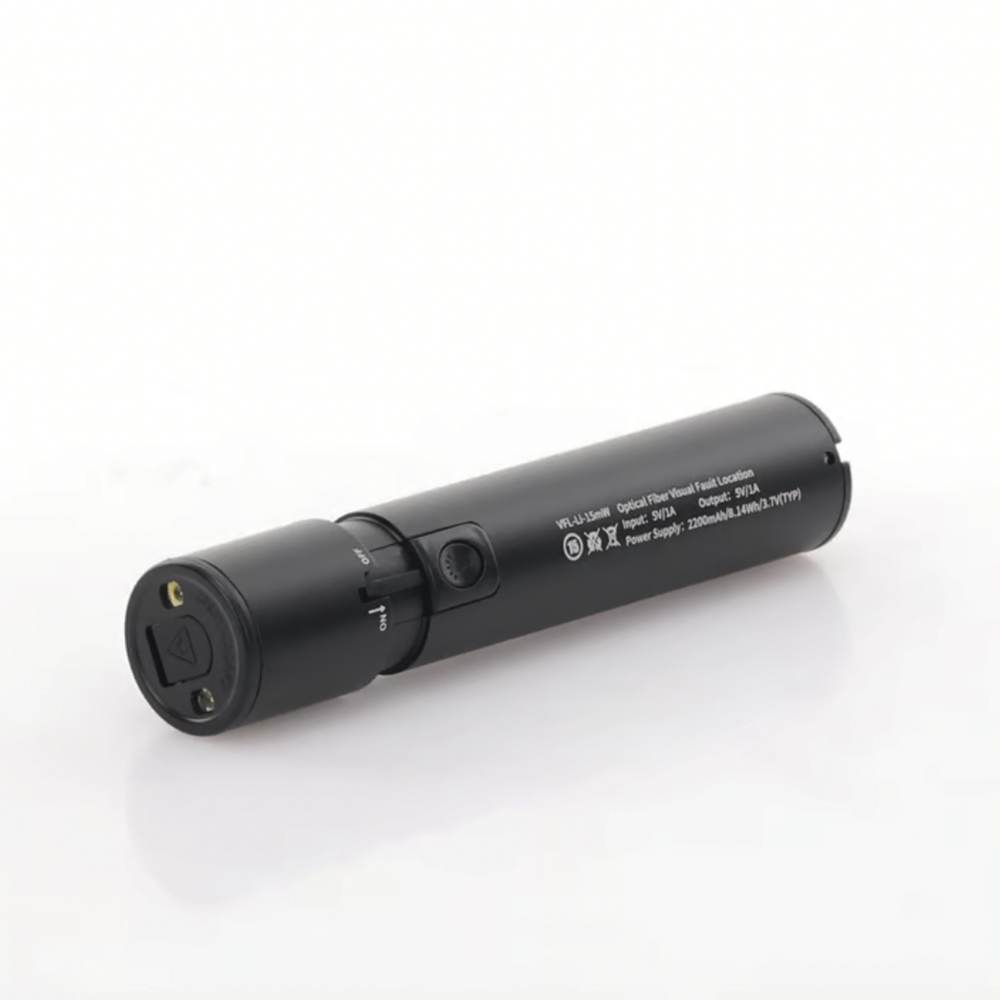

Visual Fault Locator (VFL) / For SC, FC, ST connectors / Up to 8-10 km away / Rechargeable via USB port

Visual Fault Locator (VFL) / For SC, FC, ST connectors / Up to 8-10 km away / Rechargeable via USB port

The LP-VFL-15W features a high-power laser at a wavelength of 650nm, suitable for use with multimode and single-mode optical fibers. It is used to detect fiber connectivity and as a visual fault locator.

Characteristics :

• The laser output power is 15mW to achieve a distance of up to 10km.
• Universal input connector for SC, FC and ST connectors, helping to eliminate the need for additional accessories when working with the VFL.
• Red LED light.
• Lithium battery (2200mAh) rechargeable by its USB port.
• Dimensions: 148mm x 29mm x 29mm.
• Light weight for transportation: 200 grams.
• Operating temperature: -10º to 50ºC.

Universal connector for SC, FC and ST connectors, Output power: 15mW, Wavelength: 650nm, Fault location up to 8-10 km, Compatible with Multimode and Singlemode Optical Fiber
