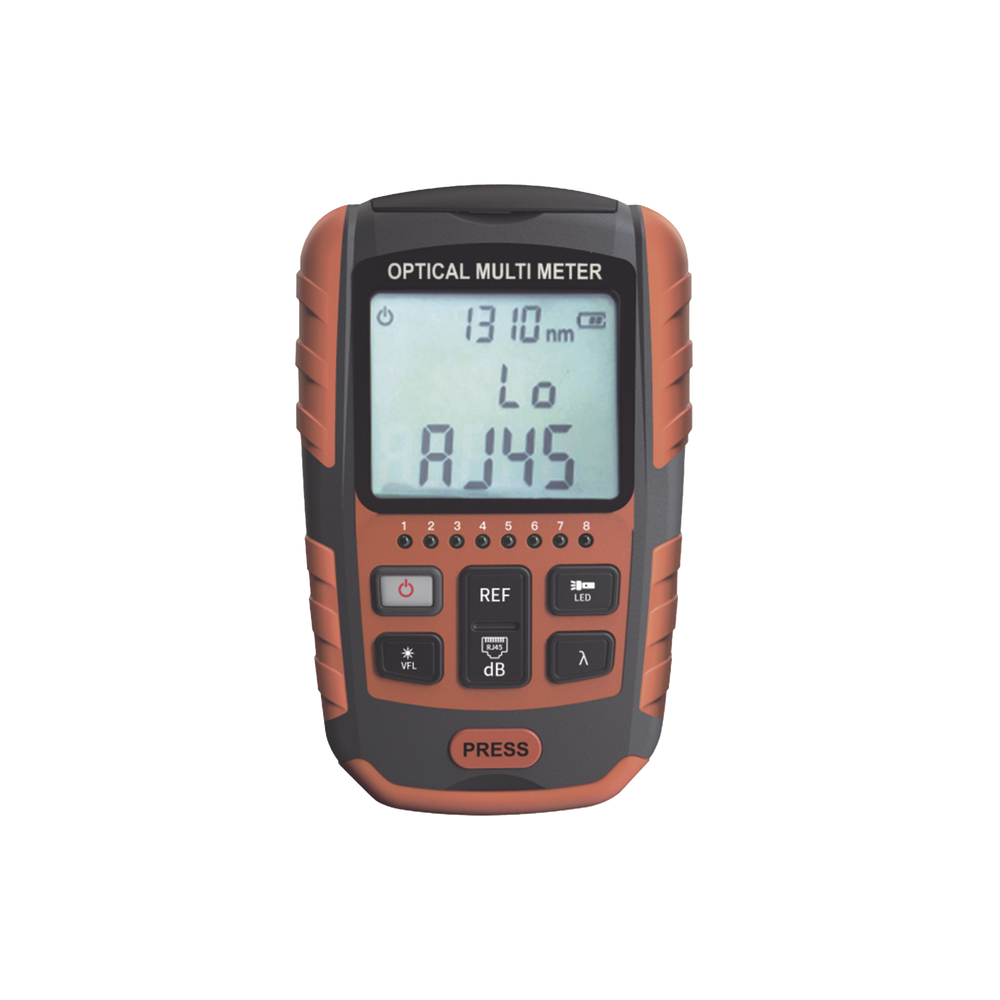

• Medidor de Potencia Óptica (MINI OPM) / Versión Reducida / Compatible con Fibra Óptica Multimodo y Monomodo / Soporta conectores SC, ST Y FC / Incluye Función de VFL / Incluye función para probar Cables RJ45 / Recargable
1 3

LINKEDPRO BY EPCOM

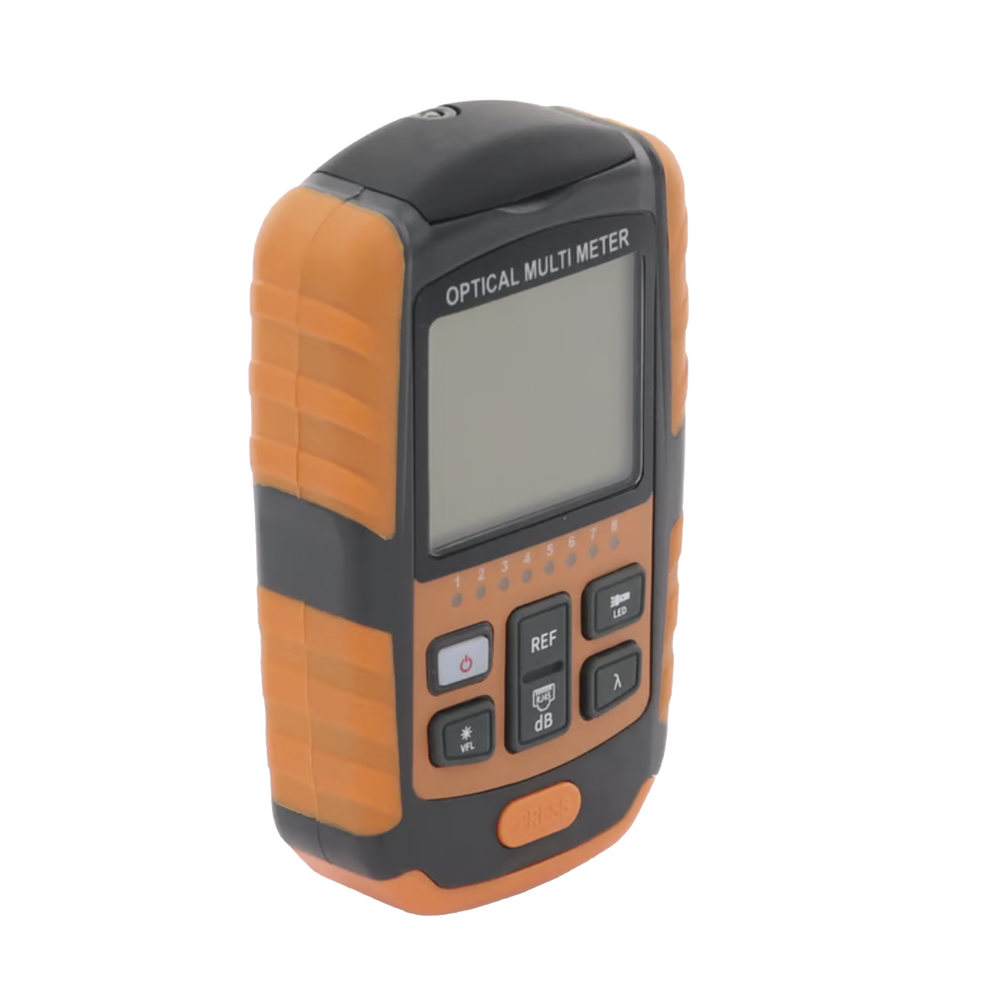

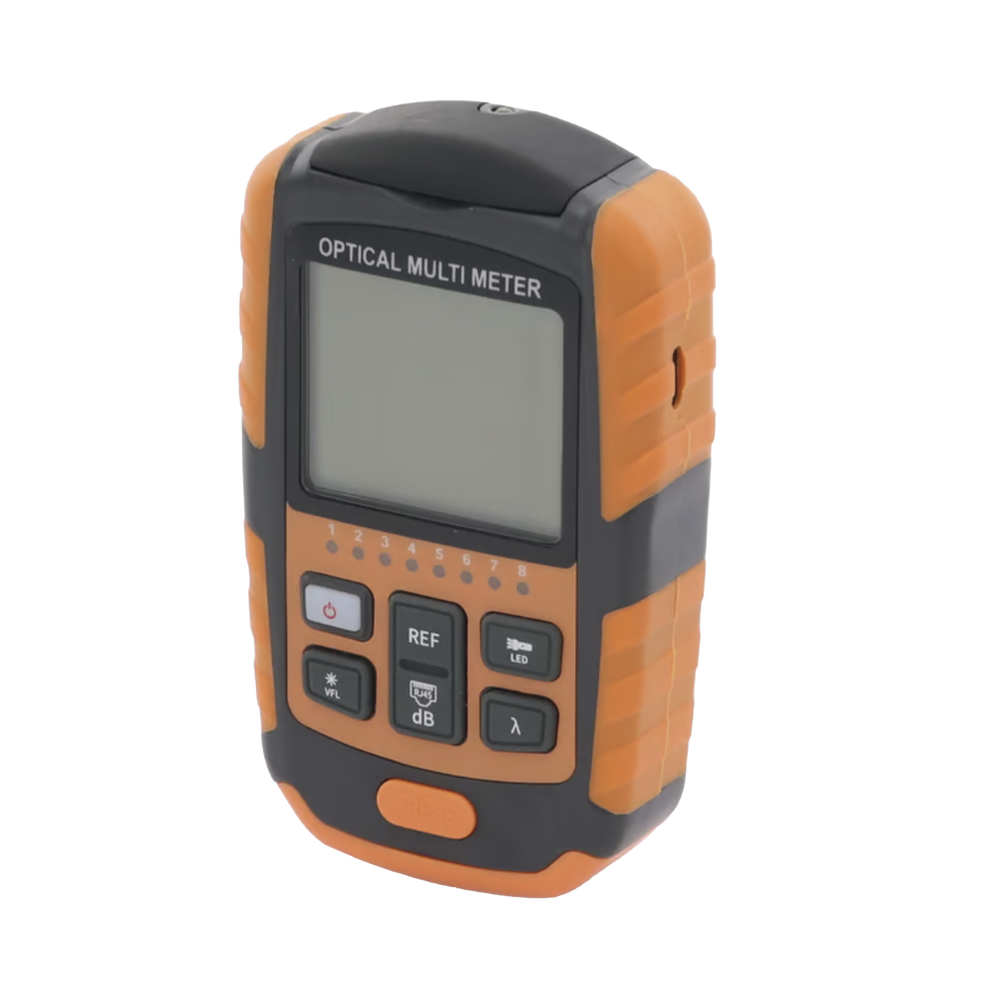

Optical Power Meter (MINI OPM) / Reduced Version / Compatible with Multimode and Singlemode Optical Fiber / Supports SC, ST and FC connectors / Includes VFL Function / Includes function to test RJ45 Cables / Rechargeable

Optical Power Meter (MINI OPM) / Reduced Version / Compatible with Multimode and Singlemode Optical Fiber / Supports SC, ST and FC connectors / Includes VFL Function / Includes function to test RJ45 Cables / Rechargeable

$106.065 COP
$135.202 COP $106.065 COP
Sale Sold out
Shipping calculated at checkout.

Optical Power Meter (MINI OPM) / Reduced Version / Compatible with Multimode and Singlemode Optical Fiber / Supports SC, ST and FC connectors / Includes VFL Function / Includes function to test RJ45 Cables / Rechargeable

Main features:
  • Dimensions: 110*68*27mm (length × width × height).
  • Weight: 130 grams.
  • Operating temperature: -10ºC to 50ºC.
  • Wavelength range: 800nm ​​to 1700nm.
  • Detector type: InGaAs.
  • Compatible Optical Fiber: Single Mode.
  • Power test range: -50dBm to 26dBm.
  • Battery operating time: 120 hours (OPM ONLY).
  • Rechargeable
Visual Fault Locator:
  • Wavelength: 650nm.
  • Output power: 2mW
  • Mode: CW/1Hz/2Hz
  • Compatible connector: FC/SC/ST
RJ45 Network Cable Tester:
  • You can test if the network cable is plugged in correctly.
  • You can locate the network cable.
  • Distance up to 300 meters.

    Small size, Wavelength range: 800nm ​​to 1700nm, Power test range: -50dBm to 26dBm, Includes Visual Fault Locator (VFL) function, VFL output power: 2mW, VFL Compatible with SC, FC and ST connectors, RJ45 cable tracing function, RJ45 cable tester, Rechargeable, Up to 120 hours of operation with only the OPM function per charge cycle

Out of stock

MODELO: LP-M-OPM-R

View full details
