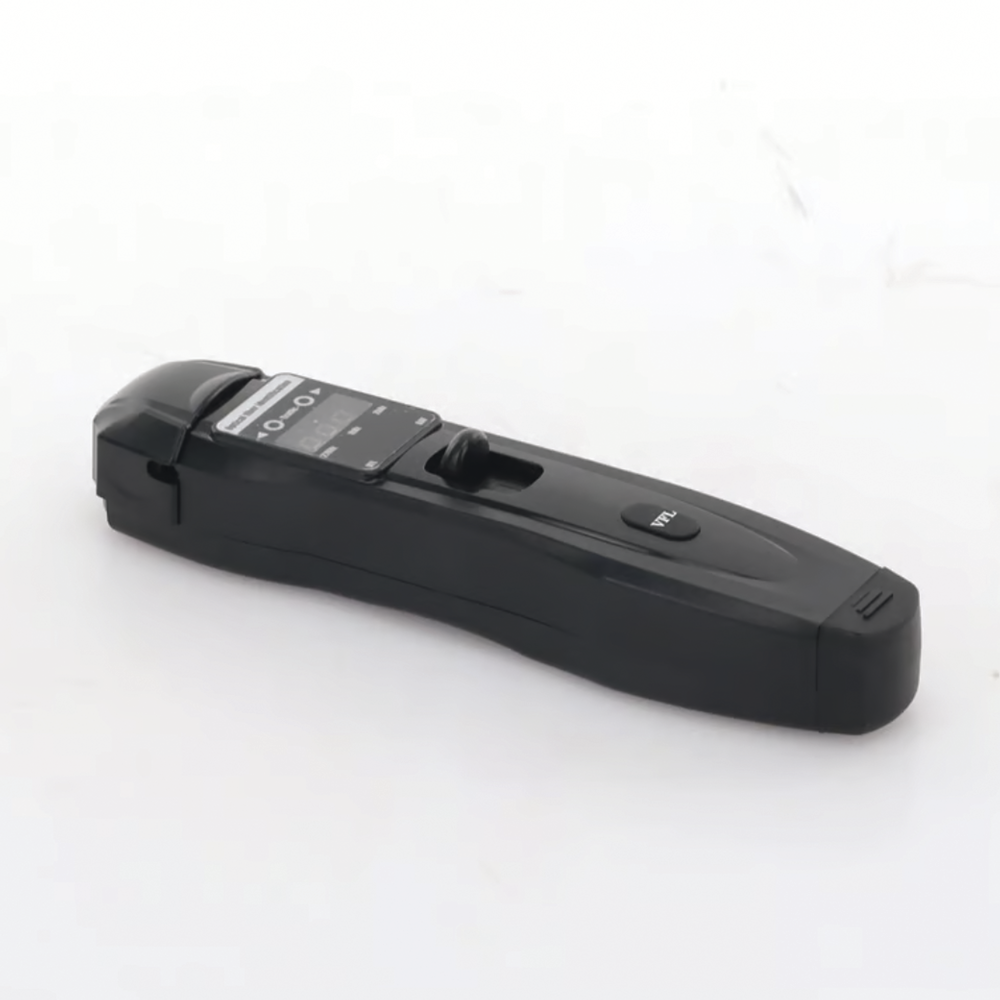

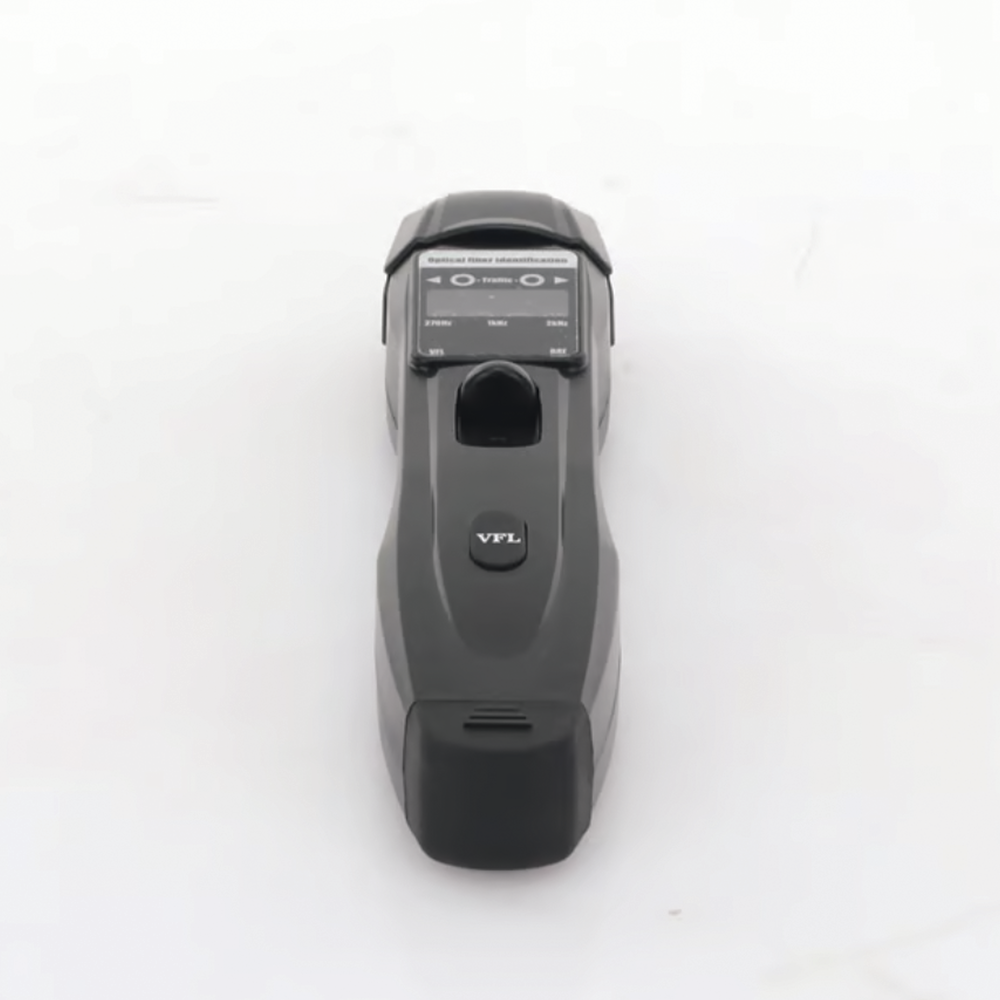

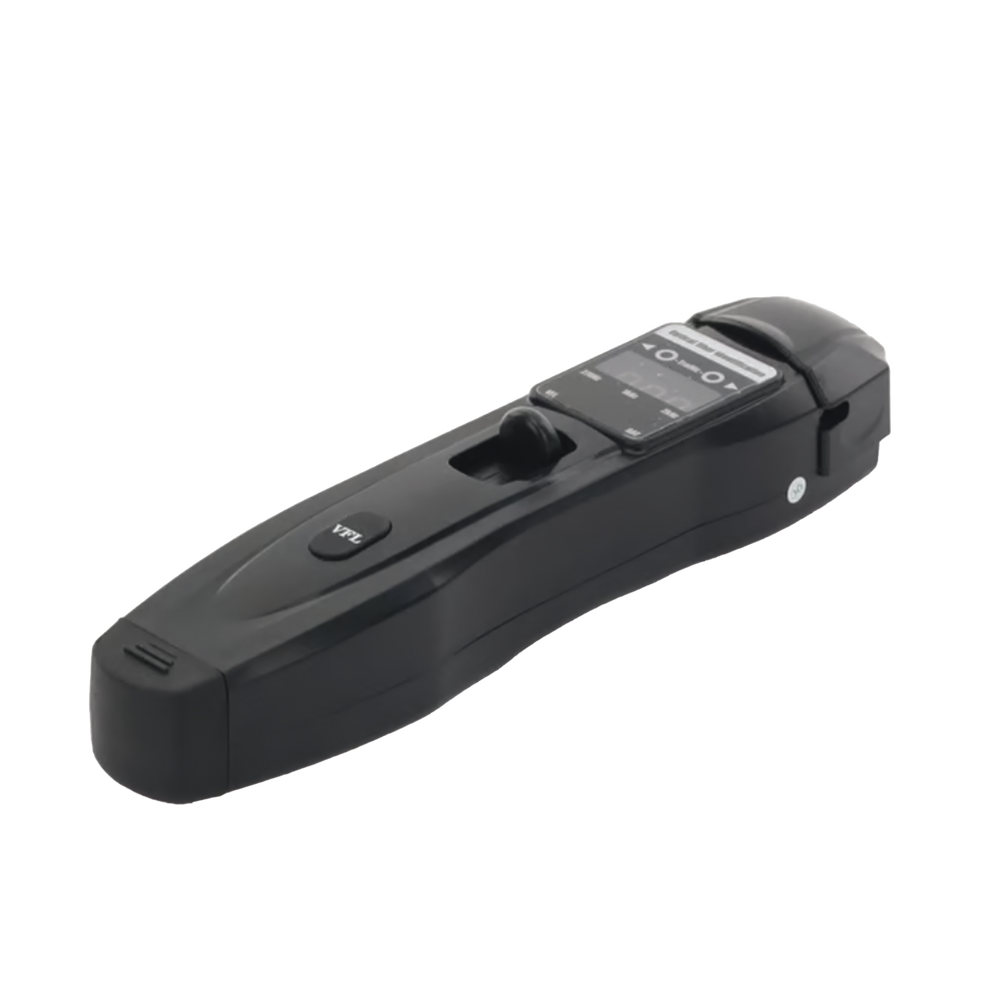

Active Optical Fiber Traffic Identifier (OFI) / Supports Visual Fault Locator (VFL) function
The optical fiber identification instrument uses macrobending technology to perform nondestructive testing on the line. Signal direction and power can be detected at any position on SM/MM fibers. This prevents line interruptions caused by malfunctions.
Main features:
- Detector type: InGaAs
- Wavelength: 800 to 1700nm
- Optical fiber type: Diameter 0.25mm(for bare fiber) Φ0.9 mm,Φ2.0mm,Φ3.0mm(For pigtails).
- Modulation frequency: CW/270Hz/1kHz/2kHz
- LED indicators for traffic direction
- Signal direction detection range: -48dBm to 10dBm
VFL Visual Fault Locator:
- Wavelength: 650nm
- Output power: 2mW
- Fiber optic interface: Universal FC, SC and ST
- Up to 10 km (Laboratory test)
Others:
- Uses batteries (Not included)
- Battery life: 10 hours
- Operating temperature: -10ºC to 50ºC
- Dimensions: 220mm x 48mm x 40mm
- Weight: 200 grams
- Measures approximate light power of the core, Indicates traffic direction, VFL output power 2mW, Integrated Visual Fault Locator, VFL wavelength: 650nm, Detector type: InGaAs, Does not damage or interrupt fiber operation when using traffic identifier
Share
Out of stock
MODELO: LP-OFI
