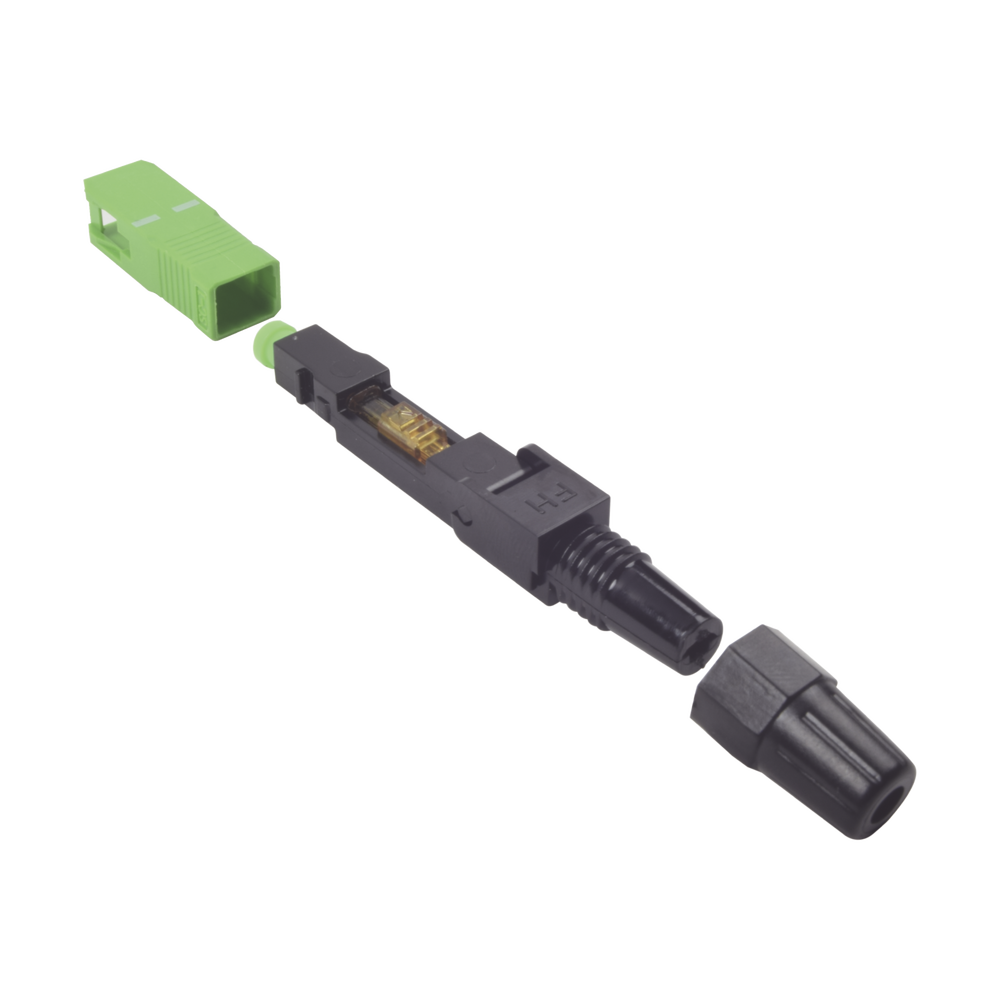

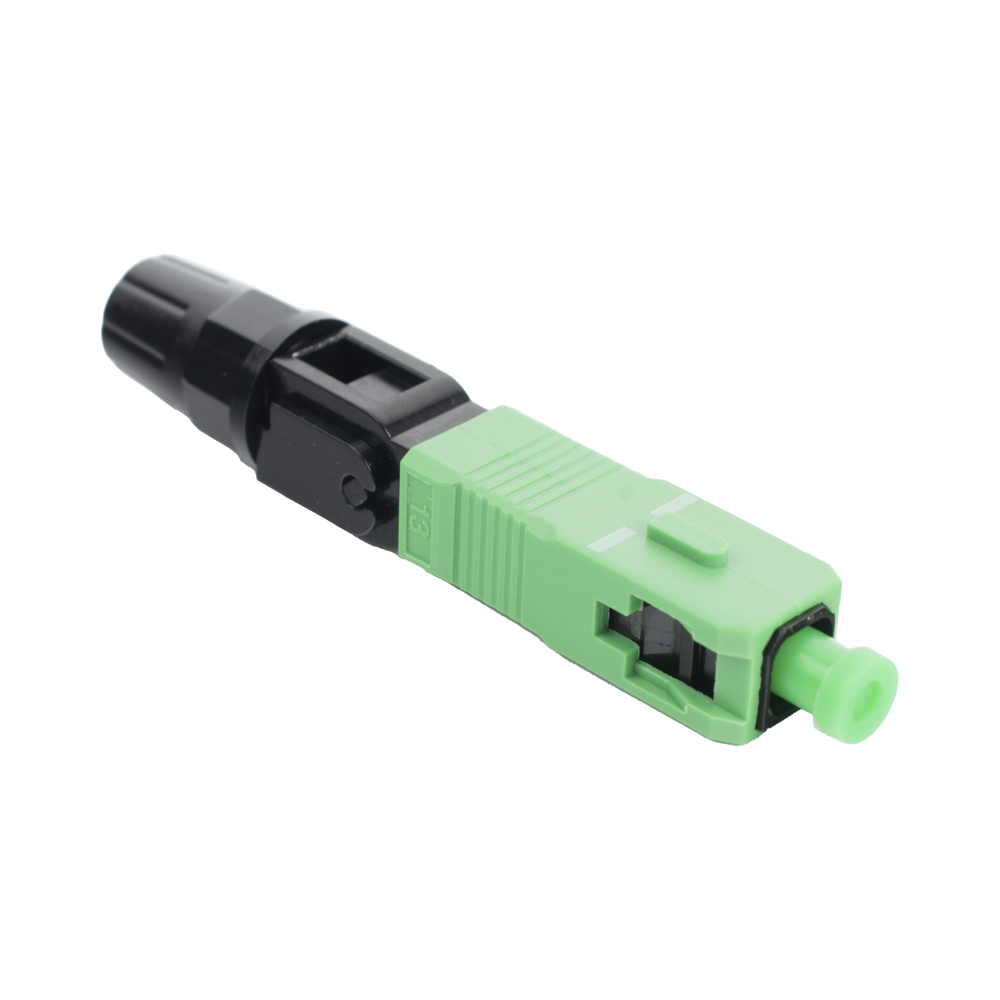

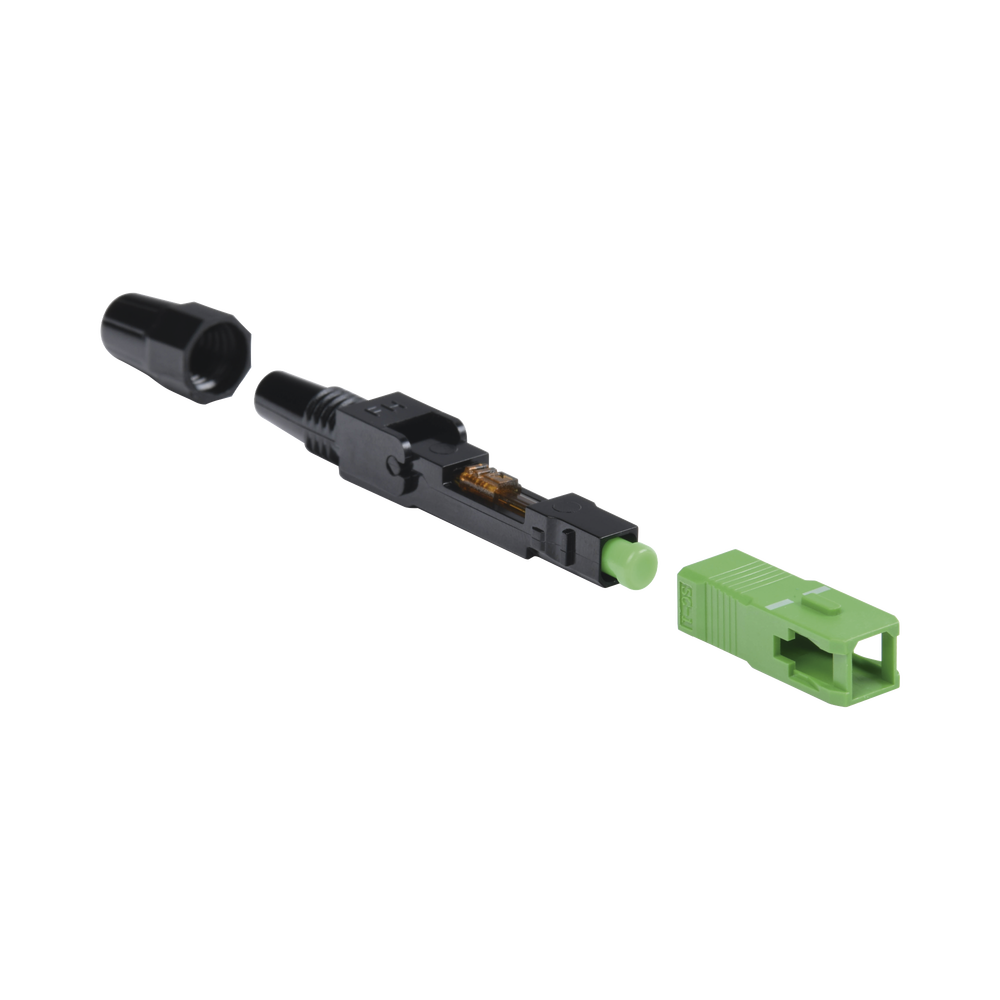

Field Installable Mechanical Connector, Single Mode SC/APC, Pre-polished, Re-terminable

Field Installable Mechanical Connector, Single Mode SC/APC, Pre-polished, Re-terminable

The LP-SM-SCAPC mechanical connector is designed for field termination, especially for FTTx networks and P2P links, quick and easy installation of single-mode fiber optic cables without the need for special tools to open or close the connector.

Specs:

• Connector Type: SC/APC
• For Tight Buffer fiber (900µm) or Flat and Round Drop fiber
• Reterminable (up to 3 times)
• Insertion loss:
  • Maximum ≤ 0.50 dB
  • Typical ≤ 0.30 dB
• Return loss:
  • UPC ≤ 50 dB
  • APC ≤ 55 dB
• Operating temperature: -40 to 70ºC
