• Switches De 16 Puertos PoE Gigabit y 2 Puertos De Fibra Óptica Gigabit. 16 Canales IP / Estándar IEEE 802.3at/af
1 1

HIKVISION

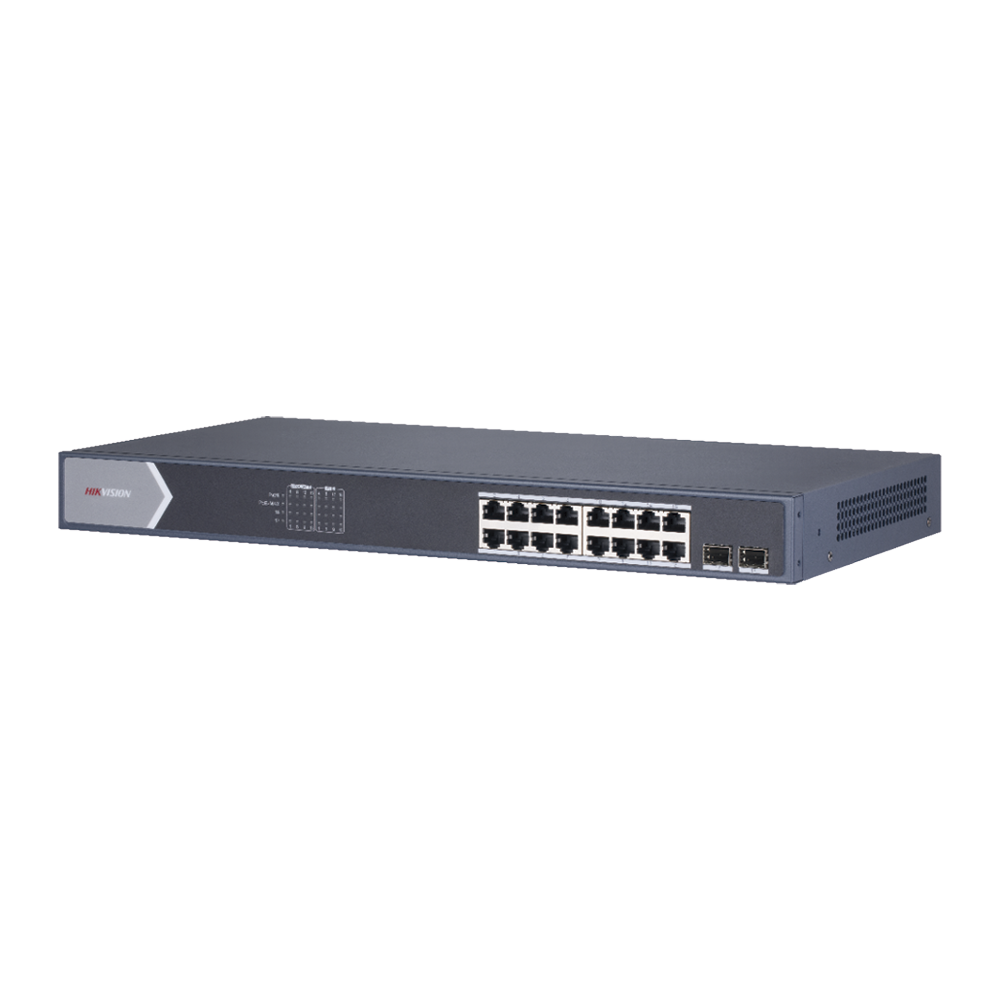

16-Port Gigabit PoE Switches and 2 Gigabit Fiber Optic Ports. 16 IP Channels / IEEE 802.3at/af Standard

16-Port Gigabit PoE Switches and 2 Gigabit Fiber Optic Ports. 16 IP Channels / IEEE 802.3at/af Standard

$1.068.502 COP
$1.168.674 COP $1.068.502 COP
Sale Sold out
Shipping calculated at checkout.

16-Port Gigabit PoE Switches and 2 Gigabit Fiber Optic Ports. 16 IP Channels / IEEE 802.3at/af Standard

Main features:
  • Automatically detects and reboots unresponsive cameras.
  • Extended mode available to achieve wired transmission up to 300m.
  • Supports port mirroring function.
  • Supports port speed configuration and slow control, and port enabling.
  • It is recommended to use 100% copper Cat 6 cabling for extended mode.
  • Supports remote upgrade, default parameter recovery, log viewing, basic network parameter configuration, import and export configuration, time synchronization.
Physical and Electrical Characteristics:
  • Maximum Wattage: 130W
  • Maximum Watts management per port: 30 W.
  • 16 gigabit PoE ports and 2 gigabit fiber optic ports
    Switching capacity: 36 Gbps
  • Power Supply: 100 to 240 VAC, 50/60 Hz, max. 4A.
  • Operating temperature: - 10°C to 55°C (14°F to 131°F).
  • Dimensions: 44 x 440 x 220.8 mm.
  • Weight: 2.735 kg.
  • VLAN: Supports 4094 VLANs.
  • STP: Supports STP and RSTP.
  • SNMP: Supports SNMPv1 and SNMPv2c, node information for interface and system acquisition.
  • Warranty: 2 years

Driving Mode 1

The HIKVISION PoE switch allows us to reach distances of up to 500 meters in total when using a HIKVISION PoE extender model DS-1H340101P .

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

Driving Mode 2

Enabling extended mode allows us to reach distances of up to 250 meters per port.

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

    Supports 4094 VLANs, Maximum Power Management Per Port: 30W, Extended Mode Available to Achieve Wired Transmission Up to 300m.

Out of stock

MODELO: DS-3E1518P-EI/M

View full details
