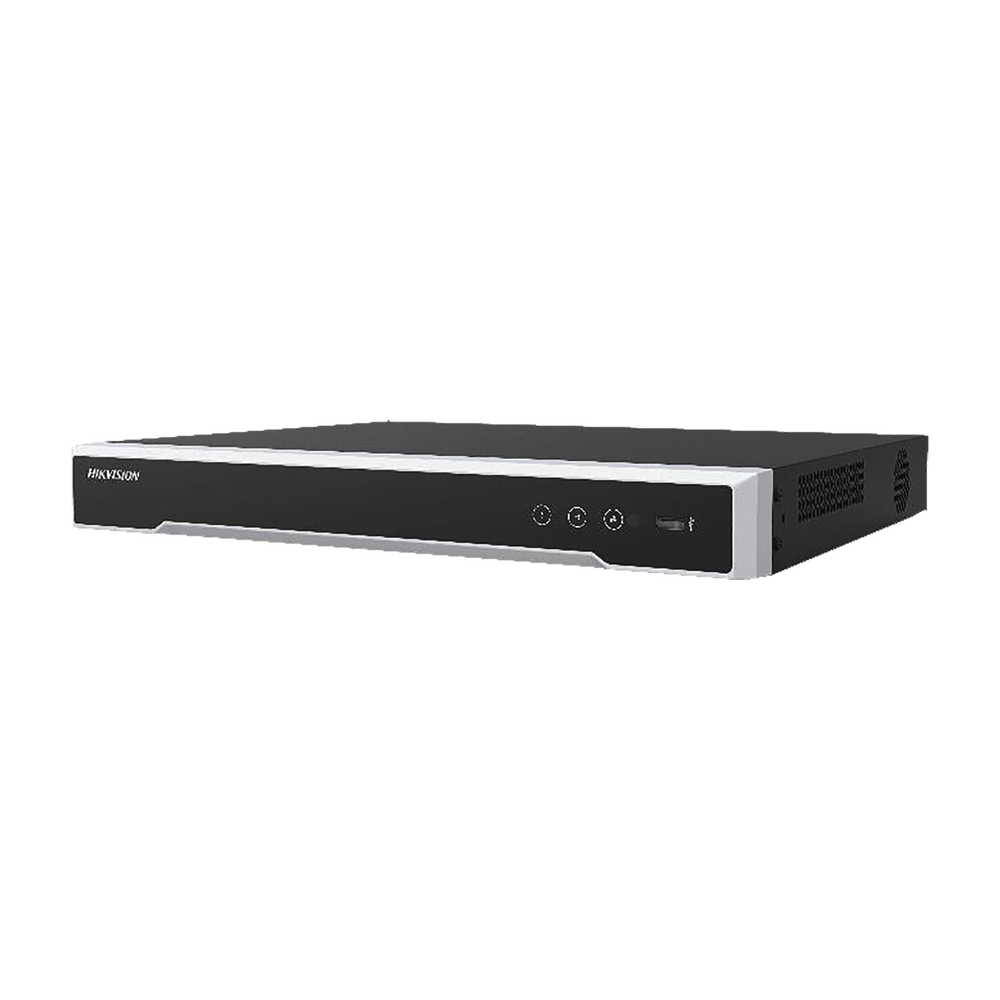

8 Megapixel NVR (4K) / 16 IP channels / 2 Hard Drive Bays / HDMI in 4K

• Video compression: H.265+ / H.265 / H.264+ / H.264.
• Supports USB mouse to operate (included).
• Supports 2 HDDs up to 8TB. ​​(not included).
• Supports local or remote calendar search.
• Supports DDNS (Hik-Connect / DynDNS / No-IP).
• Supports Hik-Connect P2P.
• Supports remote access via phone: Android, iPhone, iPad (IVMS-4500 / Hik-Connect).
• Support for IE, Mozilla, Safari, Chrome (ietab) browsers.
• iVMS-4200 Client Software (Free).
• Supports multiple brands such as: AXIS, ONVIF, PANASONIC, PSIA, SAMSUNG, ACTi, SANYO, ZAVIO, VIVOTEK among others.

• Dimensions: 385 × 315 × 52 mm. (1 rack unit).
• Power supply: 100 to 240 VAC max.
• Operating temperature: -10°C to 55°C.
• Weight: 1.8 Kg without HDD.
• Warranty: 2 years.

Recording Resolution per Channel (recommended with H.265):

• 1 Megapixel: 16 Channels@30IPS
• 2 Megapixel: 16 Channels@30IPS
• 5 Megapixel: 16 Channels@15IPS .
• 8 Megapixel (4K): 16 channels@10IPS .
• Synchronous playback on channels: 16 Channels.

• HDMI Video Output: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Video Output: 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz.
• Simultaneous HDMI and VGA output.
• Audio Input: 1 Channel (two-way audio).
• Audio Output: 1 Channel (two-way audio).
• External recording: Not supported.
• SATA disk capacity: 2 HDDs up to 8TB.
• e-SATA Support: Not supported.
• Disk Array: Not supported.

• Input throughput: 160 Mbps.
• Output throughput: 80 Mbps.
• 1 network port 10 / 100 / 1000 Mbps. (LAN)
• Download and playback of recorded files on the NVR over the network.
• Supports remote download of NVR alarm log.
• Remote parameter configuration.

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Dual stream (main stream and sub stream).
• Supports fast forward, slow forward, frame by frame, etc.
• Supports SMART hard drive technology
• Supports multiple recording types, including real-time recording, manual recording, video recording, video recording and alarm, and video recording or alarm.
• Supports cyclic (overwrite) and non-cyclic recording.
