OLT de 2 Puertos XGSPON / 4 Puertos Uplink (2 Puerto Gigabit RJ45 + 2 Puertos SFP/SFP+) / Hasta 512 ONUs

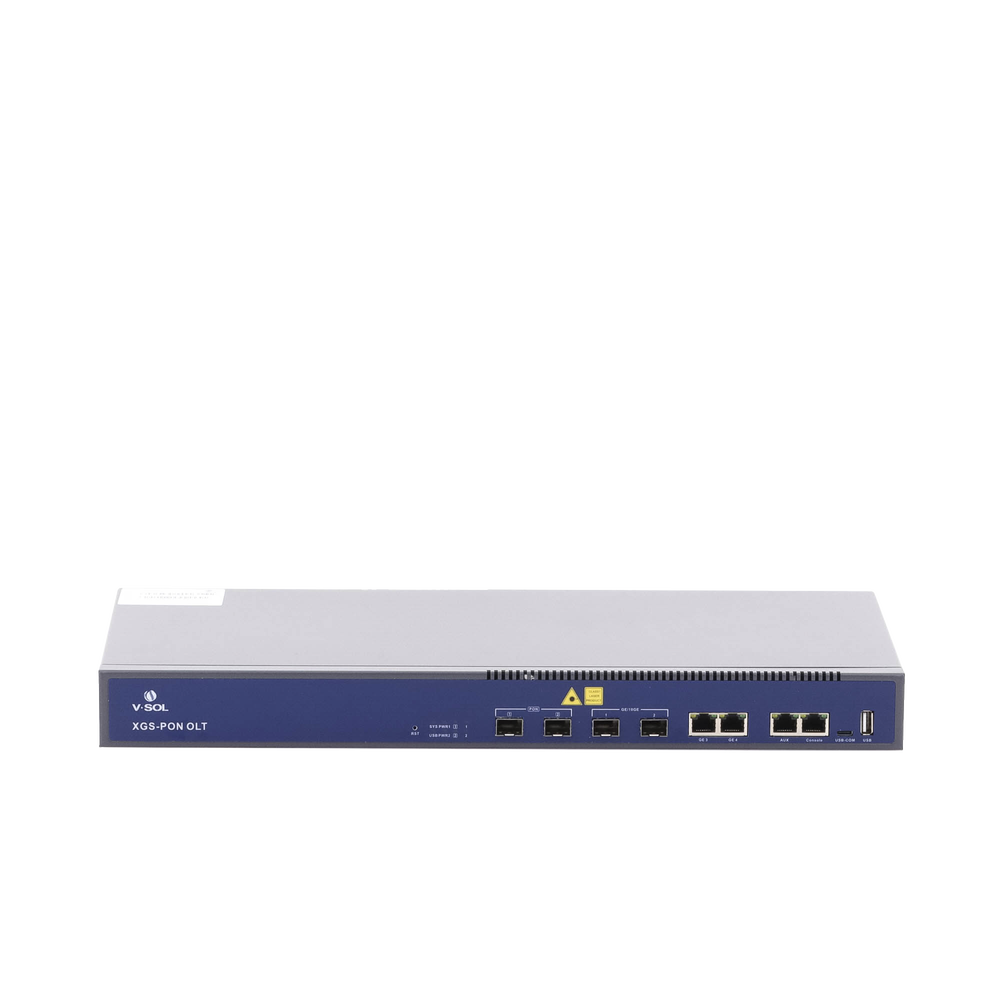

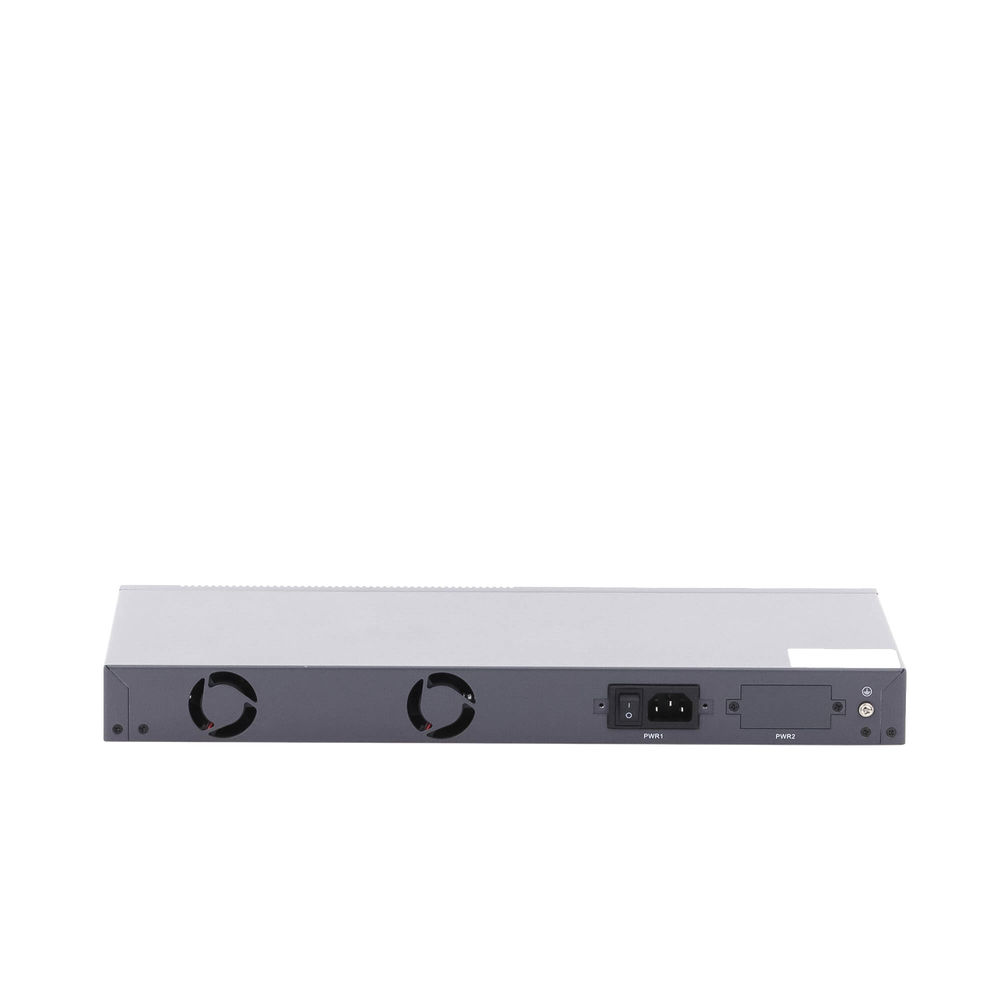

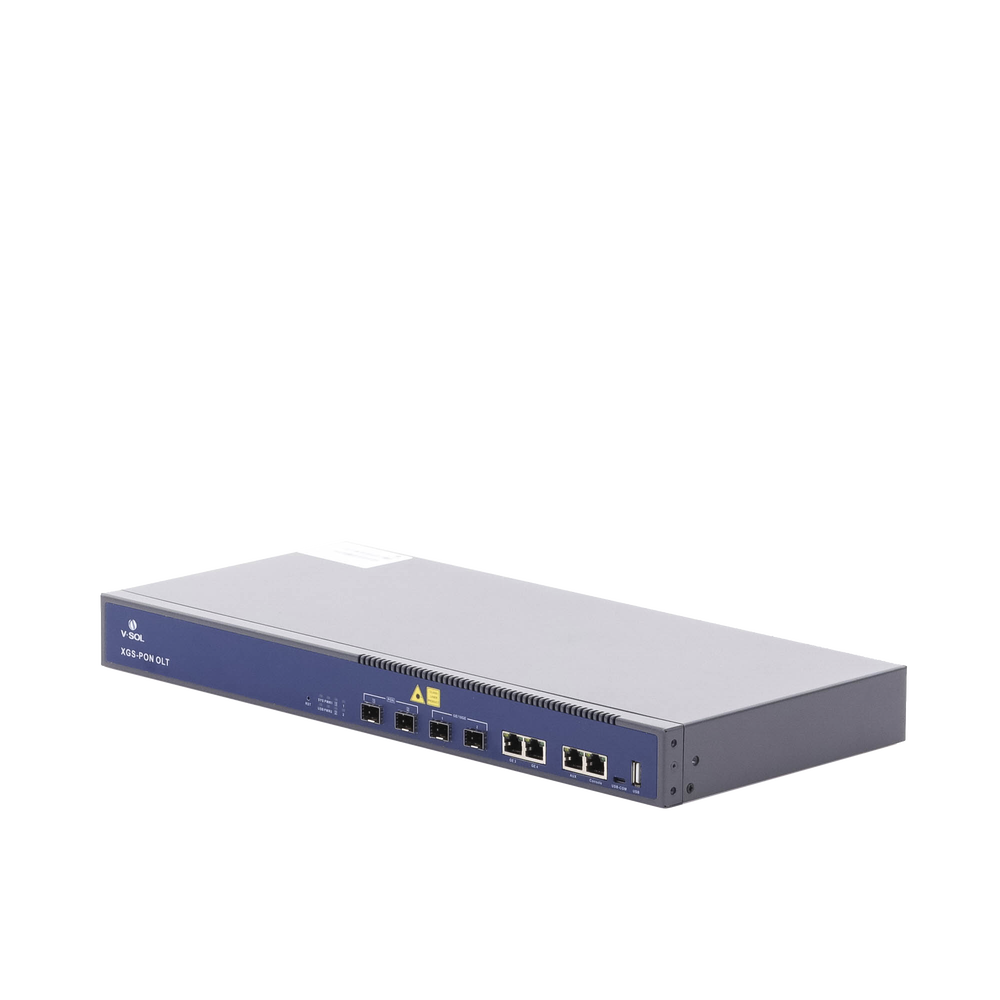

2-Port XGSPON OLT / 4 Uplink Ports (2 Gigabit RJ45 Ports + 2 SFP/SFP+ Ports) / Up to 512 ONUs

Sale price  $4,296,392 Regular price  $6,109,237
Skip to product information
OLT de 2 Puertos XGSPON / 4 Puertos Uplink (2 Puerto Gigabit RJ45 + 2 Puertos SFP/SFP+) / Hasta 512 ONUs

2-Port XGSPON OLT / 4 Uplink Ports (2 Gigabit RJ45 Ports + 2 SFP/SFP+ Ports) / Up to 512 ONUs

Sale price  $4,296,392 Regular price  $6,109,237
Shipping calculated at checkout.
Marca
V-SOL
Referencia / SKU
V1600-XG02
Disponibilidad
32 unidades disponibles
Descripción y especificaciones

2-Port XGSPON OLT / 4 Uplink Ports (2 Gigabit RJ45 Ports + 2 SFP/SFP+ Ports) / Up to 512 ONUs

Note: Due to an exclusive and limited promotion, 1 PON module is included (Valid while supplies last).

Main features:
  • Dimensions: 442*200*43.6mm (length × width × height).
  • Applications: Data (Residential/Business), Video Surveillance, IP Telephony, CATV .
  • Online ONU configuration and management.
  • Rack mount.
  • Bandwidth per PON port: Upstream 9.953 Gbps, Downstream 9.953 Gbps.
  • User-friendly management: EMS / Web / Telnet / CLI / SSH.
Physical and Electrical Characteristics:
  • Includes an AC power supply.
  • AC:
  • Maximum consumption: 40W.
  • Weight: 2.485 Kg.
  • Operating temperature: -0 to 55° C.

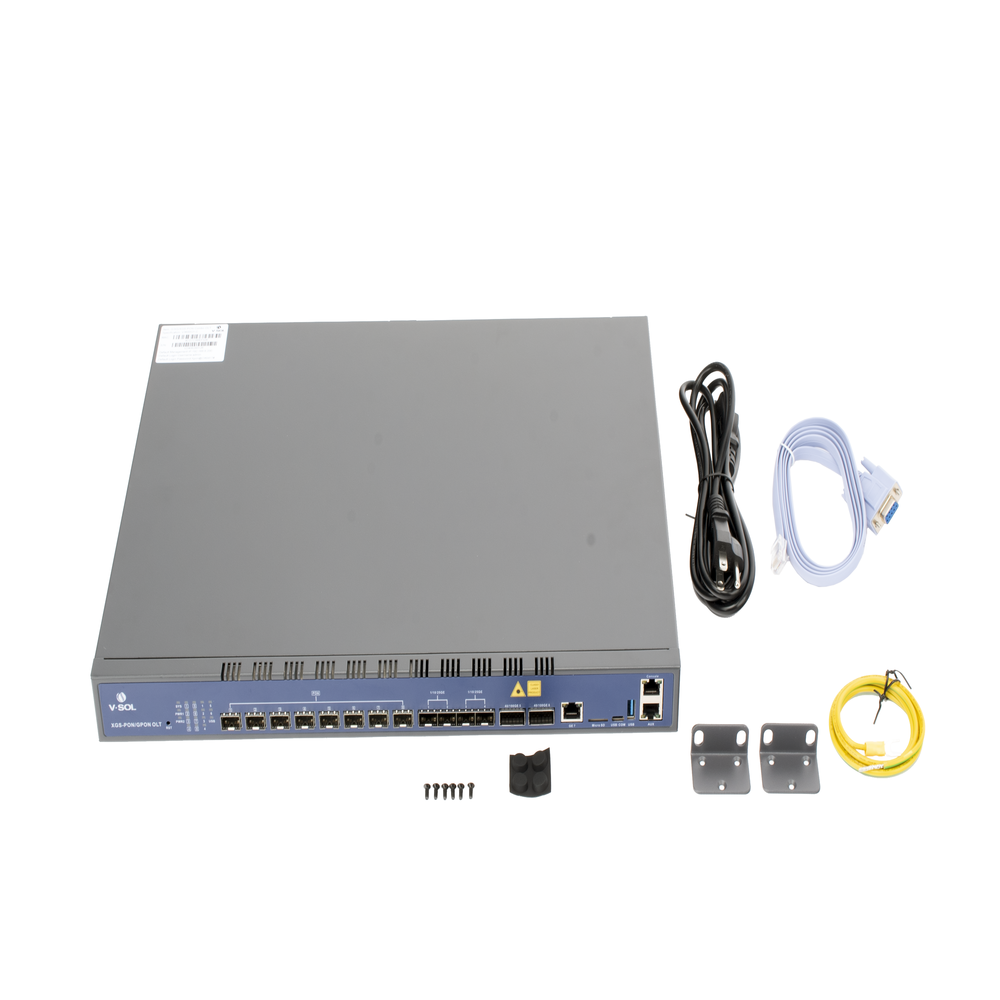

Accessories:

  • Rack mount.
  • Console cable (USB adapter not included).
  • Anti-skid rubber.
  • Includes 1 PON module.
  • Cable to land the OLT.
  • 1 Year warranty.

Network Features:

  • Up to 256 ONUs.
  • 2 Uplink RJ45 Gigabit ports.
  • 2 Uplink SFP/SFP+ 1/10 Gigabit ports.
  • Maximum distance 20 km on each PON port.
  • Basic Layer 3 and Layer 2 functions.
  • 1 Auxiliary Port. (Out-Band Management)
  • 1 Console Port (Command Line)
  • 2 XGSPON ports.
  • Splitting ratio per PON port: 1:256.

The Next Level in FTTx Networks

State-of-the-art innovative technology

High Capacity PON Ports

Optimization for the Best Cost/Benefit Ratio

Security Protection

Wide Range of Applications

V-SOL FTTH Application

    Online ONU configuration and management, Includes only 1 AC power supply, Rack mount (1RU), Includes 1 PON module (Valid while supplies last)
