• NVR 6 Megapixel / 4 canales IP / 4 Puertos PoE+ / 1 Bahías de Disco Duro / Switch PoE 300 mts / Admite Cruce de Línea y Detección de Intrusiones
1 2

HIKVISION

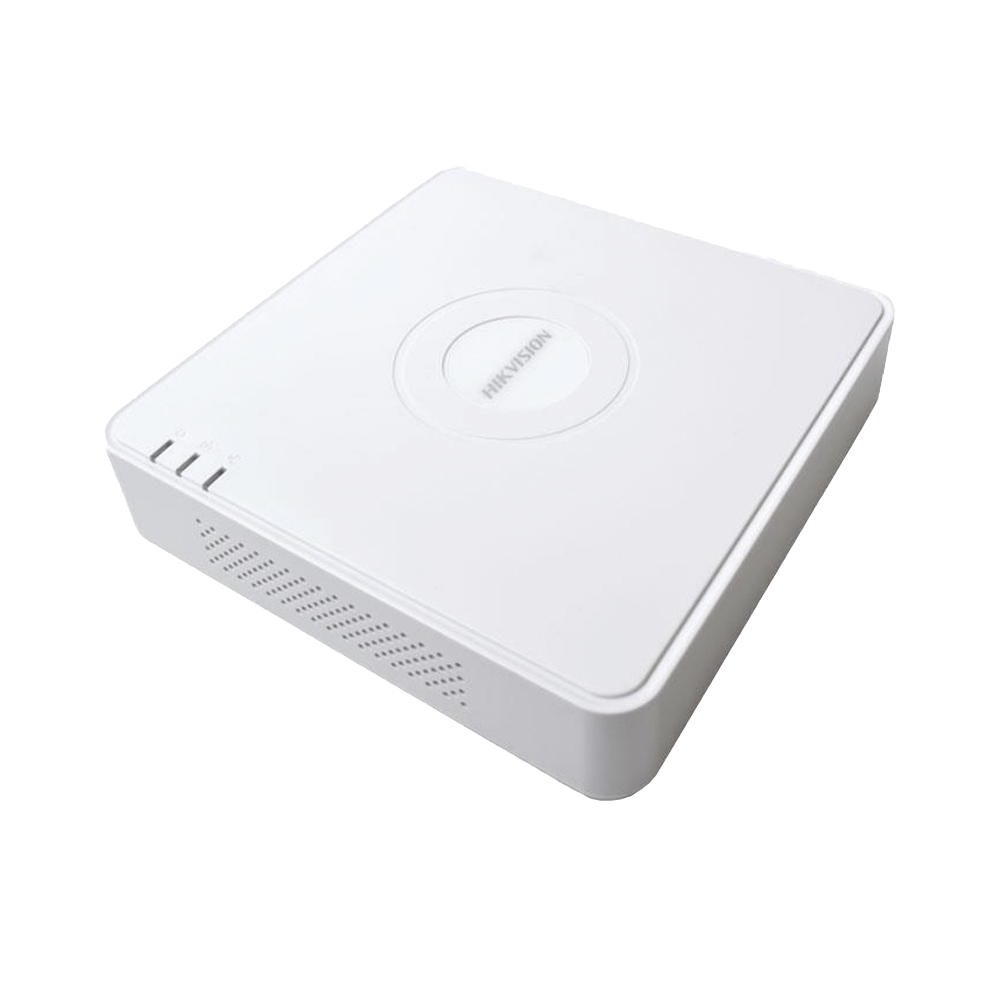

6 Megapixel NVR / 4 IP Channels / 4 PoE+ Ports / 1 Hard Drive Bay / 300m PoE Switch / Supports Line Crossing and Intrusion Detection

6 Megapixel NVR / 4 IP Channels / 4 PoE+ Ports / 1 Hard Drive Bay / 300m PoE Switch / Supports Line Crossing and Intrusion Detection

$404.491 COP
$442.413 COP $404.491 COP
Sale Sold out
Shipping calculated at checkout.

6 Megapixel NVR / 4 IP Channels / 4 PoE+ Ports / 1 Hard Drive Bay / 300m PoE Switch / Supports Line Crossing and Intrusion Detection

Main features:
  • Video compression: H.265+ / H.265 / H.264+ / H.264.
  • Supports USB mouse to operate (included).
  • Supports 1 HDD up to 6TB. (not included).
  • Supports local or remote calendar search.
  • Supports DDNS (Hik-Connect / DynDNS / No-IP).
  • Supports Hik-Connect P2P.
  • Supports remote access via phone: Android, iPhone, iPad (IVMS-4200 / Hik-Connect).
  • Support for IE, Mozilla, Safari, Chrome (ietab) browsers.
  • iVMS-4200 Client Software (Free).
  • Supports multiple brands such as: AXIS, ONVIF, PANASONIC, PSIA, SAMSUNG, ACTi, SANYO, ZAVIO, VIVOTEK among others.

Processing capacity and network functions:

  • Input throughput: 40 Mbps.
  • Output throughput: 60 Mbps.
  • 1 10/100 Mbps network port. (LAN)
  • 4 Built-in 802.3 at/af PoE+ Ports (Up to 36W per port, 80W total PoE).
  • When enabling EXTEND mode, the bandwidth will be 10Mbps and the power supply must not exceed 8W maximum per port.
  • Download and playback of recorded files on the NVR over the network.
  • Supports remote download of NVR alarm log.
  • Remote parameter configuration.
Physical and Electrical Characteristics:
  • Dimensions: 200 × 200 × 48 mm.
  • Power: 48 VDC / 1 A / 10 W without HDD and with PoE disabled.
  • Operating temperature: -10°C to 55°C (14°F to 131°F).
  • Work in humidity: 10% to 90%.
  • Weight: 1 Kg without HDD.
  • Warranty: 2 years.
Input/Output Interfaces:
  • HDMI Video Output: 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz.
  • VGA Video Output: 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz.
  • Independent HDMI and VGA output.
  • External recording: Not supported.
  • SATA disk capacity: 1 HDD up to 6TB.
  • e-SATA Support: Not supported.
  • Disk Array: Not supported.

Recording and Viewing Functions:

  • Multi-zone motion detection 2.0 up to 4 channels.
  • Digital zoom in viewing and recording.
  • Dual stream (main stream and sub stream).
  • Supports fast forward, slow forward, frame by frame, etc.
  • Supports SMART hard drive technology
  • Supports multiple recording types, including real-time recording, manual recording, video recording, video recording and alarm, and video recording or alarm.
  • Supports cyclic (overwrite) and non-cyclic recording.
  • Supports line crossing and intrusion detection

Decoding Resolution per Channel (recommended with H.265):
  • 2 channels at 4 MP.
  • 4 channels at 1080p.
  • Synchronous playback on channels: 8 Channels.

Extended mode

Enabling extended mode allows us to reach distances of up to 250 meters per port. Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total power consumption.

What is H.265+?

H.265+ is Hikvision's patented compression method, it allows

save up to 80% of storage and bandwidth.

  • More cameras (3MP / 5MP / 4K) with lower bandwidth consumption.
  • More recording time with fewer hard drives.

    Supports line crossing and intrusion detection, 4 PoE channels, 1 disk bay up to 6 TB

18 in stock

MODELO: DS-7104NI-Q1/4P(D)
