• DVR 4 Canales 720p / Audio por Coaxial / Codificación de Hasta 1080p Lite a 30 fps / H.265 Pro+/H.265 Pro/H.265 / 1 Bahía de Disco Duro / Salida simultánea HDMI/VGA
1 1

HIKVISION

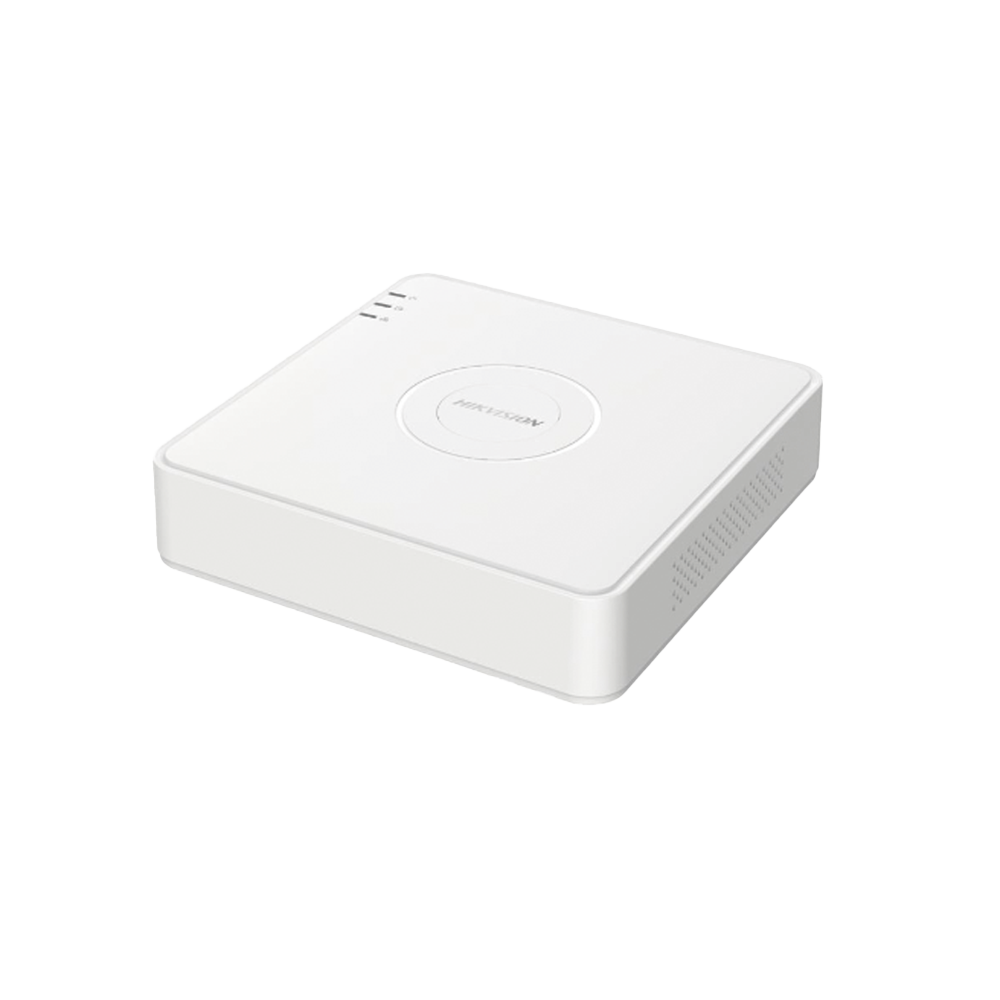

4 Channel 720p DVR / Coaxial Audio / Up to 1080p Lite Encoding at 30 fps / H.265 Pro+/H.265 Pro/H.265 / 1 Hard Drive Bay / Simultaneous HDMI/VGA Output

4 Channel 720p DVR / Coaxial Audio / Up to 1080p Lite Encoding at 30 fps / H.265 Pro+/H.265 Pro/H.265 / 1 Hard Drive Bay / Simultaneous HDMI/VGA Output

$175.411 COP
$191.856 COP $175.411 COP
Sale Sold out
Shipping calculated at checkout.

4 Channel 720p DVR / Coaxial Audio / Up to 1080p Lite Encoding at 30 fps / H.265 Pro+/H.265 Pro/H.265 / 1 Hard Drive Bay / Simultaneous HDMI/VGA Output

Main features:
  • Technology support: HD-TVI / HD-CVI / AHD / Analog (CVBS) / IP.
  • iVMS-4200 client software.
  • Compatible with Hik-Connect P2P ( https://appstore.hikvision.com/ ).
  • Support Hik-connect Domain/DynDNS/NO-IP service.
  • Supports 4 TURBOHD / analog channels + 1 IP channel = 5 channels in total.
  • NOTE: Allows you to turn off analog channels to add IP channels.
  • It has AcuSense to filter humans and vehicles by motion detection (It does not have video analytics such as line crossings / area entry)
Physical and Electrical Characteristics:
  • Power supply: 12 VDC / 1.5 A.
  • Power consumption without hard drive: 16 W.
  • Operating temperature: -10 ºC to 55 ºC
  • Dimensions: 200 × 200 × 45 mm (W × D × H)
  • Weight: 0.8 Kg without hard drive.
  • Warranty: 2 years.

Compression and resolution:

  • H.265+ / H.265 / H.264+ / H.264.
  • 1080p Streams: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF.
  • 720p Streaming: 720p/WD1/4CIF/VGA/CIF.
  • SD Transmission: WD1/4CIF/VGA/CIF.
  • IP: 2 Megapixel (1080p).

Input/Output Interfaces:
  • Video Output: HDMI/VGA Simultaneous Output
    • HDMI: 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz.
    • VGA: 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz.
  • Audio input: 1 (RCA, 2.0 Vp-p, 1KΩ).
  • 4 Audio inputs via coaxitron.
  • Audio output: 1 (RCA, 2.0 Vp-p, 1KΩ).
  • Alarm input: N/A
  • Alarm output: N/A
  • Network interface: 1 port (RJ-45 10/100 Mbps).
  • HDD Capacity: 1 @ 4 TB.

Considerations:

  • To use 2-way audio, it is recommended to place a microphone on the audio input; a camera with coaxitron audio is not recommended for 2-way audio.
  • To connect IP channels you need to use a PoE switch (not included)
  • Coaxitron audio is received only by the TVI signal.
  • Does not support channel zero.
  • Not compatible with remote control.
  • Note: Does not support channel zero.
  • Not compatible with remote control.

    Up to 5-channel IP camera inputs (up to 2 MP), HDTVI/AHD/CVI/CVBS/IP video inputs, 4-channel audio input via coaxial cable

164 in stock

MODELO: DS-7104HGHI-M1(C)
