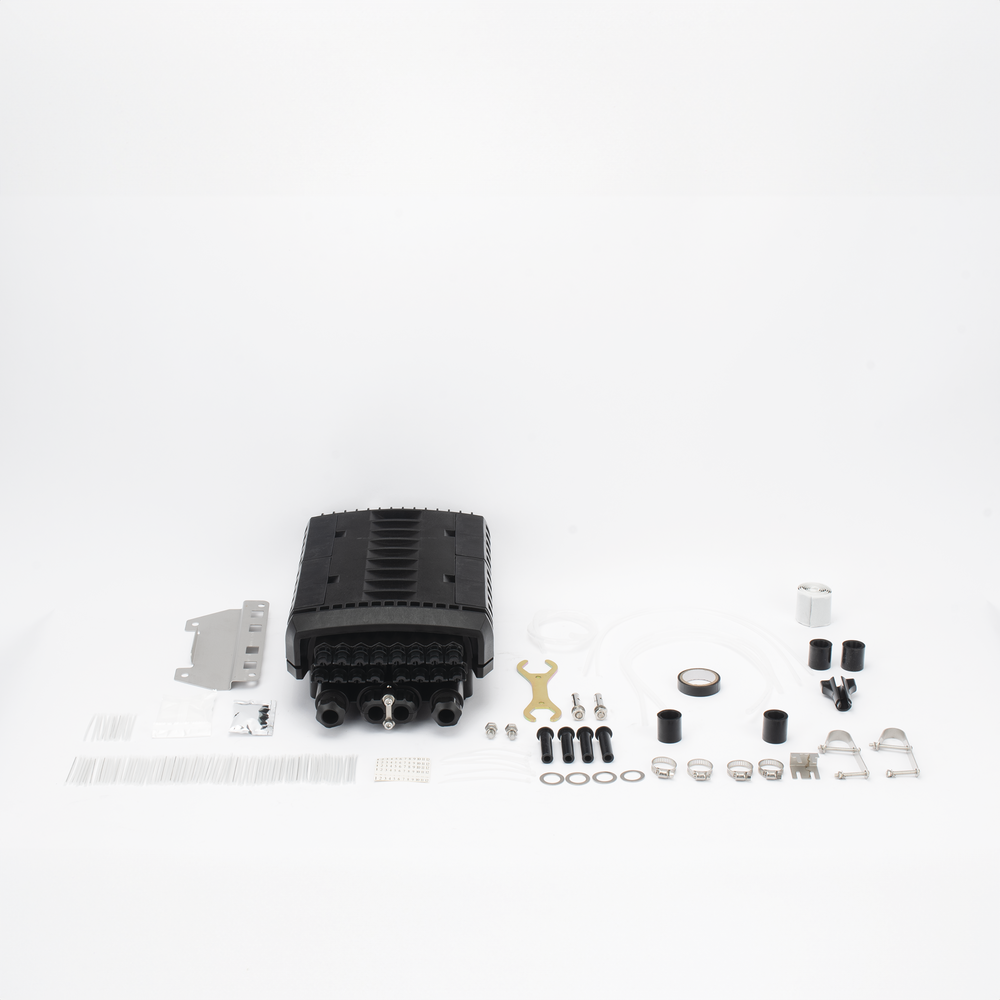

Fiber Optic Distribution Box for 24 Splice Enclosures with 16 SC/APC Couplers. Direct Burial, IP68, 1x16 Splitter Included with SC/APC Connectors

Fiber Optic Distribution Box for 24 Splice Enclosures with 16 SC/APC Couplers. Direct Burial, IP68, 1x16 Splitter Included with SC/APC Connectors

The LP-FAT16DB NAP splice box is used as a termination point for connecting a backbone or distribution fiber cable to a drop cable in an FTTx network. Typically used to house second-level splitters, they feature couplers for quick and easy access , providing IP68 protection and robust management for FTTx network construction.

Characteristics:

• Waterproof design with IP-68 protection.

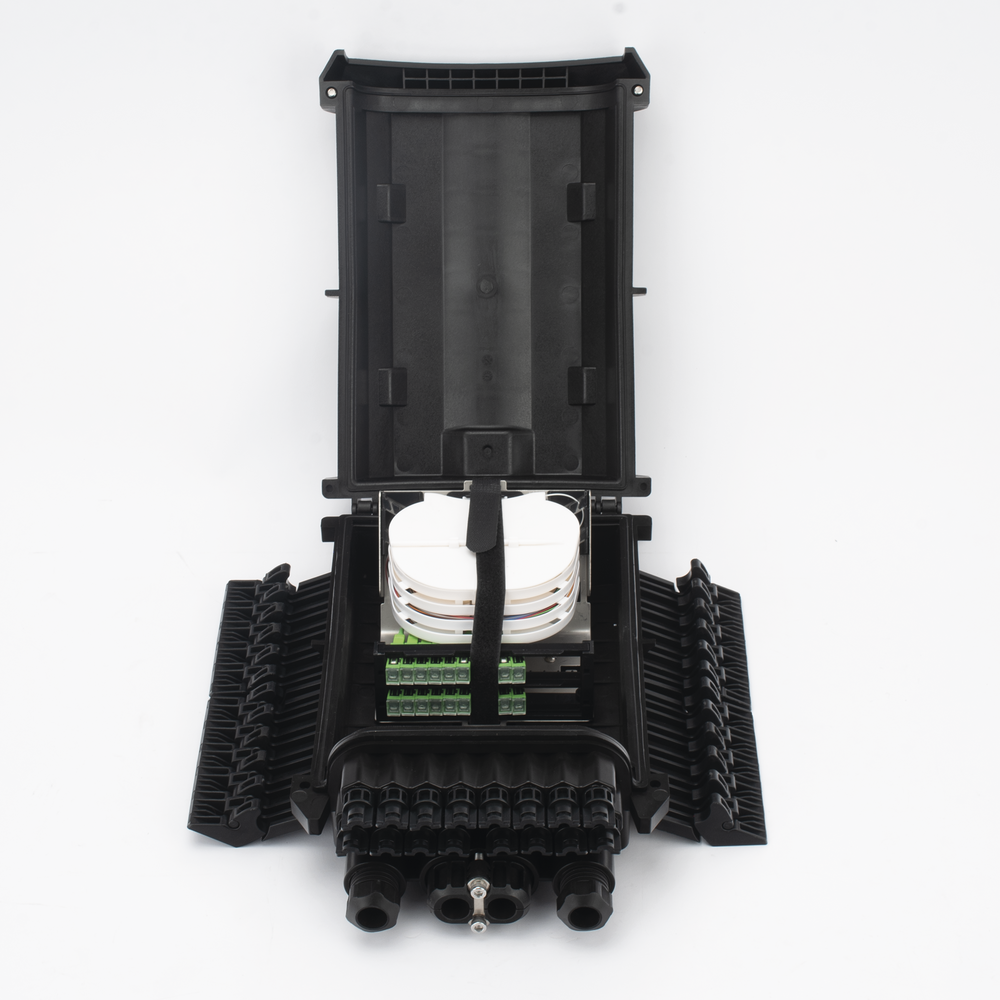

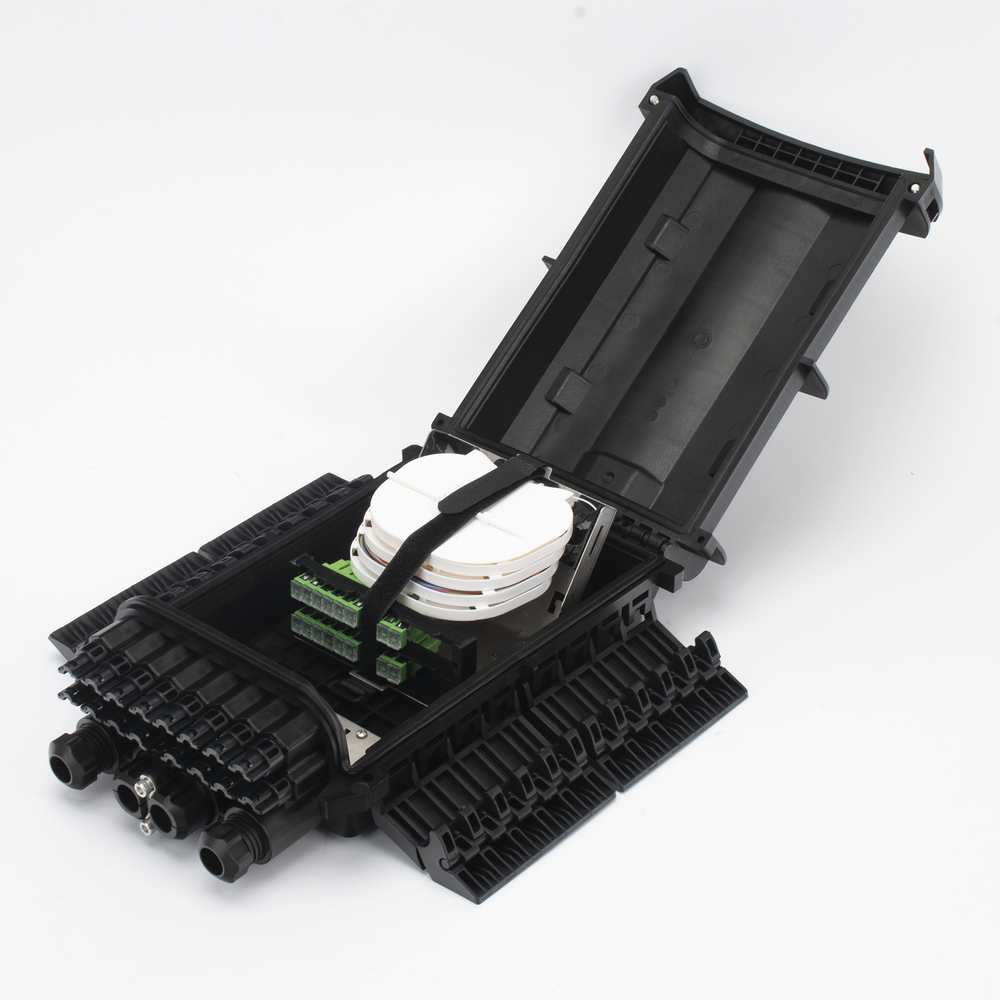

• Integrated with splice tray and coupler holder.
• IK10 impact test, Pull force: 100N, fully rugged design.
• Control of curvature radius greater than 40 mm.
• Up to 2 1x8 splitters can be installed (optional).
• 16 input/output ports for Drop cable.

Specs:

• 16 Drop fiber ports.
• 1 oval port for 10 - 17.5 mm trunk fiber.
• 2 round ports for distribution fiber from 8 to 17.5 mm.
• Installation: wall or post.
• Splitter: 1x16 with SC/APC connectors (included).
• Includes 16 single-mode simplex SC/APC couplers.
• IP68
• Material: PC
• Operating Temperature: -40°C ~ +65°C
• Application: Exterior
• Weight: 4.5 Kg

Waterproof design with IP-68 protection, Recommended for NAP, Splitter: 1x16 with SC/APC connectors (included)
