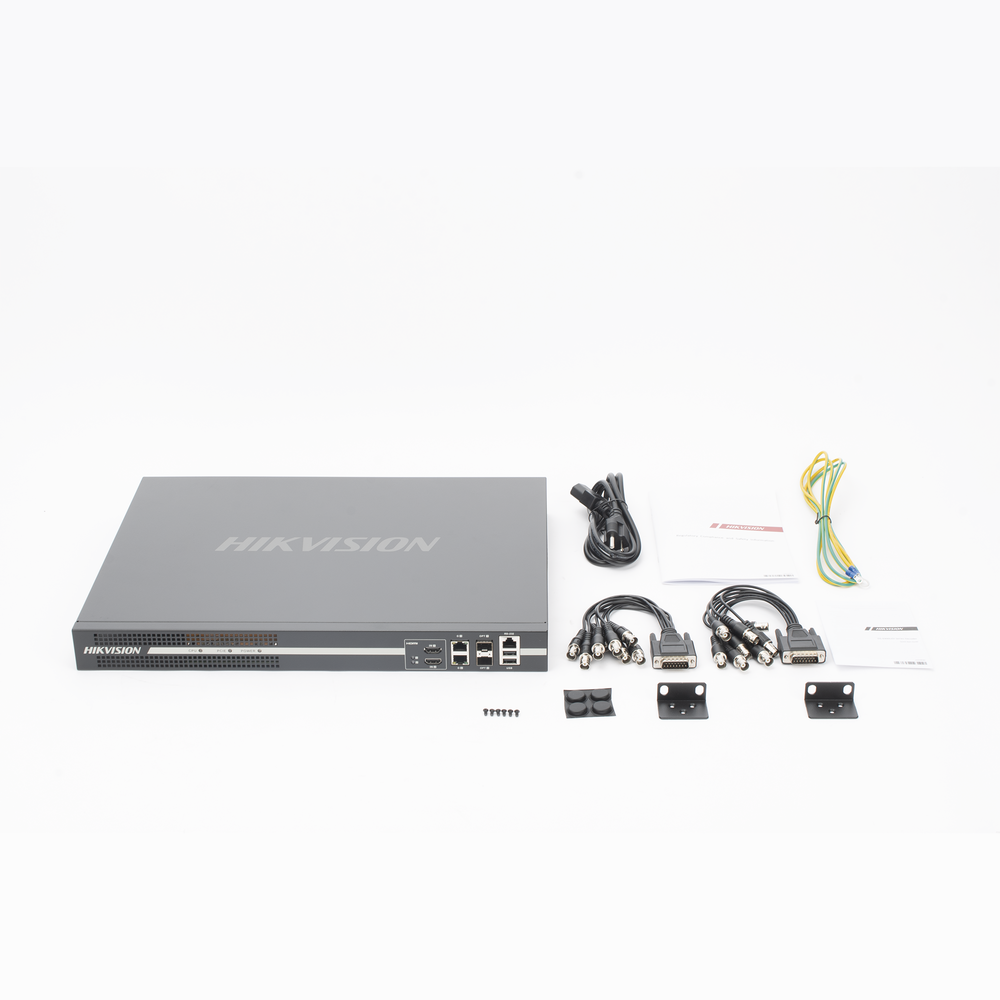

4-channel video decoder with 4K output / 4 HDMI outputs / Supports up to 64 simultaneous video channels / Video wall

• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG.
• 4K video output.
• Supports remote video decoding.
• Supports two-way audio (3.5mm audio input/output).
• 8 alarm inputs and 8 outputs.

• Power supply: 110 - 220 VAC, 50 W.
• Operating temperature: -10 to 55 °C.
• Humidity: 10% to 90%
• Dimensions: 440 x 320.8 x 44.5 mm.
• Weight: 5.2 kgs.
• Warranty: 3 years.

• 1 RJ45 ports 10/100/1000 Mbps (local network management).
• 2 Fiber Optic Ports 100 base-FX/1000 base-X
• 1 RS-232 (RJ45) serial port.
• 1 RS-485 port

Video inputs and outputs:

• 4 HDMI video outputs.
• 2 HDMI video inputs.

• 64 channels 720p
• 32 channels 1080p
• 16 channels 4MP
• 10 channels 6MP
• 8 channels 8MP
• 4 channels 12MP
• 2 channels 24MP or 32MP

• Hik-Central software licenses need to be quoted:
  - HIKCENTRALPVSS/BASE (Video Base License)
  - HIKCENTRALPSMARTWALL/MODULE (license to add video wall module)
• A workstation is required to manage the software and configure the video wall.
